Speech Input Control Module Through August 2008

NOTE:

Unlisted connector terminals are not assigned.

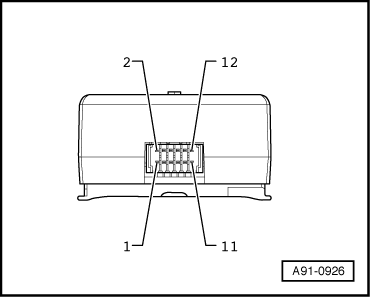

Fig 1: Identifying Speech Input Control Module J507, Multi-Pin Connector Assignments

Courtesy of AUDI OF AMERICA, LLC

3 -

Status

4 -

Diagnosis

5 -

Terminal 30

6 -

Reset signal

7 -

Power good

8 -

Power on

9 -

Terminal 31

10 -

MOST out

11 -

Enable

12 -

MOST in
