Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Access/Start Authorization Antenna (Driver's) | In left rear door. See Figure. |
| Access/Start Authorization Antenna (Front Passenger's) | Rear of luggage compartment. See Figure. |
| Alarm Horn | In right plenum chamber. See Figure. |
| Auxiliary Air Heating Element (11) | Right side of HVAC assembly. See Figure. |
| Battery Interrupt Igniter | Right side of luggage compartment, at battery positive lead. See Figure. |

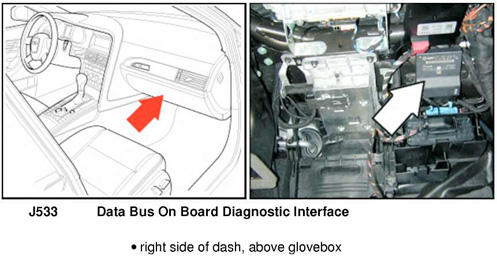

| Data Bus On Board Diagnostic Interface | Above glove box. See Figure. |
| Headlamp Power Output Stage (Gas-Discharge Headlamps) | At headlight assembly. See Figure. |
| High Tone Horn | Behind front grille. See Figure. |
| Ignition Coils W/Power Output Stage No. 1 - 5 (14) | Top of cylinder bank 1. See Figure. |
| Ignition Coils W/Power Output Stage No. 6 - 10 (8) | Top of cylinder bank 2. See Figure. |
| Keyless Access Authorization Antenna Reader | Above glove box. See Figure. |
| Low Tone Horn | Behind front grille. See Figure. |
| Suppressor | In right plenum chamber E-box. See Figure. |
| Tire Pressure Monitoring Antenna | In roof, near rear passenger overhead lights. See Figure. |
