Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

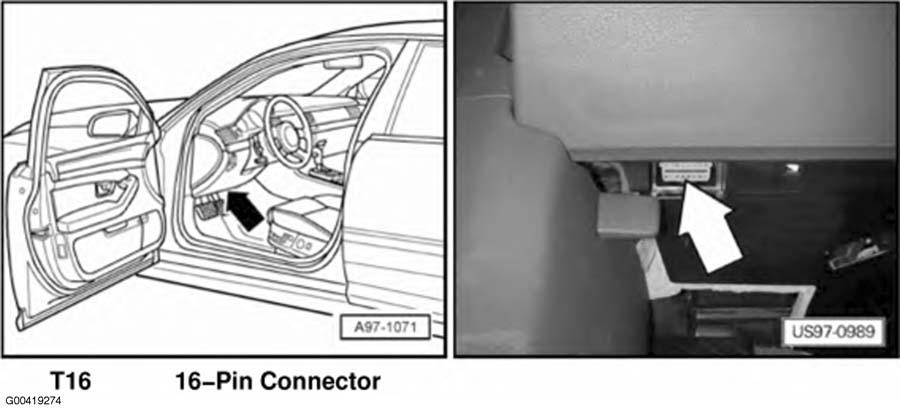

Fig 1: Under Left Side Of Dash

G00419274

Courtesy of AUDI OF AMERICA, INC.

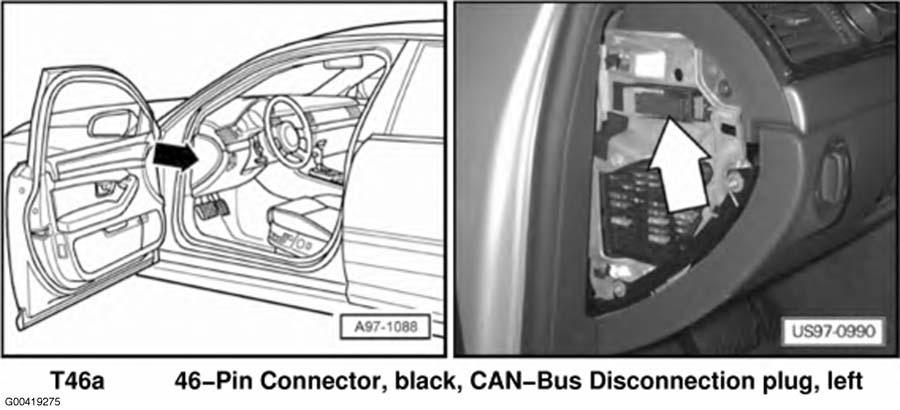

Fig 2: Left End Of Dash

G00419275

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Right End Of Dash

G00419276

Courtesy of AUDI OF AMERICA, INC.

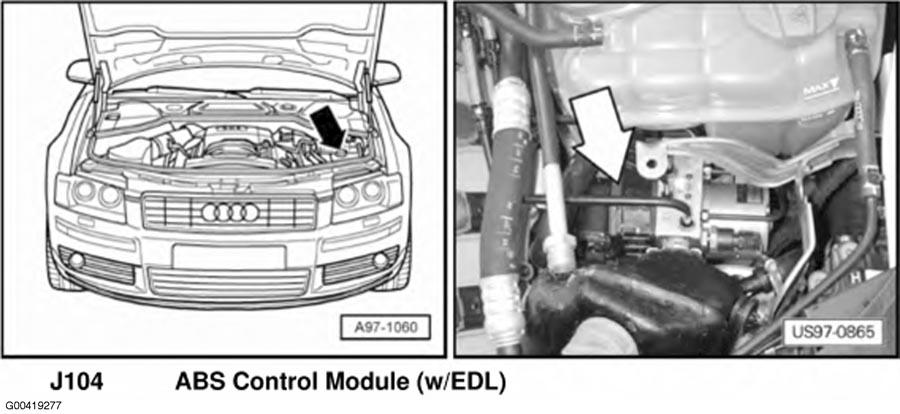

Fig 4: Left Side Of Engine Compartment

G00419277

Courtesy of AUDI OF AMERICA, INC.

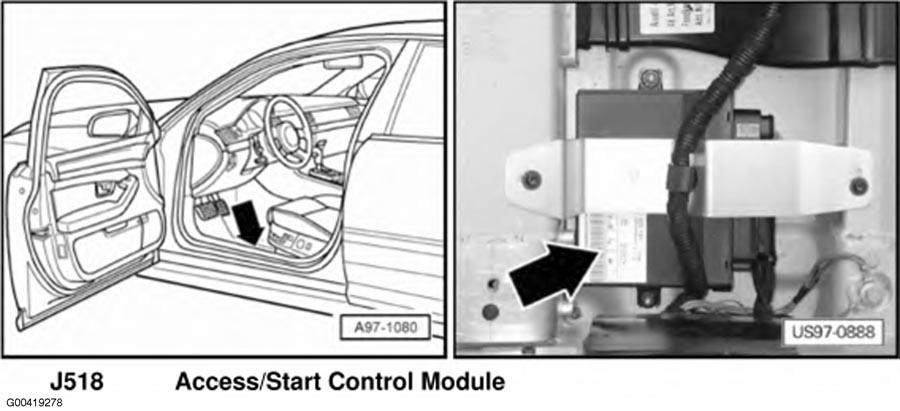

Fig 5: Under Driver's Seat

G00419278

Courtesy of AUDI OF AMERICA, INC.

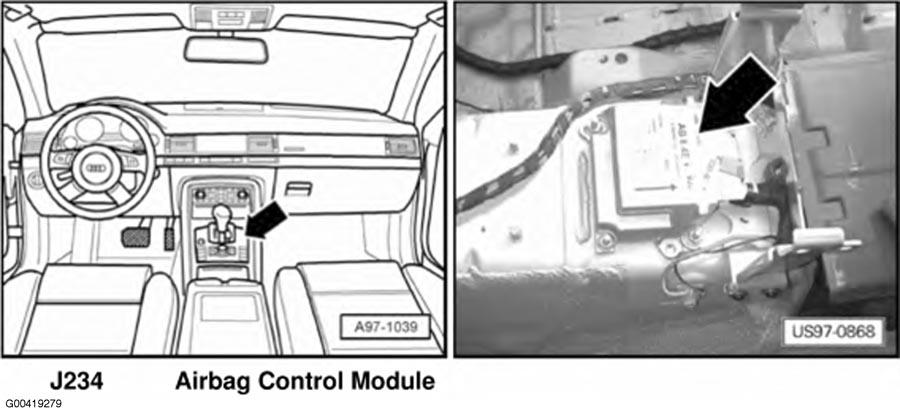

Fig 6: Under Center Of Dash

G00419279

Courtesy of AUDI OF AMERICA, INC.

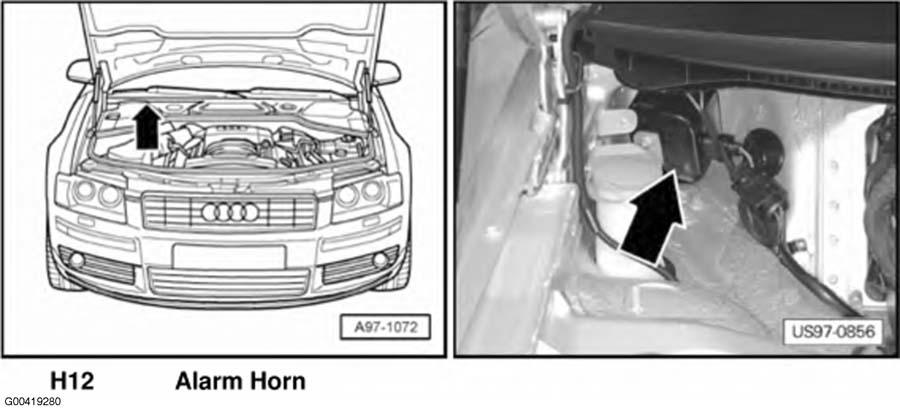

Fig 7: Right Rear Of Engine Compartment

G00419280

Courtesy of AUDI OF AMERICA, INC.

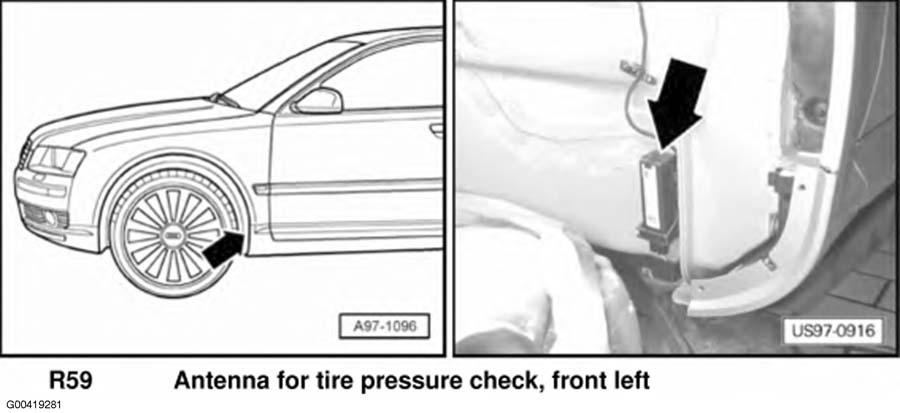

Fig 8: Left Front Wheel Well

G00419281

Courtesy of AUDI OF AMERICA, INC.

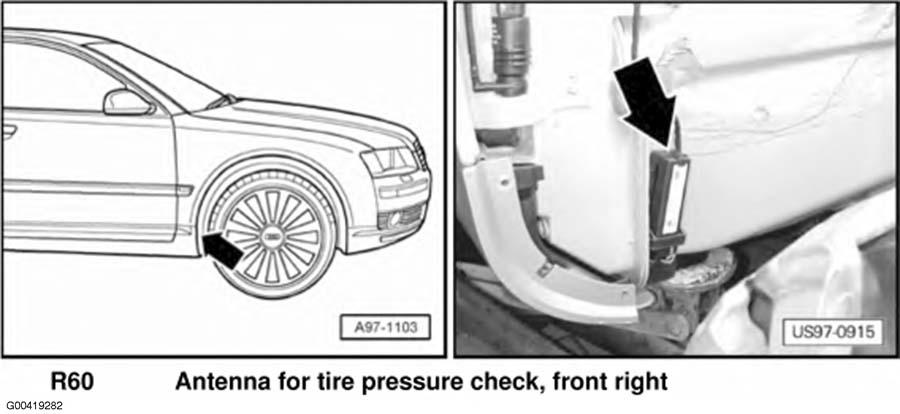

Fig 9: Right Front Wheel Well

G00419282

Courtesy of AUDI OF AMERICA, INC.

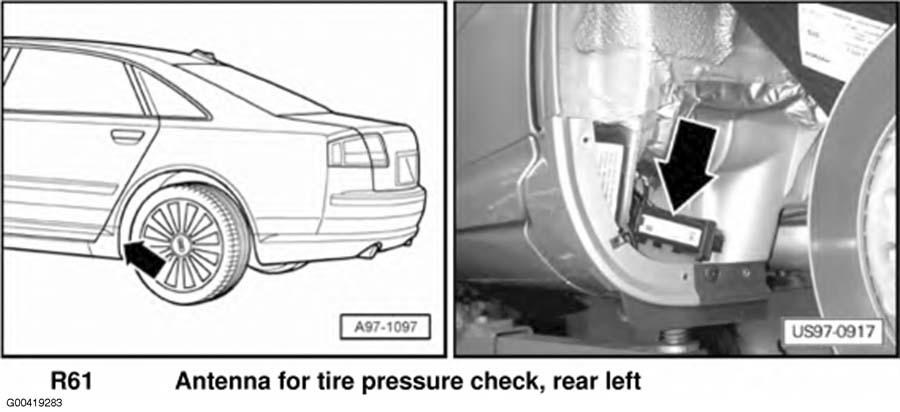

Fig 10: Left Rear Wheel Well

G00419283

Courtesy of AUDI OF AMERICA, INC.

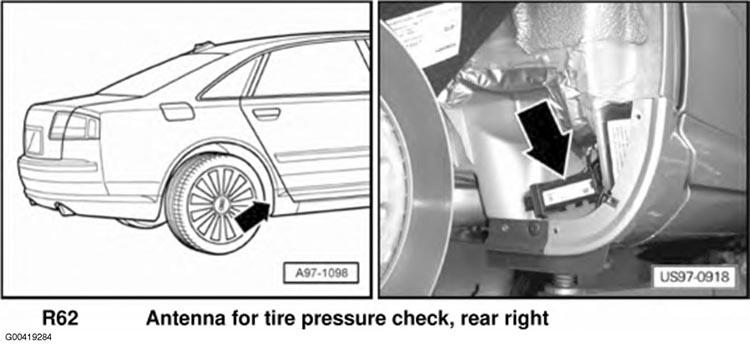

Fig 11: Right Rear Wheel Well

G00419284

Courtesy of AUDI OF AMERICA, INC.

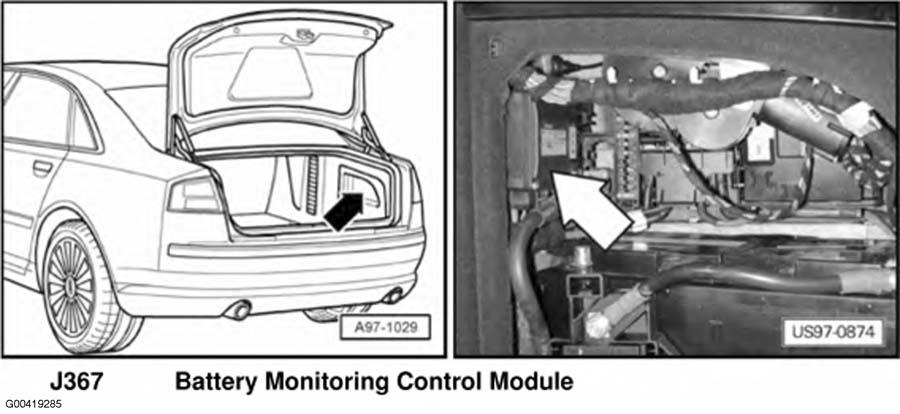

Fig 12: Right Side Of Trunk

G00419285

Courtesy of AUDI OF AMERICA, INC.

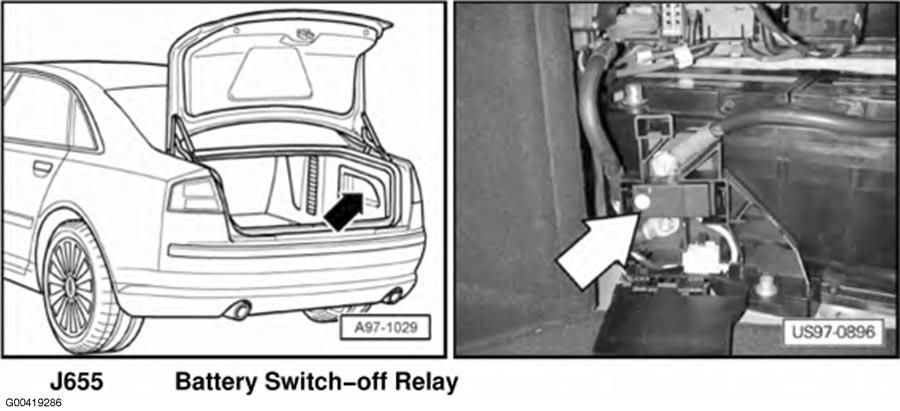

Fig 13: Right Side Of Trunk

G00419286

Courtesy of AUDI OF AMERICA, INC.

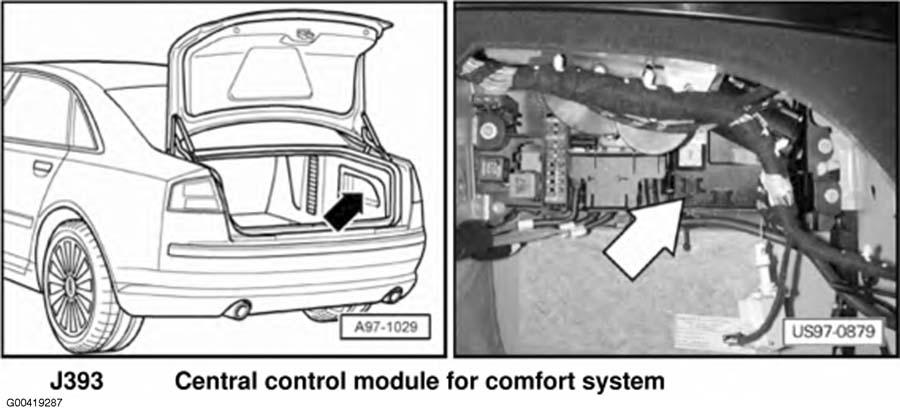

Fig 14: Right Side Of Trunk

G00419287

Courtesy of AUDI OF AMERICA, INC.

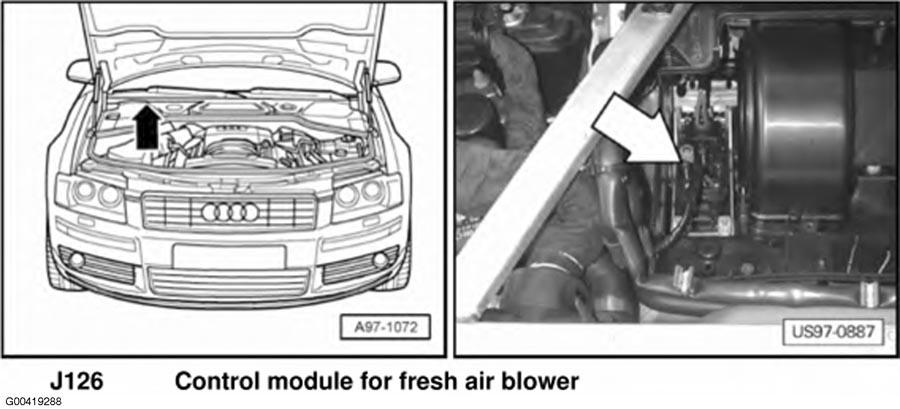

Fig 15: Right Rear Of Engine Compartment

G00419288

Courtesy of AUDI OF AMERICA, INC.

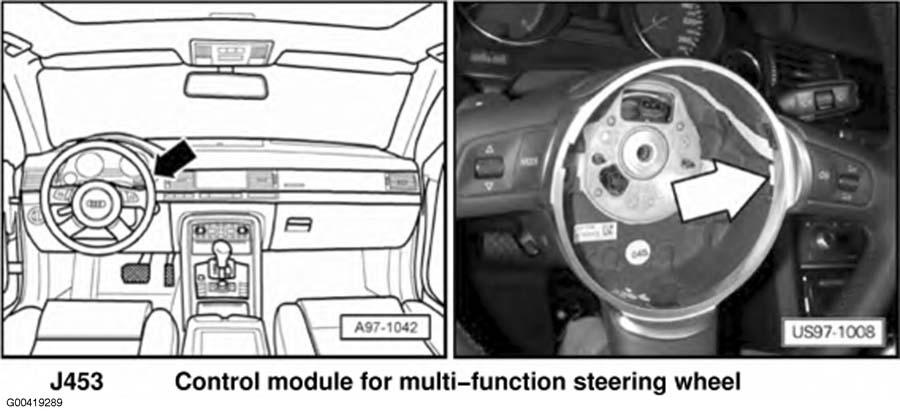

Fig 16: In Steering Wheel

G00419289

Courtesy of AUDI OF AMERICA, INC.

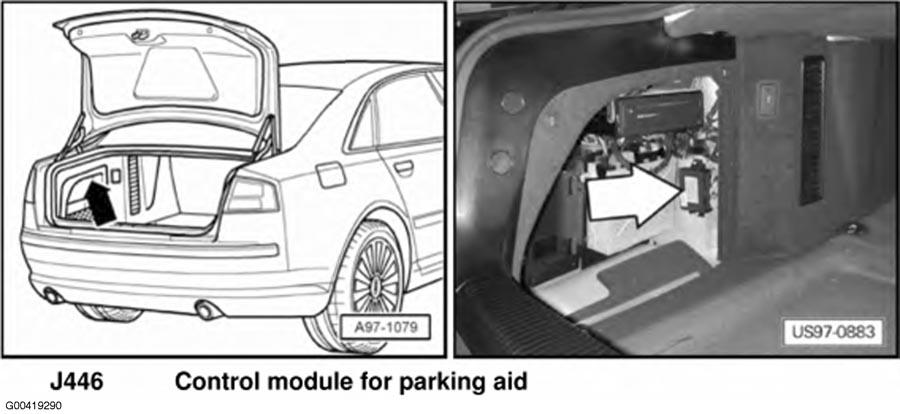

Fig 17: Left Side Of Trunk

G00419290

Courtesy of AUDI OF AMERICA, INC.

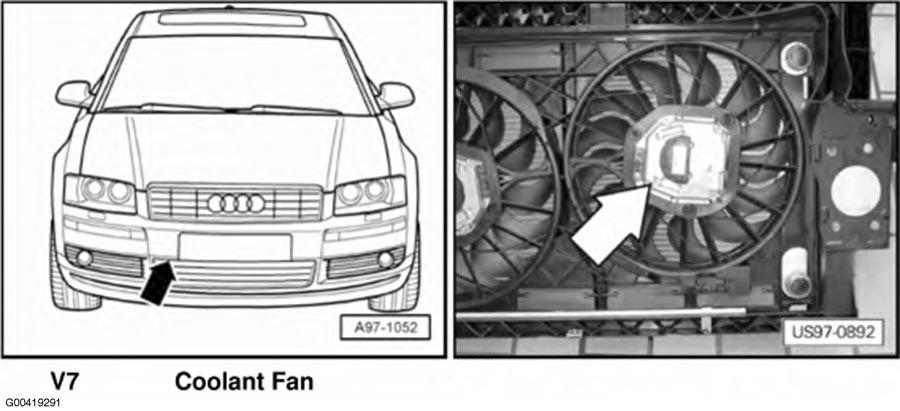

Fig 18: Right Front Of Engine Compartment

G00419291

Courtesy of AUDI OF AMERICA, INC.

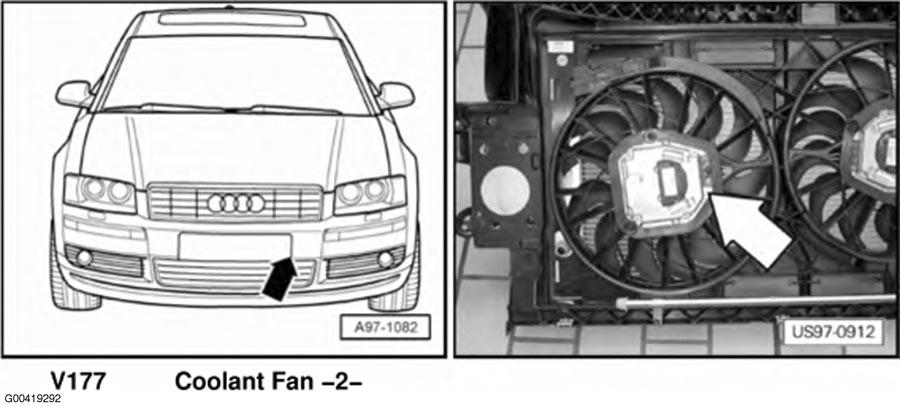

Fig 19: Left Front Of Engine Compartment

G00419292

Courtesy of AUDI OF AMERICA, INC.

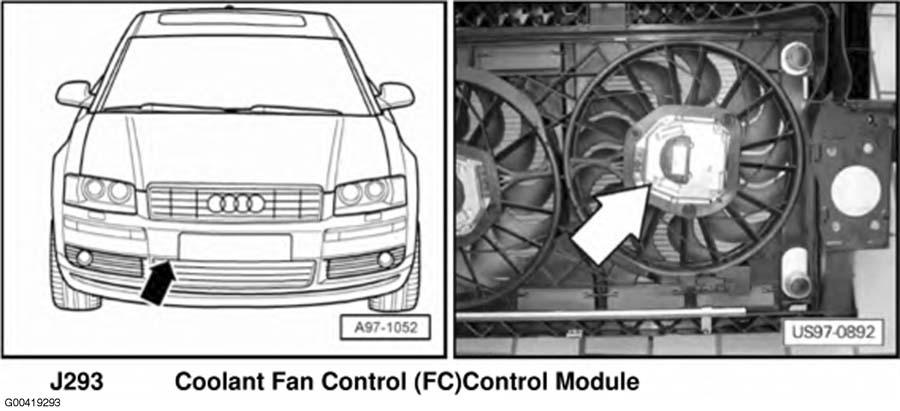

Fig 20: Right Front Of Engine Compartment

G00419293

Courtesy of AUDI OF AMERICA, INC.

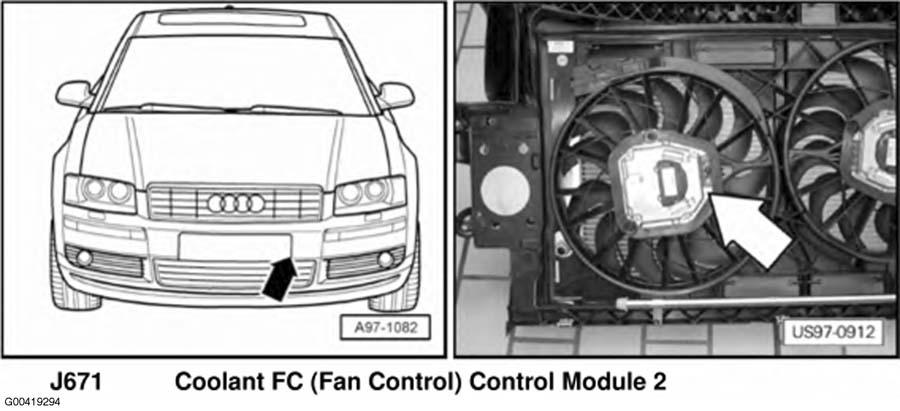

Fig 21: Left Front Of Engine Compartment

G00419294

Courtesy of AUDI OF AMERICA, INC.

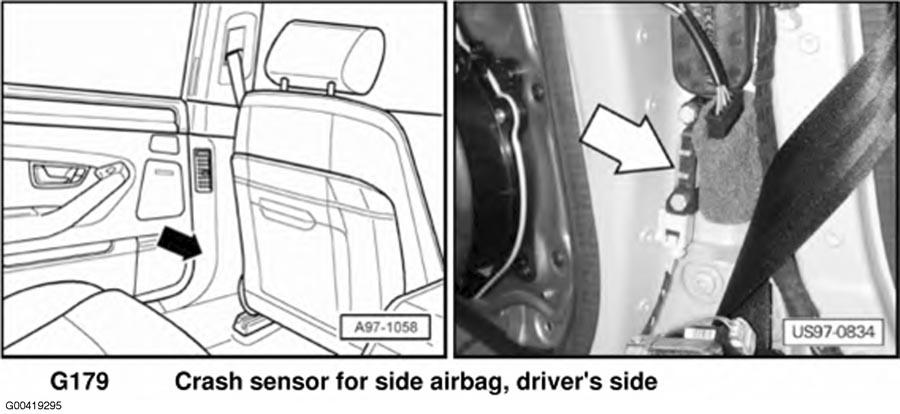

Fig 22: Left "B" Pillar

G00419295

Courtesy of AUDI OF AMERICA, INC.

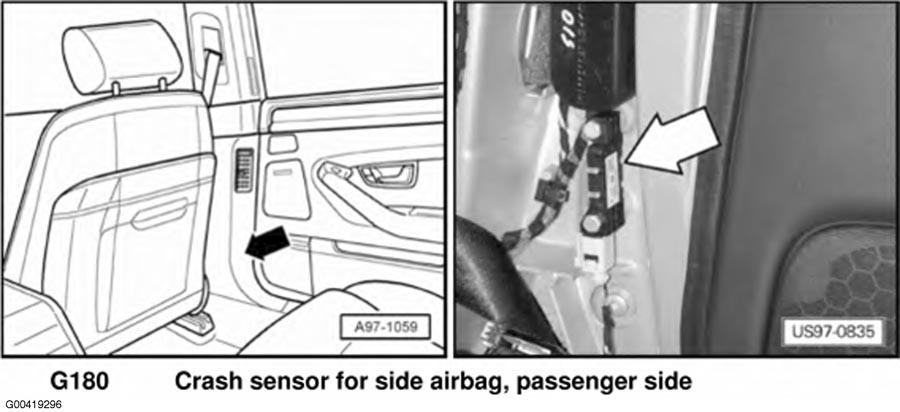

Fig 23: Right "B" Pillar

G00419296

Courtesy of AUDI OF AMERICA, INC.

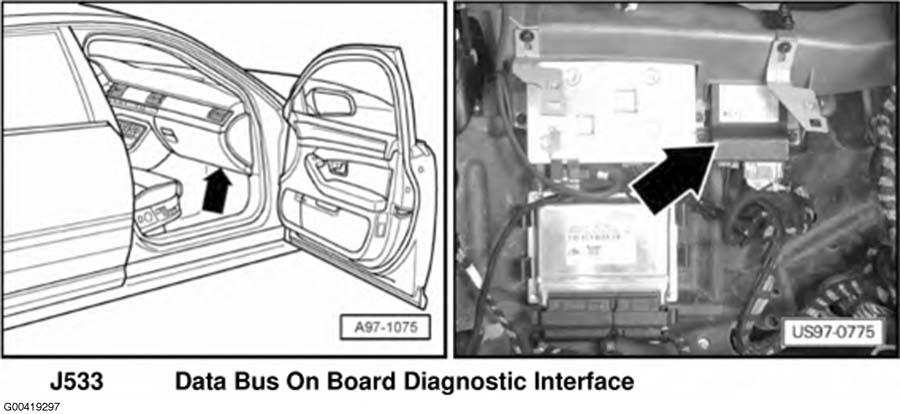

Fig 24: Behind Right Side Of Dash

G00419297

Courtesy of AUDI OF AMERICA, INC.

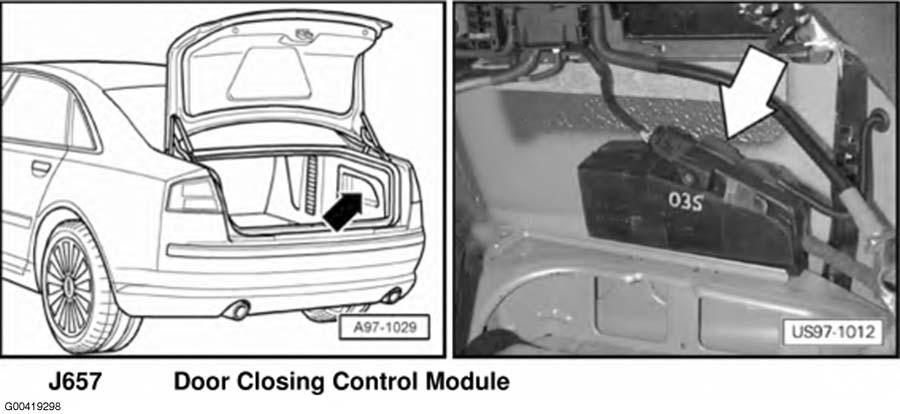

Fig 25: Right Side Of Trunk

G00419298

Courtesy of AUDI OF AMERICA, INC.

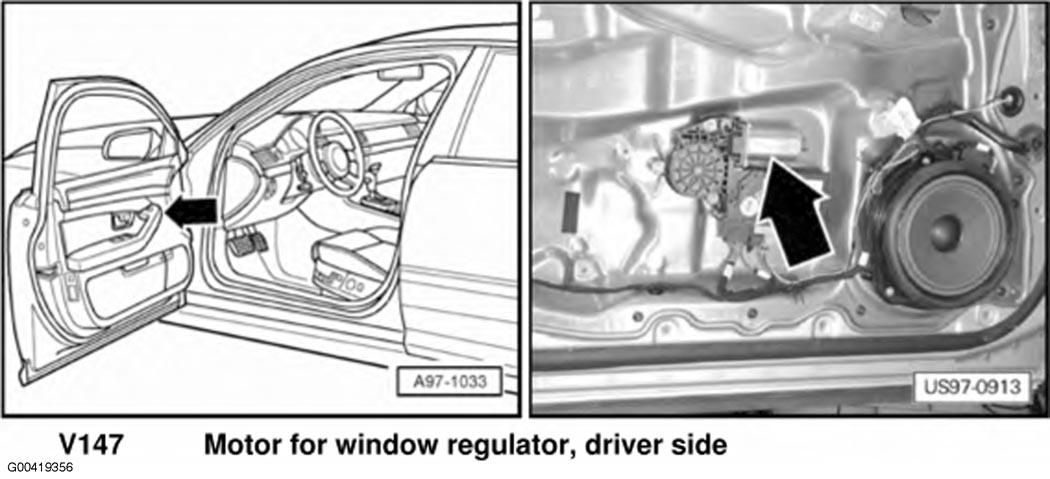

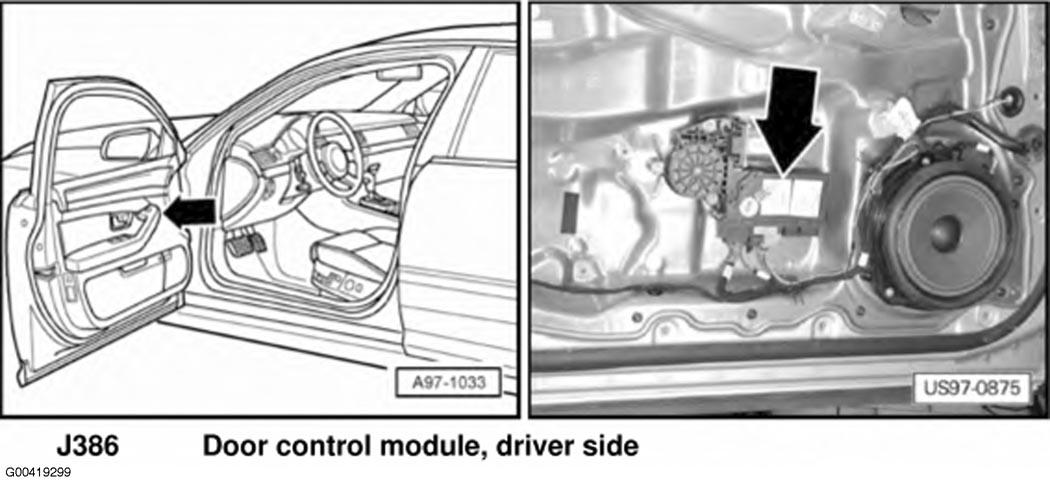

Fig 26: Driver's Door

G00419299

Courtesy of AUDI OF AMERICA, INC.

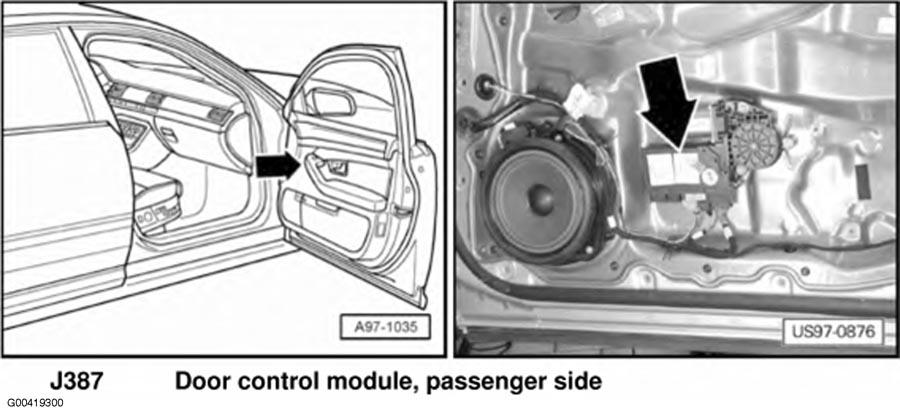

Fig 27: Passenger's Door

G00419300

Courtesy of AUDI OF AMERICA, INC.

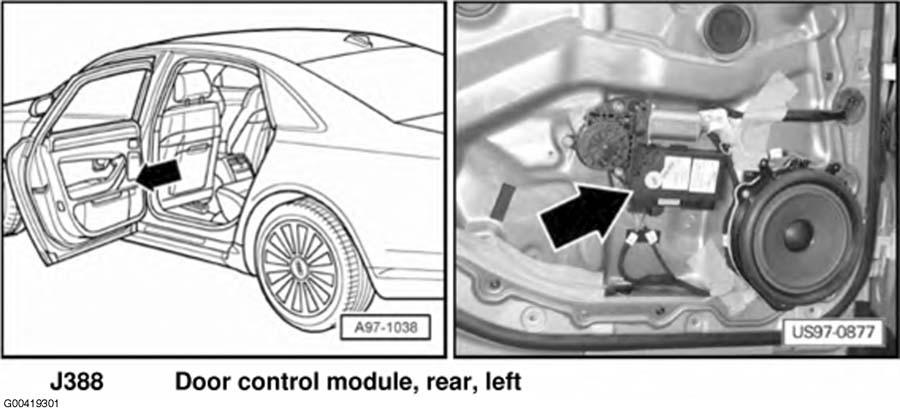

Fig 28: Left Rear Door

G00419301

Courtesy of AUDI OF AMERICA, INC.

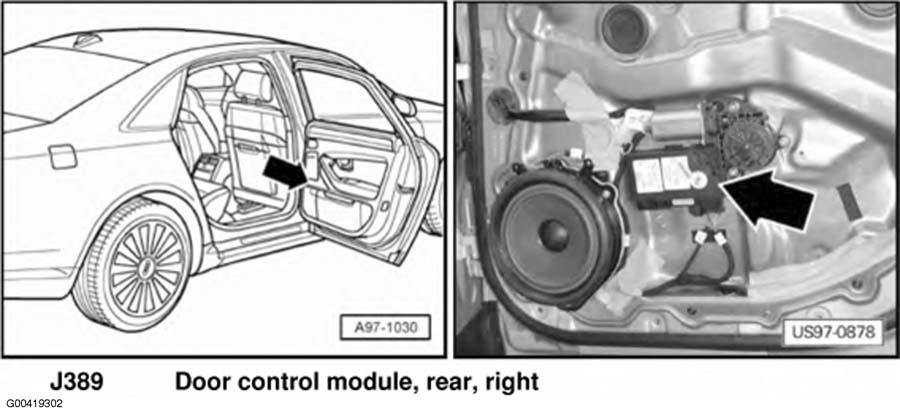

Fig 29: Right Rear Door

G00419302

Courtesy of AUDI OF AMERICA, INC.

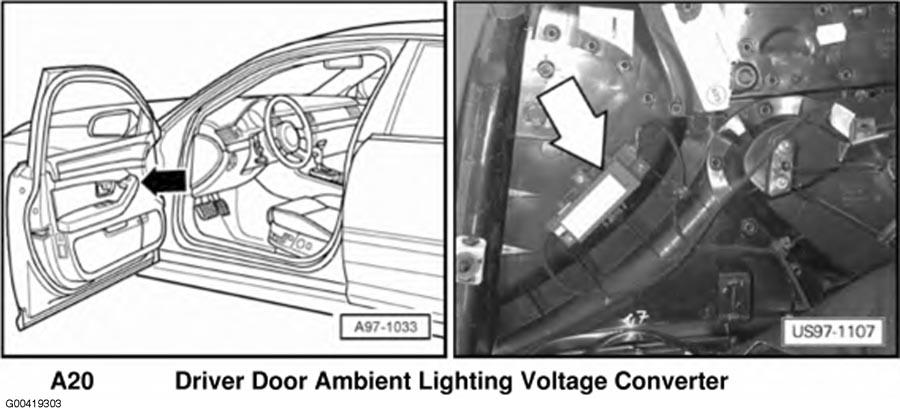

Fig 30: Driver's Door

G00419303

Courtesy of AUDI OF AMERICA, INC.

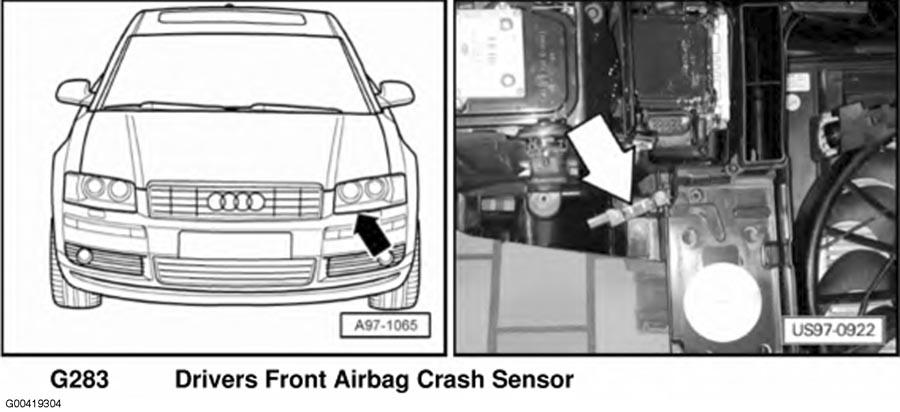

Fig 31: Left Front Of Vehicle

G00419304

Courtesy of AUDI OF AMERICA, INC.

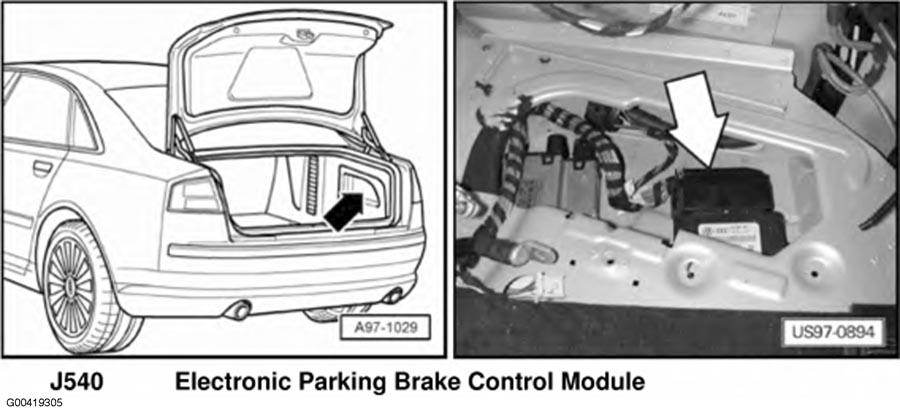

Fig 32: Right Side Of Trunk

G00419305

Courtesy of AUDI OF AMERICA, INC.

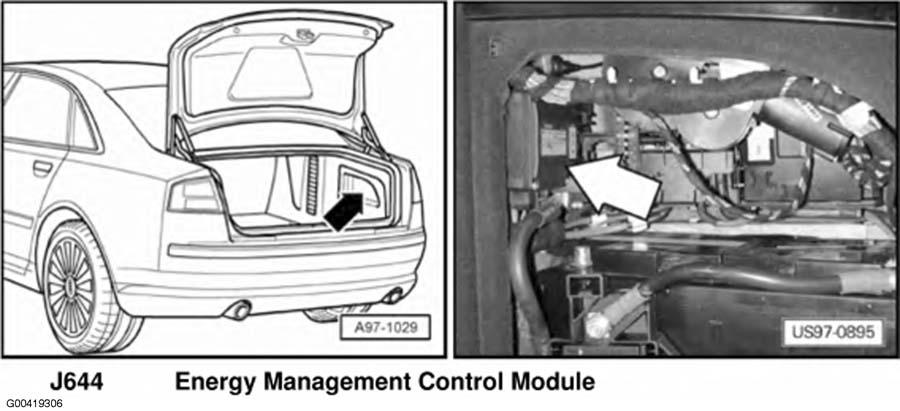

Fig 33: Right Side Of Trunk

G00419306

Courtesy of AUDI OF AMERICA, INC.

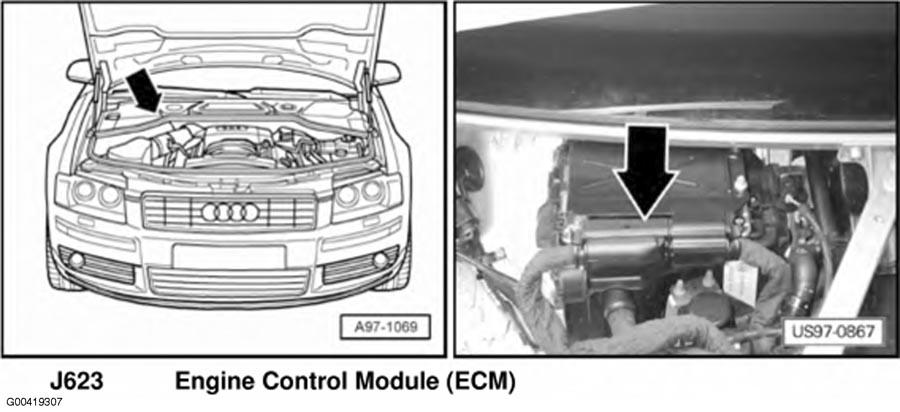

Fig 34: Right Rear Of Engine Compartment

G00419307

Courtesy of AUDI OF AMERICA, INC.

Fig 35: Right Rear Of Engine Compartment

G00419308

Courtesy of AUDI OF AMERICA, INC.

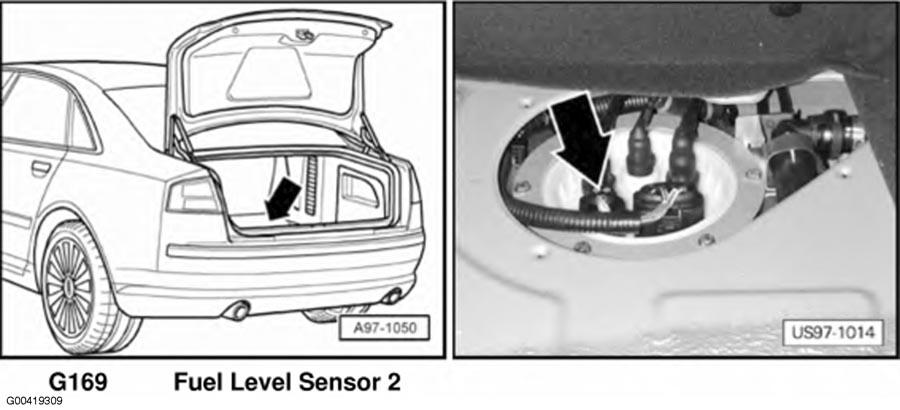

Fig 36: Top Of Fuel Tank

G00419309

Courtesy of AUDI OF AMERICA, INC.

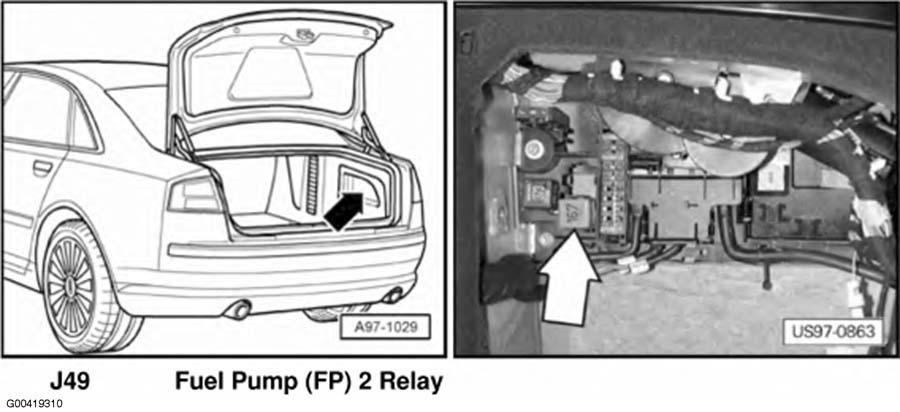

Fig 37: Right Side Of Trunk

G00419310

Courtesy of AUDI OF AMERICA, INC.

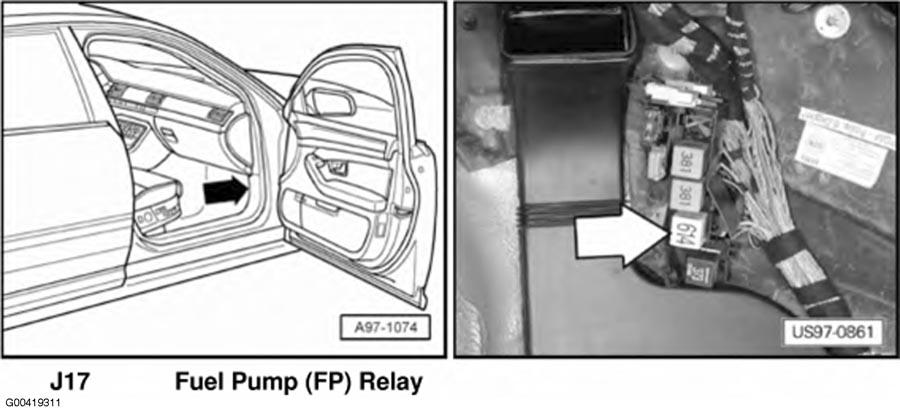

Fig 38: Right Kick Panel

G00419311

Courtesy of AUDI OF AMERICA, INC.

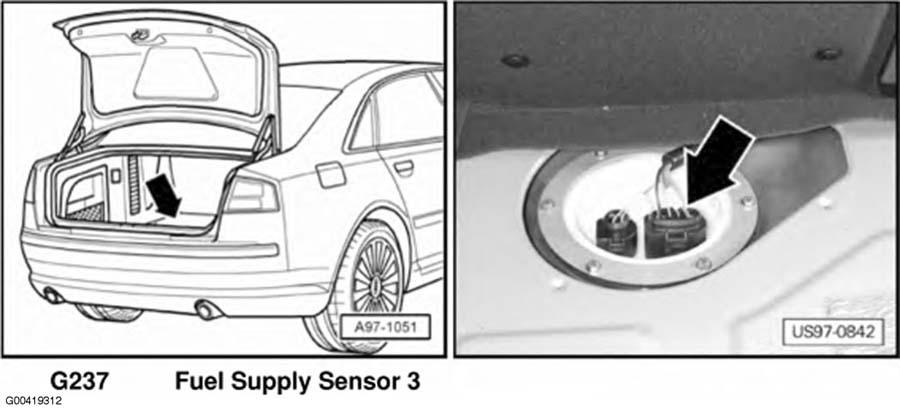

Fig 39: Top Of Fuel Tank

G00419312

Courtesy of AUDI OF AMERICA, INC.

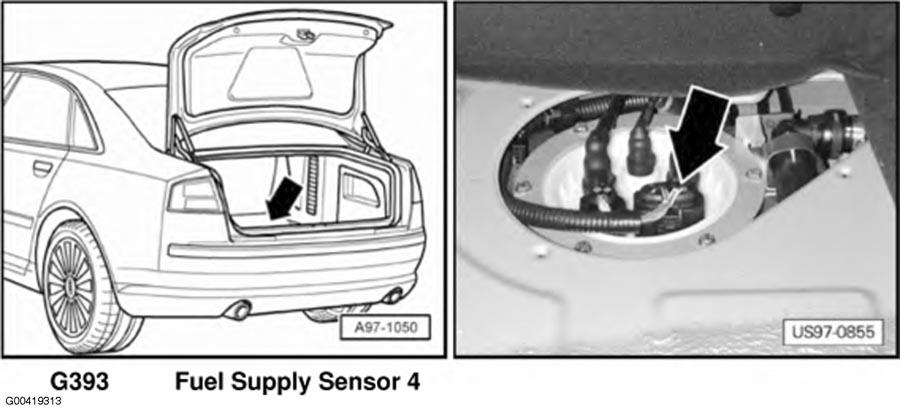

Fig 40: Top Of Fuel Tank

G00419313

Courtesy of AUDI OF AMERICA, INC.

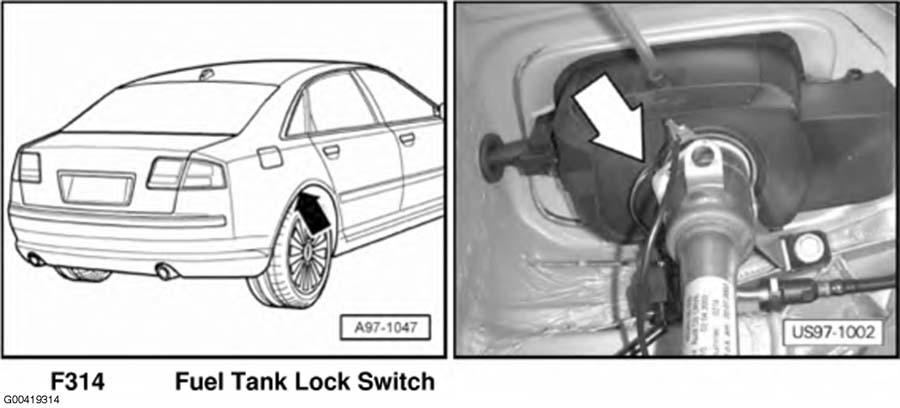

Fig 41: Right Rear Wheel Well

G00419314

Courtesy of AUDI OF AMERICA, INC.

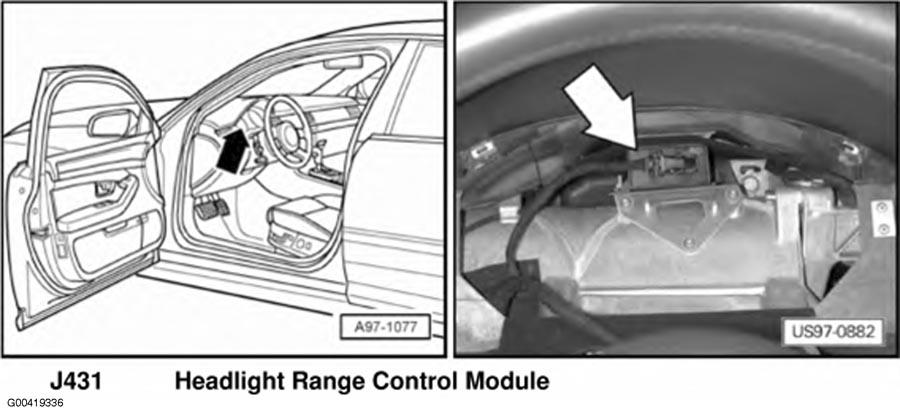

Fig 42: Behind Left Side Of Dash

G00419336

Courtesy of AUDI OF AMERICA, INC.

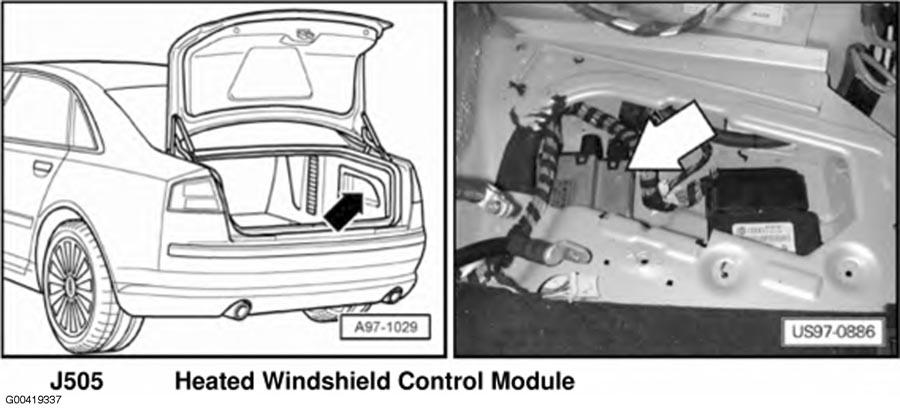

Fig 43: Right Side Of Trunk

G00419337

Courtesy of AUDI OF AMERICA, INC.

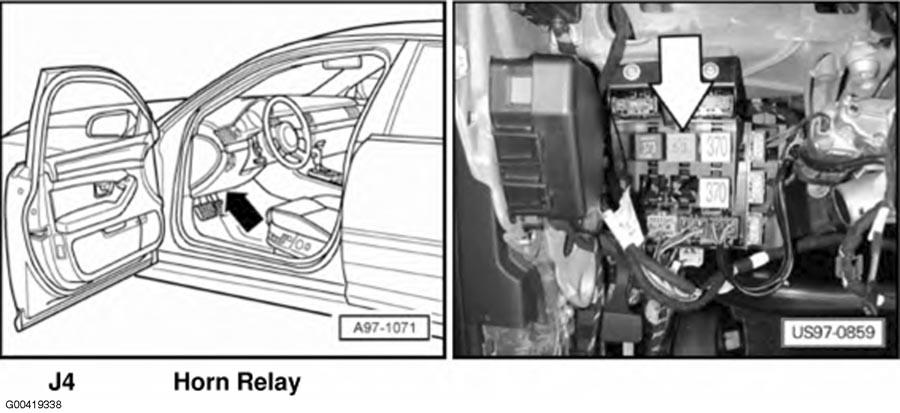

Fig 44: Under Left Side Of Dash

G00419338

Courtesy of AUDI OF AMERICA, INC.

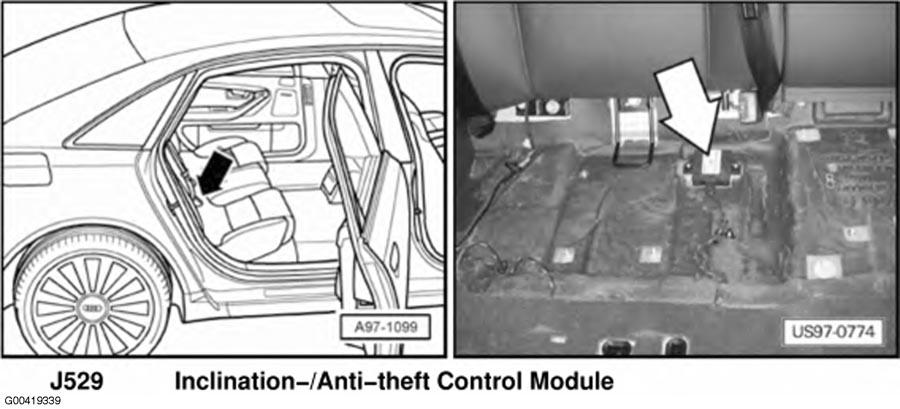

Fig 45: Under Rear Seat

G00419339

Courtesy of AUDI OF AMERICA, INC.

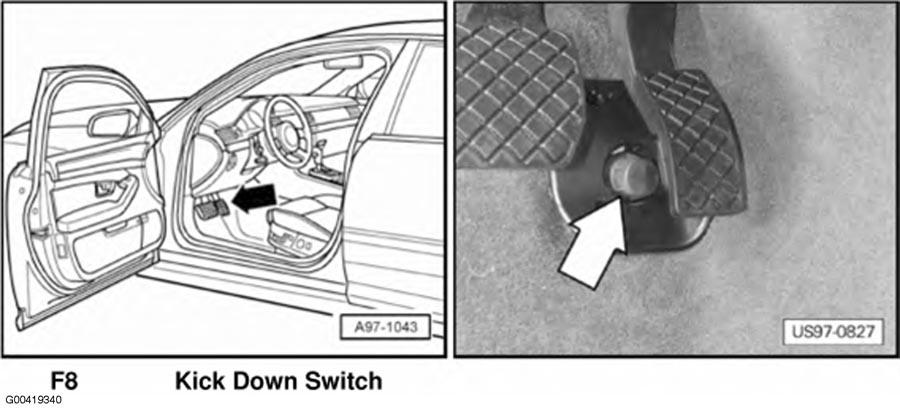

Fig 46: Under Accelerator

G00419340

Courtesy of AUDI OF AMERICA, INC.

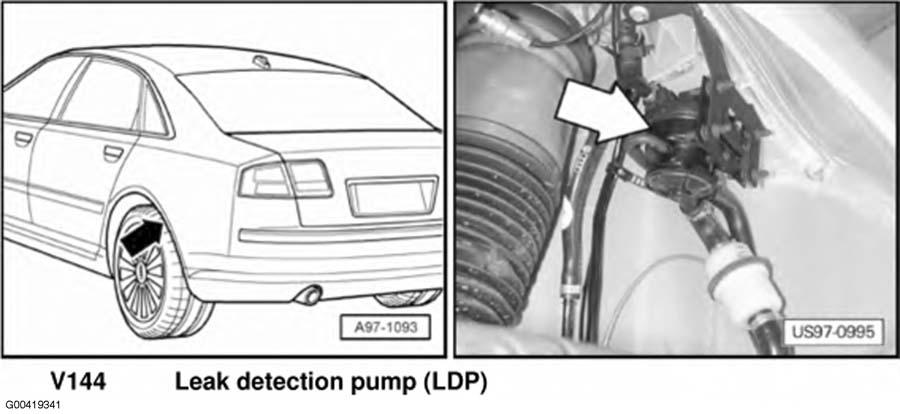

Fig 47: Left Rear Wheel Well

G00419341

Courtesy of AUDI OF AMERICA, INC.

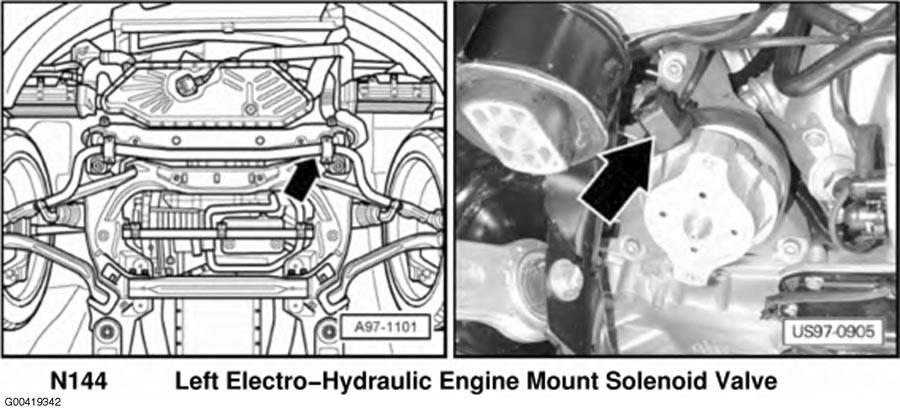

Fig 48: Lower Left Side Of Engine Compartment

G00419342

Courtesy of AUDI OF AMERICA, INC.

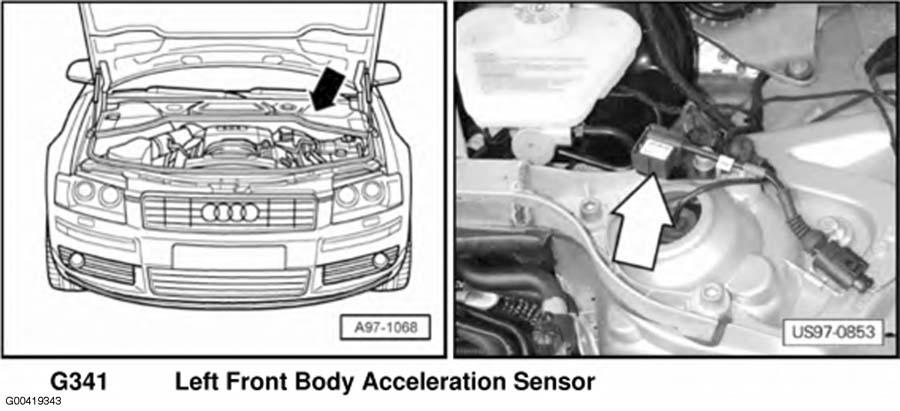

Fig 49: Left Rear Of Engine Compartment

G00419343

Courtesy of AUDI OF AMERICA, INC.

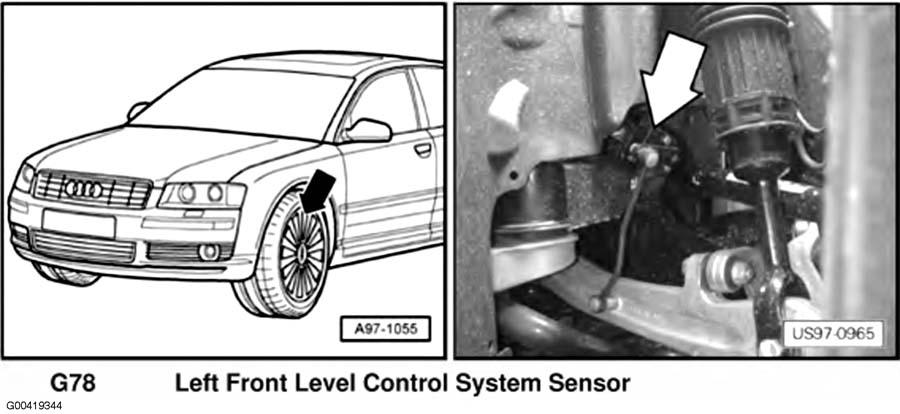

Fig 50: Left Front Wheel Well

G00419344

Courtesy of AUDI OF AMERICA, INC.

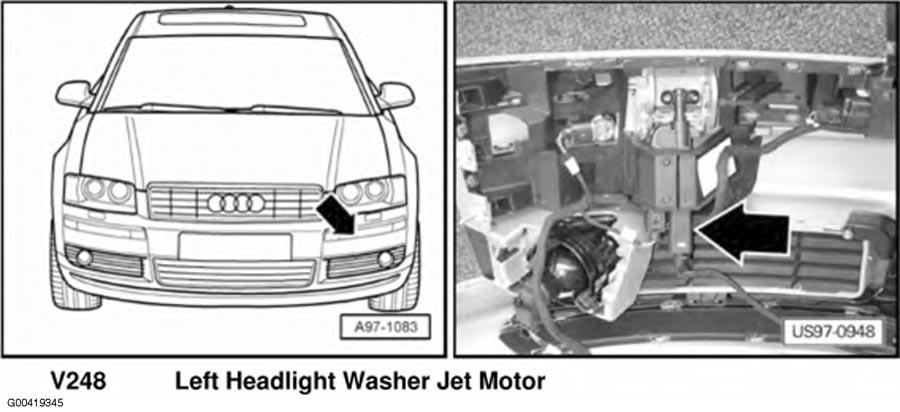

Fig 51: Below Left Headlight

G00419345

Courtesy of AUDI OF AMERICA, INC.

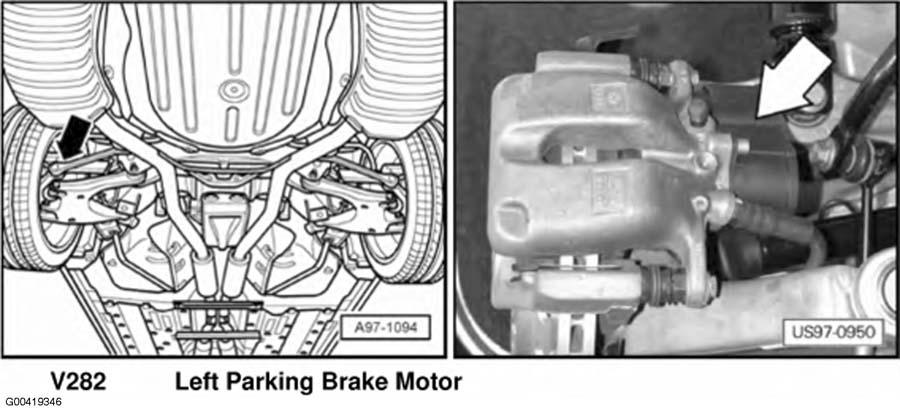

Fig 52: Left Rear Caliper

G00419346

Courtesy of AUDI OF AMERICA, INC.

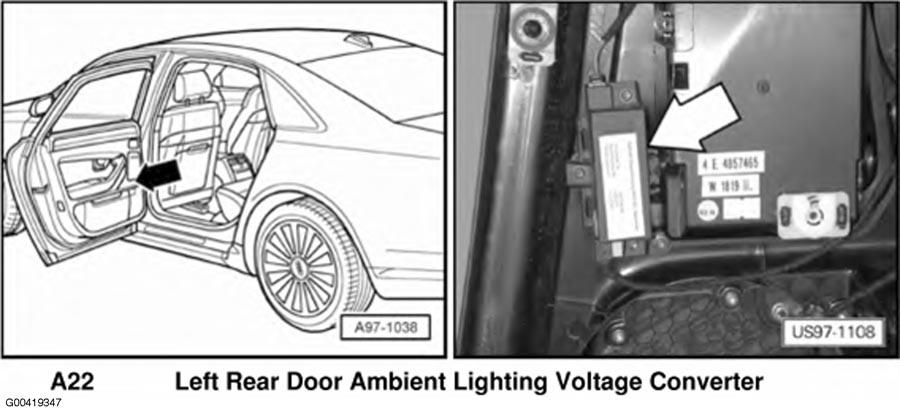

Fig 53: Left Rear Door

G00419347

Courtesy of AUDI OF AMERICA, INC.

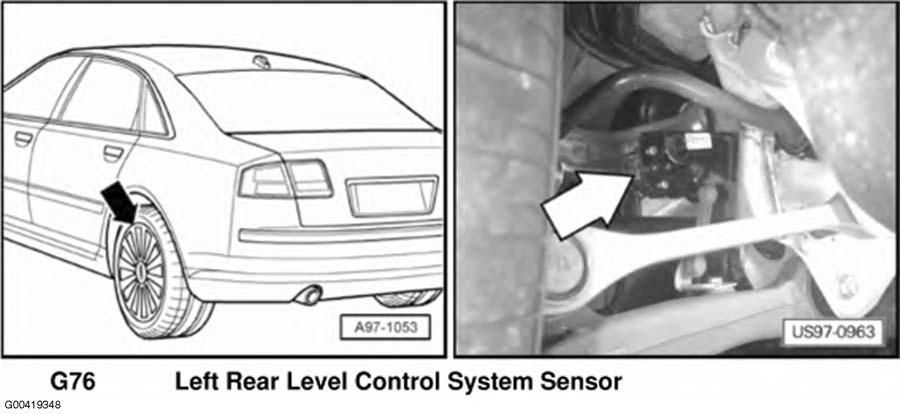

Fig 54: Left Rear Wheel Well

G00419348

Courtesy of AUDI OF AMERICA, INC.

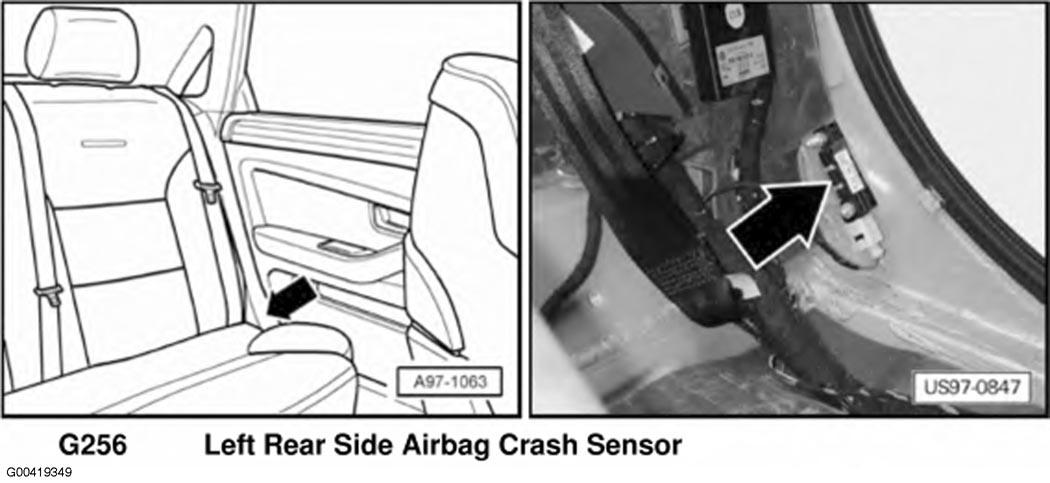

Fig 55: Left "C" Pillar

G00419349

Courtesy of AUDI OF AMERICA, INC.

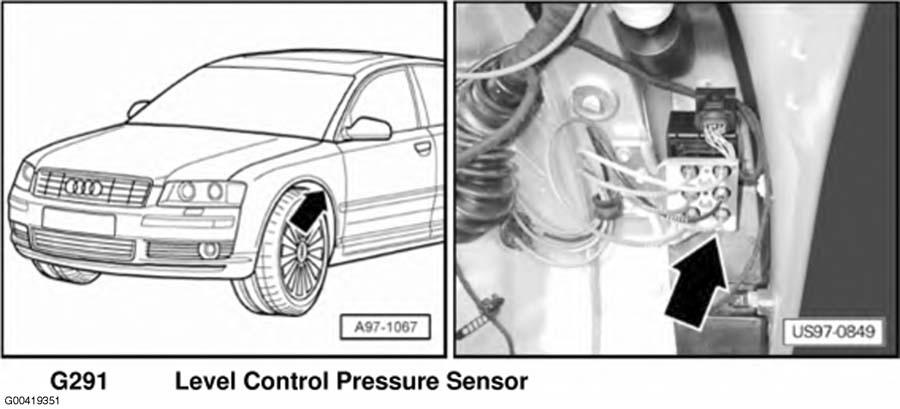

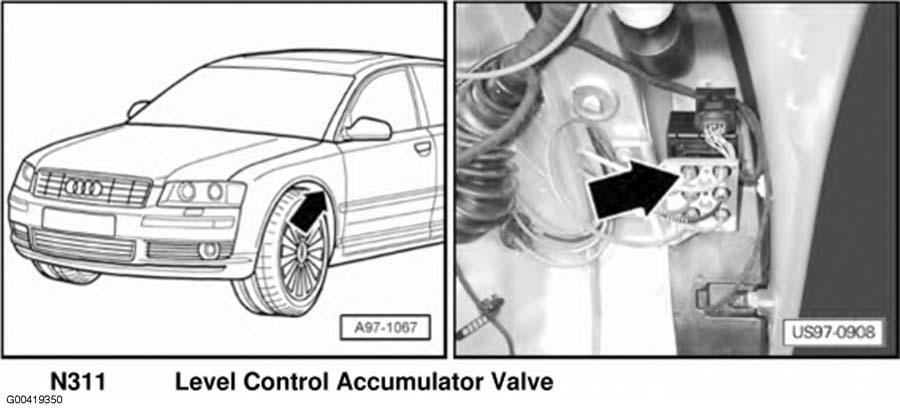

Fig 56: Left Front Wheel Well

G00419350

Courtesy of AUDI OF AMERICA, INC.

Fig 57: Left Front Wheel Well

G00419351

Courtesy of AUDI OF AMERICA, INC.

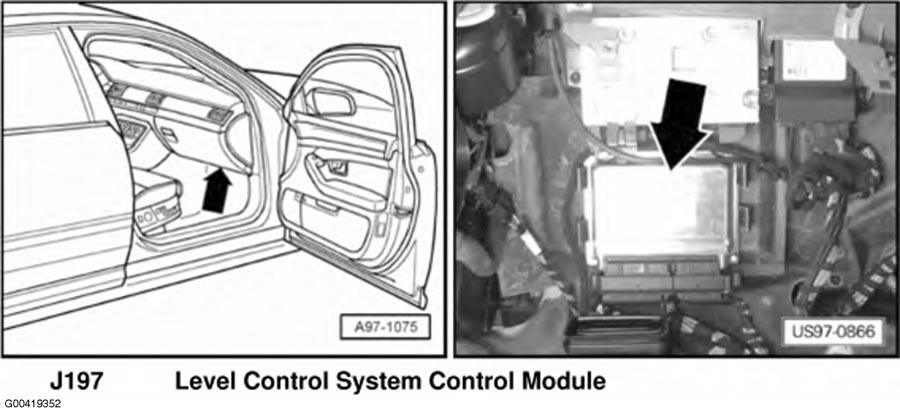

Fig 58: Behind Right Side Of Dash

G00419352

Courtesy of AUDI OF AMERICA, INC.

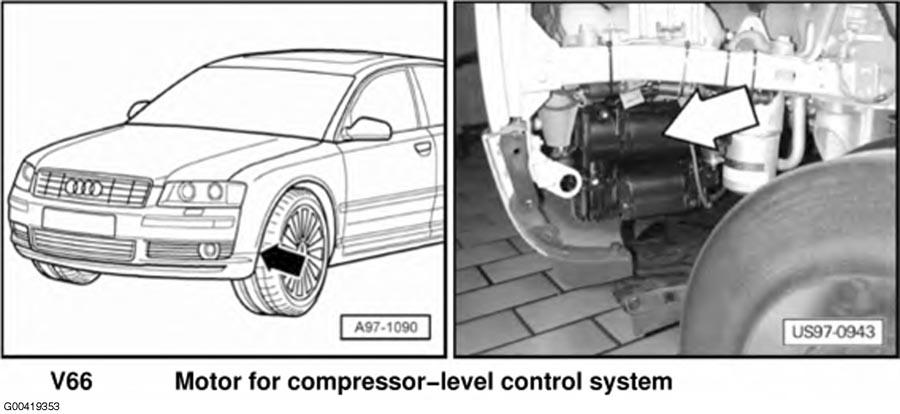

Fig 59: Left Front Of Vehicle

G00419353

Courtesy of AUDI OF AMERICA, INC.

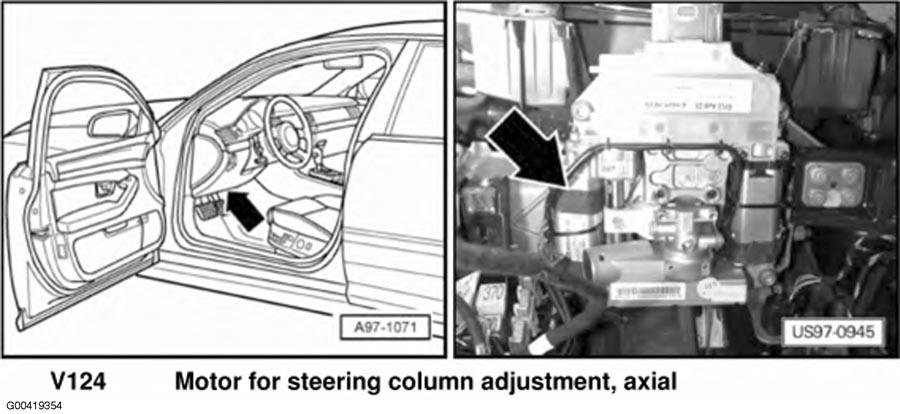

Fig 60: Steering Column

G00419354

Courtesy of AUDI OF AMERICA, INC.

Fig 61: Steering Column

G00419355

Courtesy of AUDI OF AMERICA, INC.

Fig 62: Driver's Door

G00419356

Courtesy of AUDI OF AMERICA, INC.

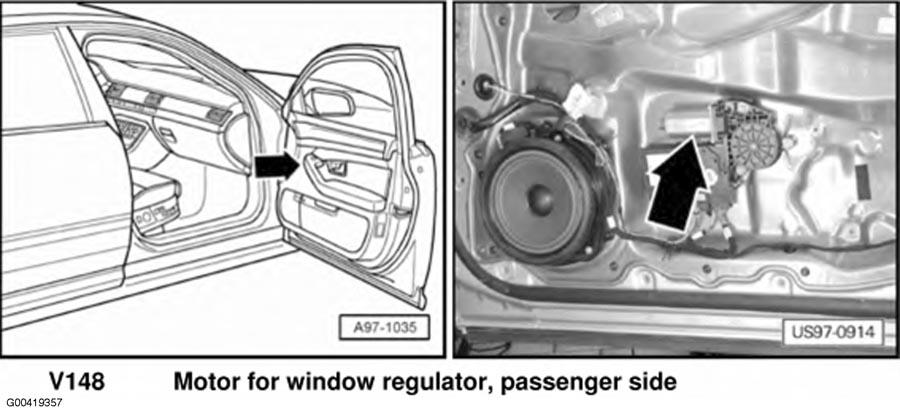

Fig 63: Passenger's Door

G00419357

Courtesy of AUDI OF AMERICA, INC.

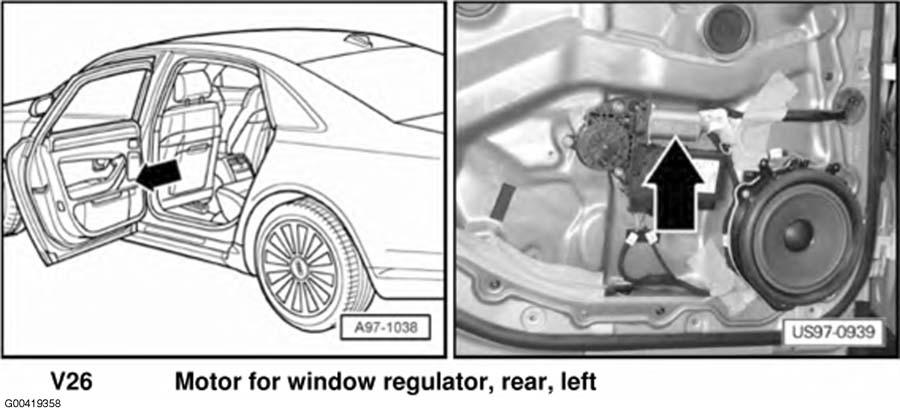

Fig 64: Left Rear Door

G00419358

Courtesy of AUDI OF AMERICA, INC.

Fig 65: Right Rear Door

G00419359

Courtesy of AUDI OF AMERICA, INC.

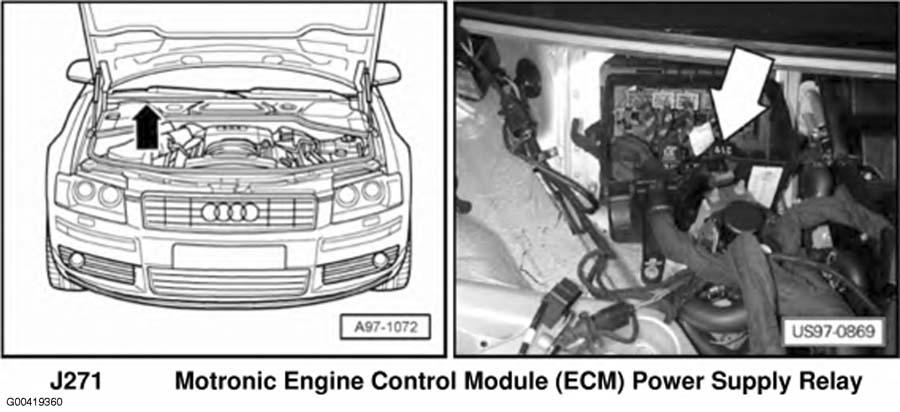

Fig 66: Right Rear Of Engine Compartment

G00419360

Courtesy of AUDI OF AMERICA, INC.

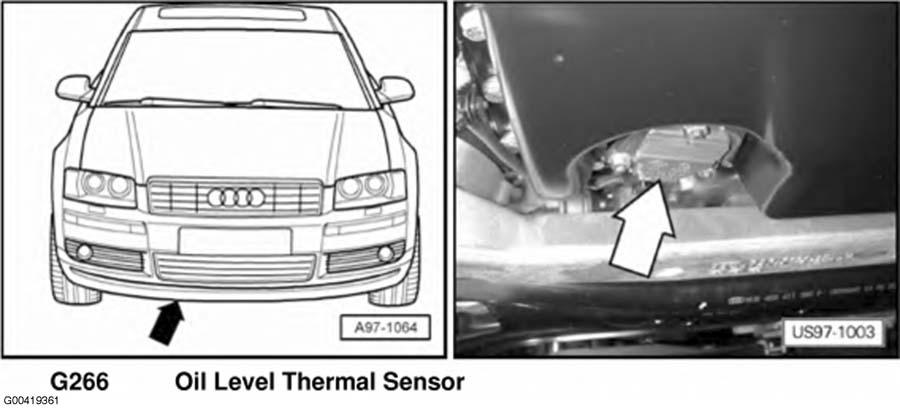

Fig 67: Bottom Of Engine

G00419361

Courtesy of AUDI OF AMERICA, INC.

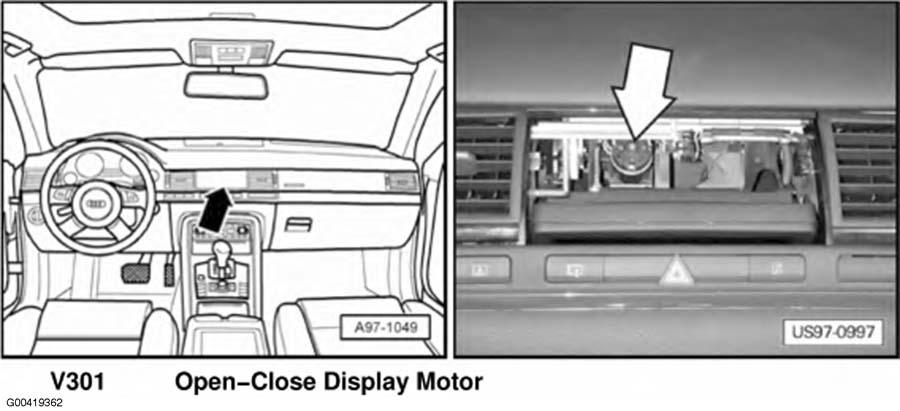

Fig 68: Center Of Dash

G00419362

Courtesy of AUDI OF AMERICA, INC.

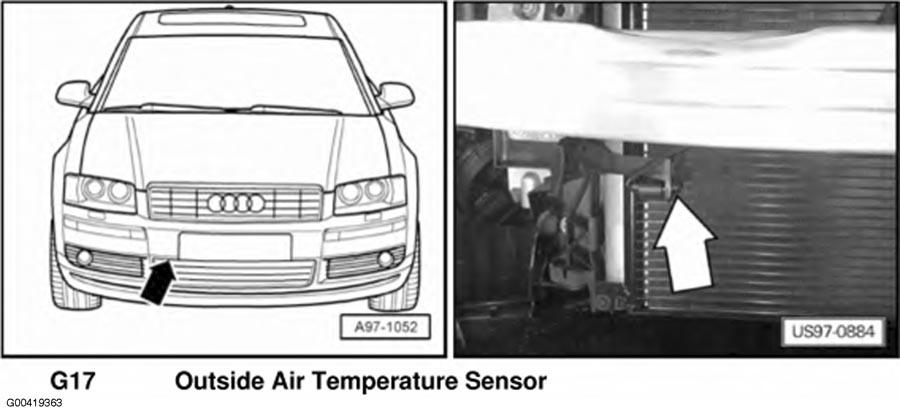

Fig 69: Front Of Vehicle

G00419363

Courtesy of AUDI OF AMERICA, INC.

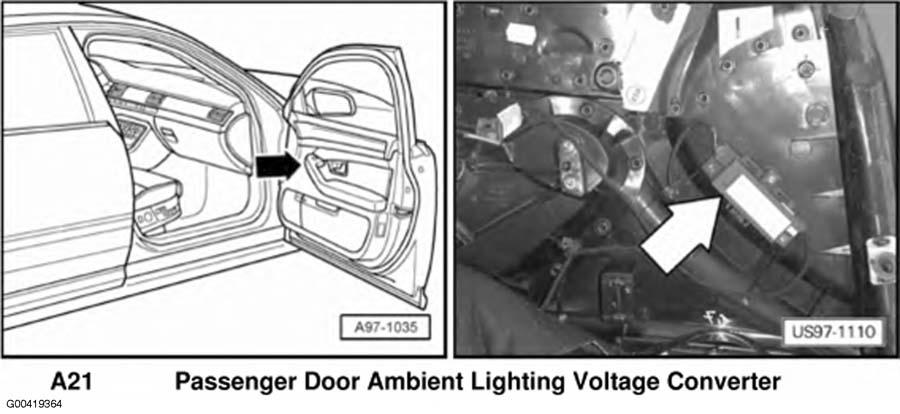

Fig 70: Passenger's Door

G00419364

Courtesy of AUDI OF AMERICA, INC.

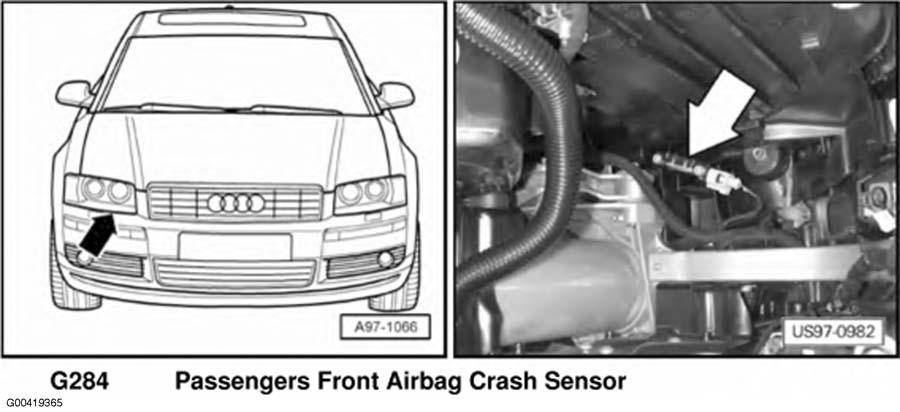

Fig 71: Right Front Of Engine Compartment

G00419365

Courtesy of AUDI OF AMERICA, INC.

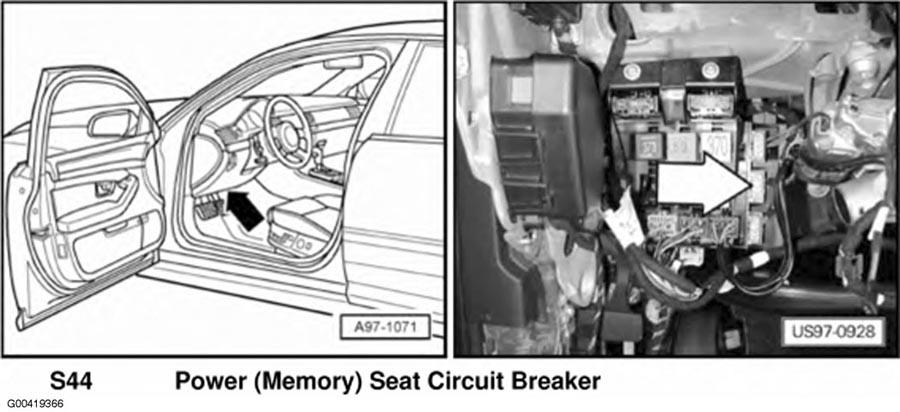

Fig 72: Under Left Side Of Dash

G00419366

Courtesy of AUDI OF AMERICA, INC.

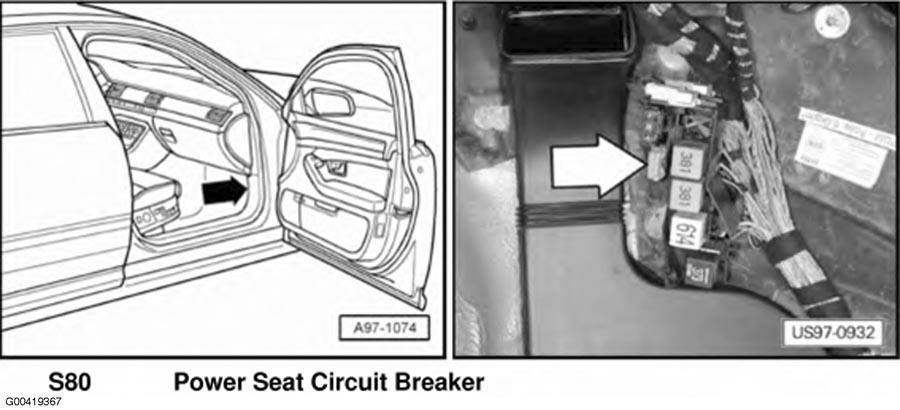

Fig 73: Right Kick Panel

G00419367

Courtesy of AUDI OF AMERICA, INC.

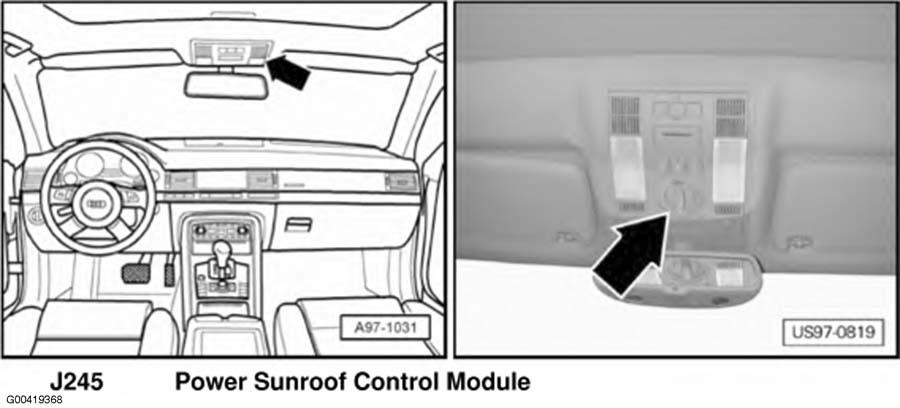

Fig 74: Front Center Of Roof

G00419368

Courtesy of AUDI OF AMERICA, INC.

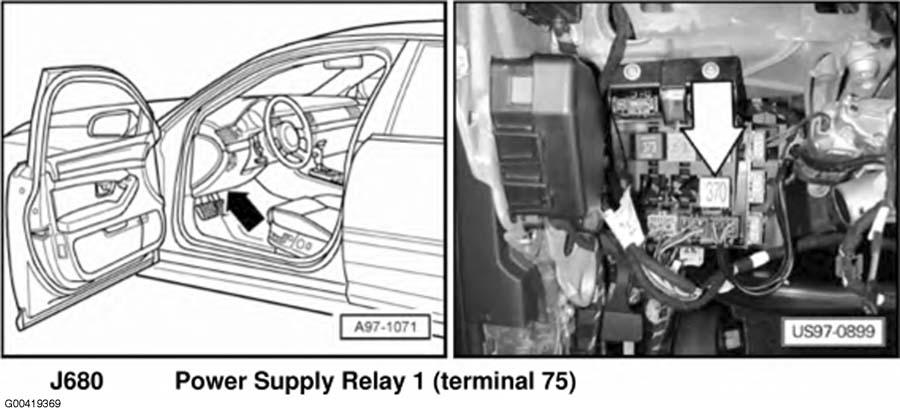

Fig 75: Under Left Side Of Dash

G00419369

Courtesy of AUDI OF AMERICA, INC.

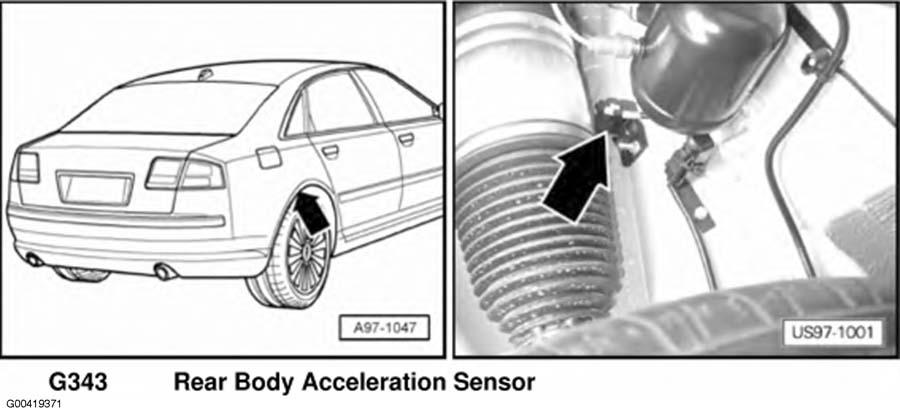

Fig 76: Right Rear Wheel Well

G00419371

Courtesy of AUDI OF AMERICA, INC.

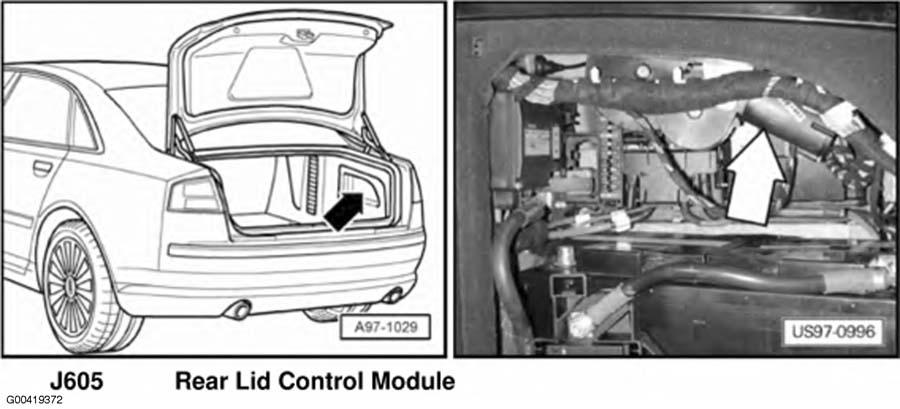

Fig 77: Right Side Of Trunk

G00419372

Courtesy of AUDI OF AMERICA, INC.

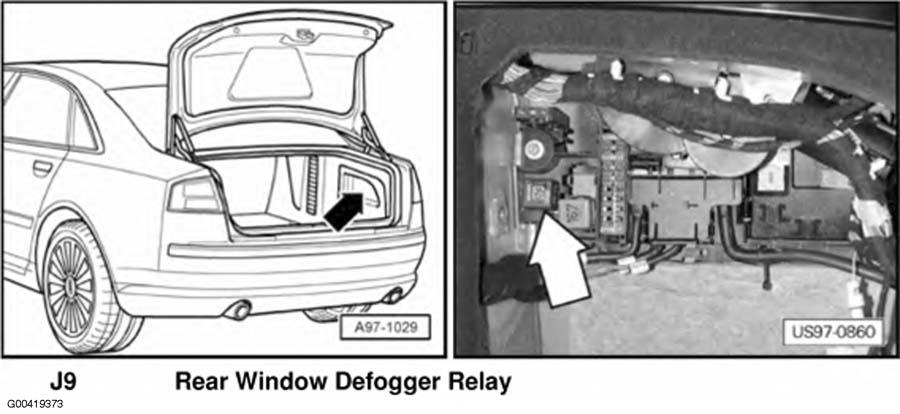

Fig 78: Right Side Of Trunk

G00419373

Courtesy of AUDI OF AMERICA, INC.

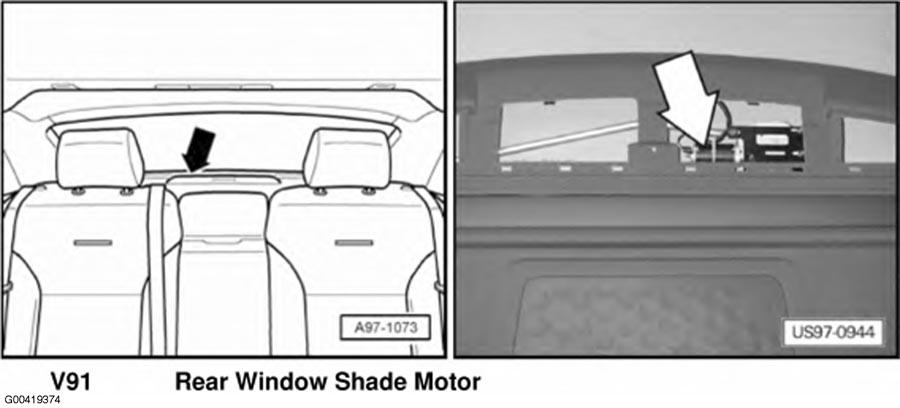

Fig 79: Rear Package Shelf

G00419374

Courtesy of AUDI OF AMERICA, INC.

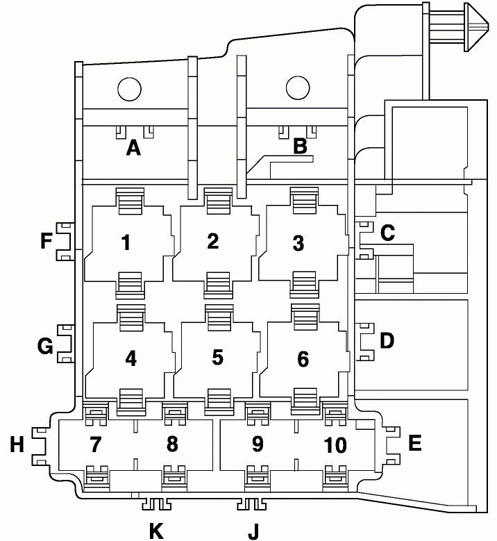

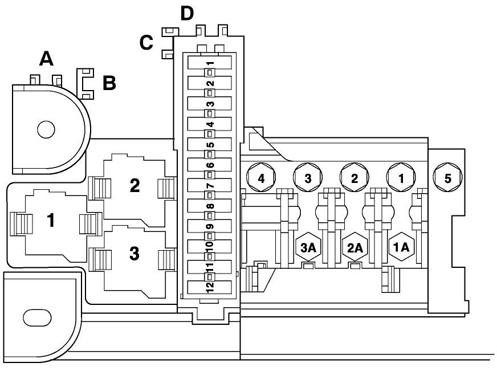

Fig 80: Relay & Fuse Panel At Left Side Of Dash

G00451521

Courtesy of AUDI OF AMERICA, INC.

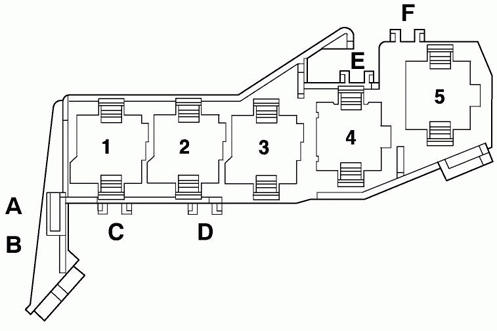

Fig 81: Right Kick Panel Relay & Fuse Panel

G00451522

Courtesy of AUDI OF AMERICA, INC.

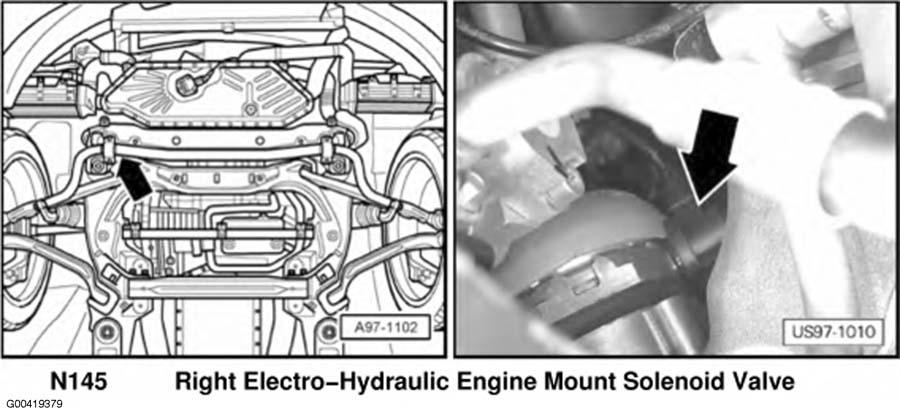

Fig 82: Lower Right Side Of Engine Compartment

G00419379

Courtesy of AUDI OF AMERICA, INC.

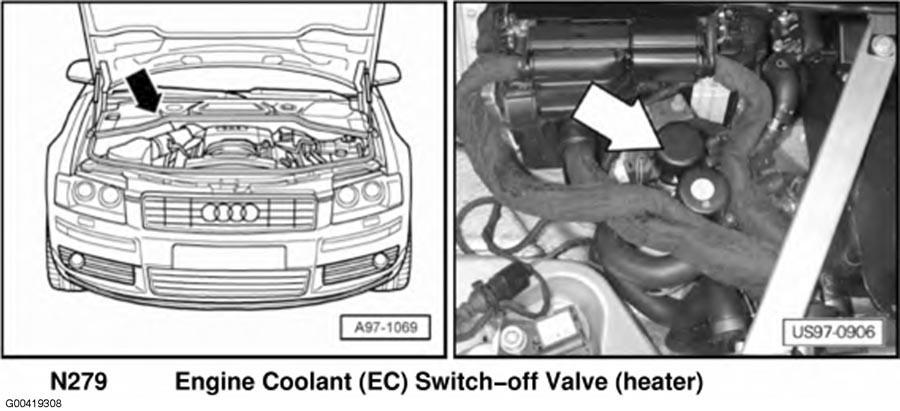

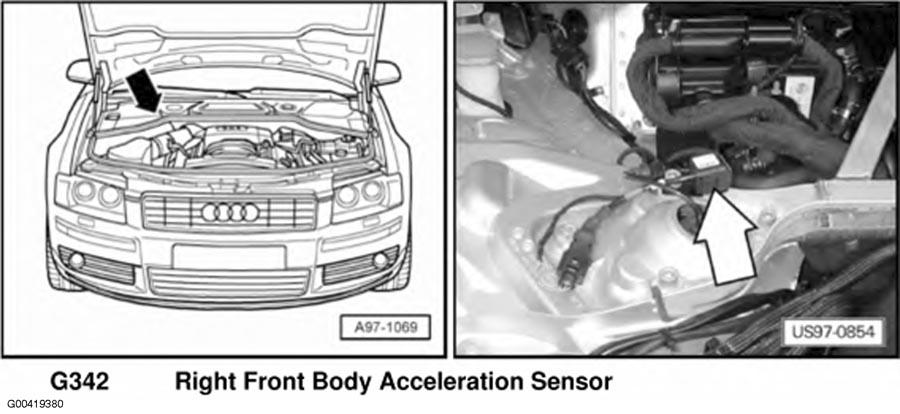

Fig 83: Right Rear Of Engine Compartment

G00419380

Courtesy of AUDI OF AMERICA, INC.

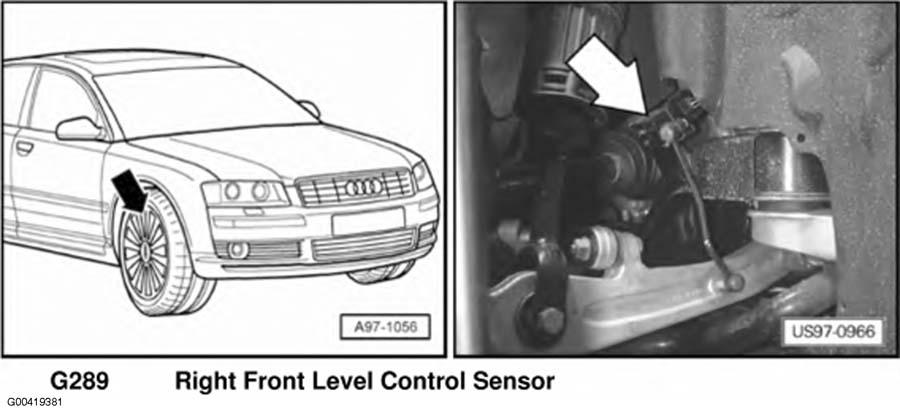

Fig 84: Right Front Wheel Well

G00419381

Courtesy of AUDI OF AMERICA, INC.

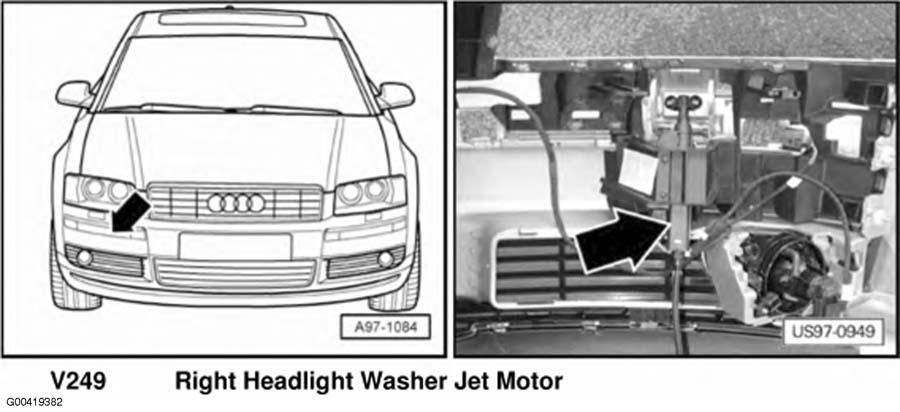

Fig 85: Right Front Of Vehicle

G00419382

Courtesy of AUDI OF AMERICA, INC.

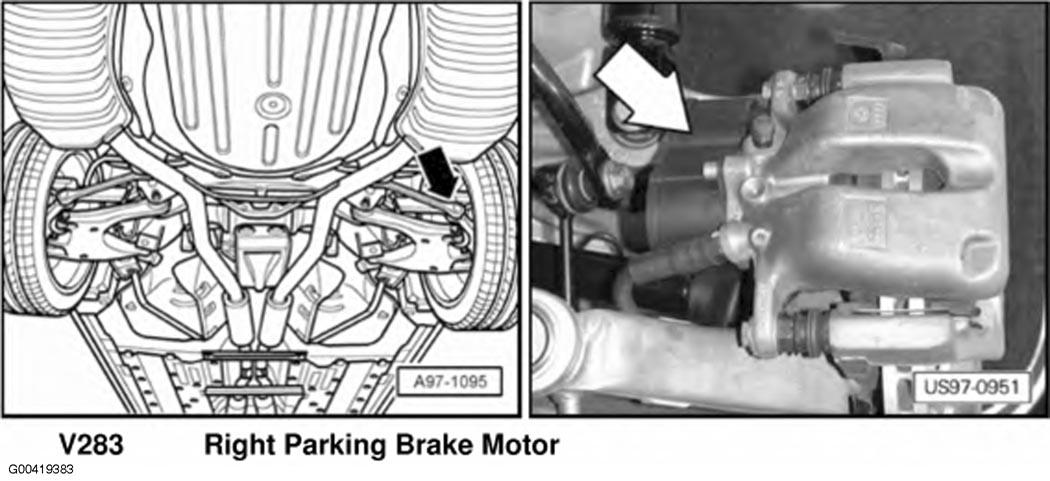

Fig 86: Right Rear Brake Caliper

G00419383

Courtesy of AUDI OF AMERICA, INC.

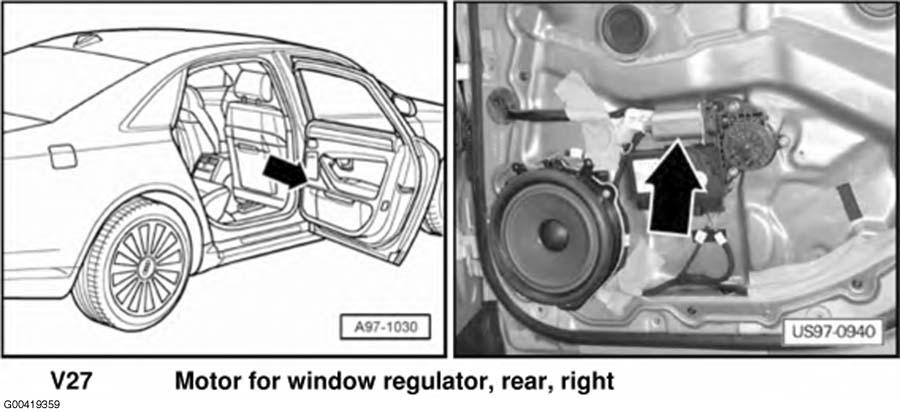

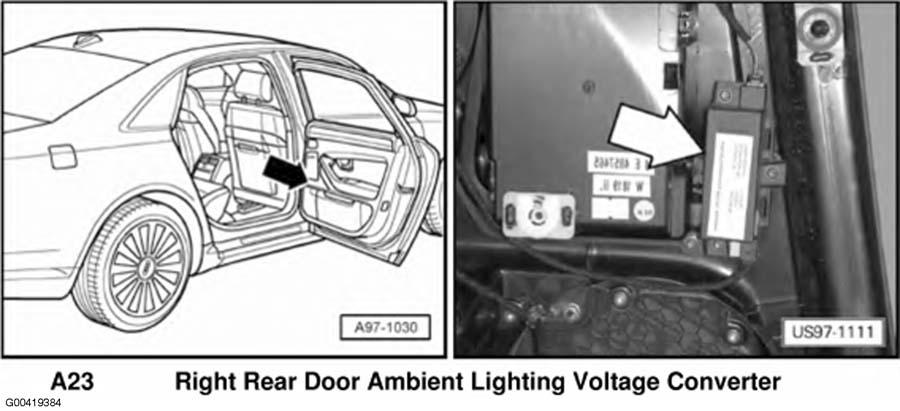

Fig 87: Right Rear Door

G00419384

Courtesy of AUDI OF AMERICA, INC.

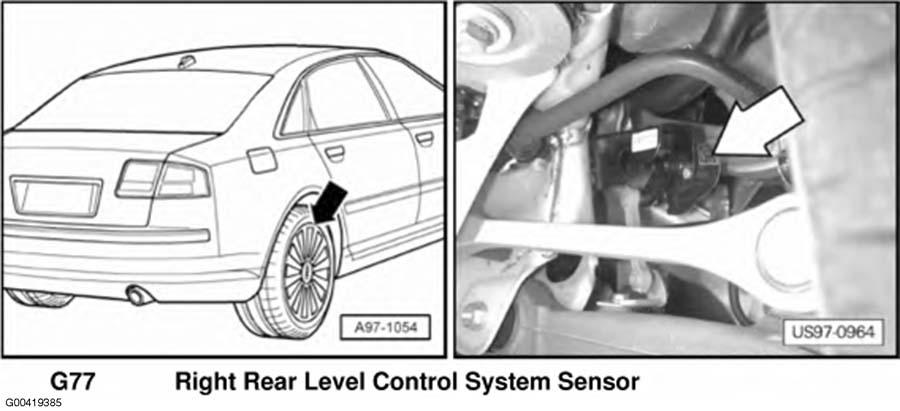

Fig 88: Right Rear Wheel Well

G00419385

Courtesy of AUDI OF AMERICA, INC.

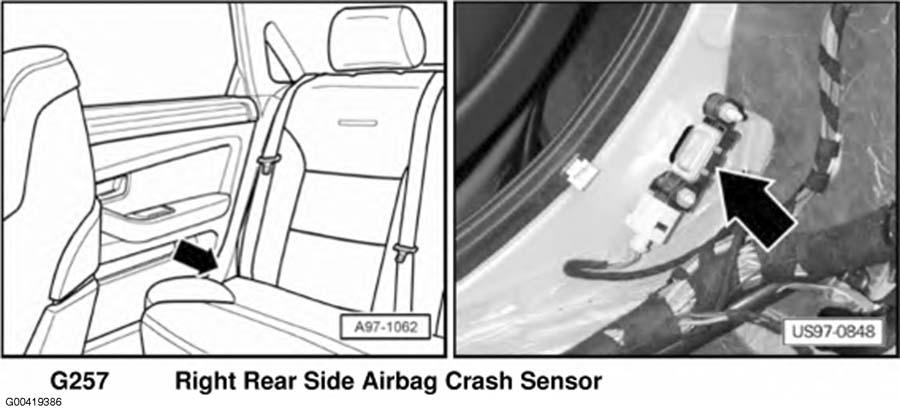

Fig 89: Right "C" Pillar

G00419386

Courtesy of AUDI OF AMERICA, INC.

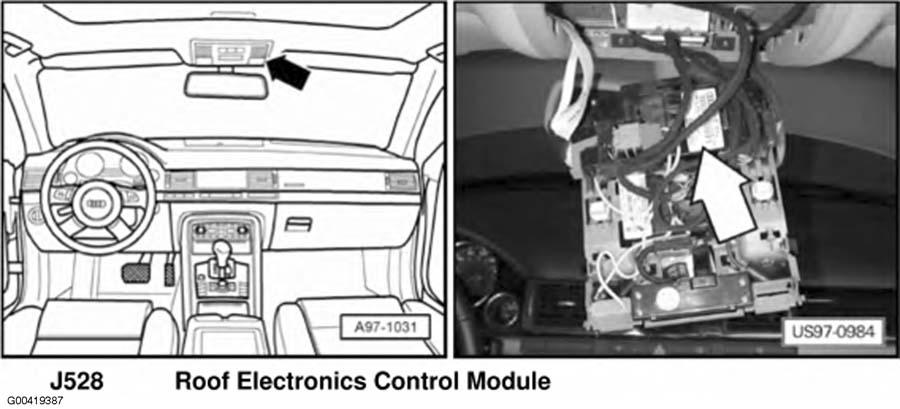

Fig 90: Front Center Of Roof

G00419387

Courtesy of AUDI OF AMERICA, INC.

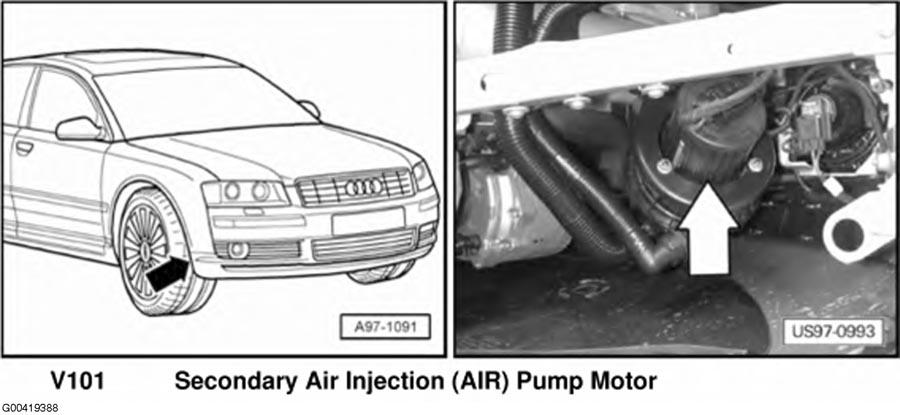

Fig 91: Right Front Of Vehicle

G00419388

Courtesy of AUDI OF AMERICA, INC.

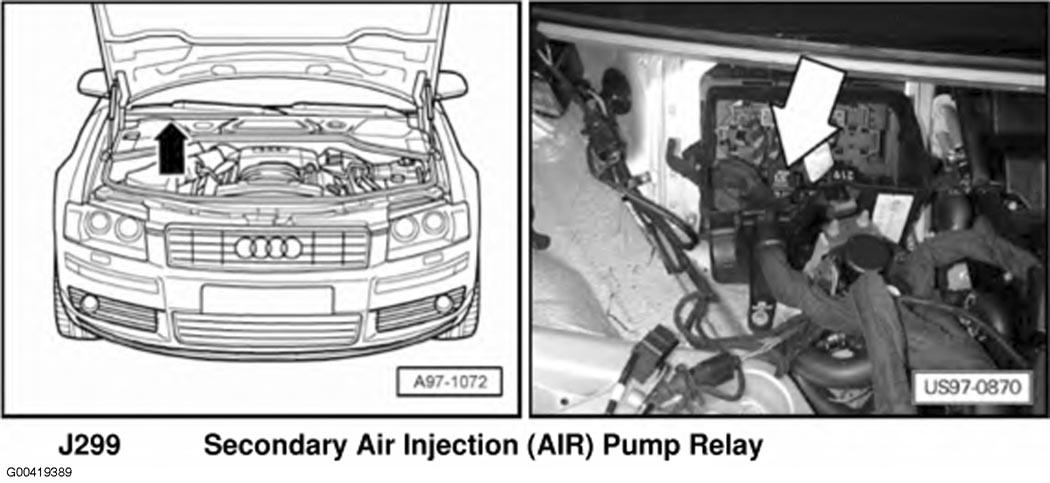

Fig 92: Right Rear Of Engine Compartment

G00419389

Courtesy of AUDI OF AMERICA, INC.

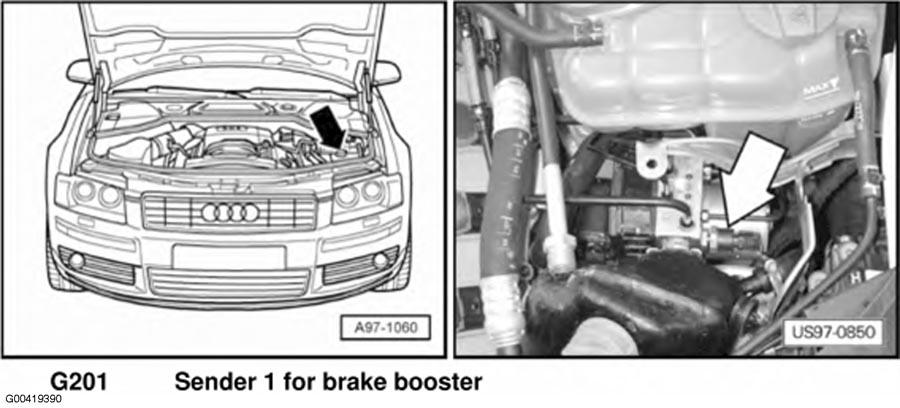

Fig 93: Left Side Of Engine Compartment

G00419390

Courtesy of AUDI OF AMERICA, INC.

Fig 94: Below Accelerator Pedal

G00419391

Courtesy of AUDI OF AMERICA, INC.

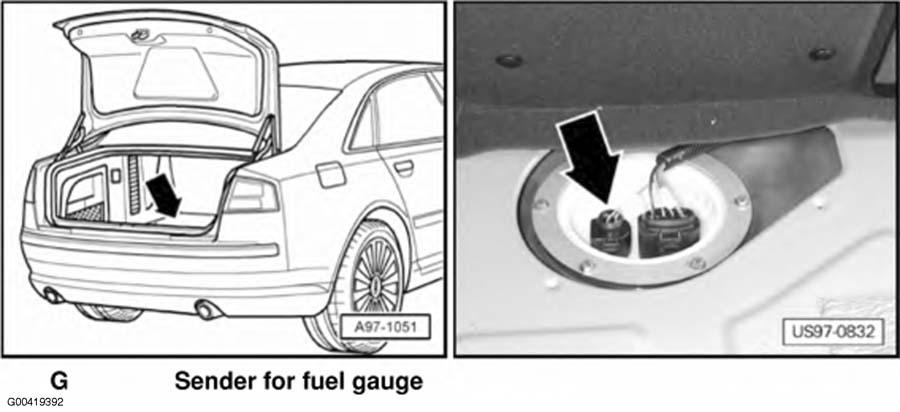

Fig 95: Top Of Fuel Tank

G00419392

Courtesy of AUDI OF AMERICA, INC.

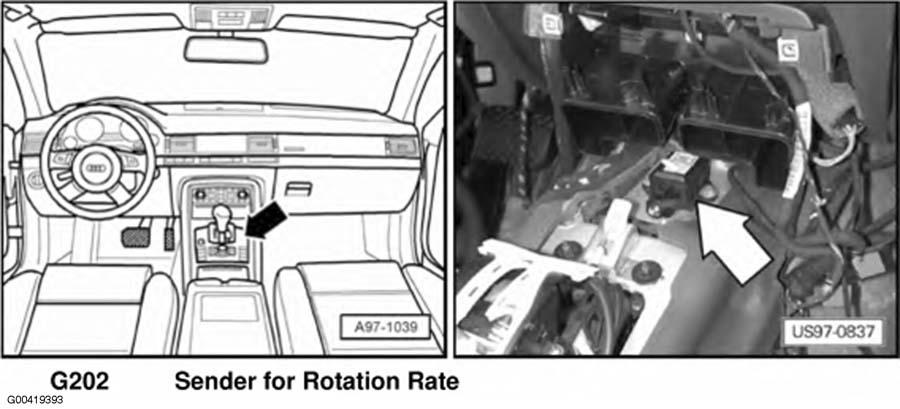

Fig 96: Under Center Of Dash

G00419393

Courtesy of AUDI OF AMERICA, INC.

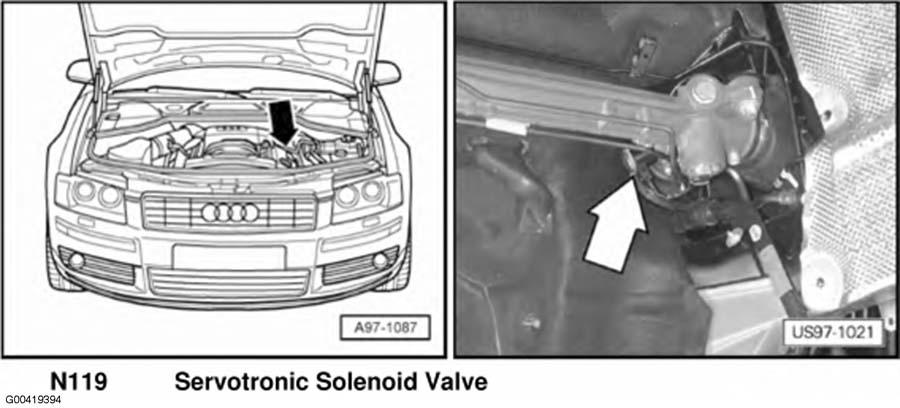

Fig 97: Rear Of Engine Compartment

G00419394

Courtesy of AUDI OF AMERICA, INC.

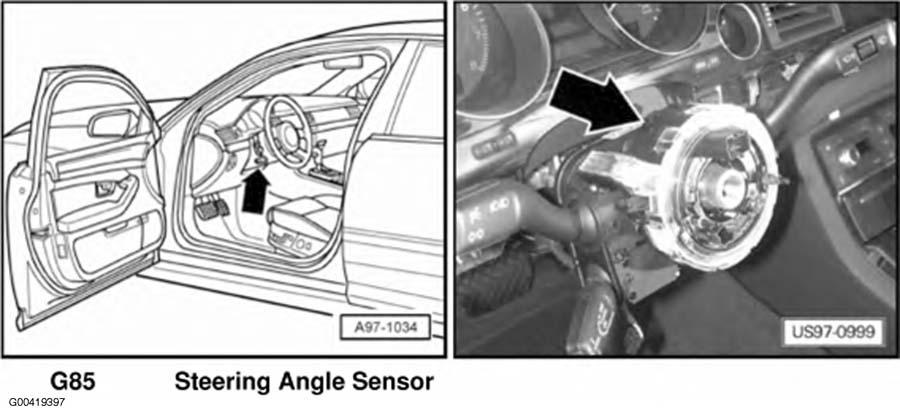

Fig 98: Steering Column

G00419397

Courtesy of AUDI OF AMERICA, INC.

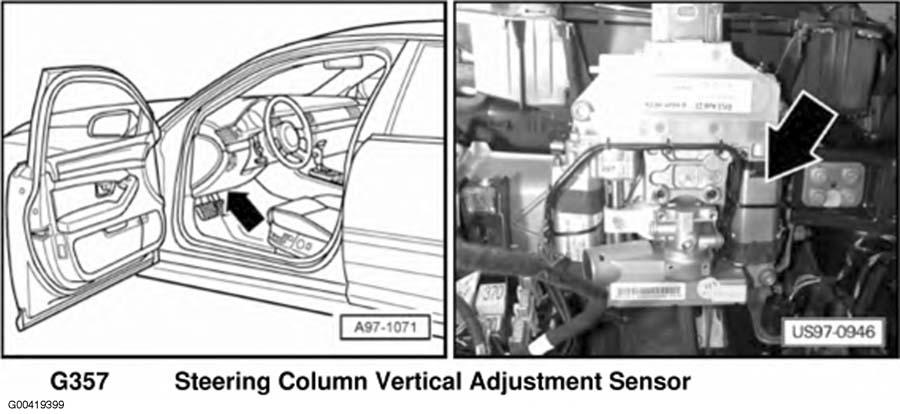

Fig 99: Steering Column

G00419398

Courtesy of AUDI OF AMERICA, INC.

Fig 100: Steering Column

G00419399

Courtesy of AUDI OF AMERICA, INC.

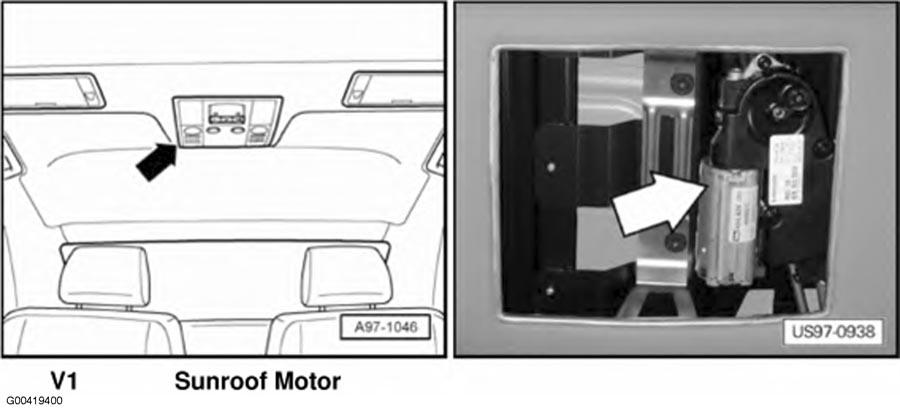

Fig 101: Center Of Roof

G00419400

Courtesy of AUDI OF AMERICA, INC.

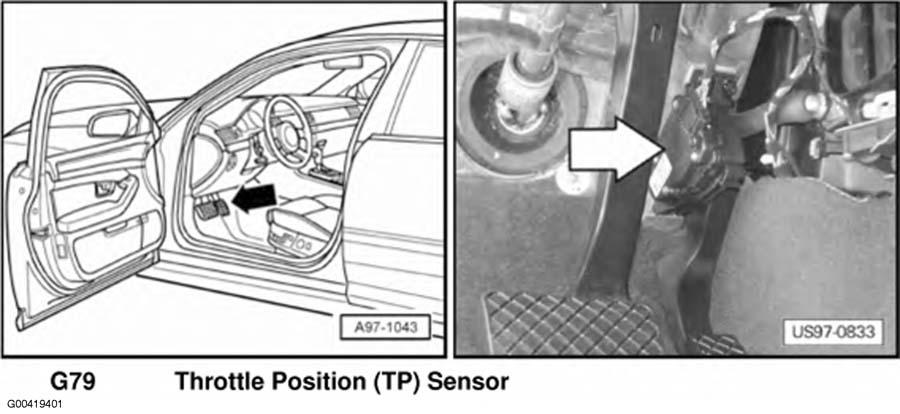

Fig 102: Driver's Footwell

G00419401

Courtesy of AUDI OF AMERICA, INC.

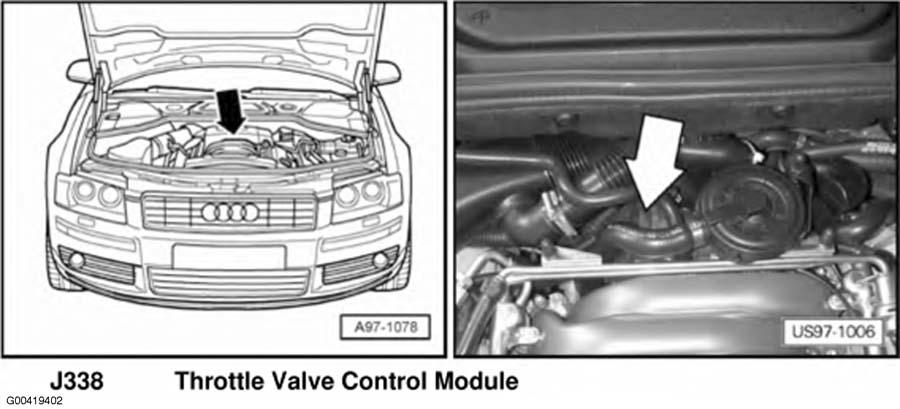

Fig 103: Rear Of Engine Compartment

G00419402

Courtesy of AUDI OF AMERICA, INC.

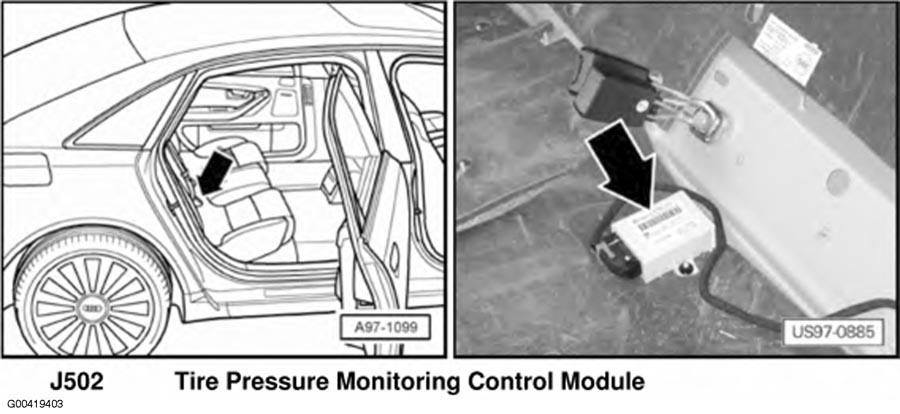

Fig 104: Below Rear Seat

G00419403

Courtesy of AUDI OF AMERICA, INC.

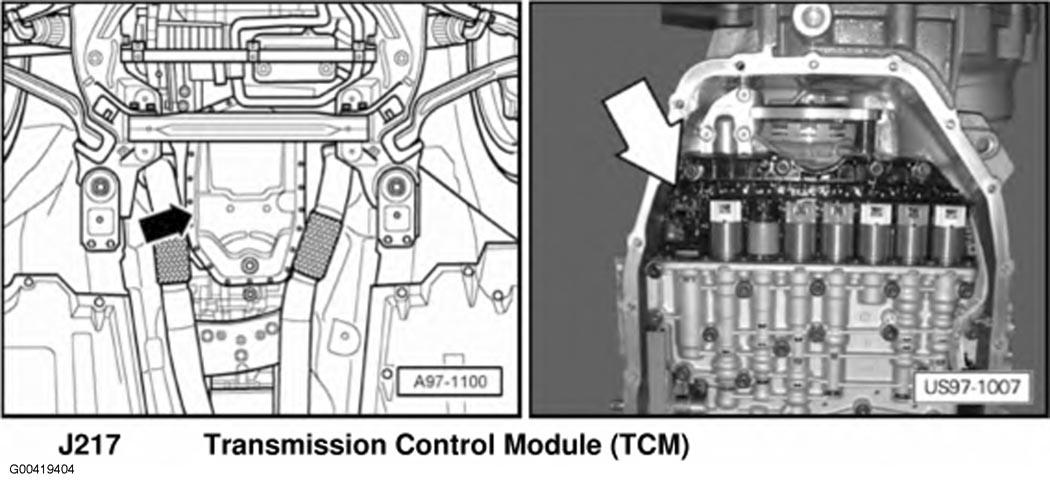

Fig 105: Bottom Of Transmission

G00419404

Courtesy of AUDI OF AMERICA, INC.

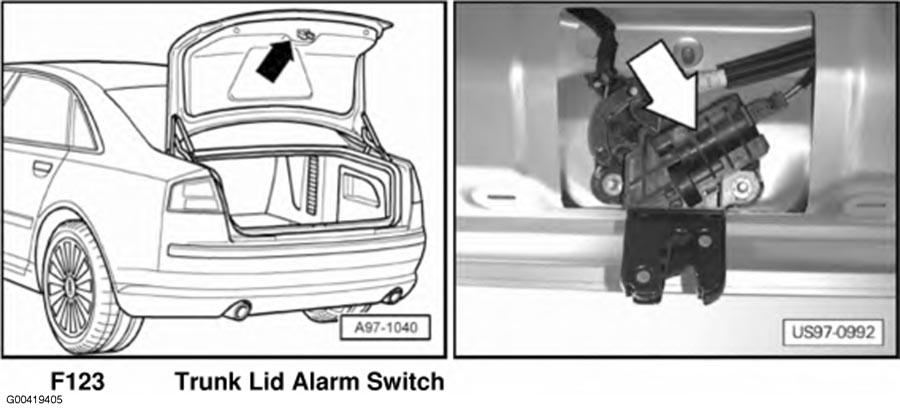

Fig 106: Rear Of Trunk Lid

G00419405

Courtesy of AUDI OF AMERICA, INC.

Fig 107: Right Side Of Trunk

G00419406

Courtesy of AUDI OF AMERICA, INC.

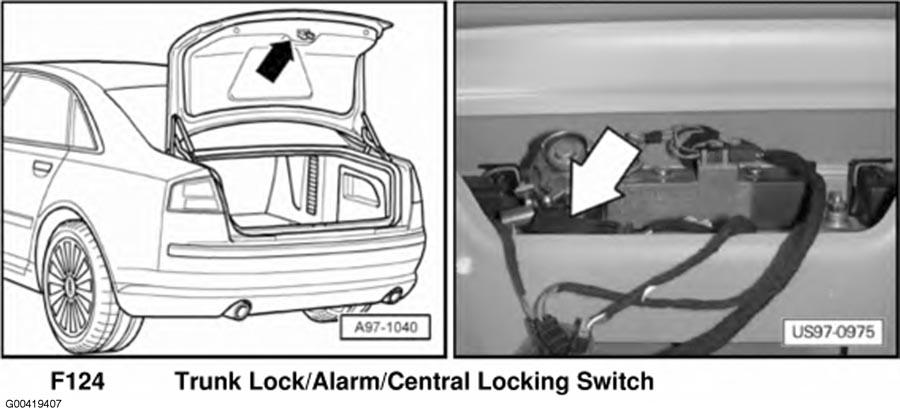

Fig 108: Rear Of Trunk Lid

G00419407

Courtesy of AUDI OF AMERICA, INC.

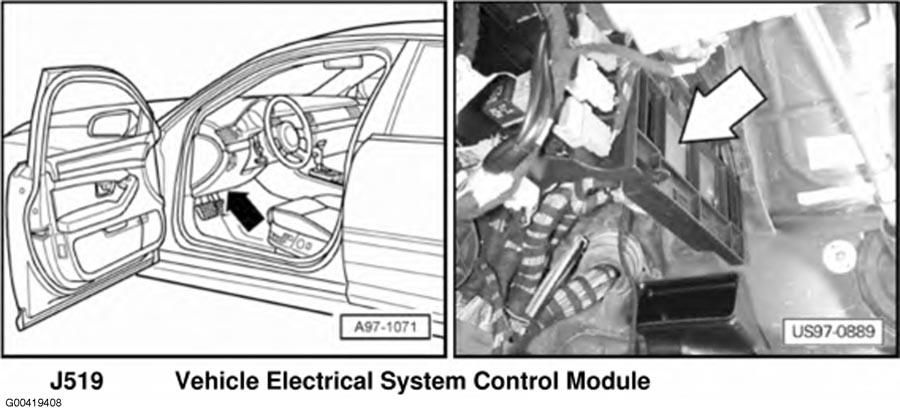

Fig 109: Under Left Side Of Dash

G00419408

Courtesy of AUDI OF AMERICA, INC.

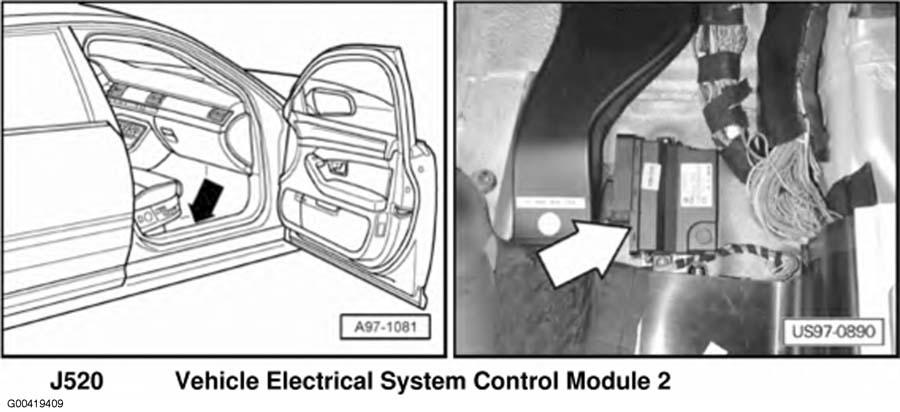

Fig 110: Under Passenger's Seat

G00419409

Courtesy of AUDI OF AMERICA, INC.

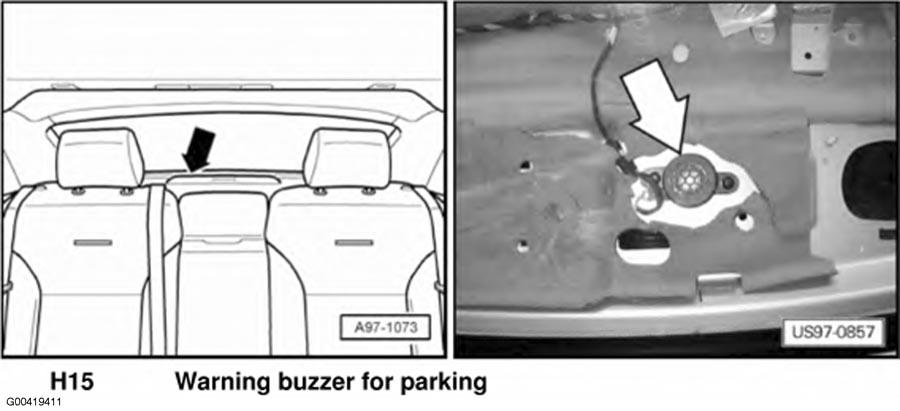

Fig 111: Rear Package Shelf

G00419411

Courtesy of AUDI OF AMERICA, INC.

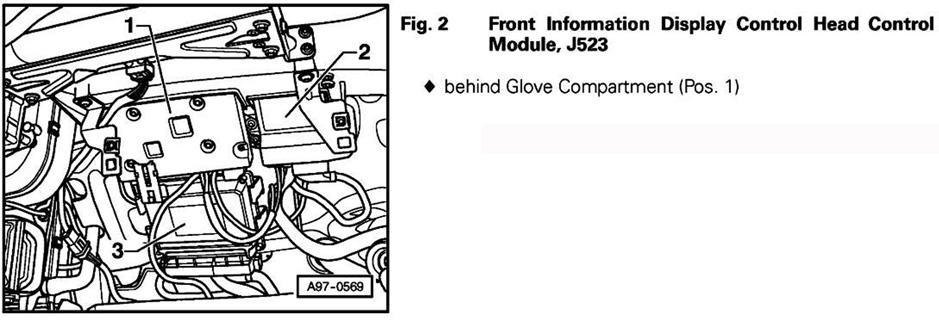

Fig 112: Right Side Of Dash

G00451399

Courtesy of AUDI OF AMERICA, INC.

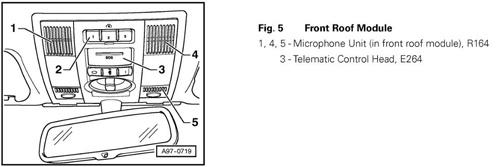

Fig 113: Center Front Of Roof

G00451400

Courtesy of AUDI OF AMERICA, INC.

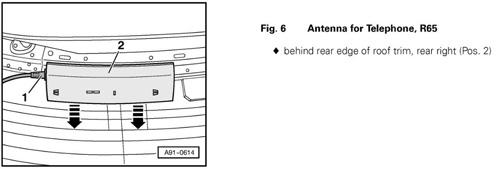

Fig 114: Right Rear Of Roof

G00451401

Courtesy of AUDI OF AMERICA, INC.

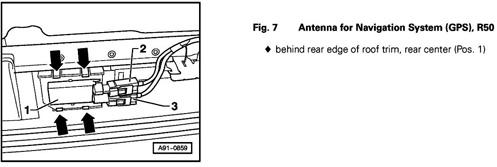

Fig 115: Center Rear Of Roof

G00451402

Courtesy of AUDI OF AMERICA, INC.

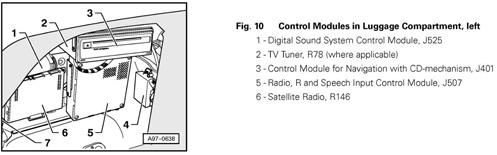

Fig 116: Left Side Of Luggage Compartment

G00451403

Courtesy of AUDI OF AMERICA, INC.

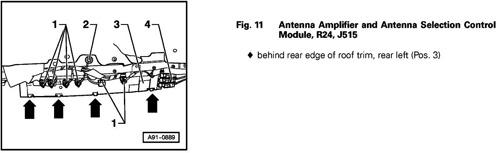

Fig 117: Left Rear Of Roof

G00451404

Courtesy of AUDI OF AMERICA, INC.

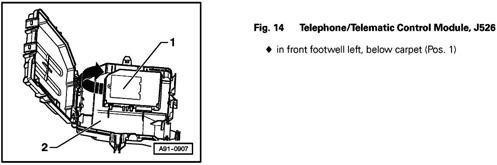

Fig 118: Left Front Footwell

G00451405

Courtesy of AUDI OF AMERICA, INC.

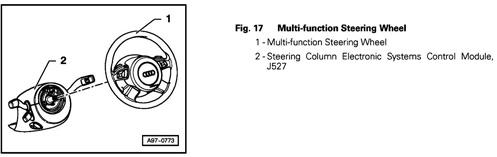

Fig 119: Steering Column

G00451406

Courtesy of AUDI OF AMERICA, INC.

Fig 120: Under Center Of Rear Seat

G00451407

Courtesy of AUDI OF AMERICA, INC.

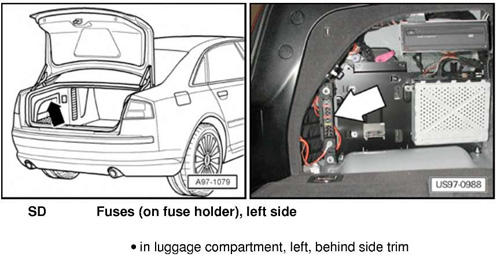

Fig 121: Left Side Of Luggage Compartment

G00451408

Courtesy of AUDI OF AMERICA, INC.

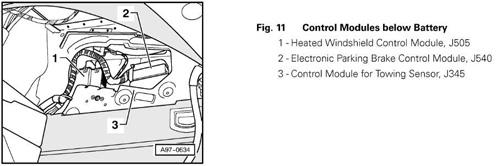

Fig 122: Right Side Of Luggage Compartment

G00451409

Courtesy of AUDI OF AMERICA, INC.

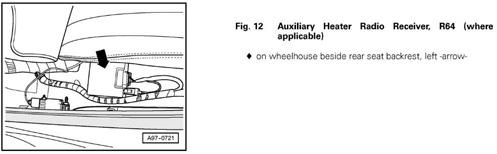

Fig 123: Left Rear Wheelhouse

G00451410

Courtesy of AUDI OF AMERICA, INC.

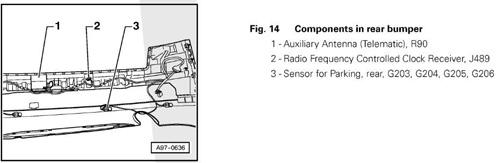

Fig 124: Rear Bumper

G00451461

Courtesy of AUDI OF AMERICA, INC.

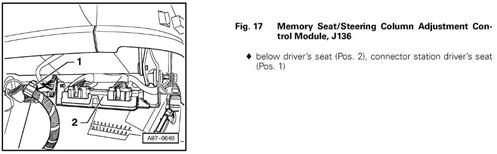

Fig 125: Under Driver's Seat

G00451465

Courtesy of AUDI OF AMERICA, INC.

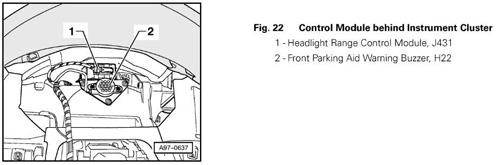

Fig 126: Behind Instrument Cluster

G00451493

Courtesy of AUDI OF AMERICA, INC.

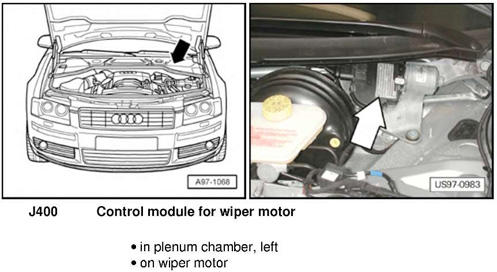

Fig 127: Left Rear Of Engine Compartment

G00451494

Courtesy of AUDI OF AMERICA, INC.

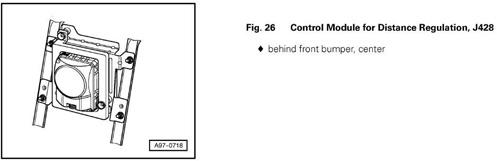

Fig 128: Behind Center Of Front Bumper

G00451495

Courtesy of AUDI OF AMERICA, INC.

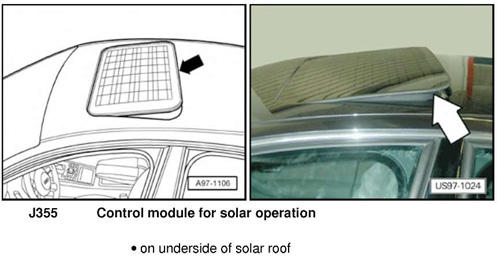

Fig 129: Underside Of Solar Roof

G00451496

Courtesy of AUDI OF AMERICA, INC.

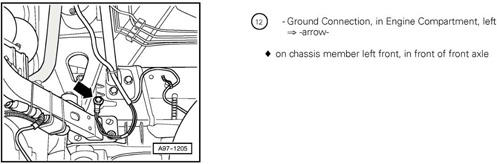

Fig 130: Left Front Of Engine Compartment

G00451497

Courtesy of AUDI OF AMERICA, INC.

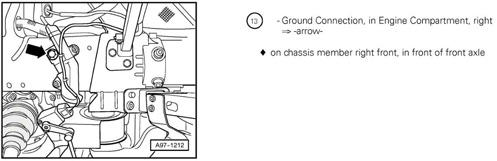

Fig 131: Right Front Of Engine Compartment

G00451498

Courtesy of AUDI OF AMERICA, INC.

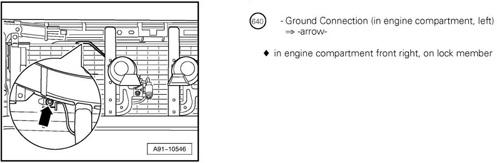

Fig 132: Front Of Engine Compartment

G00451499

Courtesy of AUDI OF AMERICA, INC.

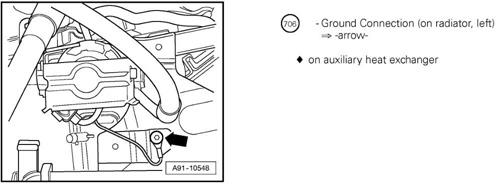

Fig 133: Left Front Of Engine Compartment

G00451500

Courtesy of AUDI OF AMERICA, INC.

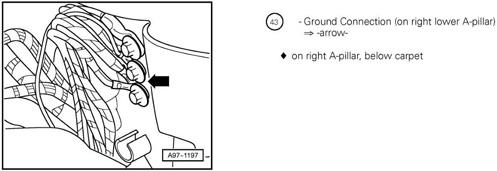

Fig 134: Right Kick Panel

G00451501

Courtesy of AUDI OF AMERICA, INC.

Fig 135: Under Front Passenger's Seat

G00451502

Courtesy of AUDI OF AMERICA, INC.

Fig 136: Behind Rear Seat Center Backrest

G00451504

Courtesy of AUDI OF AMERICA, INC.

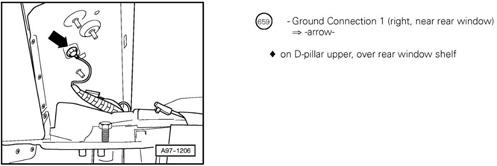

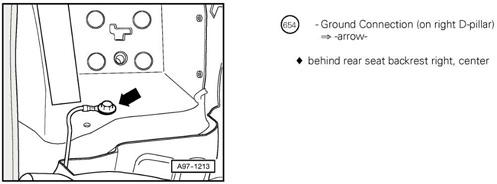

Fig 137: Right "D" Pillar

G00451505

Courtesy of AUDI OF AMERICA, INC.

Fig 138: Right Side Of Luggage Compartment

G00451506

Courtesy of AUDI OF AMERICA, INC.

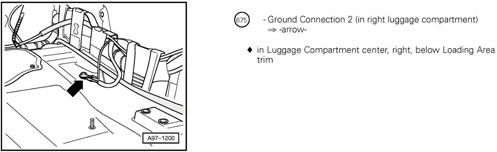

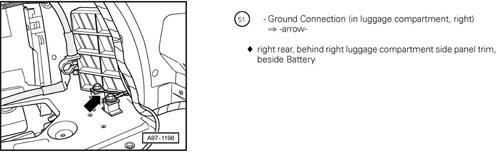

Fig 139: Right Rear Of Luggage Compartment

G00451507

Courtesy of AUDI OF AMERICA, INC.

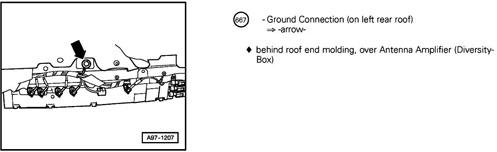

Fig 140: Left Rear Of Roof

G00451508

Courtesy of AUDI OF AMERICA, INC.

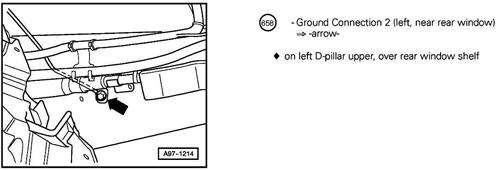

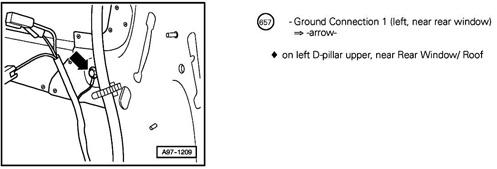

Fig 141: Top Of Left "D" Pillar

G00451509

Courtesy of AUDI OF AMERICA, INC.

Fig 142: Top Of Left "D" Pillar

G00451510

Courtesy of AUDI OF AMERICA, INC.

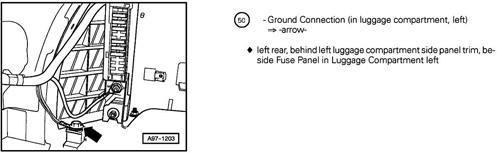

Fig 143: Left Rear Of Luggage Compartment

G00451511

Courtesy of AUDI OF AMERICA, INC.

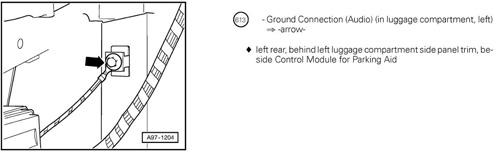

Fig 144: Left Side Of Luggage Compartment

G00451512

Courtesy of AUDI OF AMERICA, INC.

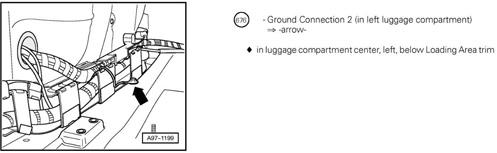

Fig 145: Left Side Of Luggage Compartment

G00451513

Courtesy of AUDI OF AMERICA, INC.

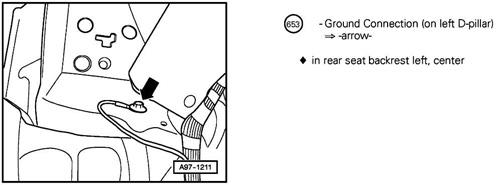

Fig 146: Left "D" Pillar

G00451514

Courtesy of AUDI OF AMERICA, INC.

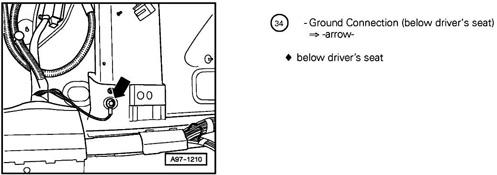

Fig 147: Under Driver's Seat

G00451515

Courtesy of AUDI OF AMERICA, INC.

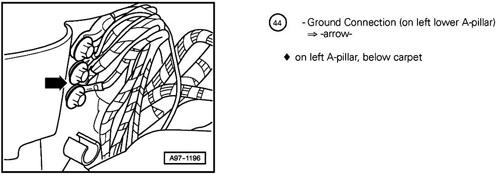

Fig 148: Left Kick Panel

G00451516

Courtesy of AUDI OF AMERICA, INC.

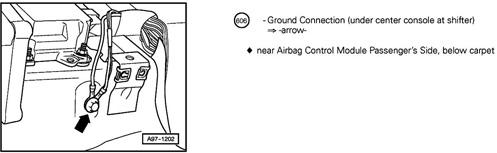

Fig 149: Under Center Console

G00451517

Courtesy of AUDI OF AMERICA, INC.

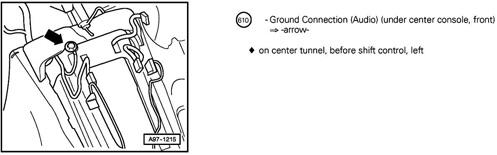

Fig 150: Left Front Of Center Tunnel

G00451518

Courtesy of AUDI OF AMERICA, INC.

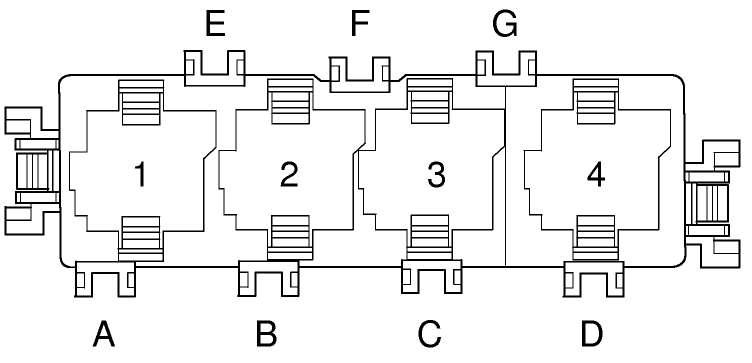

Fig 151: Plenum Chamber E-Box Relay Panel

G00451519

Courtesy of AUDI OF AMERICA, INC.

Fig 152: Relay & Fuse Panel - Right Side Of Luggage Compartment

G00451520

Courtesy of AUDI OF AMERICA, INC.

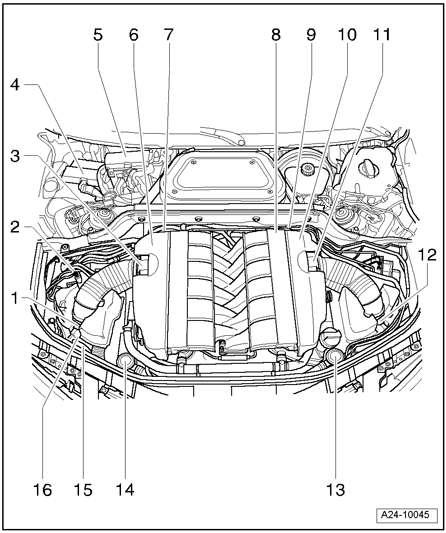

Fig 153: Engine (6.0L)

G00451523

Courtesy of AUDI OF AMERICA, INC.

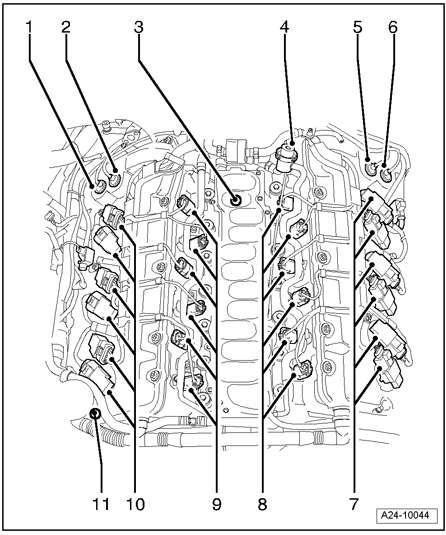

Fig 154: Top Of Engine (6.0L)

G00451524

Courtesy of AUDI OF AMERICA, INC.

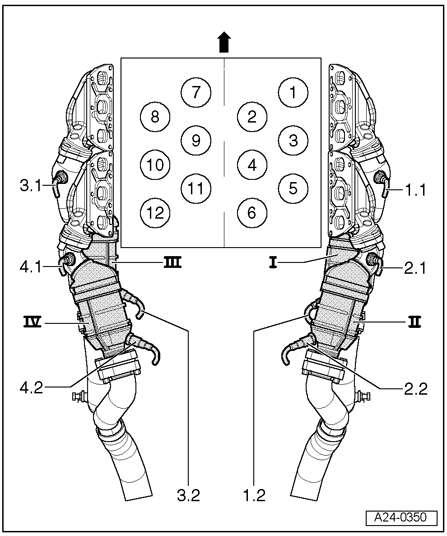

Fig 155: Exhaust System (6.0L)

G00451525

Courtesy of AUDI OF AMERICA, INC.

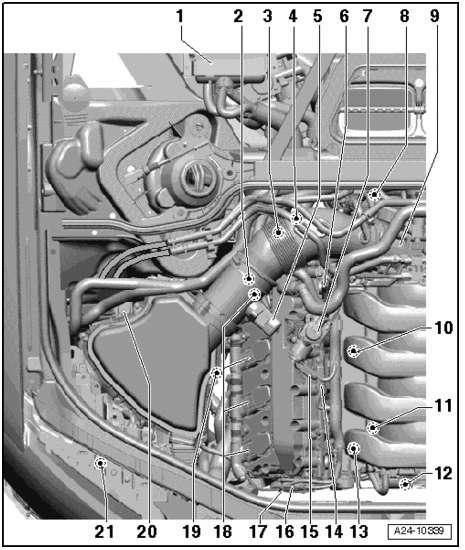

Fig 156: Right Side Of Engine (4.2L)

G00451526

Courtesy of AUDI OF AMERICA, INC.

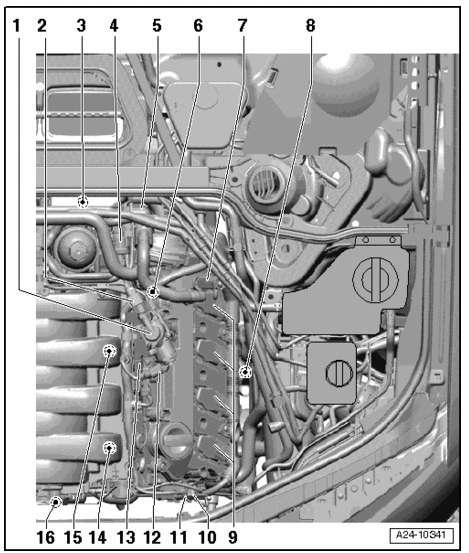

Fig 157: Left Side Of Engine (4.2L)

G00451527

Courtesy of AUDI OF AMERICA, INC.

Fig 158: Front Of Engine (4.2L)

G00451528

Courtesy of AUDI OF AMERICA, INC.

Fig 159: Top Of Engine (4.2L)

G00451529

Courtesy of AUDI OF AMERICA, INC.

Fig 160: Right Exhaust System (4.2L)

G00451530

Courtesy of AUDI OF AMERICA, INC.

Fig 161: Left Exhaust System (4.2L)

G00451531

Courtesy of AUDI OF AMERICA, INC.

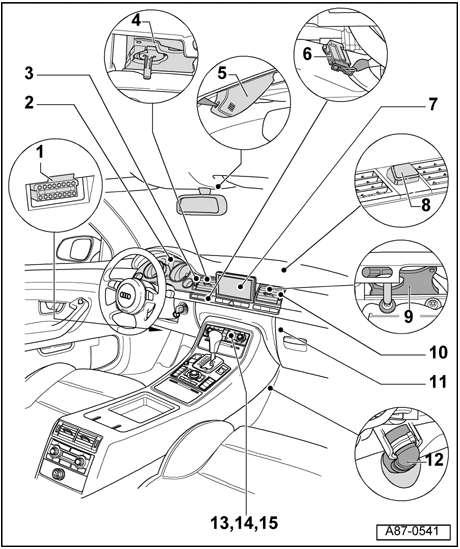

Fig 162: Dash & Center Console

G00451532

Courtesy of AUDI OF AMERICA, INC.

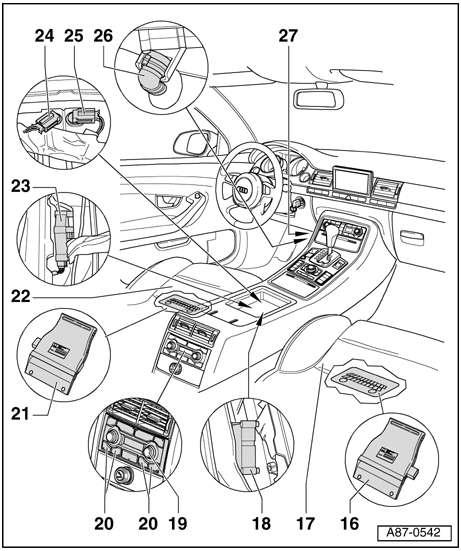

Fig 163: Front Seats & Center Console

G00451533

Courtesy of AUDI OF AMERICA, INC.

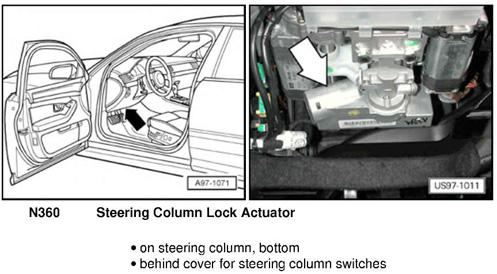

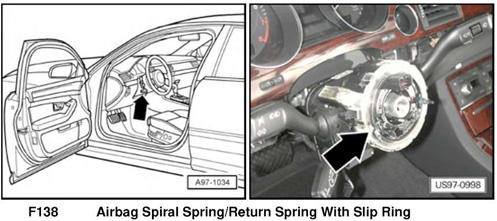

Fig 164: Steering Column

G00451534

Courtesy of AUDI OF AMERICA, INC.

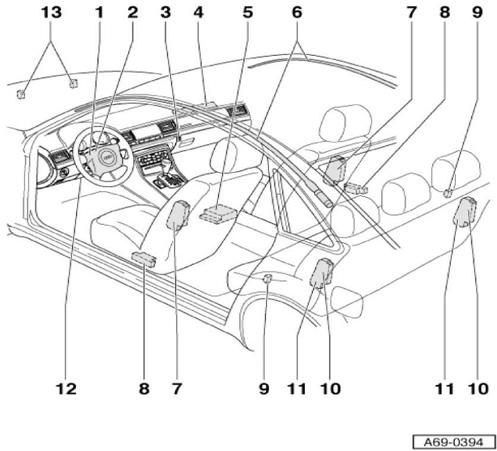

Fig 165: Air Bag System Overview

G00451535

Courtesy of AUDI OF AMERICA, INC.

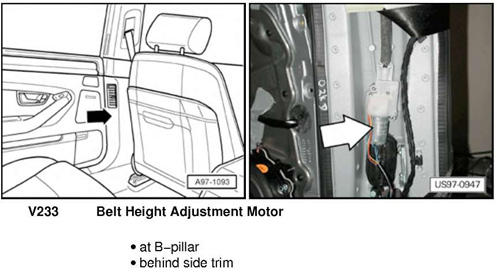

Fig 166: Left/Right "B" Pillars

G00451536

Courtesy of AUDI OF AMERICA, INC.

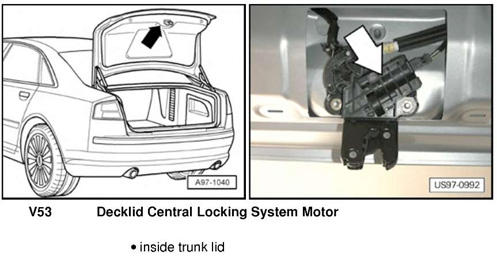

Fig 167: Trunk Lid

G00451537

Courtesy of AUDI OF AMERICA, INC.

Fig 168: Center Of Dash

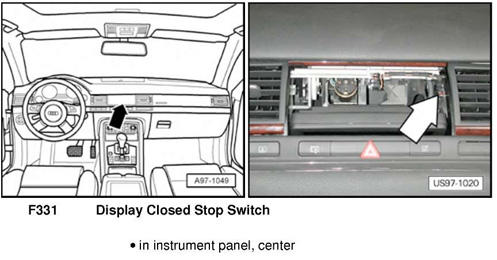

G00451538

Courtesy of AUDI OF AMERICA, INC.

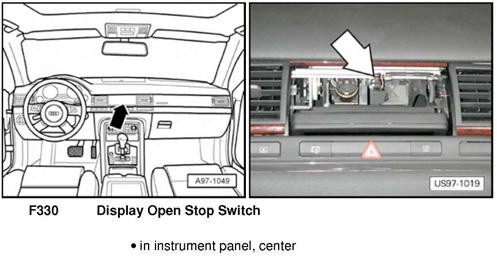

Fig 169: Center Of Dash

G00451539

Courtesy of AUDI OF AMERICA, INC.

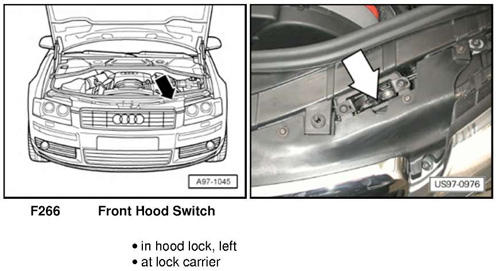

Fig 170: Left Front Of Engine Compartment

G00451540

Courtesy of AUDI OF AMERICA, INC.

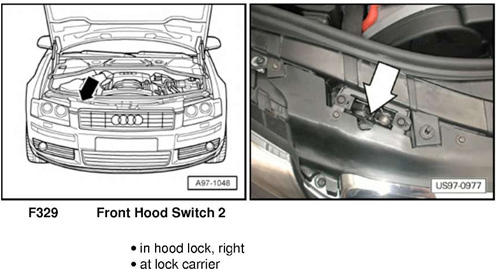

Fig 171: Right Front Of Engine Compartment

G00451541

Courtesy of AUDI OF AMERICA, INC.

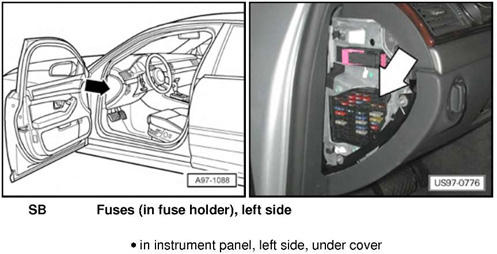

Fig 172: Left End Of Dash

G00451542

Courtesy of AUDI OF AMERICA, INC.

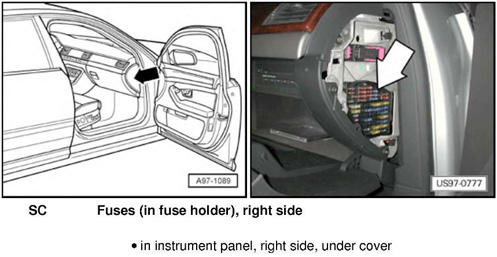

Fig 173: Right End Of Dash

G00451543

Courtesy of AUDI OF AMERICA, INC.

Fig 174: Right Side Of Luggage Compartment

G00451544

Courtesy of AUDI OF AMERICA, INC.

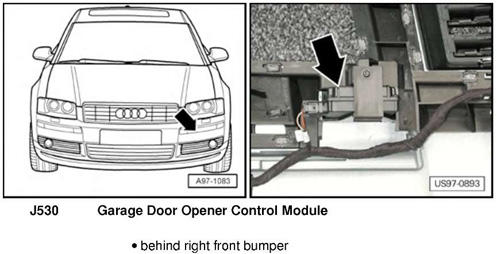

Fig 175: Right Side Of Front Bumper

G00451545

Courtesy of AUDI OF AMERICA, INC.

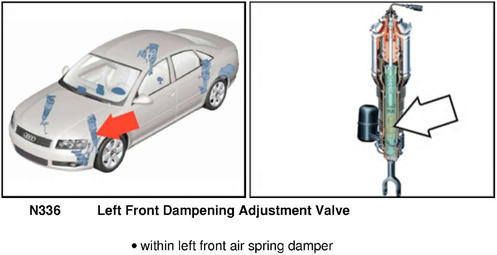

Fig 176: Left Front Air Spring Dampers (Right Similar)

G00451547

Courtesy of AUDI OF AMERICA, INC.

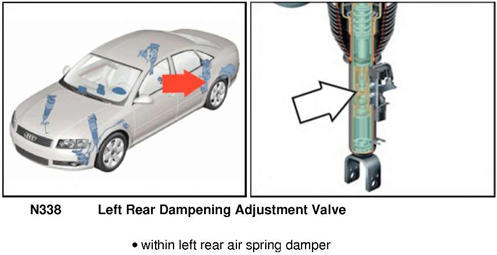

Fig 177: Left Rear Air Spring Dampers (Right Similar)

G00451548

Courtesy of AUDI OF AMERICA, INC.

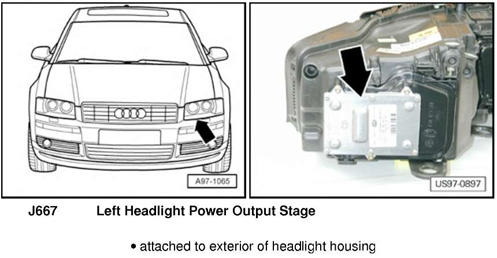

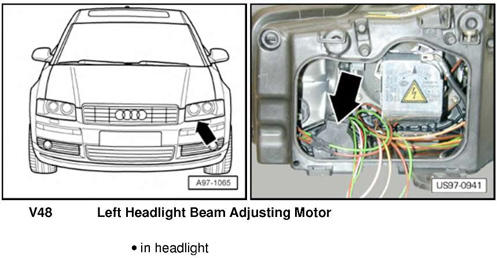

Fig 178: Left Front Of Engine Compartment (Right Similar)

G00451549

Courtesy of AUDI OF AMERICA, INC.

Fig 179: Left Front Of Engine Compartment (Right Similar)

G00451550

Courtesy of AUDI OF AMERICA, INC.

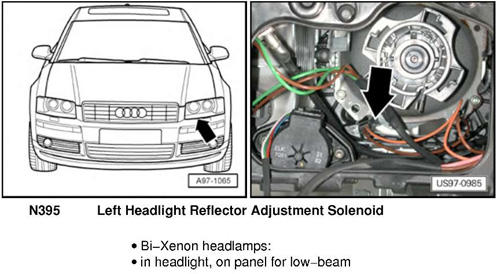

Fig 180: Left Front Of Engine Compartment (Right Similar)

G00451551

Courtesy of AUDI OF AMERICA, INC.

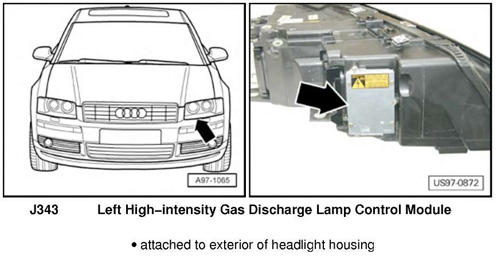

Fig 181: Left Front Of Engine Compartment (Right Similar)

G00451552

Courtesy of AUDI OF AMERICA, INC.

Fig 182: Left Side Of Trunk Lid (Right Similar)

G00451553

Courtesy of AUDI OF AMERICA, INC.

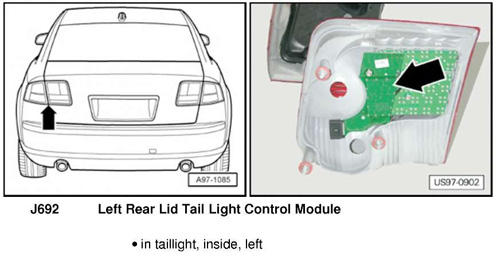

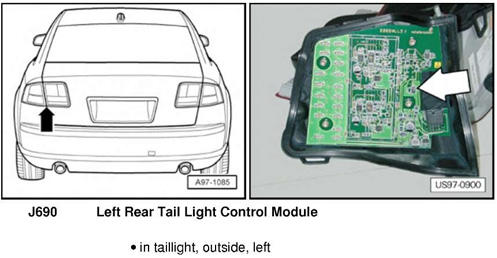

Fig 183: Left Rear Side Of Trunk (Right Similar)

G00451554

Courtesy of AUDI OF AMERICA, INC.

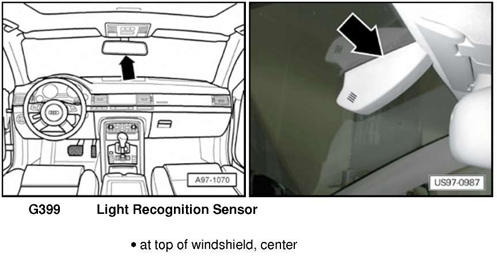

Fig 184: Top Center Of Windshield

G00451555

Courtesy of AUDI OF AMERICA, INC.

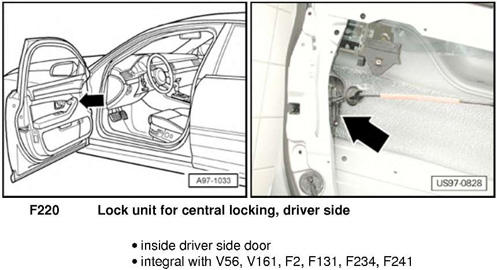

Fig 185: Left Front Door (Right Similar)

G00451556

Courtesy of AUDI OF AMERICA, INC.

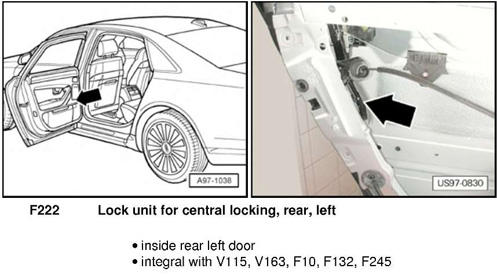

Fig 186: Left Rear Door (Right Similar)

G00451557

Courtesy of AUDI OF AMERICA, INC.

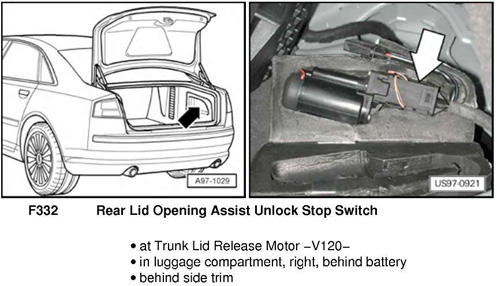

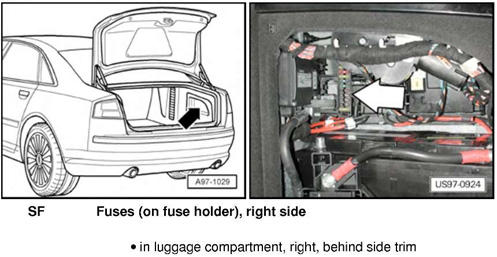

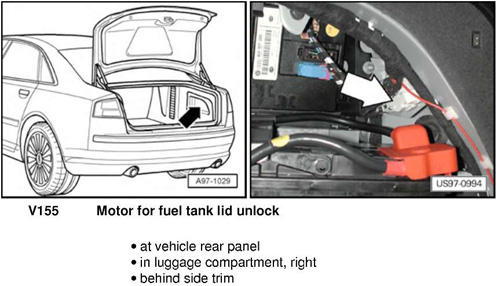

Fig 187: Right Side Of Luggage Compartment

G00451558

Courtesy of AUDI OF AMERICA, INC.

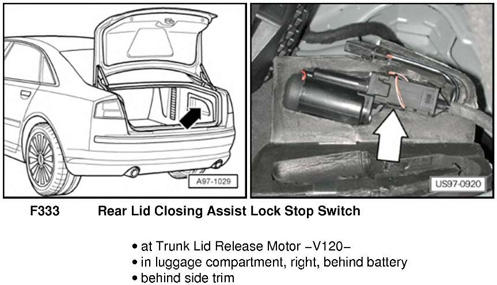

Fig 188: Right Side Of Luggage Compartment

G00451559

Courtesy of AUDI OF AMERICA, INC.

Fig 189: Right Side Of Luggage Compartment

G00451560

Courtesy of AUDI OF AMERICA, INC.

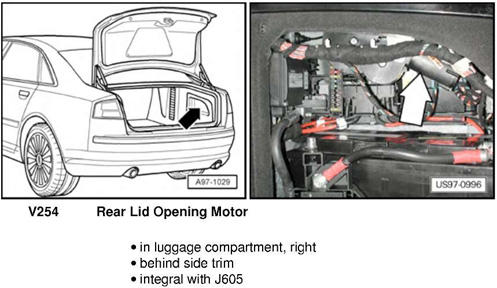

Fig 190: Right Side Of Luggage Compartment

G00451561

Courtesy of AUDI OF AMERICA, INC.

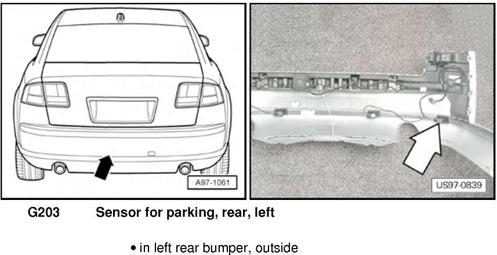

Fig 191: Rear Bumper

G00451562

Courtesy of AUDI OF AMERICA, INC.

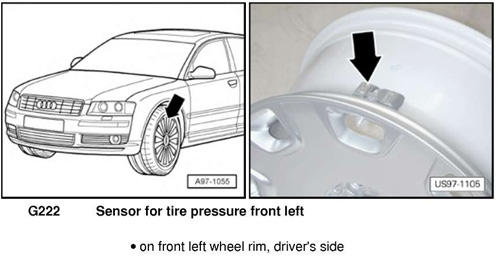

Fig 192: Wheel Rims (Left Front Shown)

G00451563

Courtesy of AUDI OF AMERICA, INC.

Fig 193: Base Of Steering Column

G00451564

Courtesy of AUDI OF AMERICA, INC.

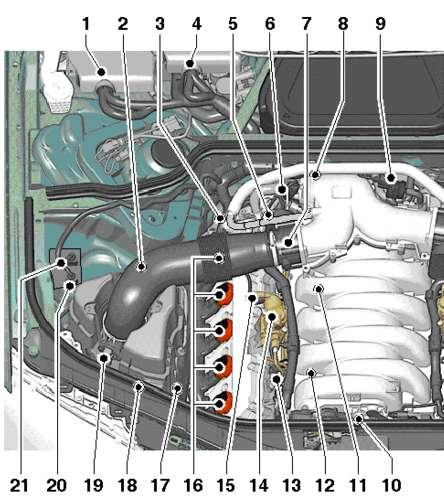

Fig 194: Right Side Of Engine & Engine Compartment (5.2L)

G00457322

Courtesy of AUDI OF AMERICA, INC.

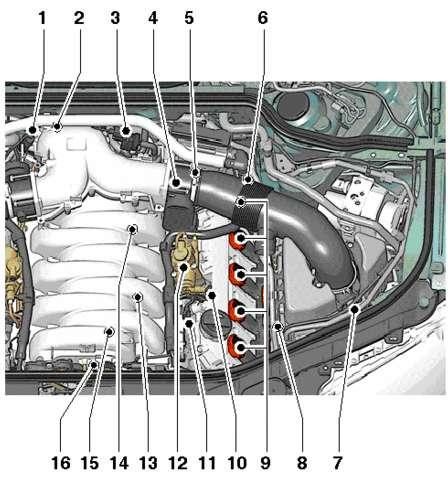

Fig 195: Left Side Of Engine & Engine Compartment (5.2L)

G00457323

Courtesy of AUDI OF AMERICA, INC.

Fig 196: Right Rear Of Engine Compartment (5.2L)

G00457324

Courtesy of AUDI OF AMERICA, INC.

Fig 197: Left Rear Of Engine (5.2L)

G00457325

Courtesy of AUDI OF AMERICA, INC.

Fig 198: Rear Of Engine (5.2L)

G00457326

Courtesy of AUDI OF AMERICA, INC.

Fig 199: Front Of Engine (5.2L)

G00457327

Courtesy of AUDI OF AMERICA, INC.

Fig 200: Under Front Of Vehicle (5.2L)

G00457328

Courtesy of AUDI OF AMERICA, INC.

Fig 201: Under Center Of Vehicle (5.2L)

G00457329

Courtesy of AUDI OF AMERICA, INC.

Fig 202: Under Right Center Of Vehicle (5.2L) (Left Similar)

G00457330

Courtesy of AUDI OF AMERICA, INC.
