Electrical Component Locator: Switches

SWITCHES LOCATION

Component Location

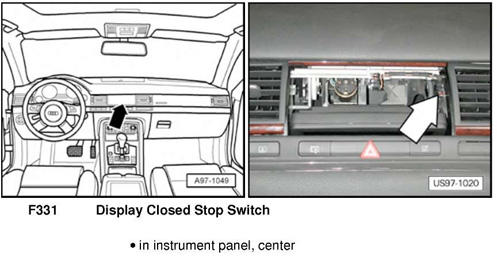

Display Closed Stop Switch In center of dash. See Figure.
Display Open Stop Switch In center of dash. See Figure.
Front Hood Switch In left hood lock assembly. See Figure.
Front Hood Switch 2 In right hood lock assembly. See Figure.
Fuel Tank Lock Switch Top of fuel filler tube. See Figure.
Kick Down Switch Under accelerator pedal. See Figure.
Oil Pressure Switch (6) Lower left front of engine. See Figure.
Rear Lid Closing Assist Lock Stop Switch At trunk release motor. See Figure.
Rear Lid Opening Assist Unlock Stop Switch At trunk lid release motor. See Figure.
Trunk Lid Alarm Switch Inside trunk lid. See Figure.
Trunk Lock/Alarm/Central Locking Switch Inside trunk lid. See Figure.
