Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

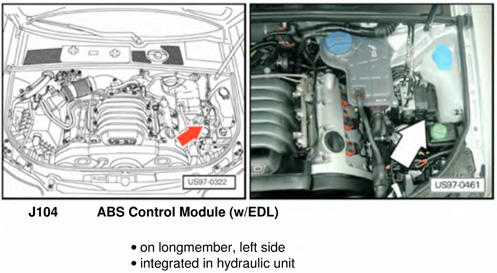

Fig 1: Left Side Of Engine Compartment

G00431318

Courtesy of AUDI OF AMERICA, INC.

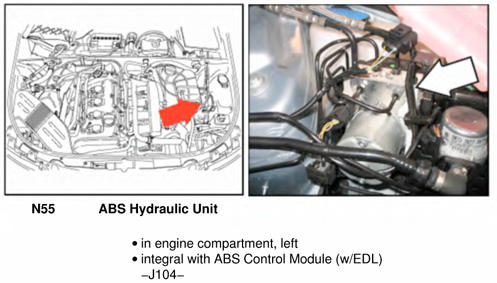

Fig 2: Left Side Of Engine Compartment

G00431319

Courtesy of AUDI OF AMERICA, INC.

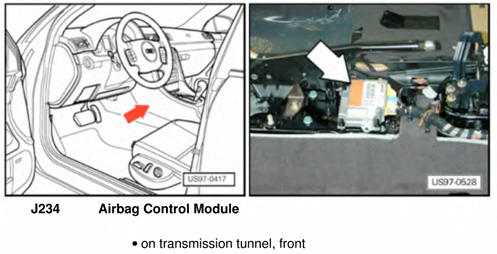

Fig 3: Under Front Of Center Console

G00431320

Courtesy of AUDI OF AMERICA, INC.

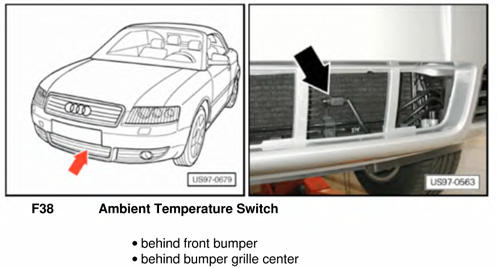

Fig 4: Behind Left Side Of Front Bumper

G00431321

Courtesy of AUDI OF AMERICA, INC.

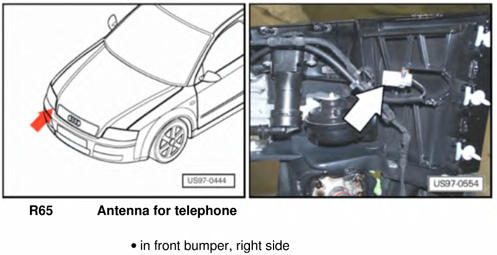

Fig 5: Behind Right Side Of Front Bumper

G00431324

Courtesy of AUDI OF AMERICA, INC.

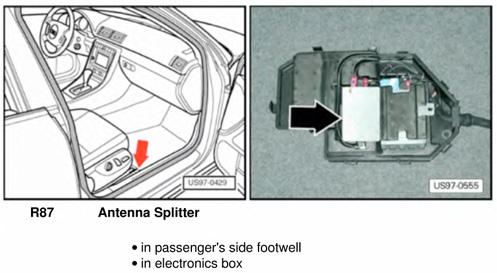

Fig 6: Below Front Passenger's Seat

G00431325

Courtesy of AUDI OF AMERICA, INC.

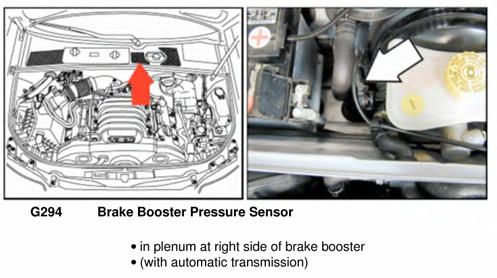

Fig 7: Rear Of Engine Compartment, In Plenum Chamber

G00431326

Courtesy of AUDI OF AMERICA, INC.

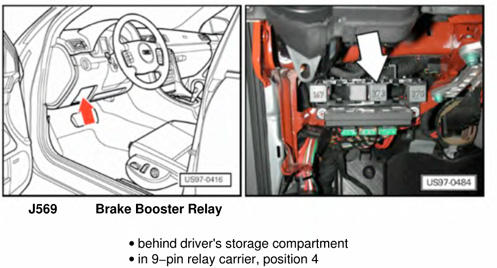

Fig 8: Under Left Side Of Dash

G00431327

Courtesy of AUDI OF AMERICA, INC.

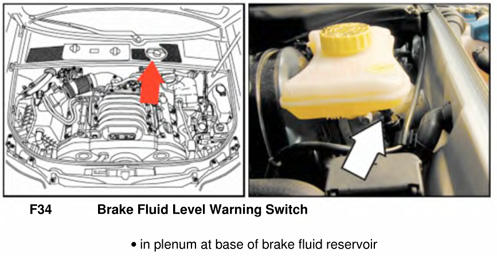

Fig 9: Rear Of Engine Compartment, In Plenum Chamber

G00431328

Courtesy of AUDI OF AMERICA, INC.

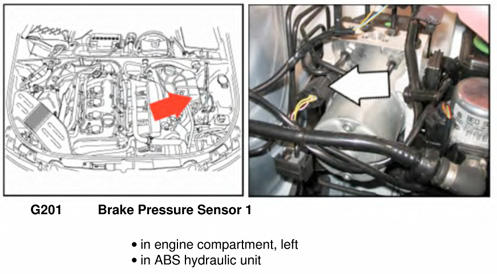

Fig 10: Left Side Of Engine Compartment

G00431329

Courtesy of AUDI OF AMERICA, INC.

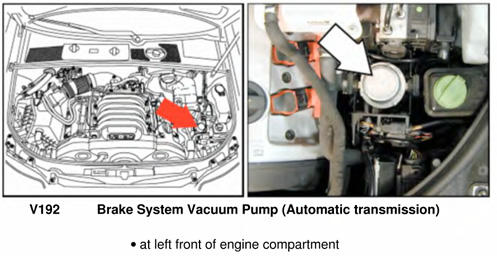

Fig 11: Left Front Of Engine Compartment

G00431330

Courtesy of AUDI OF AMERICA, INC.

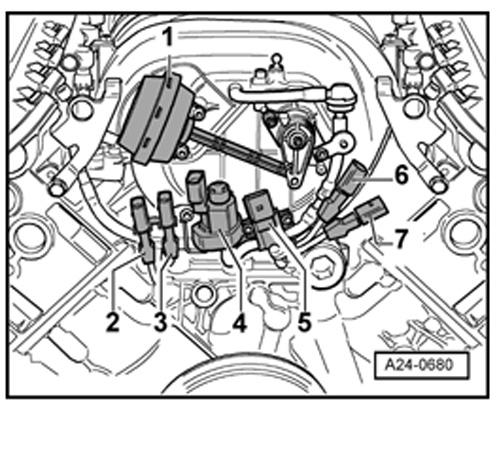

Fig 12: Front Of Engine

G00431333

Courtesy of AUDI OF AMERICA, INC.

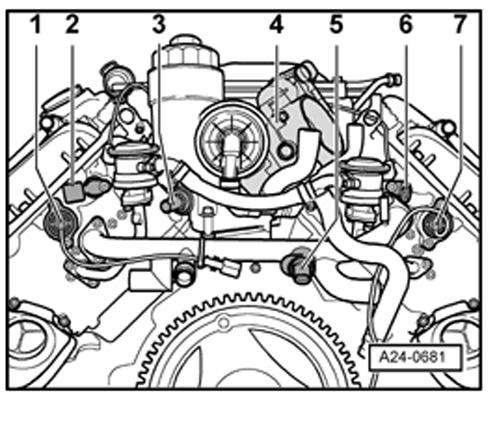

Fig 13: Rear Of Engine (4.2L)

G00431334

Courtesy of AUDI OF AMERICA, INC.

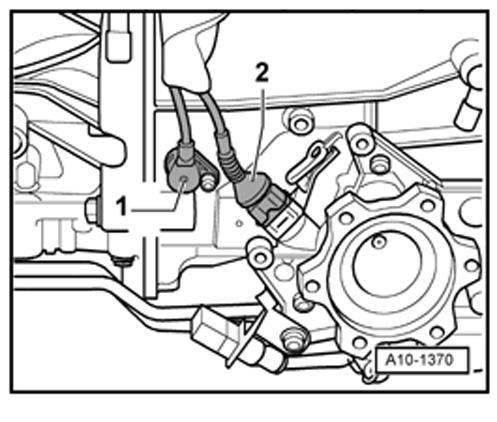

Fig 14: Transmission Housing, Over Ring Gear

G00431335

Courtesy of AUDI OF AMERICA, INC.

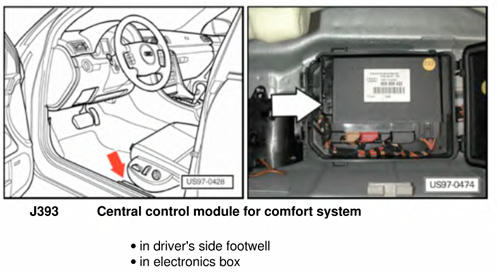

Fig 15: Under Driver's Seat

G00431336

Courtesy of AUDI OF AMERICA, INC.

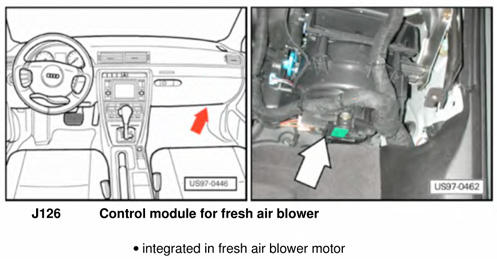

Fig 16: Under Right Side Of Dash

G00431337

Courtesy of AUDI OF AMERICA, INC.

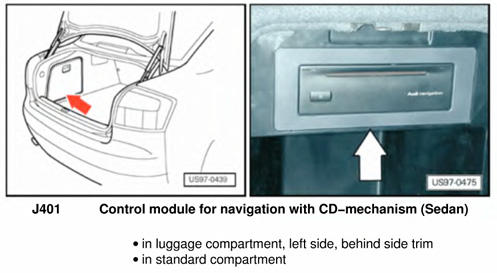

Fig 17: Left Side Of Luggage Compartment

G00431339

Courtesy of AUDI OF AMERICA, INC.

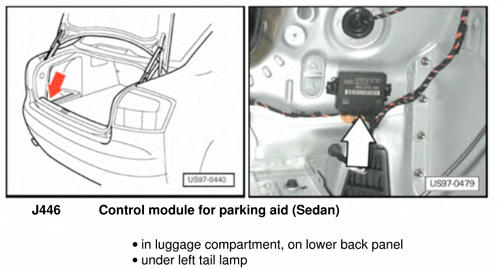

Fig 18: Left Rear Of Luggage Compartment

G00431341

Courtesy of AUDI OF AMERICA, INC.

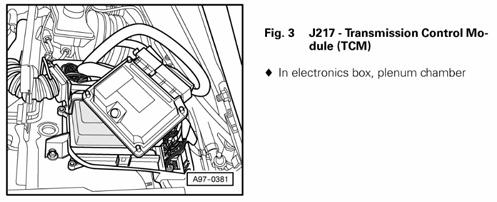

Fig 19: Rear Of Engine Compartment, In Plenum Chamber

G00431342

Courtesy of AUDI OF AMERICA, INC.

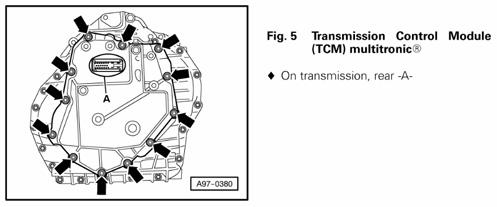

Fig 20: Rear Of Transmission (Multitronic)

G00431343

Courtesy of AUDI OF AMERICA, INC.

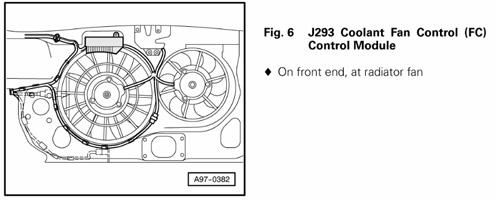

Fig 21: Front Of Engine Compartment

G00431344

Courtesy of AUDI OF AMERICA, INC.

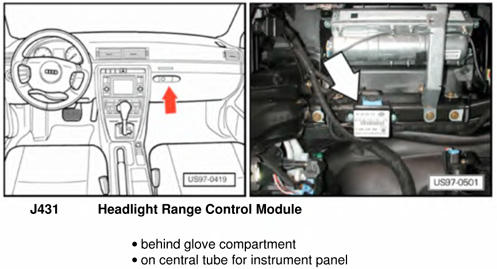

Fig 22: Right Side Of Dash

G00431345

Courtesy of AUDI OF AMERICA, INC.

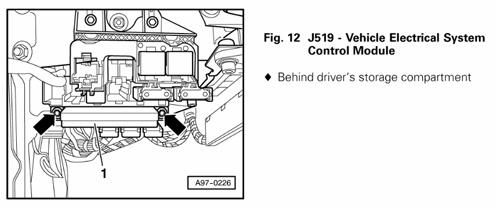

Fig 23: Left Side Of Dash

G00431346

Courtesy of AUDI OF AMERICA, INC.

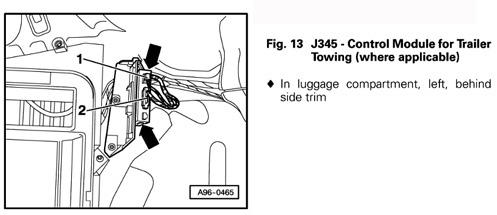

Fig 24: Left Side Of Luggage Compartment

G00431347

Courtesy of AUDI OF AMERICA, INC.

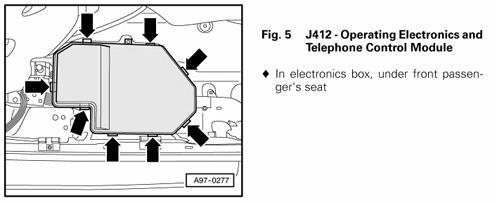

Fig 25: Under Front Passenger's Seat

G00431348

Courtesy of AUDI OF AMERICA, INC.

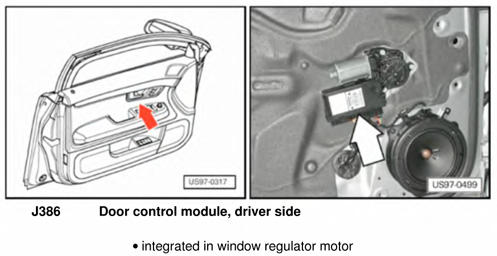

Fig 26: Driver's Door

G00431351

Courtesy of AUDI OF AMERICA, INC.

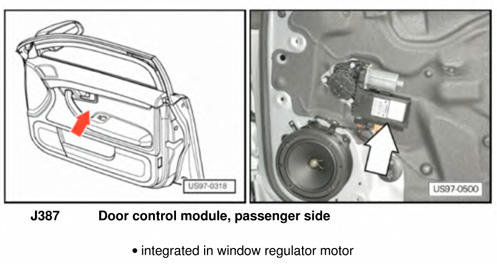

Fig 27: Front Passenger's Door

G00431352

Courtesy of AUDI OF AMERICA, INC.

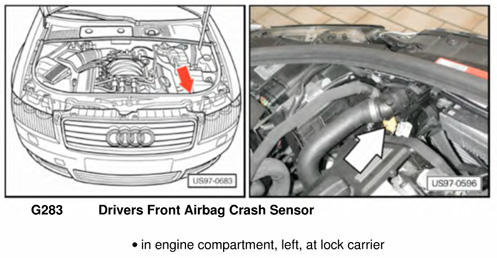

Fig 28: Left Front Of Engine Compartment

G00431355

Courtesy of AUDI OF AMERICA, INC.

Fig 29: Steering Column

G00431356

Courtesy of AUDI OF AMERICA, INC.

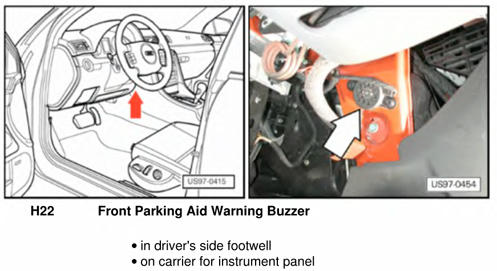

Fig 30: Under Left Side Of Dash

G00431357

Courtesy of AUDI OF AMERICA, INC.

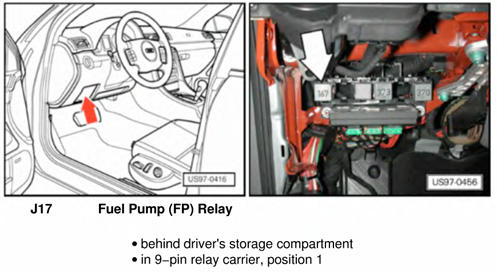

Fig 31: Behind Driver's Storage Compartment

G00431358

Courtesy of AUDI OF AMERICA, INC.

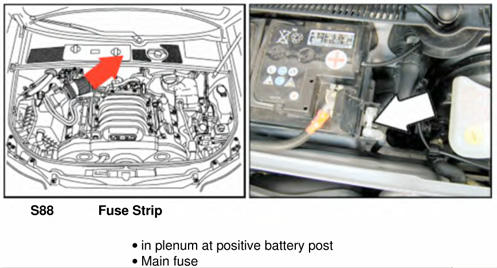

Fig 32: Rear Of Engine Compartment, In Plenum Chamber

G00431359

Courtesy of AUDI OF AMERICA, INC.

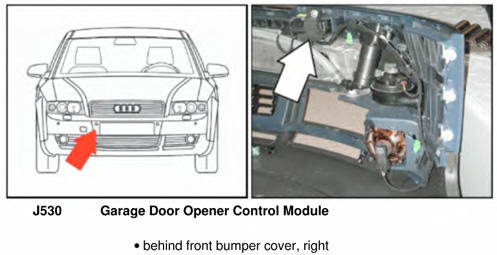

Fig 33: Behind Right Side Of Front Bumper

G00431360

Courtesy of AUDI OF AMERICA, INC.

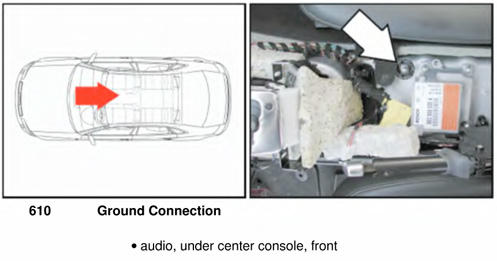

Fig 34: Under Center Console

G00431365

Courtesy of AUDI OF AMERICA, INC.

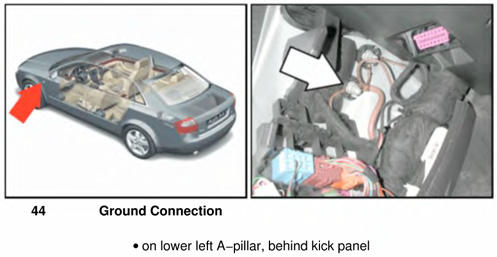

Fig 35: Left Kick Panel

G00431366

Courtesy of AUDI OF AMERICA, INC.

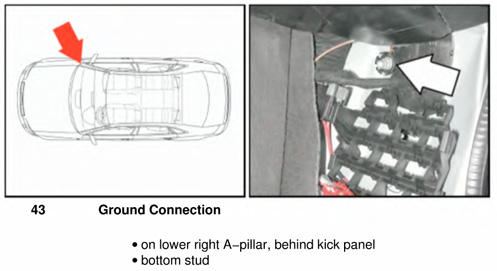

Fig 36: Right Kick Panel

G00431367

Courtesy of AUDI OF AMERICA, INC.

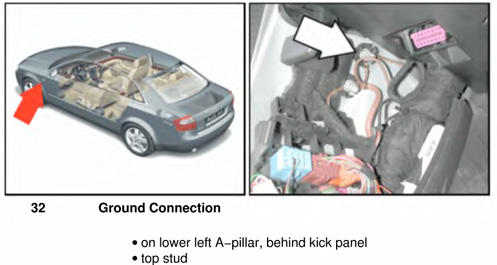

Fig 37: Left Kick Panel

G00431369

Courtesy of AUDI OF AMERICA, INC.

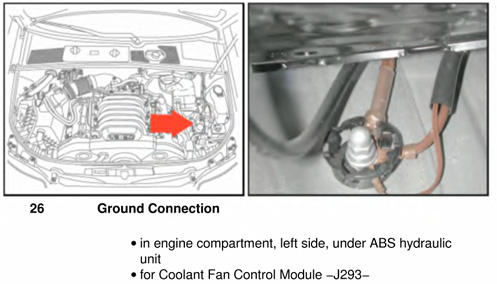

Fig 38: Left Side Of Engine Compartment

G00431370

Courtesy of AUDI OF AMERICA, INC.

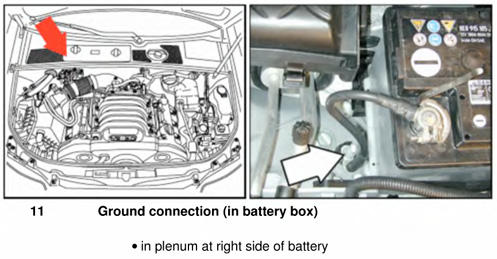

Fig 39: Rear Of Engine Compartment, Right Of Battery

G00431371

Courtesy of AUDI OF AMERICA, INC.

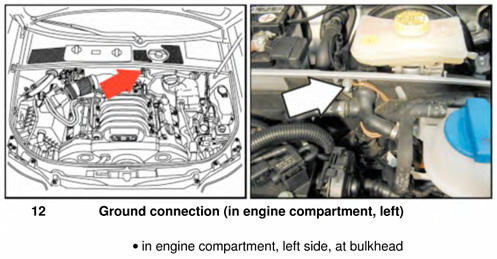

Fig 40: Left Rear Of Engine Compartment

G00431372

Courtesy of AUDI OF AMERICA, INC.

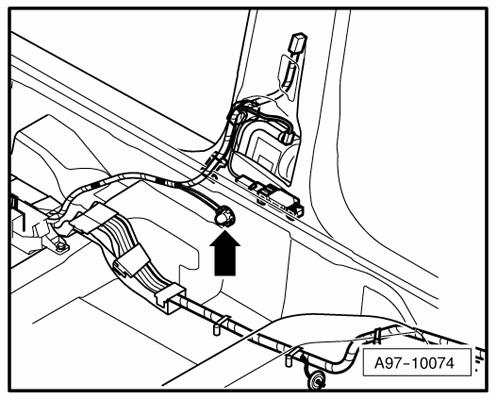

Fig 41: Below Driver's Seat

G00431374

Courtesy of AUDI OF AMERICA, INC.

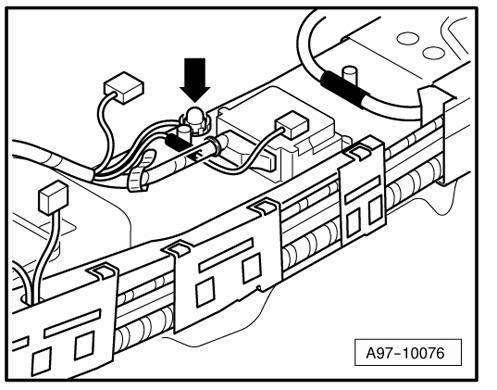

Fig 42: Under Front Of Center Console

G00431375

Courtesy of AUDI OF AMERICA, INC.

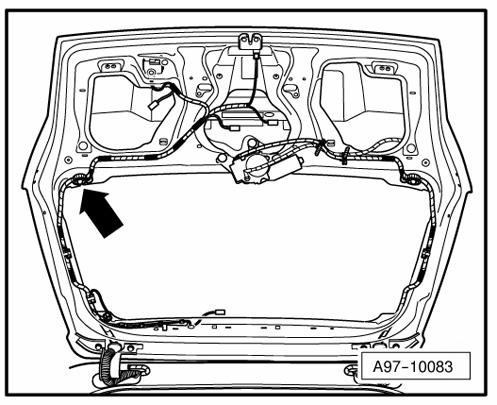

Fig 43: Rear Lid

G00431378

Courtesy of AUDI OF AMERICA, INC.

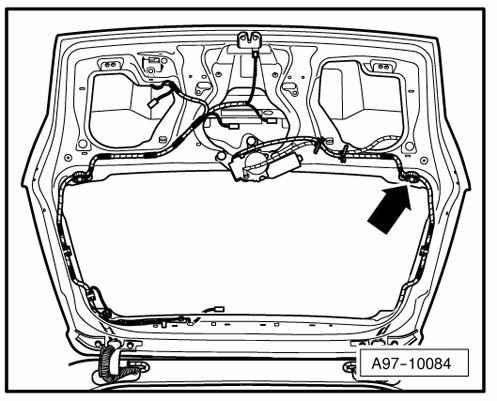

Fig 44: Rear Lid

G00431379

Courtesy of AUDI OF AMERICA, INC.

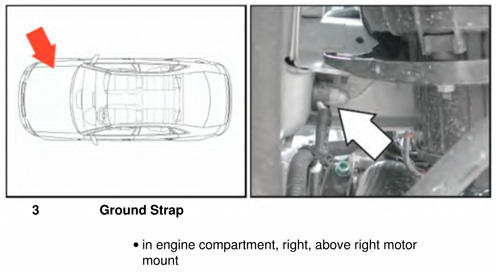

Fig 45: Right Side Of Engine Compartment

G00431380

Courtesy of AUDI OF AMERICA, INC.

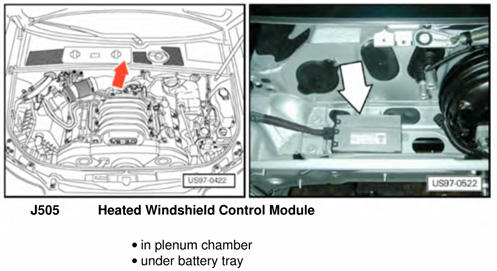

Fig 46: Rear Of Engine Compartment, In Plenum Chamber

G00431381

Courtesy of AUDI OF AMERICA, INC.

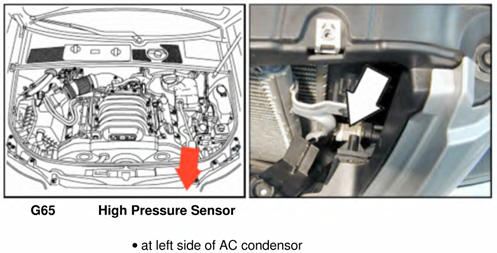

Fig 47: Left Front Of Engine Compartment

G00431382

Courtesy of AUDI OF AMERICA, INC.

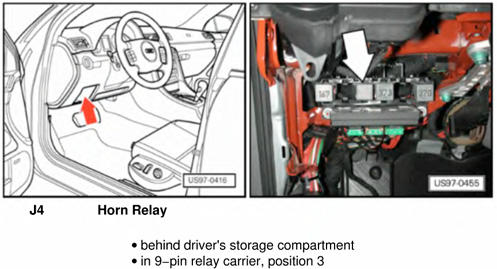

Fig 48: Behind Driver's Storage Compartment

G00431383

Courtesy of AUDI OF AMERICA, INC.

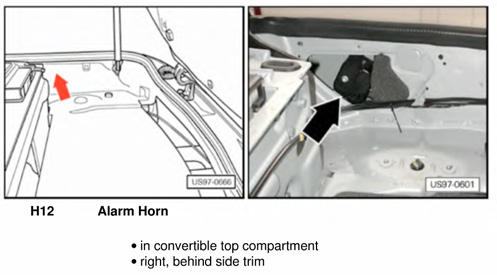

Fig 49: Convertible Top Compartment

G00431384

Courtesy of AUDI OF AMERICA, INC.

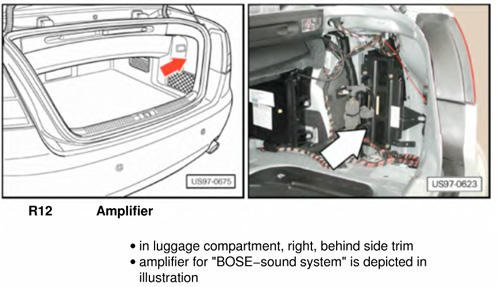

Fig 50: Right Side Of Luggage Compartment

G00431385

Courtesy of AUDI OF AMERICA, INC.

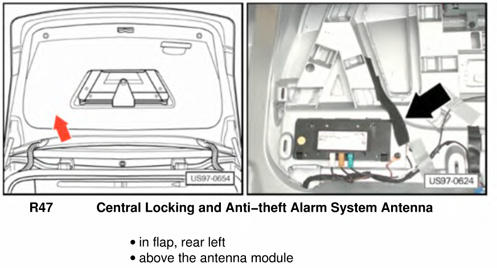

Fig 51: Luggage Compartment Flap

G00431386

Courtesy of AUDI OF AMERICA, INC.

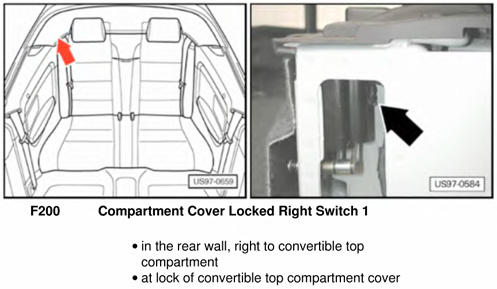

Fig 52: Convertible Top Compartment

G00431387

Courtesy of AUDI OF AMERICA, INC.

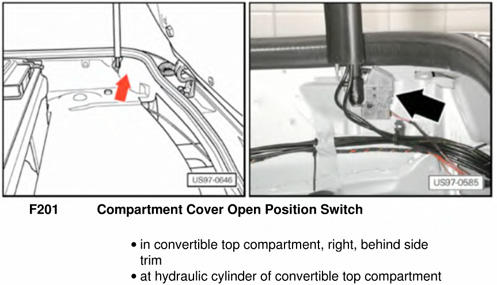

Fig 53: Convertible Top Compartment

G00431388

Courtesy of AUDI OF AMERICA, INC.

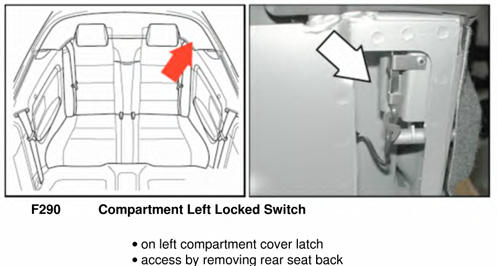

Fig 54: Convertible Top Compartment

G00431389

Courtesy of AUDI OF AMERICA, INC.

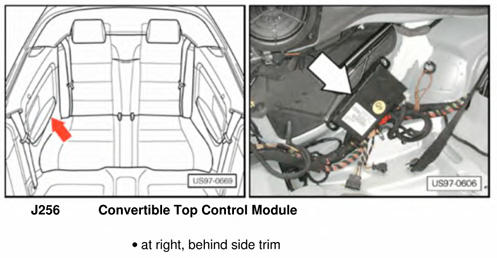

Fig 55: Right Rear Quarterpanel

G00431390

Courtesy of AUDI OF AMERICA, INC.

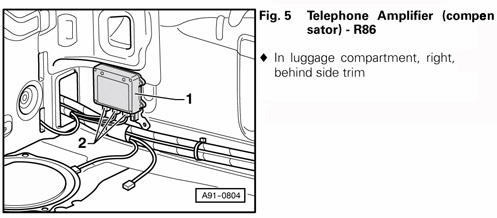

Fig 56: Right Side Of Luggage Compartment

G00431391

Courtesy of AUDI OF AMERICA, INC.

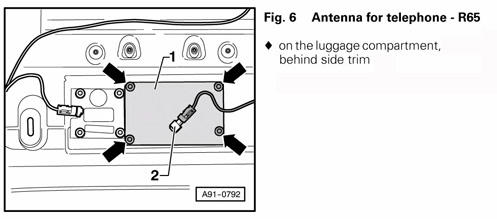

Fig 57: Luggage Compartment

G00431392

Courtesy of AUDI OF AMERICA, INC.

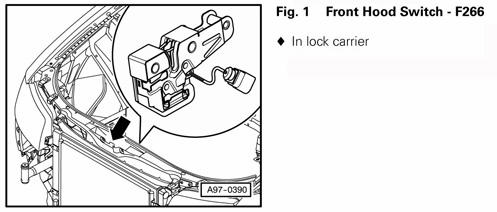

Fig 58: Front Of Engine Compartment

G00431393

Courtesy of AUDI OF AMERICA, INC.

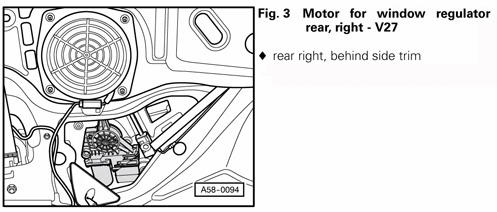

Fig 59: Right Rear Quarterpanel

G00431394

Courtesy of AUDI OF AMERICA, INC.

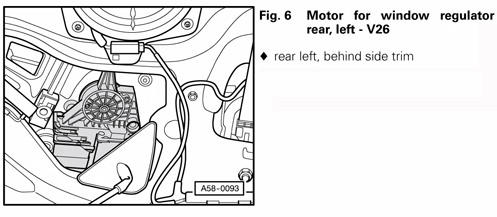

Fig 60: Left Rear Quarterpanel

G00431395

Courtesy of AUDI OF AMERICA, INC.

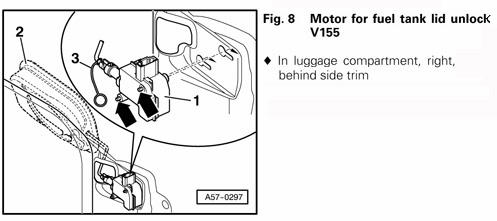

Fig 61: Right Side Of Luggage Compartment

G00431396

Courtesy of AUDI OF AMERICA, INC.

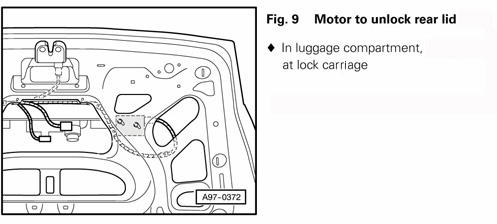

Fig 62: Luggage Compartment Lid

G00431397

Courtesy of AUDI OF AMERICA, INC.

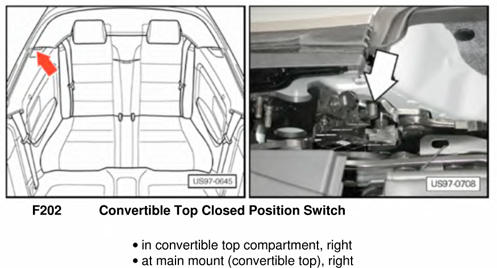

Fig 63: Convertible Top Compartment

G00431398

Courtesy of AUDI OF AMERICA, INC.

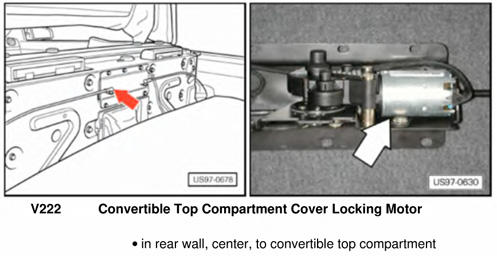

Fig 64: Convertible Top Compartment

G00431399

Courtesy of AUDI OF AMERICA, INC.

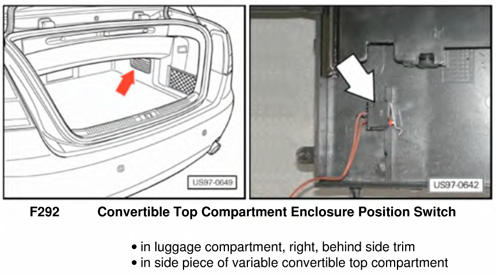

Fig 65: Luggage Compartment

G00431400

Courtesy of AUDI OF AMERICA, INC.

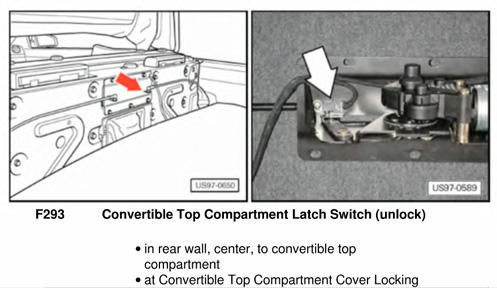

Fig 66: Convertible Top Compartment

G00431401

Courtesy of AUDI OF AMERICA, INC.

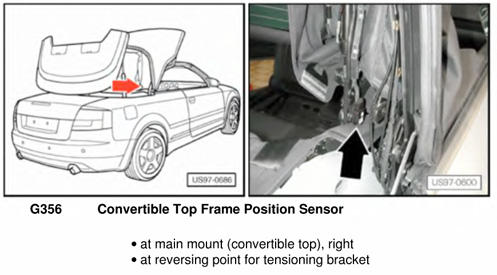

Fig 67: Convertible Top Compartment

G00431402

Courtesy of AUDI OF AMERICA, INC.

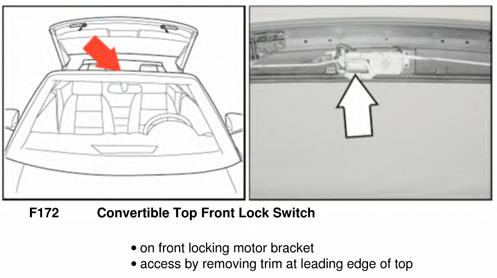

Fig 68: Top Center Of Windshield Frame

G00431403

Courtesy of AUDI OF AMERICA, INC.

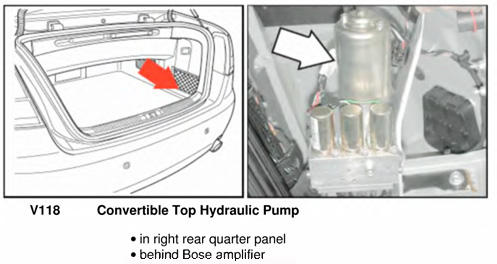

Fig 69: Luggage Compartment

G00431404

Courtesy of AUDI OF AMERICA, INC.

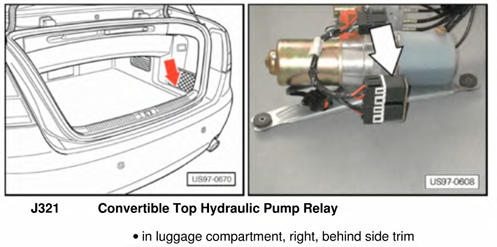

Fig 70: Luggage Compartment

G00431405

Courtesy of AUDI OF AMERICA, INC.

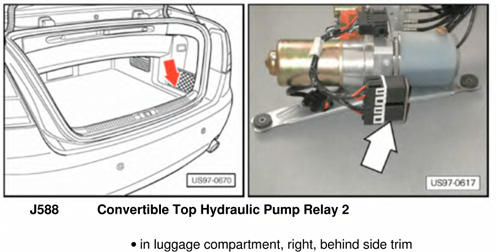

Fig 71: Luggage Compartment

G00431406

Courtesy of AUDI OF AMERICA, INC.

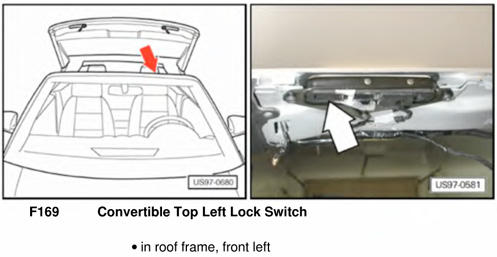

Fig 72: Top Center Of Windshield Frame

G00431407

Courtesy of AUDI OF AMERICA, INC.

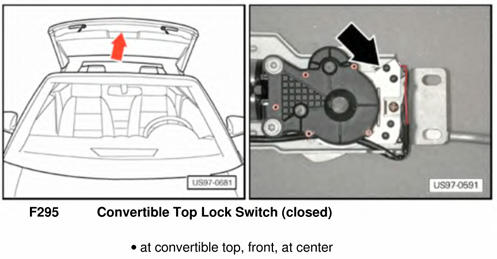

Fig 73: Front Center Of Convertible Top

G00431408

Courtesy of AUDI OF AMERICA, INC.

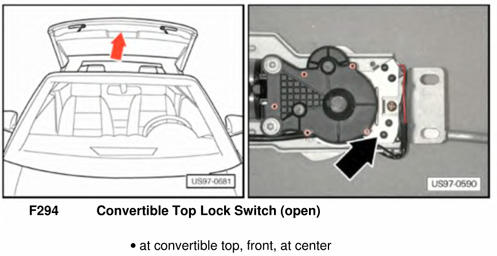

Fig 74: Front Center Of Convertible Top

G00431409

Courtesy of AUDI OF AMERICA, INC.

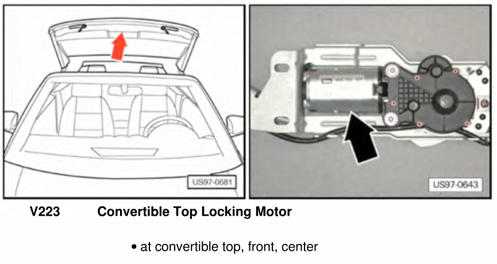

Fig 75: Center Front Of Convertible Top

G00431410

Courtesy of AUDI OF AMERICA, INC.

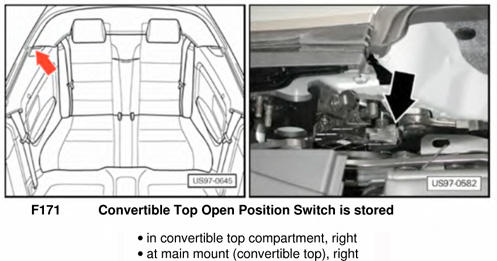

Fig 76: Right Front Of Convertible Top Compartment

G00431411

Courtesy of AUDI OF AMERICA, INC.

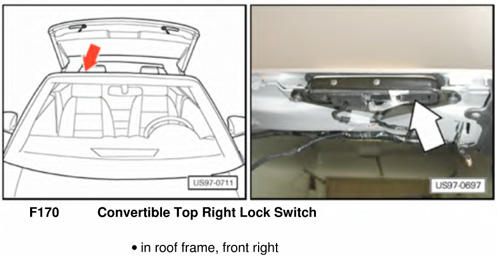

Fig 77: Top Right Side Of Windshield Frame

G00431412

Courtesy of AUDI OF AMERICA, INC.

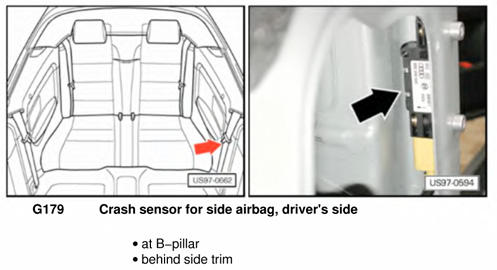

Fig 78: Left "B" Pillar

G00431413

Courtesy of AUDI OF AMERICA, INC.

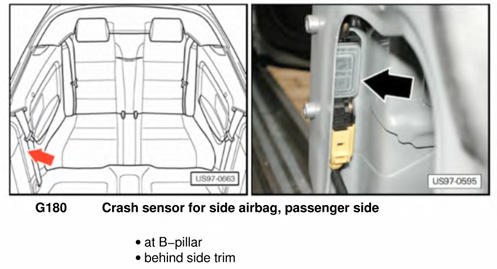

Fig 79: Right "B" Pillar

G00431414

Courtesy of AUDI OF AMERICA, INC.

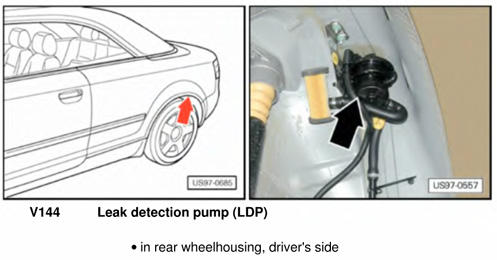

Fig 80: Left Rear Wheelwell

G00431415

Courtesy of AUDI OF AMERICA, INC.

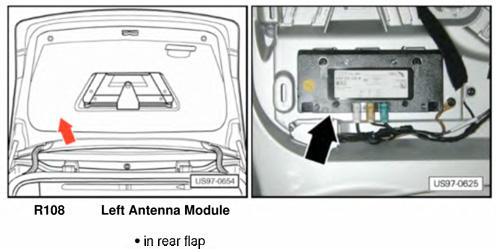

Fig 81: Left Side Of Luggage Compartment Flap

G00431416

Courtesy of AUDI OF AMERICA, INC.

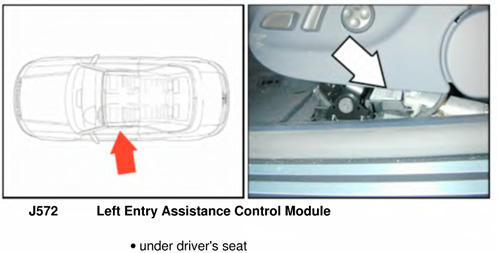

Fig 82: Under Driver's Seat

G00431417

Courtesy of AUDI OF AMERICA, INC.

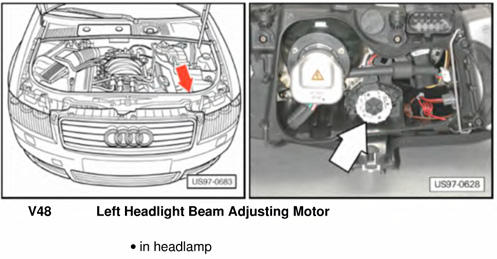

Fig 83: Behind Left Headlight

G00431418

Courtesy of AUDI OF AMERICA, INC.

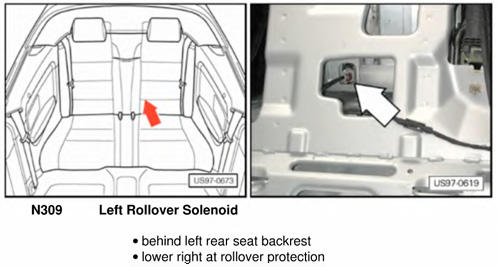

Fig 84: Behind Left Rear Seat

G00431419

Courtesy of AUDI OF AMERICA, INC.

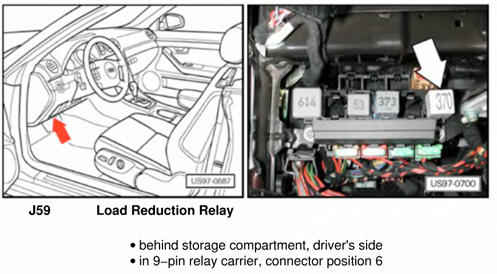

Fig 85: Behind Driver's Storage Compartment

G00431420

Courtesy of AUDI OF AMERICA, INC.

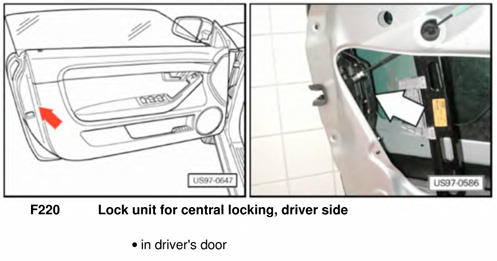

Fig 86: Rear Of Driver's Door

G00431421

Courtesy of AUDI OF AMERICA, INC.

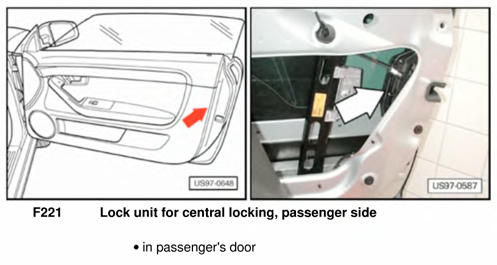

Fig 87: Rear Of Front Passenger's Door

G00431422

Courtesy of AUDI OF AMERICA, INC.

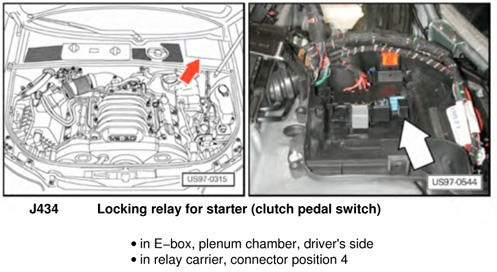

Fig 88: E-Box (Plenum Chamber)

G00431423

Courtesy of AUDI OF AMERICA, INC.

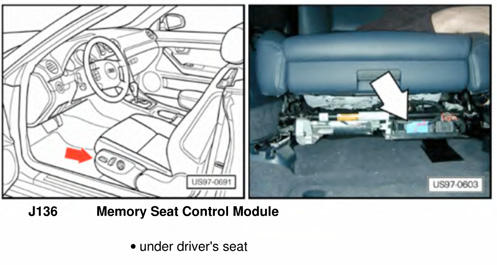

Fig 89: Under Driver's Seat

G00431424

Courtesy of AUDI OF AMERICA, INC.

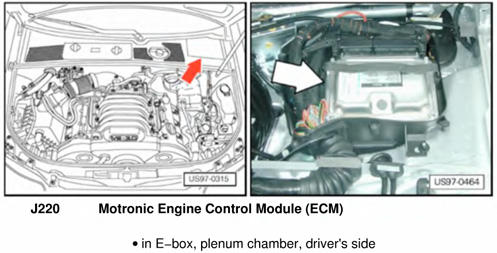

Fig 90: Left Rear Of Engine Compartment, In Plenum Chamber

G00431425

Courtesy of AUDI OF AMERICA, INC.

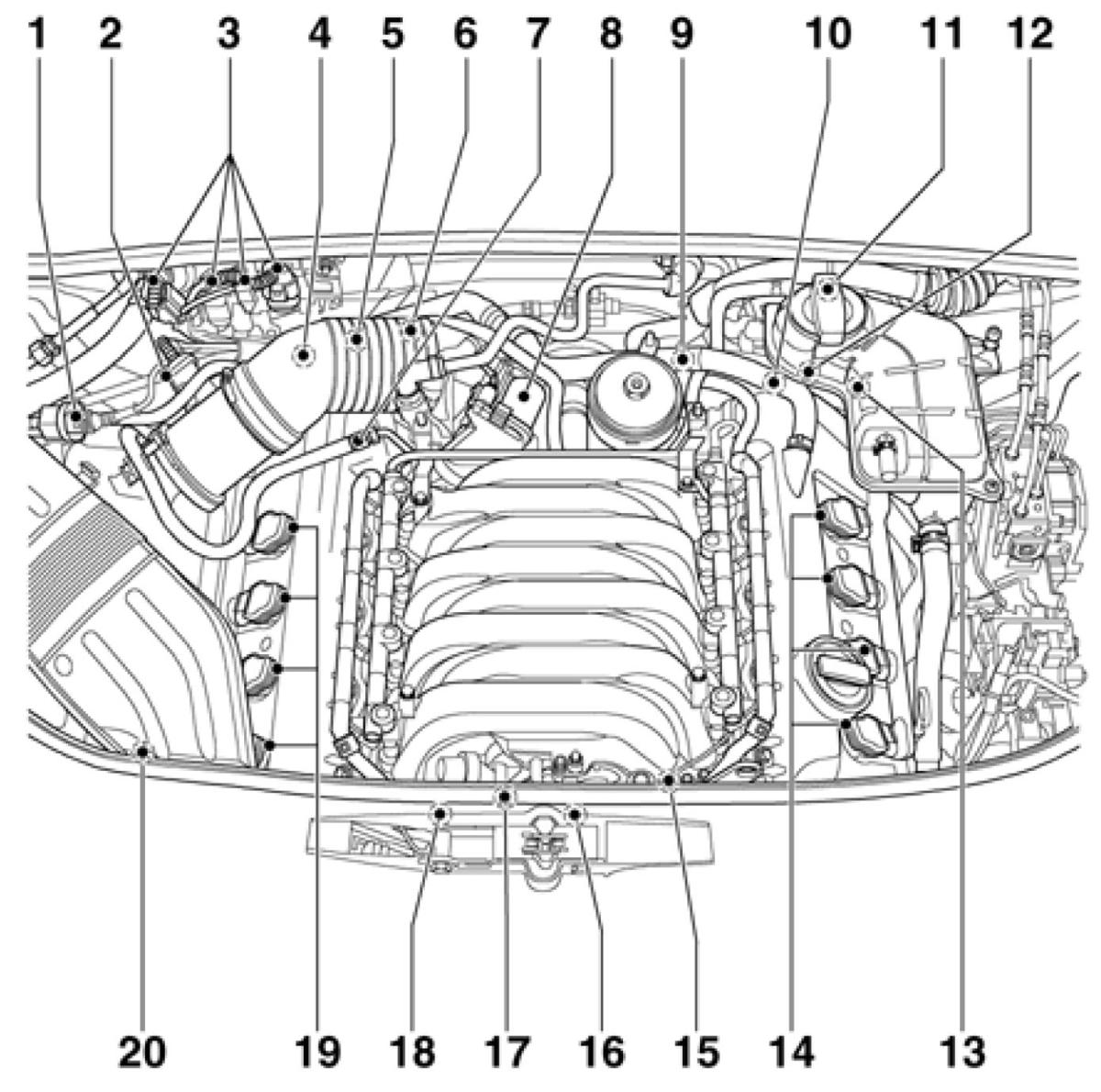

Fig 91: Top Of Engine

G00473362

Courtesy of AUDI OF AMERICA, INC.

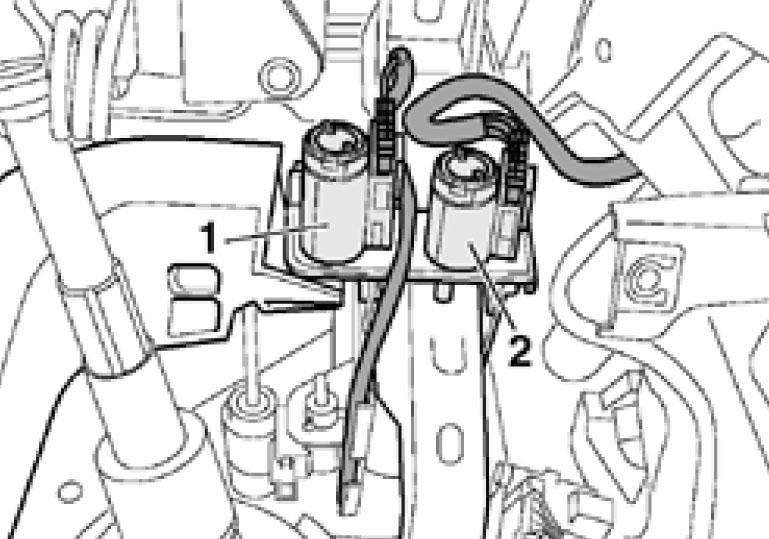

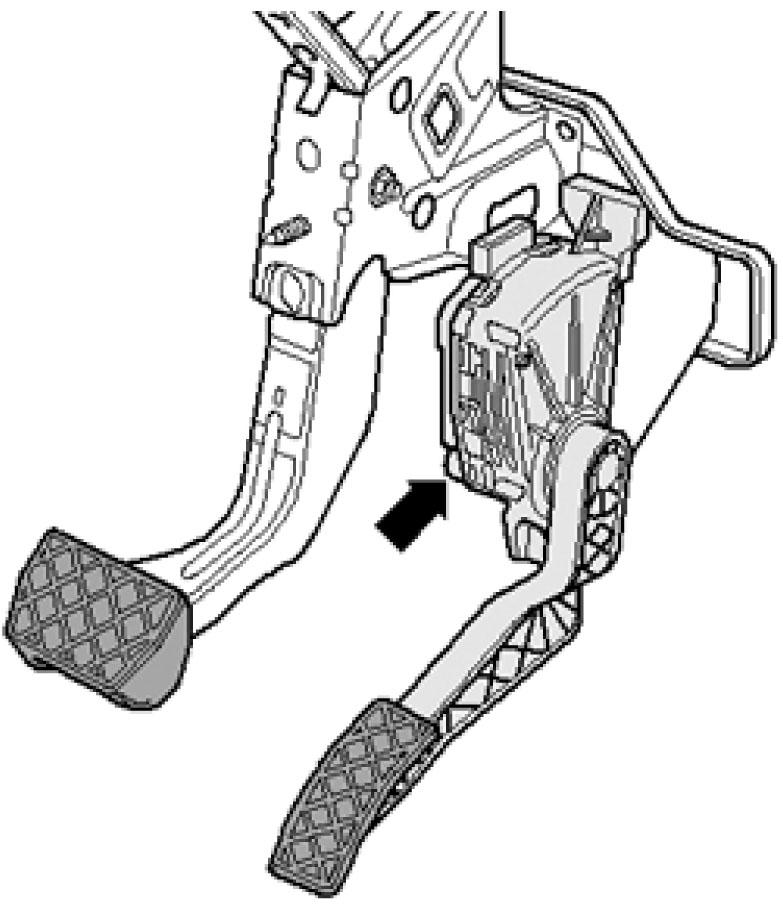

Fig 92: Under Left Side Of Dash

G00473363

Courtesy of AUDI OF AMERICA, INC.

Fig 93: Under Left Side Of Dash

G00473364

Courtesy of AUDI OF AMERICA, INC.

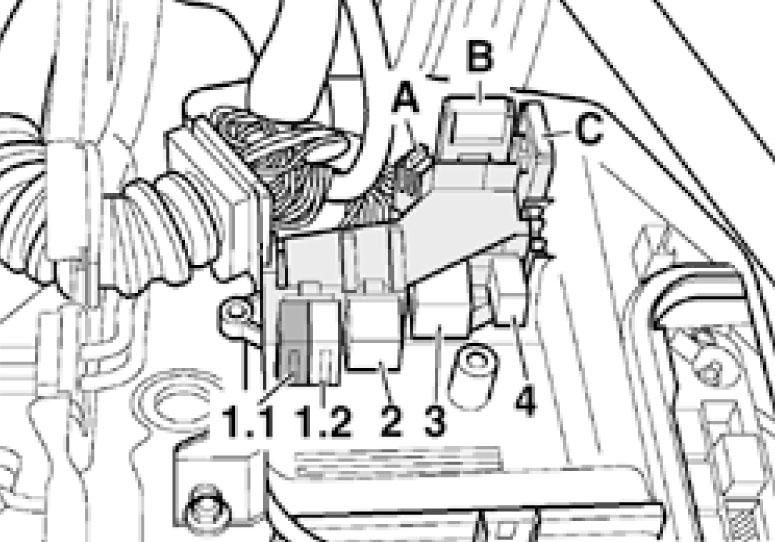

Fig 94: Plenum Chamber Electronics Box

G00473365

Courtesy of AUDI OF AMERICA, INC.
