Electrical Component Locator: Miscellaneous

MISCELLANEOUS LOCATION

Component Location
Alarm Horn Right side of convertible top compartment. See Figure.

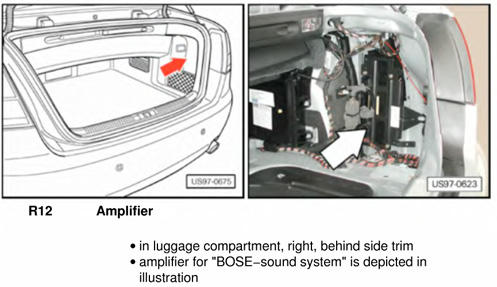

Amplifier Right rear of luggage compartment. See Figure.
Amplifier (Telephone Compensator) Right side of luggage compartment. See Figure.
Antenna Splitter Below front passenger's seat. See Figure.
Antenna (Telephone) Behind right side of front bumper. See Figure.
Central Locking & Anti-Theft Alarm System Antenna Left side of luggage compartment flap. See Figure.
Ignition Coils 1, 2, 3 & 4 W/Power Output Stage (Bank 2) (14) Top of left cylinder bank. See Figure.
Ignition Coils 5, 6, 7 & 8 W/Power Output Stage (Bank 1) (19) Top of right cylinder bank. See Figure.
Induction Coil (Anti-Theft Immobilizer) Right side of steering column. See Figure.

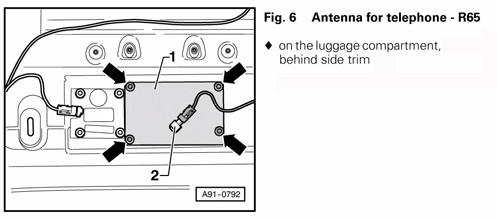

Telephone Antenna (R65) Center of luggage compartment floor. See Figure.
