Advanced Key
Vehicles with immobilizer V also have the Advanced Key option. The concept was taken from vehicles with immobilizer IV, where the number of needed system components was reduced. The buttons for the central locking on the door handles have been discontinued. Touching the capacity sensor on the exterior door handle activates the lock and unlock features.
Service Information
The comfort system central control module -J393- performs the diagnosis for the "Advanced Key" under the address "05 - access/start authorization".
There are function tests in "Guided Fault Finding", which can be found under "05 - access/start authorization (=> in -J393)".
The function tests for "Advanced Key" components can only be included in the test plan if the type of control module is selected in "Vehicle System Test" "Guided Fault Finding" "05 - vehicle authorization system with keyless entry". This can be recognized when the type of control module appears with a black background. If "05 - vehicle authorization system with keyless entry" was not recognized automatically, then it needs to be selected manually by hand. Only then can the function tests for "Advanced Key" be included in the test plan.

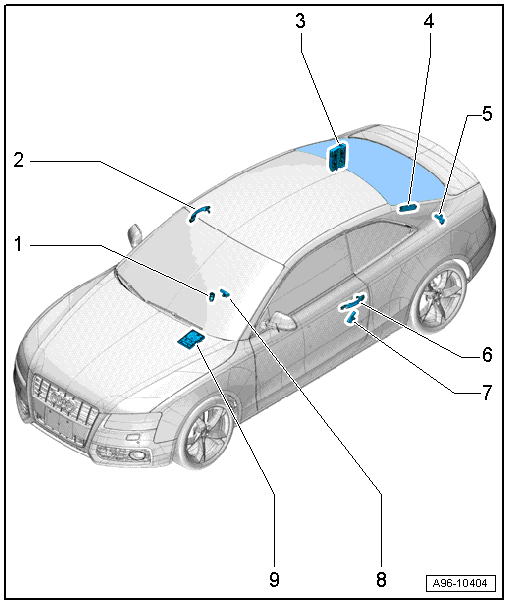

Advanced Key System Overview, 2-Door Vehicles
- Access/Start Authorization Button -E408-
- Right Front Outside Door Handle Touch Sensor -G606-
- Comfort System Central Control Module -J393-
- Central Locking and Anti-Theft Alarm System Antenna -R47-
- Luggage Compartment Access/Start Authorization Antenna -R137-
- Left Front Outside Door Handle Touch Sensor -G605-
- Left Access/Start Authorization Antenna -R200-
- Interior Access/Start Authorization Antenna 1 -R138-
- Electronic Steering Column Lock Control Module -J764-
The comfort system central control module, the electronic steering column lock control module, and the central locking and antitheft alarm system antenna are present as basic equipment and with the "Advanced Key" option. The remaining components are available only with the "Advanced Key" option.

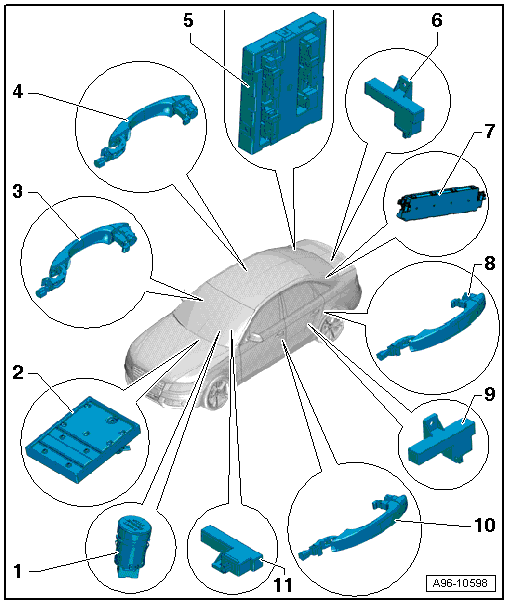

Advanced Key System Overview, 4-Door Vehicles
- Access/Start Authorization Button -E408-
- Electronic Steering Column Lock Control Module -J764-
- Right Front Outside Door Handle Touch Sensor -G606-
- Right Rear Outside Door Handle Touch Sensor -G418-
- Comfort System Central Control Module -J393-
- Luggage Compartment Access/Start Authorization Antenna -R137-
- Central Locking and Anti-Theft Alarm System Antenna -R47-
- Left Rear Outside Door Handle Touch Sensor -G417-
- Left Access/Start Authorization Antenna -R200-
- Left Front Outside Door Handle Touch Sensor -G605-
- Interior Access/Start Authorization Antenna 1 -R138-
The comfort system central control module, the electronic steering column lock control module, and the central locking and antitheft alarm system antenna are present as basic equipment and with the "Advanced Key" option. The remaining components are available only with the "Advanced Key" option.
