External Audio Source Connection -R199-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

The External Audio Source Connection -R199- -1- is clipped into the storage compartment in the front center console from behind.

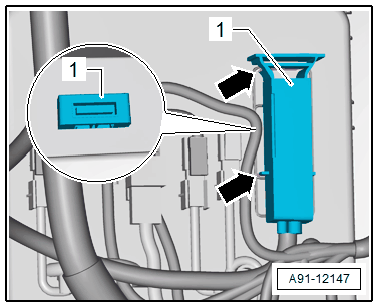

Fig 1: Identifying External Audio Source Connection -R199- -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the storage compartment in the front center console, refer to Front Footwell Center Console Trim Panel, Removing and Installing .

-- Unclip the External Audio Source Connection -R199- -1- from the storage compartment -arrows-.
