Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

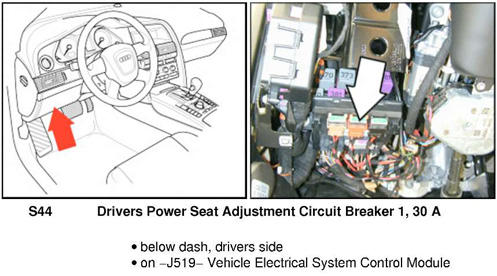

| Driver's Power Seat Adjustment Circuit Breaker 1 | In vehicle electrical system control module. See Figure. |

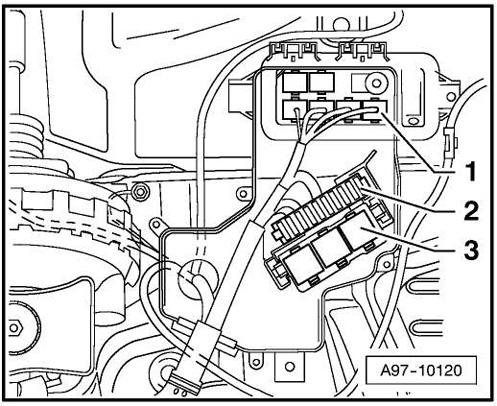

| Fuse Holder (E-Box) (2) | In left plenum chamber E-box. See Figure. |
| Fuse Holder (Instrument Panel Left) | Under left side of dash. See Figure. |
| Fuse Holder (Instrument Panel Right) | Under right side of dash. |

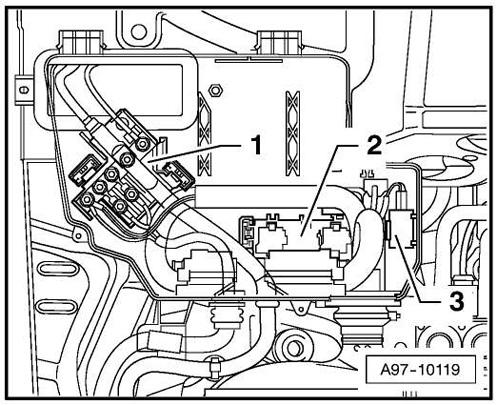

| Main Fuse Panel (E-Box) (1) | In right plenum chamber E-box. See Figure. |
| Relay/Fuse Panel (Rear) (5) | Right side of luggage compartment. See Figure. |
| Relay & Fuse Panel (Steering Cross Member) | Under left side of dash. See Figure. |
| Relay Holder (E-Box) (3) | In left plenum chamber E-box. See Figure. |
| 4 Position Relay & Fuse Panel (2) | In right plenum chamber E-box. See Figure. |
| 9-Position Relay & Fuse Panel | Under left side of dash. See Figure. |
