Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

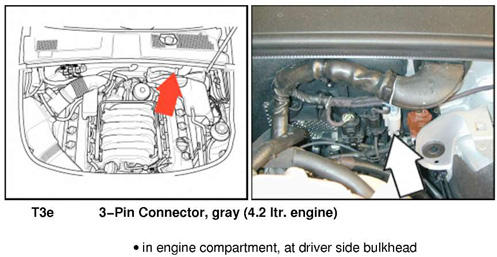

Fig 1: Left Rear Of Engine Compartment

G00451360

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Right Rear Of Engine Compartment

G00451361

Courtesy of AUDI OF AMERICA, INC.

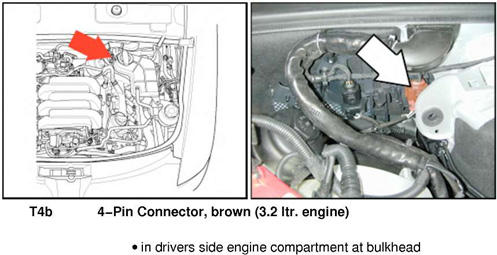

Fig 3: Left Rear Of Engine Compartment

G00451362

Courtesy of AUDI OF AMERICA, INC.

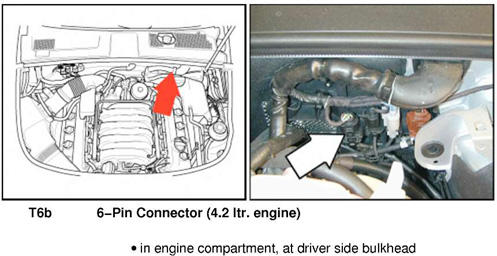

Fig 4: Left Rear Of Engine Compartment

G00451363

Courtesy of AUDI OF AMERICA, INC.

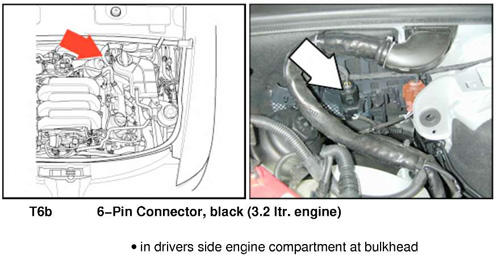

Fig 5: Left Rear Of Engine Compartment

G00451364

Courtesy of AUDI OF AMERICA, INC.

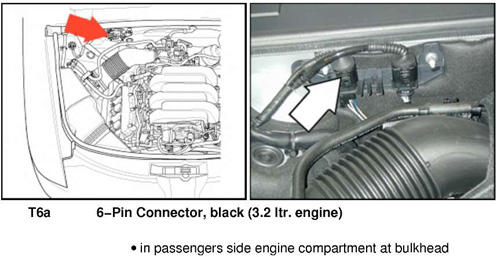

Fig 6: Right Rear Of Engine Compartment

G00451365

Courtesy of AUDI OF AMERICA, INC.

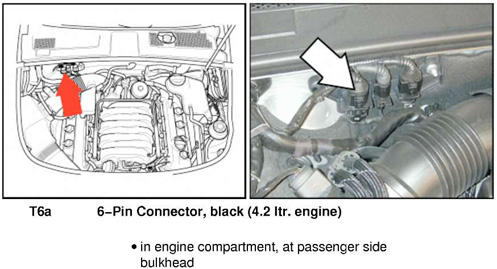

Fig 7: Right Rear Of Engine Compartment

G00451366

Courtesy of AUDI OF AMERICA, INC.

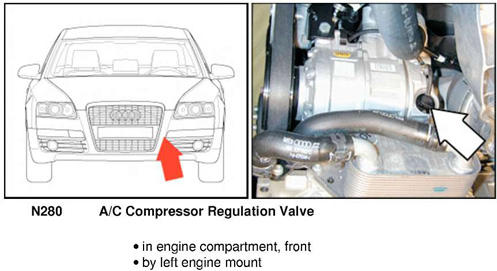

Fig 8: Left Front Of Engine

G00451367

Courtesy of AUDI OF AMERICA, INC.

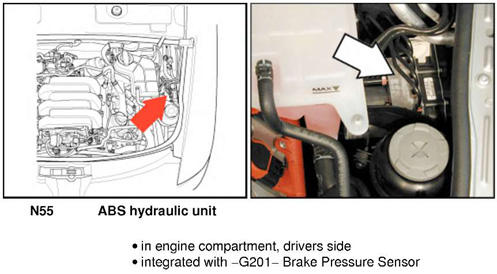

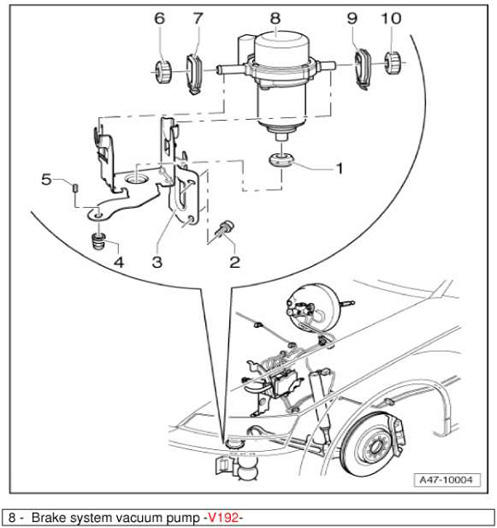

Fig 9: Left Side Of Engine Compartment

G00451369

Courtesy of AUDI OF AMERICA, INC.

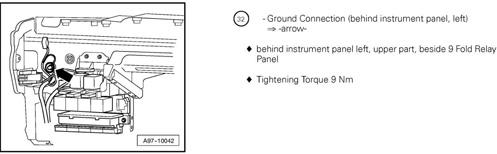

Fig 10: Left Side Of Dash

G00451370

Courtesy of AUDI OF AMERICA, INC.

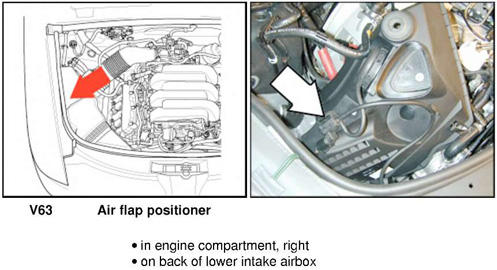

Fig 11: Right Side Of Engine Compartment

G00451371

Courtesy of AUDI OF AMERICA, INC.

Fig 12: Under Center Console

G00451372

Courtesy of AUDI OF AMERICA, INC.

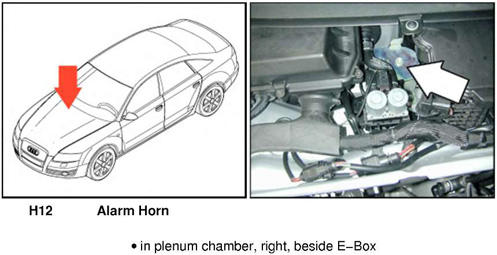

Fig 13: Right Rear Of Engine Compartment

G00451373

Courtesy of AUDI OF AMERICA, INC.

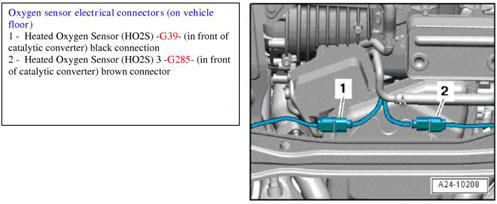

Fig 14: Under Front Of Vehicle

G00451374

Courtesy of AUDI OF AMERICA, INC.

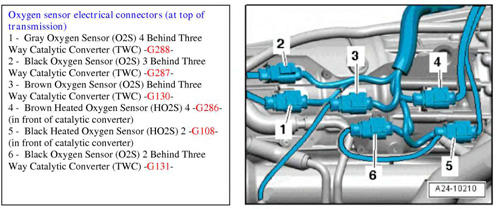

Fig 15: Top Of Transmission

G00451375

Courtesy of AUDI OF AMERICA, INC.

Fig 16: Center Front Of Roof

G00451376

Courtesy of AUDI OF AMERICA, INC.

Fig 17: Instrument Cluster

G00451377

Courtesy of AUDI OF AMERICA, INC.

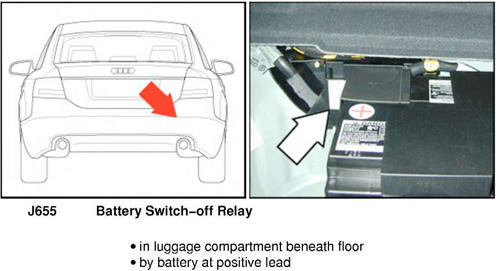

Fig 18: Right Rear Of Luggage Compartment

G00451378

Courtesy of AUDI OF AMERICA, INC.

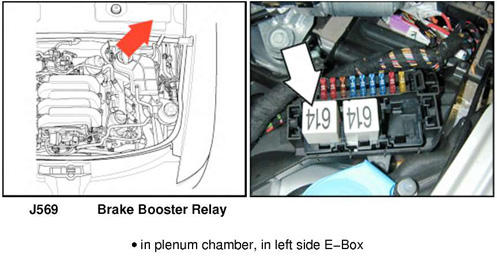

Fig 19: Left Rear Of Engine Compartment

G00451379

Courtesy of AUDI OF AMERICA, INC.

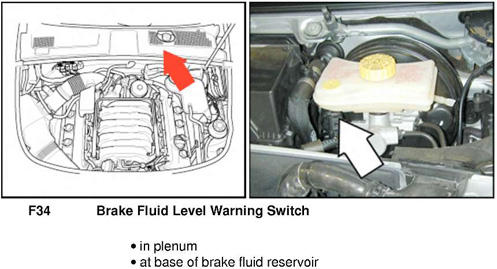

Fig 20: Left Rear Of Engine Compartment

G00451380

Courtesy of AUDI OF AMERICA, INC.

Fig 21: Left Side Of Engine Compartment

G00451381

Courtesy of AUDI OF AMERICA, INC.

Fig 22: Bottom Of Steering Column

G00451382

Courtesy of AUDI OF AMERICA, INC.

Fig 23: Lower Rear Of Engine Compartment

G00451383

Courtesy of AUDI OF AMERICA, INC.

Fig 24: Under Front Bumper

G00451384

Courtesy of AUDI OF AMERICA, INC.

Fig 25: Left Side Of Dash

G00451387

Courtesy of AUDI OF AMERICA, INC.

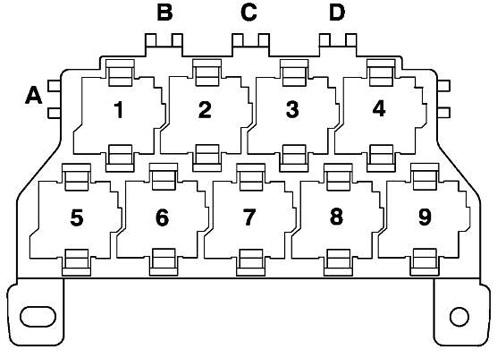

Fig 26: 9-Position Relay & Fuse Panel

G00451389

Courtesy of AUDI OF AMERICA, INC.

Fig 27: Left Rear Of Engine Compartment

G00451390

Courtesy of AUDI OF AMERICA, INC.

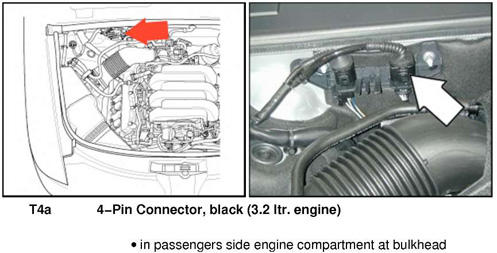

Fig 28: Right Rear Of Engine Compartment

G00451391

Courtesy of AUDI OF AMERICA, INC.

Fig 29: Front Of Engine Compartment

G00451393

Courtesy of AUDI OF AMERICA, INC.

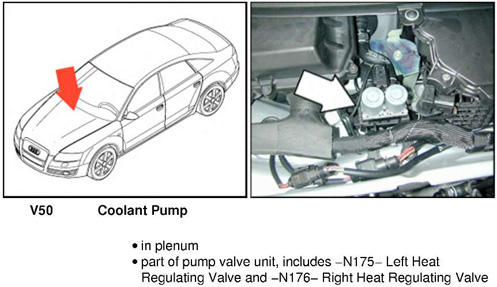

Fig 30: Rear Of Engine Compartment

G00451394

Courtesy of AUDI OF AMERICA, INC.

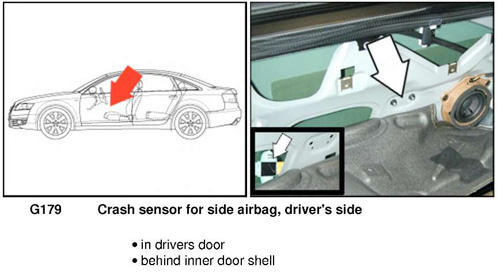

Fig 31: Driver's Door (Front Passenger's Similar)

G00451395

Courtesy of AUDI OF AMERICA, INC.

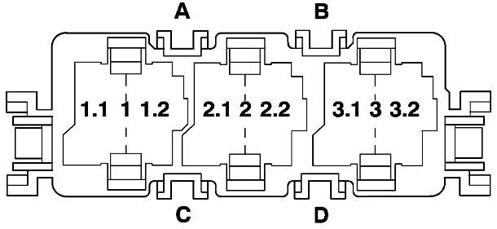

Fig 32: Relay & Fuse Panel (Left Plenum Chamber E-Box)

G00451396

Courtesy of AUDI OF AMERICA, INC.

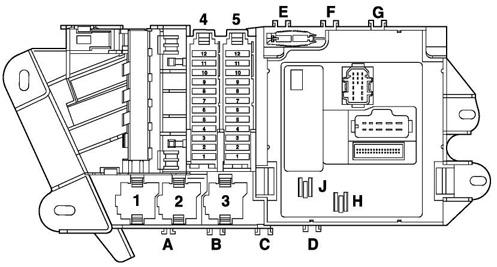

Fig 33: Relay & Fuse Panel (Luggage Compartment - Right)

G00451398

Courtesy of AUDI OF AMERICA, INC.

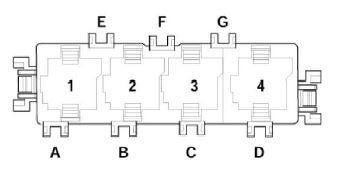

Fig 34: Relay Panel (Right Plenum Chamber E-Box)

G00581429

Courtesy of AUDI OF AMERICA, INC.

Fig 35: Left Rear Of Luggage Compartment

G00451412

Courtesy of AUDI OF AMERICA, INC.

Fig 36: Driver's Door (Front Passenger's Similar)

G00451413

Courtesy of AUDI OF AMERICA, INC.

Fig 37: Left Rear Door (Right Rear Similar)

G00451414

Courtesy of AUDI OF AMERICA, INC.

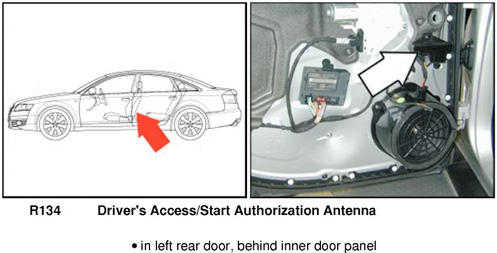

Fig 38: Left Rear Door

G00451415

Courtesy of AUDI OF AMERICA, INC.

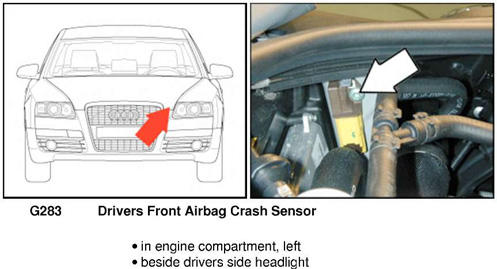

Fig 39: Left Front Of Engine Compartment (Right Similar)

G00451416

Courtesy of AUDI OF AMERICA, INC.

Fig 40: Left Side Of Dash

G00451417

Courtesy of AUDI OF AMERICA, INC.

Fig 41: Right Rear Of Luggage Compartment

G00451419

Courtesy of AUDI OF AMERICA, INC.

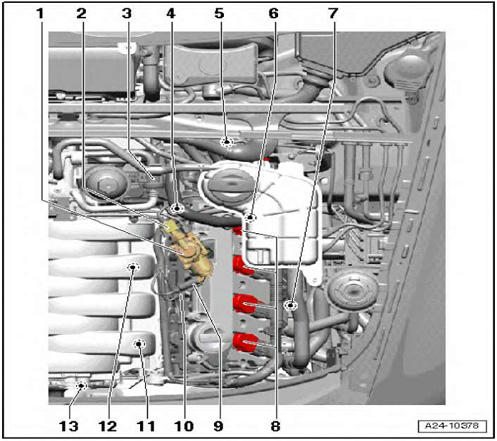

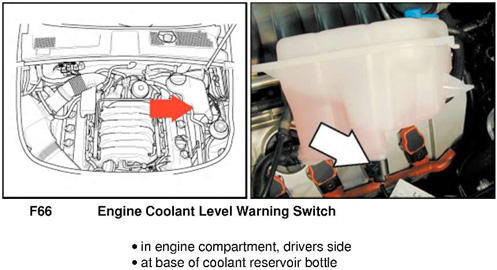

Fig 42: Left Side Of Engine (4.2L)

G00451420

Courtesy of AUDI OF AMERICA, INC.

Fig 43: Right Side Of Engine (4.2L)

G00451421

Courtesy of AUDI OF AMERICA, INC.

Fig 44: Right Side Of Engine (3.2L)

G00451422

Courtesy of AUDI OF AMERICA, INC.

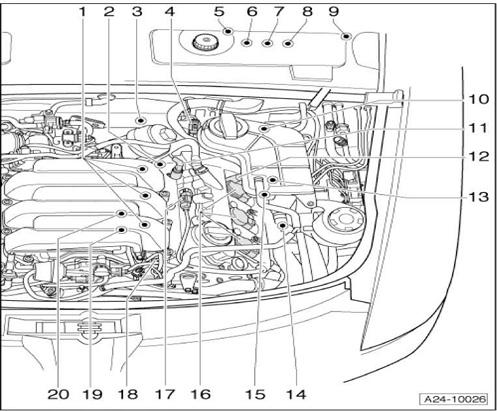

Fig 45: Left Side Of Engine (3.2L)

G00451423

Courtesy of AUDI OF AMERICA, INC.

Fig 46: Left Side Of Engine Compartment

G00451424

Courtesy of AUDI OF AMERICA, INC.

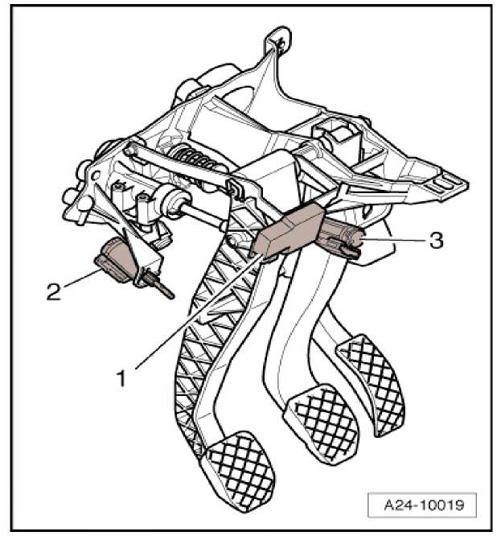

Fig 47: Under Left Side Of Dash

G00451425

Courtesy of AUDI OF AMERICA, INC.

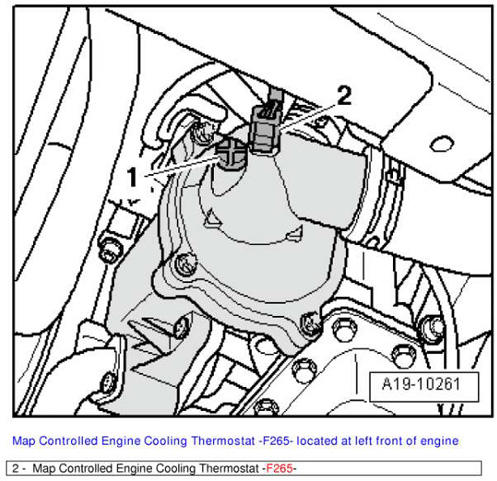

Fig 48: Lower Left Front Of Engine

G00451426

Courtesy of AUDI OF AMERICA, INC.

Fig 49: Right Front Of Luggage Compartment

G00451428

Courtesy of AUDI OF AMERICA, INC.

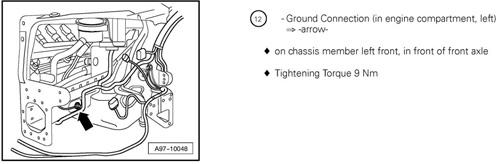

Fig 50: Left Side Of Engine Compartment

G00451429

Courtesy of AUDI OF AMERICA, INC.

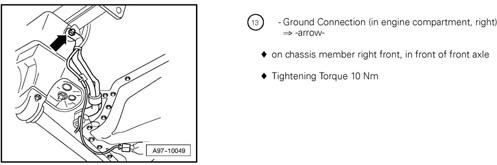

Fig 51: Right Side Of Engine Compartment

G00451430

Courtesy of AUDI OF AMERICA, INC.

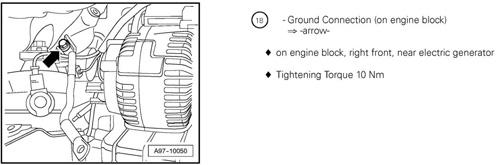

Fig 52: Right Front Of Engine

G00451431

Courtesy of AUDI OF AMERICA, INC.

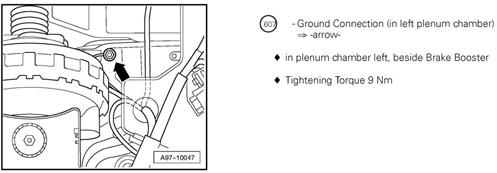

Fig 53: Left Rear Of Engine Compartment

G00451432

Courtesy of AUDI OF AMERICA, INC.

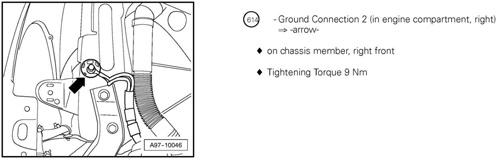

Fig 54: Right Side Of Engine Compartment

G00451433

Courtesy of AUDI OF AMERICA, INC.

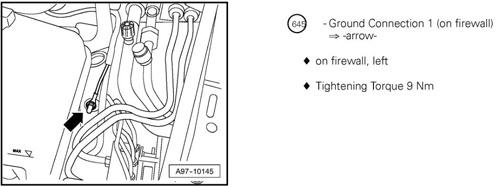

Fig 55: Left Rear Of Engine Compartment

G00451434

Courtesy of AUDI OF AMERICA, INC.

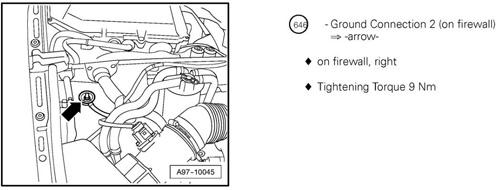

Fig 56: Right Rear Of Engine Compartment

G00451435

Courtesy of AUDI OF AMERICA, INC.

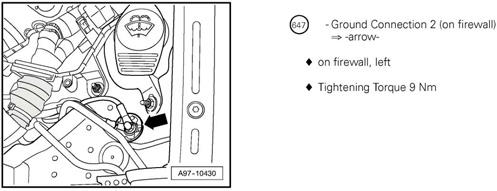

Fig 57: Left Rear Of Engine Compartment

G00451436

Courtesy of AUDI OF AMERICA, INC.

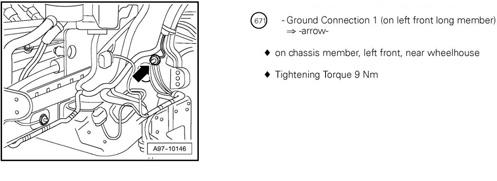

Fig 58: Left Side Of Engine Compartment

G00451437

Courtesy of AUDI OF AMERICA, INC.

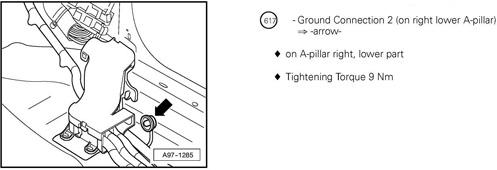

Fig 59: Base Of Right "A" Pillar

G00451438

Courtesy of AUDI OF AMERICA, INC.

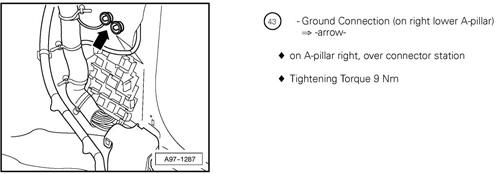

Fig 60: Right Kick Panel

G00451439

Courtesy of AUDI OF AMERICA, INC.

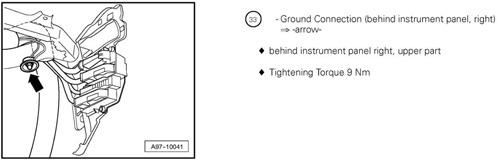

Fig 61: Right End Of Dash

G00451440

Courtesy of AUDI OF AMERICA, INC.

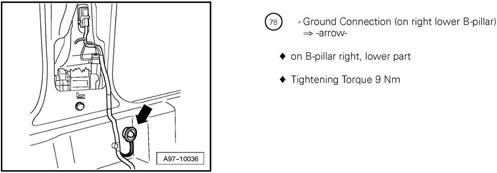

Fig 62: Base Of Right "B" Pillar

G00451441

Courtesy of AUDI OF AMERICA, INC.

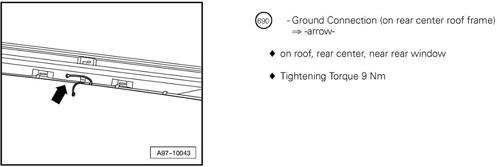

Fig 63: Center Rear Of Roof

G00451442

Courtesy of AUDI OF AMERICA, INC.

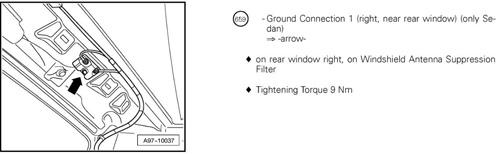

Fig 64: Above Right Rear Window

G00451443

Courtesy of AUDI OF AMERICA, INC.

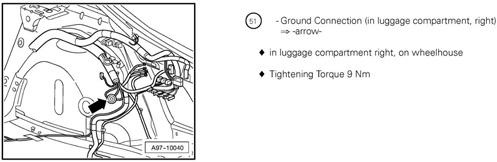

Fig 65: Right Side Of Luggage Compartment

G00451444

Courtesy of AUDI OF AMERICA, INC.

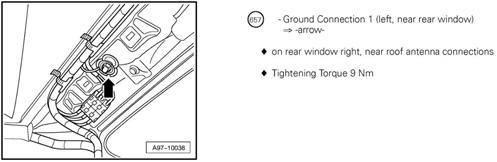

Fig 66: Above Left Rear Window

G00451445

Courtesy of AUDI OF AMERICA, INC.

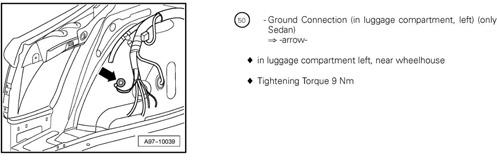

Fig 67: Left Side Of Luggage Compartment

G00451446

Courtesy of AUDI OF AMERICA, INC.

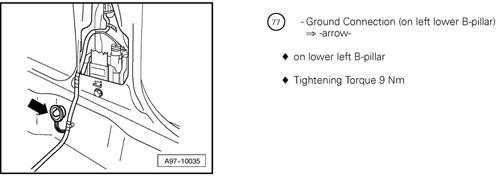

Fig 68: Base Of Left "B" Pillar

G00451447

Courtesy of AUDI OF AMERICA, INC.

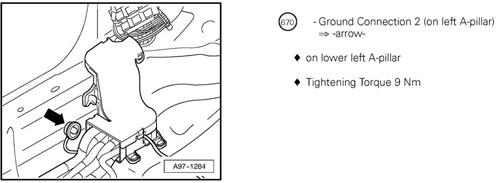

Fig 69: Base Of Left "A" Pillar

G00451448

Courtesy of AUDI OF AMERICA, INC.

Fig 70: Left Kick Panel

G00451449

Courtesy of AUDI OF AMERICA, INC.

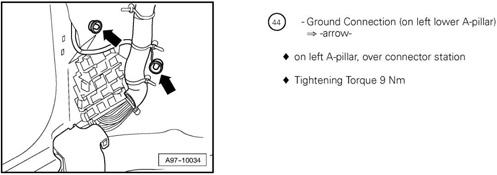

Fig 71: Left End Of Dash

G00451450

Courtesy of AUDI OF AMERICA, INC.

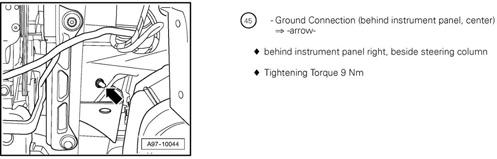

Fig 72: Center Of Dash

G00451451

Courtesy of AUDI OF AMERICA, INC.

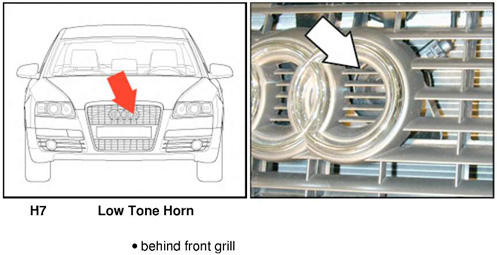

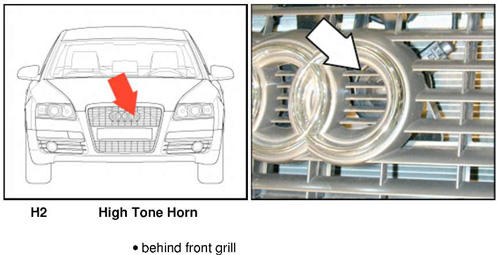

Fig 73: Behind Front Grille

G00451453

Courtesy of AUDI OF AMERICA, INC.

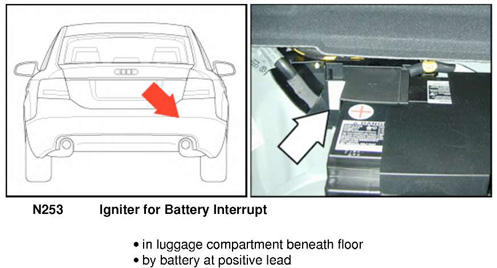

Fig 74: Right Rear Of Luggage Compartment

G00451454

Courtesy of AUDI OF AMERICA, INC.

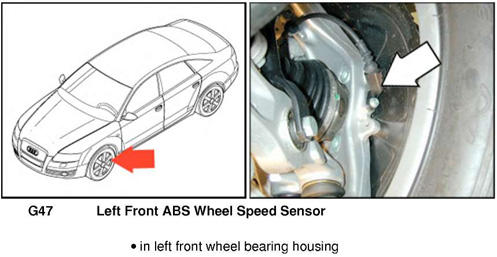

Fig 75: Left Front Wheel Assembly (Right Front Similar)

G00451456

Courtesy of AUDI OF AMERICA, INC.

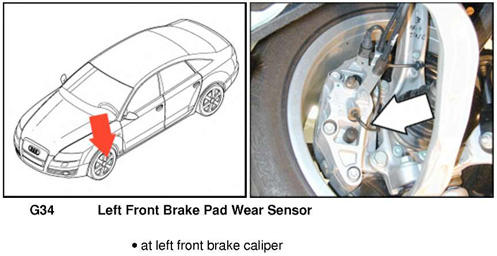

Fig 76: Left Front Brake Assembly (Right Front Similar)

G00451457

Courtesy of AUDI OF AMERICA, INC.

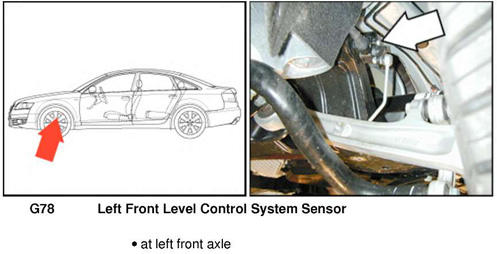

Fig 77: Left Front Wheelwell

G00451458

Courtesy of AUDI OF AMERICA, INC.

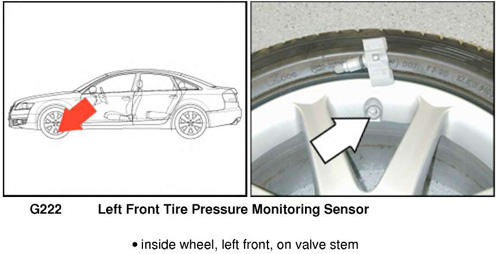

Fig 78: Wheel Assemblies

G00451459

Courtesy of AUDI OF AMERICA, INC.

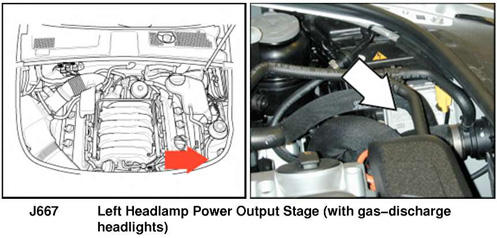

Fig 79: Left Front Of Engine Compartment (Right Front Similar)

G00451460

Courtesy of AUDI OF AMERICA, INC.

Fig 80: Left Front Of Engine Compartment (Right Front Similar)

G00451462

Courtesy of AUDI OF AMERICA, INC.

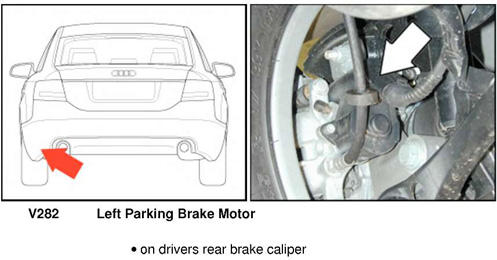

Fig 81: Left Rear Brake Assembly (Right Rear Similar)

G00451463

Courtesy of AUDI OF AMERICA, INC.

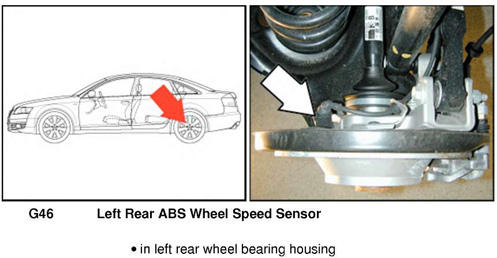

Fig 82: Left Rear Wheel Assembly (Right Rear Similar)

G00451464

Courtesy of AUDI OF AMERICA, INC.

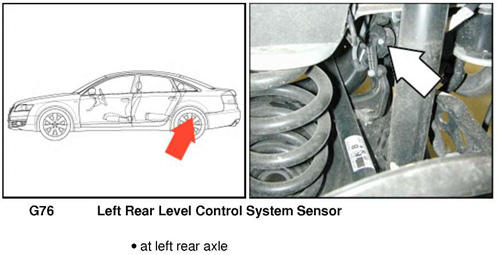

Fig 83: Left Rear Wheelwell

G00451466

Courtesy of AUDI OF AMERICA, INC.

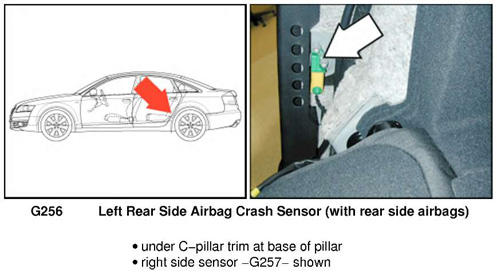

Fig 84: Base Of Left "C" Pillar (Right Similar)

G00451468

Courtesy of AUDI OF AMERICA, INC.

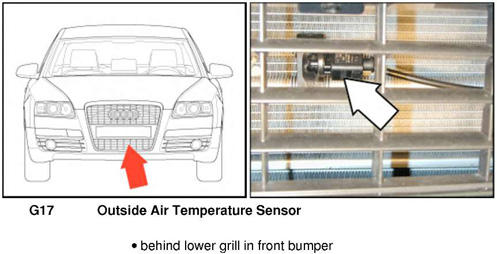

Fig 85: Behind Front Grille

G00451469

Courtesy of AUDI OF AMERICA, INC.

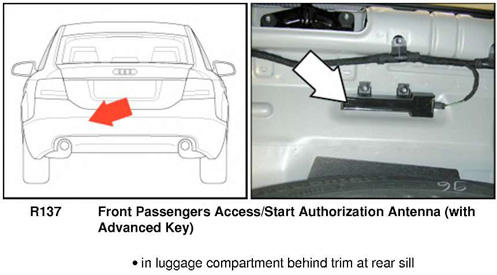

Fig 86: Rear Of Luggage Compartment

G00451470

Courtesy of AUDI OF AMERICA, INC.

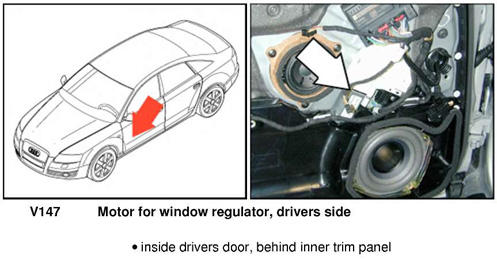

Fig 87: Driver's Door (Front Passenger's Similar)

G00451471

Courtesy of AUDI OF AMERICA, INC.

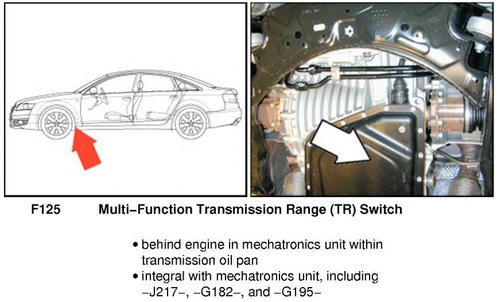

Fig 88: Bottom Of Transmission

G00451472

Courtesy of AUDI OF AMERICA, INC.

Fig 89: Left Rear Of Luggage Compartment

G00451473

Courtesy of AUDI OF AMERICA, INC.

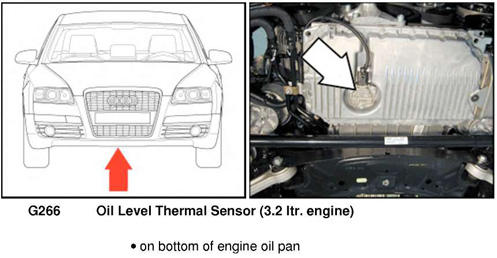

Fig 90: Bottom Of Engine

G00451474

Courtesy of AUDI OF AMERICA, INC.

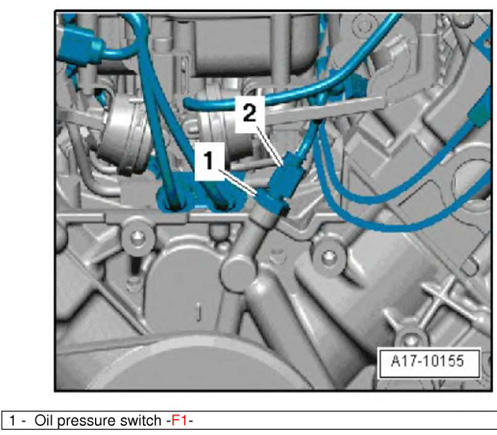

Fig 91: Front Of Engine

G00451475

Courtesy of AUDI OF AMERICA, INC.

Fig 92: Behind Lower Front Grille

G00451476

Courtesy of AUDI OF AMERICA, INC.

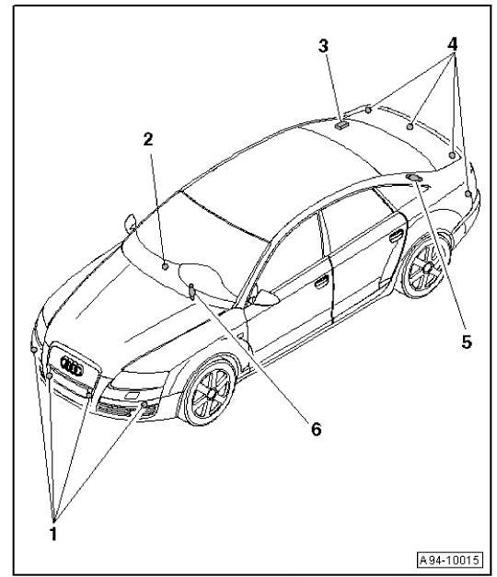

Fig 93: Vehicle Overview

G00451477

Courtesy of AUDI OF AMERICA, INC.

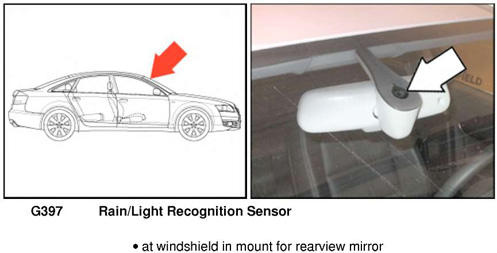

Fig 94: Top Center Of Windshield

G00451479

Courtesy of AUDI OF AMERICA, INC.

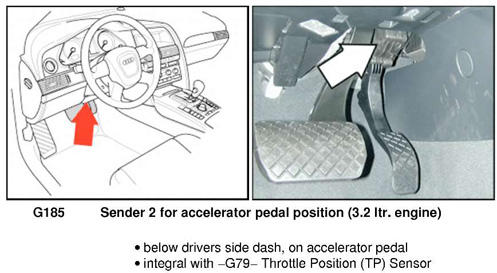

Fig 95: Under Left Side Of Dash

G00451480

Courtesy of AUDI OF AMERICA, INC.

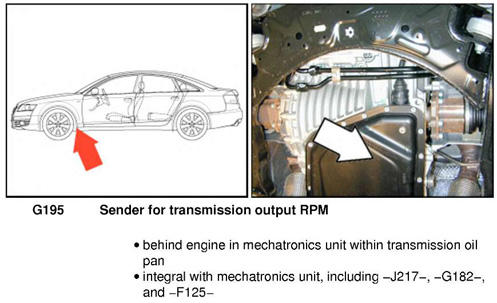

Fig 96: Bottom Of Transmission

G00451481

Courtesy of AUDI OF AMERICA, INC.

Fig 97: Bottom Of Transmission

G00451482

Courtesy of AUDI OF AMERICA, INC.

Fig 98: Left Rear Of Luggage Compartment

G00451483

Courtesy of AUDI OF AMERICA, INC.

Fig 99: Right Rear Of Engine Compartment

G00451484

Courtesy of AUDI OF AMERICA, INC.

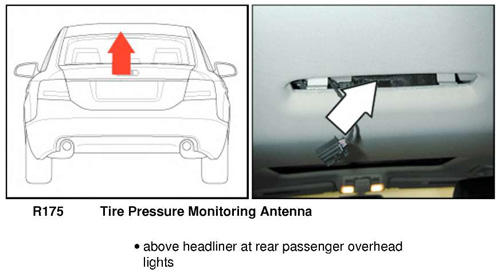

Fig 100: Center Rear Of Roof

G00451485

Courtesy of AUDI OF AMERICA, INC.

Fig 101: Bottom Of Transmission

G00451487

Courtesy of AUDI OF AMERICA, INC.

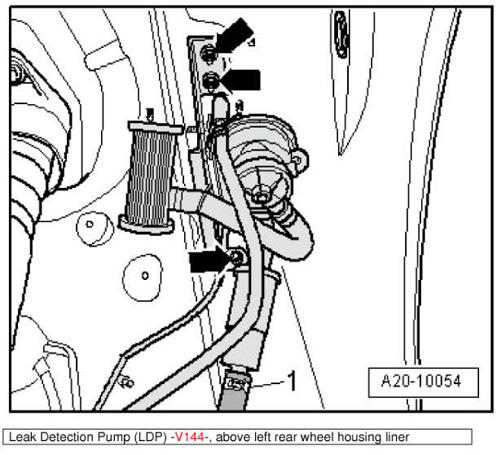

Fig 102: Left Rear Wheelwell

G00451488

Courtesy of AUDI OF AMERICA, INC.

Fig 103: Left Side Of Engine Compartment

G00451489

Courtesy of AUDI OF AMERICA, INC.

Fig 104: Left Side Of Dash

G00451490

Courtesy of AUDI OF AMERICA, INC.

Fig 105: Left Rear Of Engine Compartment

G00451492

Courtesy of AUDI OF AMERICA, INC.

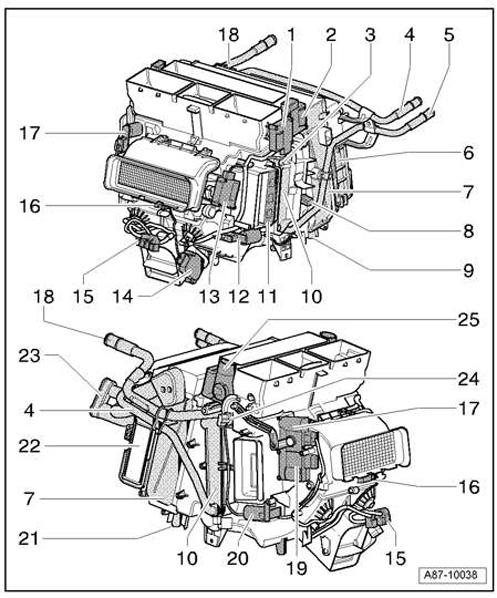

Fig 106: HVAC Assembly

G00451386

Courtesy of AUDI OF AMERICA, INC.

Fig 107: Right Side Of Engine (5.2L)

G00454104

Courtesy of AUDI OF AMERICA, INC.

Fig 108: Left Side Of Engine (5.2L)

G00454105

Courtesy of AUDI OF AMERICA, INC.

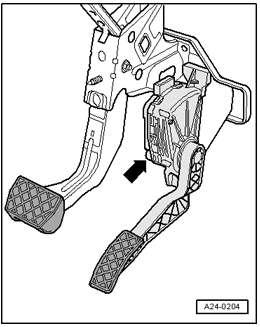

Fig 109: Under Left Side Of Dash (S6)

G00454106

Courtesy of AUDI OF AMERICA, INC.

Fig 110: Rear Of Engine (5.2L)

G00454107

Courtesy of AUDI OF AMERICA, INC.

Fig 111: Front Of Engine (5.2L)

G00454108

Courtesy of AUDI OF AMERICA, INC.

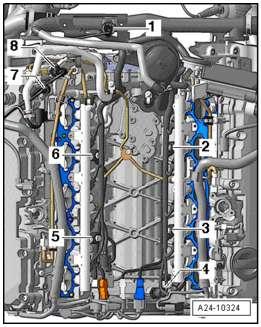

Fig 112: Top Of Engine (5.2L)

G00454109

Courtesy of AUDI OF AMERICA, INC.

Fig 113: Top Of Cylinder Bank 1 (5.2L)

G00454110

Courtesy of AUDI OF AMERICA, INC.

Fig 114: Top Of Cylinder Bank 2 (5.2L)

G00454111

Courtesy of AUDI OF AMERICA, INC.

Fig 115: Lower Left Front Of Engine Compartment (5.2L)

G00454112

Courtesy of AUDI OF AMERICA, INC.

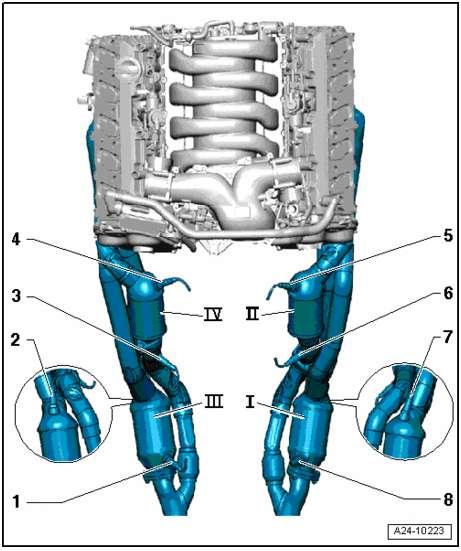

Fig 116: Exhaust System Overview (5.2L)

G00454113

Courtesy of AUDI OF AMERICA, INC.

Fig 117: Left Side Of Engine Compartment (S6)

G00454114

Courtesy of AUDI OF AMERICA, INC.

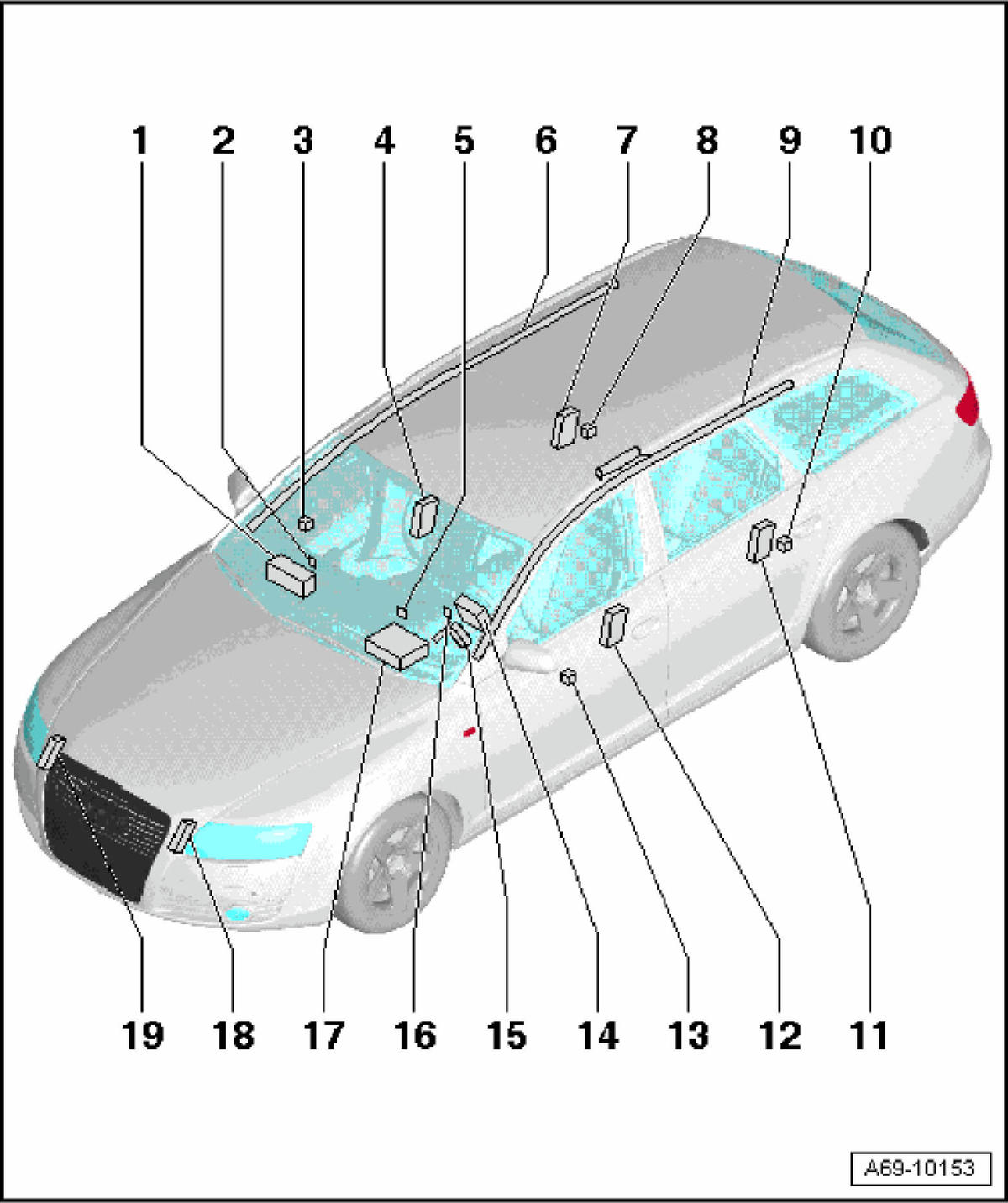

Fig 118: Air Bag System Vehicle Overview (Avant Shown, Sedan Similar)

G00473372

Courtesy of AUDI OF AMERICA, INC.

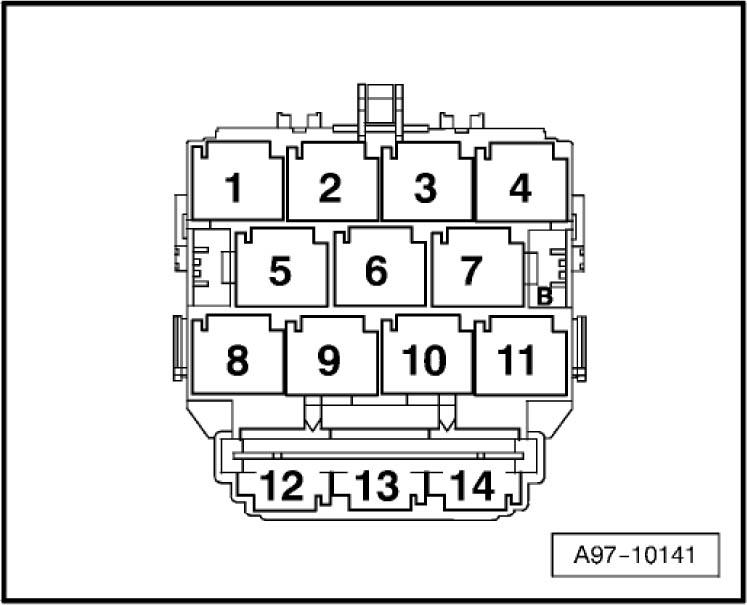

Fig 119: Connector Station, Behind Left Kick Panel

G00473373

Courtesy of AUDI OF AMERICA, INC.

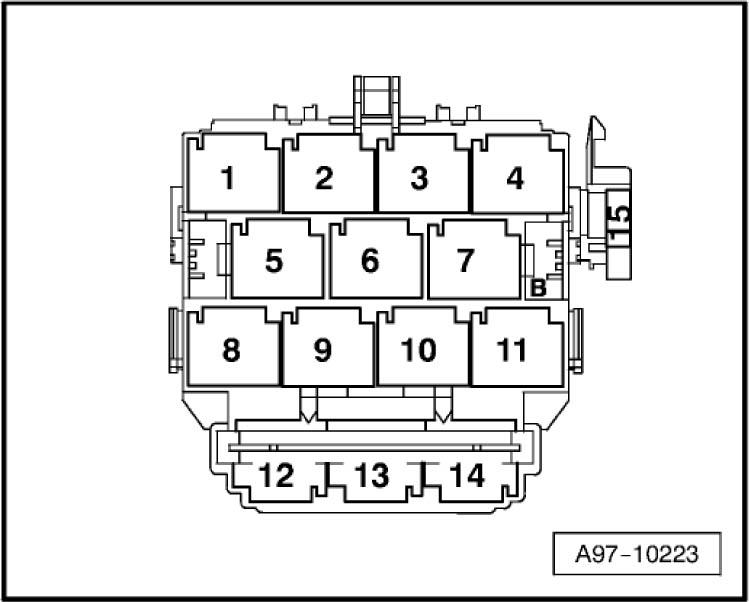

Fig 120: Connector Station, Behind Right Kick Panel

G00473374

Courtesy of AUDI OF AMERICA, INC.

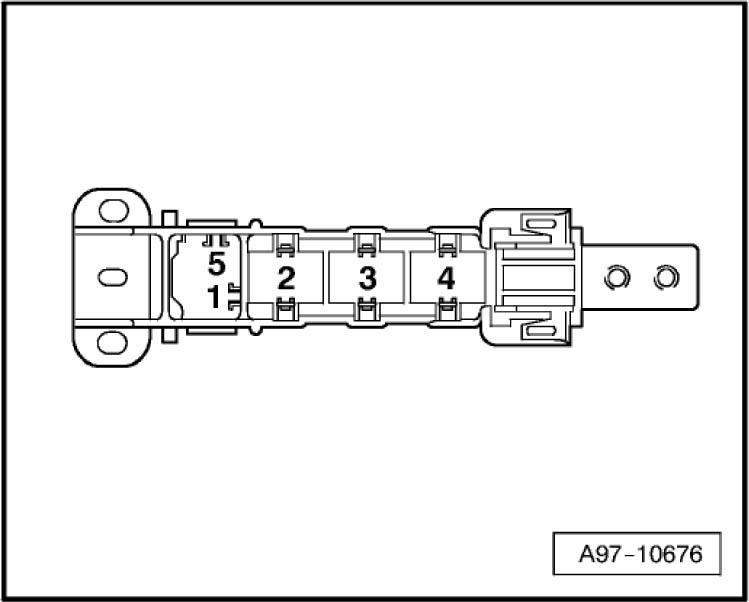

Fig 121: Connector Station, Under Driver's Seat (Front Passenger's Similar)

G00473375

Courtesy of AUDI OF AMERICA, INC.

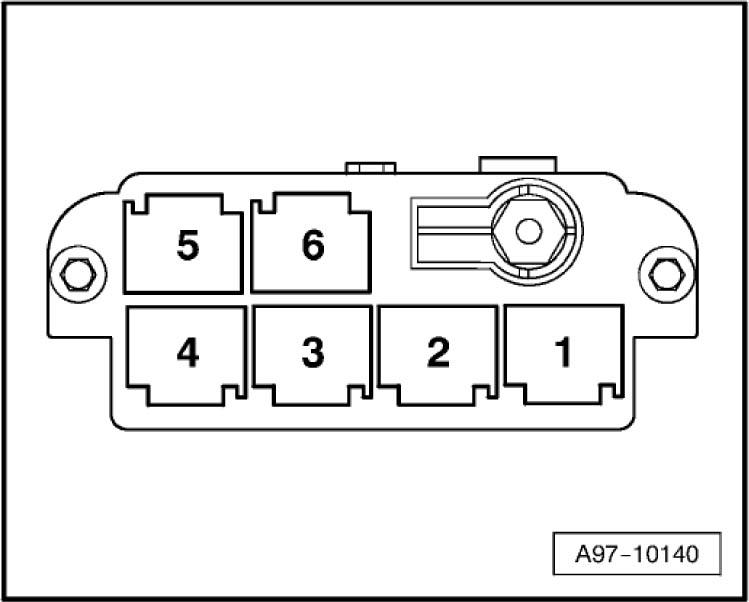

Fig 122: Connector Station, In Left E-Box Plenum Chamber

G00473376

Courtesy of AUDI OF AMERICA, INC.

Fig 123: Behind Glove Box

G00473377

Courtesy of AUDI OF AMERICA, INC.

Fig 124: Right Side Of Luggage Compartment

G00473378

Courtesy of AUDI OF AMERICA, INC.
