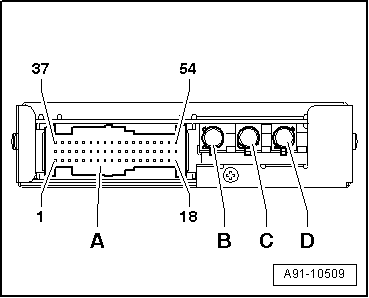

Rearview Camera System Control Module

A -

Black 54-pin connector (T54b)

B -

FBAS input (brown) from TV tuner -R78- (through 29 August 2008)

-

not assigned (from 1 September 2008)

C -

FBAS output (green) to front information display control head control module -J523- (through 29 August 2008)

-

FBAS output (green) to information electronics control module 1 -J794- (from 1 September 2008)

D -

FBAS input (gray) from rear view camera -R189-

39 -

CAN-Bus Low (comfort)

40 -

CAN-Bus High (comfort)

43 -

Terminal 30

44 -

Terminal 31

47 -

Terminal 31 to rear view camera

48 -

Voltage supply rear view camera
