Rearview Camera System Control Module: Removing

Vehicles with luggage compartment storage bin:

-- Open right luggage compartment storage bin.

Vehicles without luggage compartment storage bin:

-- Remove right luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL COMPONENT OVERVIEW .

All vehicles:

The rear view camera system control module is only wedge into the bracket.

-- Disconnect connectors -2- on rear view camera system control module -1-.

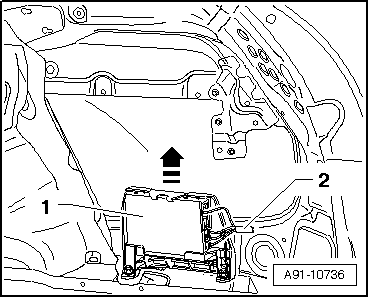

Fig 1: Identifying Connectors On Rear View Camera System Control Module J772
GWWA91-10736Courtesy of AUDI OF AMERICA, LLC

-- Unclip rear view camera system control module -1- in -direction of arrow- and remove it upward.
