Vehicle Data Label

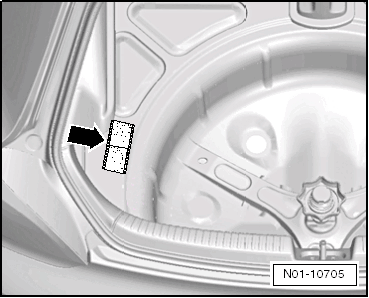

The vehicle data label -arrow- is located in the rear of the vehicle on the left in the spare wheel well. The vehicle data label is also located in the customer Maintenance booklet.

Fig 1: Identifying Vehicle Data Label

Courtesy of AUDI OF AMERICA, LLC

The label contains the following vehicle data:

Fig 2: Identifying Vehicle Data Label

Courtesy of AUDI OF AMERICA, LLC

1 -

Vehicle Identification Number

2 -

Type - engine - transmission - manufacture month/year

3 -

Engine and transmission codes (no information for certain countries)

4 -

Paint code - interior equipment code

5 -

Option code

6 -

Fuel consumption - city, highway, combined - l/100 km (no information for certain countries)

NOTE: The label inside the customer Maintenance booklet contains the same information.
