Sensor Electronics Control Module, Removing And Installing: Installing
Install in reverse order of removal. Note the following:
CAUTION:
Risk of destroying the Sensor Electronics Control Module -J849-.
- Protect the Sensor Electronics Control Module -J849- from bumps or impact: A Sensor Electronics Control Module -J849- that has fallen to the ground can no longer be used.
-- Ensure a stress-free seating on the mounting.
NOTE:

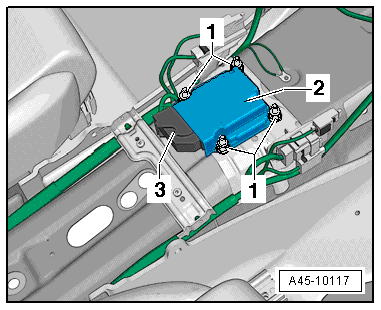

To install the Sensor Electronics Control Module -J849- -2- free of tension, first install all the nuts -1- loosely and then tighten them diagonally.
-- If the Sensor Electronics Control Module -J849- is being replaced, select the "Replace" function for the Sensor Electronics Control Module -J849- using the Vehicle Diagnostic Tester in Guided Functions .
