Sensor Electronics Control Module, Removing And Installing: Removing

-- Remove the center console support -A-, refer to CENTER CONSOLE .

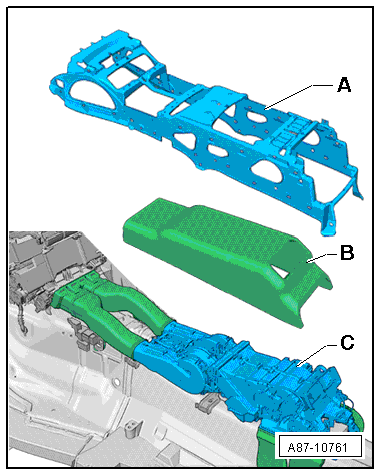

Fig 1: Center Console -A- And Insulation Mat -B-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear air distribution housing -C- on the center tunnel, refer to REAR HEATER AND A/C UNIT .

-- Equipment levels with rear A/C unit: free up the wires for the rear A/C sensors and lift the rear A/C unit as far as possible from the center tunnel.

-- Disconnect the connector -3-.

Fig 2: Sensor Electronics Control Module -J849- Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1-.

-- Remove the Sensor Electronics Control Module -J849- -2-.
