External Audio Source Connection 2 -R231-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

The External Audio Source Connection 2 -R231- -1- is clipped into the storage compartment in the rear center armrest console from behind.

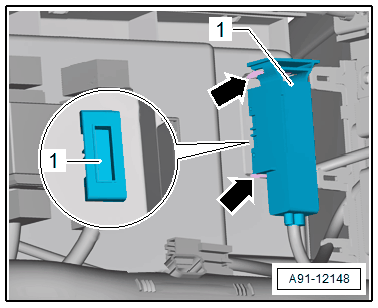

Fig 1: Identifying External Audio Source Connection 2 -R231-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the storage compartment from the rear center armrest, refer to Center Console, Removing and Installing .

-- Unclip the External Audio Source Connection 2 -R231- -1- from the storage compartment -arrows-.
