Layout For External Multimedia Devices

Connection for external multimedia devices

• Front External Audio Source Connection -R199-
• Rear External Audio Source Connection 2 -R231- (with Rear Seat Entertainment)

The External Audio Source Connection -R199- is part of the Information Electronics Control Module 1 -J794-.

The interface -1- is located in the front center console storage compartment.

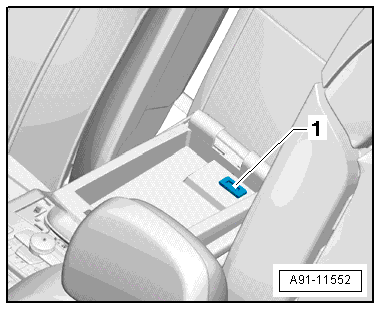

Fig 1: Identifying Interface

Courtesy of AUDI OF AMERICA, LLC

The External Audio Source Connection 2 -R231- is part of the Information Electronics Control Module 2 -J829-.

The interface -1- is located in the rear center armrest storage compartment.

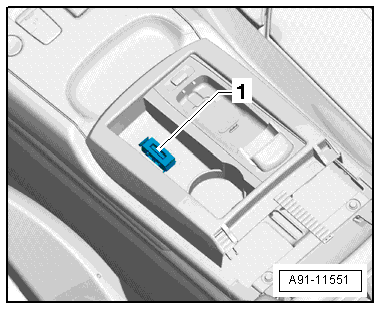

Fig 2: Identifying External Audio Source Connection 2 -R231-

Courtesy of AUDI OF AMERICA, LLC

Various external audio sources can be connected to the External Audio Source Connection -R199- /External Audio Source Connection 2 -R231-

• iPod
• MP3 player
• USB Stick

Suitable adapter cables are needed, refer to the Owner's Manual.

Fault finding is performed via "Guided Fault Finding" Refer to Vehicle Diagnostic Tester.
