Information Electronics Control Module 2 -J829- CONNECTOR ASSIGNMENT

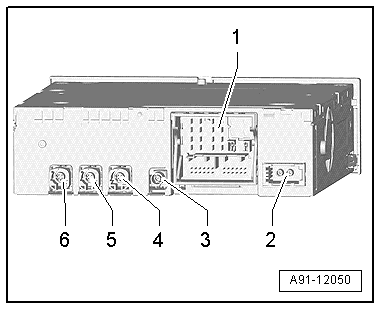

1. Connection Block with Four Connectors
2. MOST bus
3. CVBS input from the DVD Changer -R161-
4. 4-Pin Connector -T4ck- to the Multimedia Display Unit 1 -Y22-, left
5. 4-Pin Connector -T4ci- to the External Audio Source Connection 2 -R231-
6. 4-Pin Connector -T4ch- to the Multimedia Display Unit 2 -Y23-, right

1 - Connection Block with Four Connectors

3 - Wake UP to the Multimedia Control Head 2 -E499-

6 - Res MU to Multimedia Control Head 2 -E499-

7 - Ring-break Diagnostic Cable

5 - FBAS wire (-) from the TV Tuner -R78-

11 - FBAS wire (+) from the TV Tuner -R78-

All pins are connected to the External Audio Source Connection 2 -R231-.

1. LF-In ground
2. Right LF-In
3. USB (+5V)
4. USB (ground)
5. Ground
6. Detect
7. Left LF-In
8. LF-In ground shielding
9. CVBS cable (+)
10. CVBS cable (-)
11. iPod data
12. iPod data

10 - Multimedia Control Head 2 -E499- data

11 - Data to Multimedia Control Head 2 -E499-

12 - Terminal 31

14 - Res BT from Multimedia Control Head 2 -E499-

15 - Terminal 30

1. IN
2. OUT

All pins are connected to the Multimedia Display Unit 1 -Y22-.

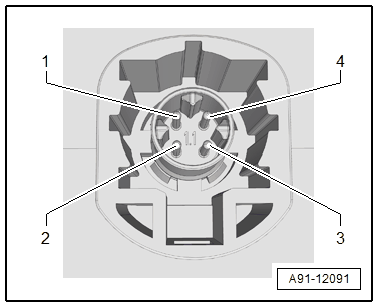

1. LVDS (-)
2. LIN
3. LVDS (+)
4. Ground

All pins are connected to the External Audio Source Connection 2 -R231-.

1. D (+)
2. iPod recognized
3. D (-)
4. Ground

All pins are connected to the Multimedia Display Unit 2 -Y23-.

1. LVDS (-)
2. LIN
3. LVDS (+)
4. Ground
