Infotainment System Overview

The Infotainment system MMI includes the following: control modules, an external audio source connection, a DVD drive, the navigation system (with a hard drive disc) and a voice recognition system. All these are integrated in the Information Electronics Control Module 1 -J794-.

The Radio - R- /DVD Changer -R161- and the Digital Sound System Control Module -J525- are connected via the MOST Bus. The basis sound systems are controlled directly by the Radio -R-.

MMI maximum equipment

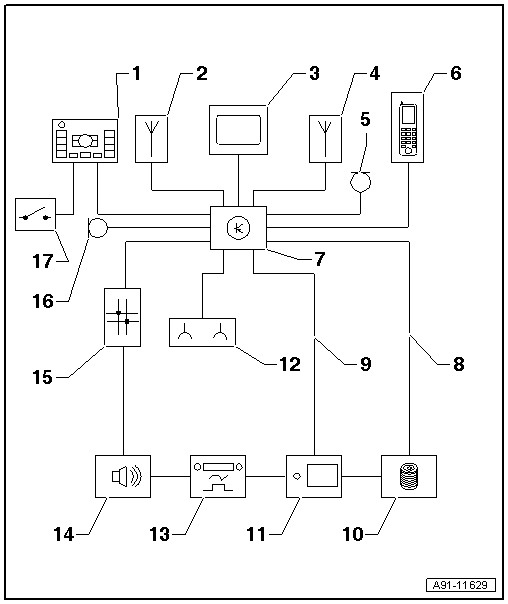

Fig 1: Infotainment System Overview
GWWA91-11629Courtesy of AUDI OF AMERICA, LLC
  1. Multimedia System Control Head -E380- in the Front of the Center Console
  2. Roof Antenna -R216-
  3. Front Information Display Control Head -J685- in Center of the Instrument Panel
  4. Not Installed
  5. Microphone Unit in Front Roof Module -R164- (Left Front Microphone -R140-) in the Front Interior Lamp -W1-
  6. Not Installed
  7. Information Electronics Control Module 1 -J794- Inside the Instrument Panel
  8. MOST Bus
  9. FBAS Wire
  10. DVD Changer -R161- in the Glove Compartment
  11. Not Installed
  12. External Audio Source Connection -R199- (interface) Inside the Center Console Storage Compartment
  13. Radio -R- Inside the Luggage Compartment on the Rear Panel on the Right Side/in the Left Luggage Compartment Recess.
  14. Digital Sound System Control Module -J525- Inside the Luggage Compartment on the Rear Panel on the Left Side
  15. Data Bus On Board Diagnostic Interface -J533- Inside the Luggage Compartment on the Rear Panel on the Right Side
  16. Microphone Unit in Front Roof Module -R164- (Right Front Microphone -R141-) in the Front Interior Lamp -W1-
  17. Display Unit Button -E506- Inside the Instrument Panel

The MOST bus performs the system data exchange in the MMI.

The connection to the other Data bus systems in the vehicle are provided by the Data Bus On Board Diagnostic Interface -J533-.

Fault finding is performed via "Guided Fault Finding", refer to Vehicle Diagnostic Tester.

Notes on MOST Bus

The optical Data bus "MOST bus" is used in addition to the CAN bus.

A fiber-optic cable is used as a "connecting cable". Fiber optic cables are routed inside corrugated tubes for protection.

Replace complete fiber optic cable if possible.

The front surface of the connectors must not be dirty.

If disconnecting the connectors: Attach Fiber-Optic Repair Set - Connector Protective CapsVAS6223/9.

Fig 2: Identifying Fiber Optic Plier Repair Set VAS 6223
GWWW00-10202Courtesy of AUDI OF AMERICA, LLC

When installing fiber optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink fiber optic cables.

Repairing fiber optic cables, refer to Fiber-Optic Cables, Repairing .
