OVERVIEW - Night Vision System Camera -R212-

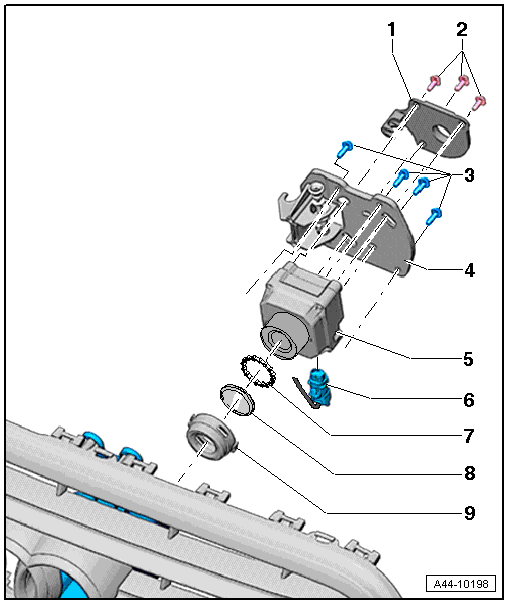

Fig 1: Overview Of Night Vision System Camera -R212-
GWWA44-10198Courtesy of AUDI OF AMERICA, LLC
  1. Retaining Plate
  2. Bolt
    • 5 Nm
  3. Bolt
    • 6 Nm
  4. Retaining Plate
    • with adjusting screw and mount for the spray nozzle
  5. Night Vision System Camera -R212-
  6. 6-Pin Connector -T6d-
  7. Seal
    • Replace after every removal
  8. Protective Window
    • Removing and installing:
      NOTE:

      If the protective window is no longer water tight due to damage, then the Night Vision System Camera -R212- must be completely replaced.

  9. Cover
    • with quick release
