Night Vision System Camera, Removing And Installing: Removing: Notes

-- Remove the front lock carrier cover, refer to Lock Carrier .

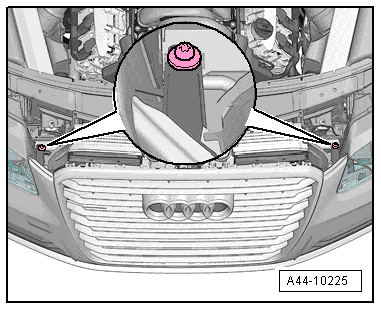

-- Remove the right and left bolts for the front bumper cover.

Fig 1: Identifying Front Bumper Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

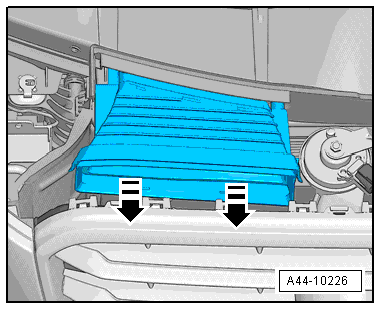

-- If installed, remove the left and right air intake connections -arrows-.

Fig 2: Identifying Air Intake Connections

Courtesy of AUDI OF AMERICA, LLC

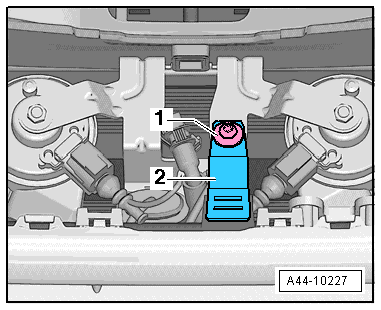

-- Remove the bolt -1- and remove the bracket -2-.

Fig 3: Identifying Bolt And Bracket

Courtesy of AUDI OF AMERICA, LLC

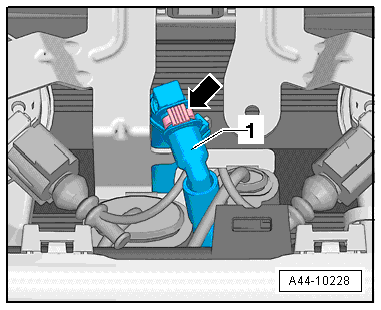

-- Release the clamp -arrow-, and remove the washer fluid hose -1-.

Fig 4: Identifying And Washer Fluid Hose

Courtesy of AUDI OF AMERICA, LLC

-- Clamp off the washer fluid hose at a suitable location using Hose Clamps - Up To 25mm3094.

-- Remove the horn with the bracket from the front end and set aside, refer to [For engine(s) CDRA,CTUB,CEUA,CGTA,CPNA,CEJA] Horn .

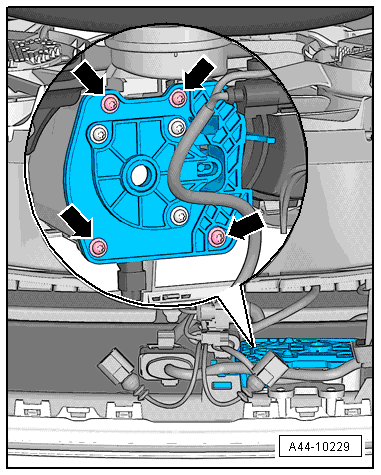

-- Remove the bolts -arrows-.

Fig 5: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- For the following work the front bumper cover is pulled slightly forward.

-- Remove the Night Vision System Camera -R212- with the retaining plate from the front bumper cover and guide upward. Pay attention that the spray nozzle is not damaged.

-- Disconnect the connector to the Night Vision System Camera -R212-.

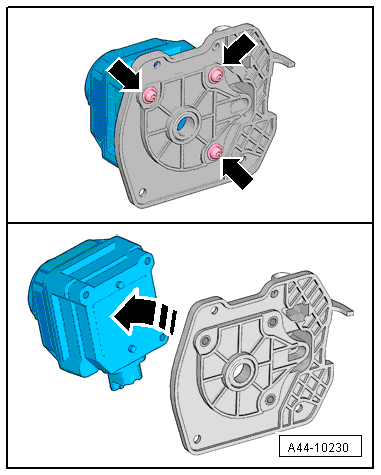

-- Remove the bolts -1- through -3- and remove the Night Vision System Camera -R212- from the retaining plate.

Fig 6: Identifying Bolts -1- Through -3- And Remove Night Vision System Camera -R212-

Courtesy of AUDI OF AMERICA, LLC
