Navigation System Component Location Overview, Japan

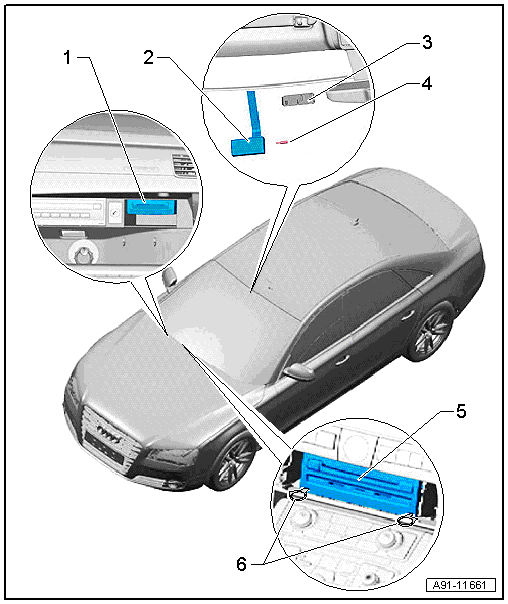

Fig 1: Navigation System Component Location Overview, Japan

Courtesy of AUDI OF AMERICA, LLC

1. Chip Card Reader Control Module -J676-
   • Connector assignment, refer to Chip Card Reader Control Module - J676- CONNECTOR ASSIGNMENT, JAPAN .
   • Removing and installing, refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
2. Traffic Data Antenna -R173-
   • Removing and installing, refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
3. Bracket
   • Glued to the windshield
4. Safety piece
5. Information Electronics Control Module 1 -J794-
   • Connector assignment, refer to Information Electronics Control Module 1 -J794- CONNECTOR ASSIGNMENT, JAPAN .
   • Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
6. Radio Removal ToolT10057
