Chip Card Reader Control Module - J676- CONNECTOR ASSIGNMENT, JAPAN

Chip Card Reader Control Module -J676-

NOTE:

Unlisted connector terminals are not used.

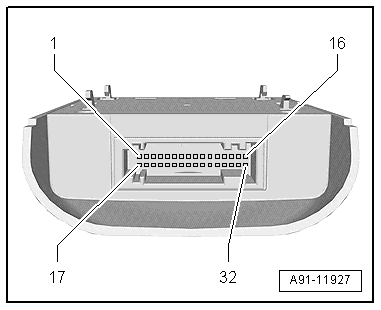

Fig 1: 32-Pin Connector -T32p-

Courtesy of AUDI OF AMERICA, LLC

1-16 - to the Traffic Data Antenna -R173-

17 - VICS data wire to the Information Electronics Control Module 1 -J794-

19 - VICS data wire to the Information Electronics Control Module 1 -J794-

21 - Switch-on signal to the Information Electronics Control Module 1 -J794-

22 - Terminal 30

23 - ETC data to the Information Electronics Control Module 1 -J794-

25 - ETC data from the Information Electronics Control Module 1 -J794-

28 - Terminal 31
