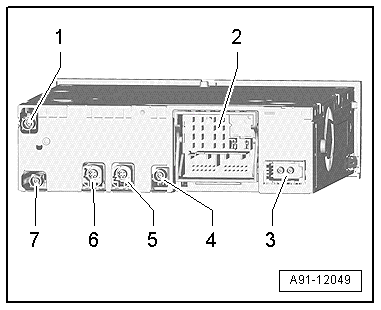

Information Electronics Control Module 1 -J794- CONNECTOR ASSIGNMENT

1. Not Assigned
2. Connection Block with Four Connectors
3. MOST bus
4. CVBS input from TV Tuner -R78- /DVD Changer - R161-
5. 4-Pin Connector -T4co-, to Front Information Display Control Head -J685-
6. 4-Pin Connector -T4cn- to the External Audio Source Connection -R199-
7. GPS Connection from the Roof Antenna -R216-

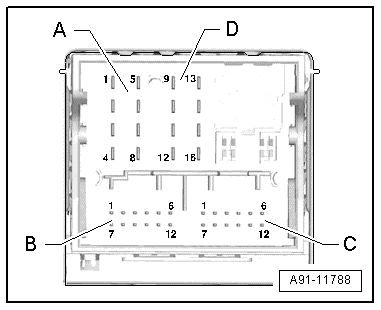

2 - Connection Block With Four Connectors

3 - Wake UP to Multimedia System Control Head -E380-

6 - Res MU to Multimedia System Control Head -E380-

7 - Ring-break Diagnostic Cable

2 - Microphone IN (+) for the Microphone Unit in Front Roof Module -R164- (Right Front Microphone -R141-)

3 - Microphone IN (-) for the Microphone Unit in Front Roof Module -R164- (Right Front Microphone -R141-)

5 - FBAS cable (-) for the Rearview Camera System Control Module -J772- /Peripheral Camera Control Module -J928-

8 - Microphone IN (+) for the Microphone Unit in Front Roof Module -R164- (Left Front Microphone -R140-)

9 - Microphone IN (-) for the Microphone Unit in Front Roof Module -R164- (Left Front Microphone -R140-)

11 - FBAS cable (+) for the Rearview Camera System Control Module -J772- /Peripheral Camera Control Module -J928-

10 - Data from Multimedia System Control Head -E380-

11 - Data to the Multimedia System Control Head -E380-

12 - Terminal 31

14 - Res BT from Multimedia System Control Head -E380-

15 - Terminal 30

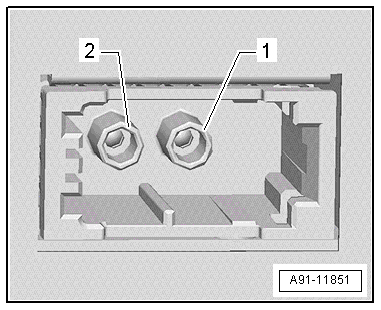

1. IN
2. OUT
