Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

-- Remove the front bumper cover, refer to Front Bumper .

-- Remove the radiator grille from the front bumper cover, refer to Radiator Grille/Front Trim .

-- Remove the bolts -arrows- on the Front Peripheral Camera -R243- -2-.

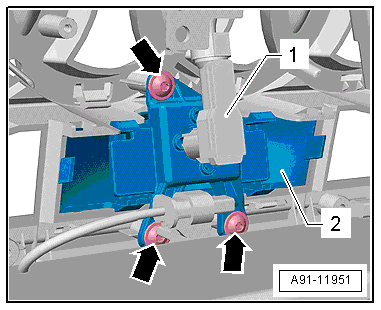

Fig 1: Identifying Connector -1- And Front Peripheral Camera -R243- -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Front Peripheral Camera -R243- -2- from the bumper cover and disconnect the connector -1-.
