Peripheral Camera Control Module -J928- CONNECTOR ASSIGNMENT

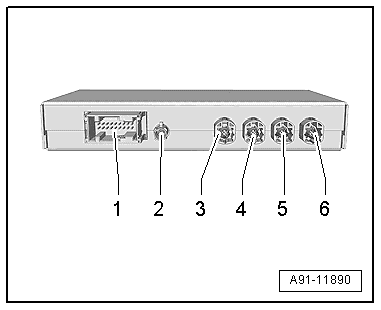

Fig 1: Identifying Peripheral Camera Control Module -J928-

Courtesy of AUDI OF AMERICA, LLC

1. 18-Pin Connector -T18f-
2. CVBS output (T21t) to Information Electronics Control Module 1 -J794-
3. CVBS input (T5av) from Left Peripheral Camera -R244-
4. CVBS input (T5aw) from Right Peripheral Camera -R245-
5. CVBS input (T5ax) from Front Peripheral Camera -R243-
6. CVBS input (T5ay) from Rear Peripheral Camera -R246-

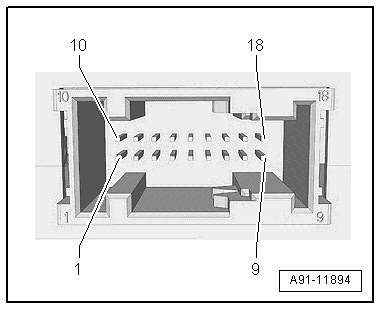

Fig 2: 1 - 18-pin connector (T18f)

Courtesy of AUDI OF AMERICA, LLC

1 - Terminal 30

2 - CAN bus high,

10 - CAN bus low, Comfort

12 - Terminal 31

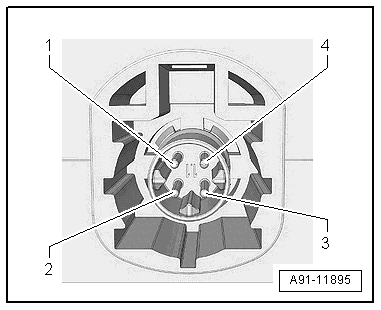

Fig 3: FBAS Input

Courtesy of AUDI OF AMERICA, LLC

1. Power
2. LVDS (-)
3. LIN
4. LVDS (+)
