Left Peripheral Camera -R244- /Right Peripheral Camera -R245- CALIBRATING
Special tools and workshop equipment required
- Calibration ToolVAS6350
- Peripheral Camera Calibration DeviceVAS6350/6
- Vehicle Diagnostic Tester
The Left Peripheral Camera -R244- /Right Peripheral Camera -R245- are installed inside the left and right exterior mirrors.
The following describes calibrating the Left Peripheral Camera -R244-. Calibrating the Right Peripheral Camera -R245- is identical.
-- Set-up requirements, refer to Calibration Requirements .
-- Install and align the Calibration ToolVAS6350 with Peripheral Camera Calibration Device VAS6350/6, refer to Calibration Tool VAS6350 WITH Peripheral Camera Calibration Device VAS6350/6, INSTALLING AND ALIGNING .
-- Connect Vehicle Diagnostic Tester.
Setting Up the Calibration Device
Attaching the Calibration Tool - Wheel Center MountingsVAS6350/1:
-- Check the dimension of the holes.
-- Equip the Calibration Tool - Wheel Center MountingsVAS6350/1 appropriately. Use spacer pieces.
-- To do this, secure three wheel bolt adapters in the hole circle to the Calibration Tool - Wheel Center MountingsVAS6350/1.
-- Position the paddle on the Calibration Tool - Wheel Center MountingsVAS6350/1 and secure using the clamping screw.
-- Place the Calibration Tool - Wheel Center MountingsVAS6350/1 on the wheel bolts on the left front wheel.
The Calibration Tool - Wheel Center MountingVAS6350/1 is positioned by the "O rings" in the adapters and held in place.
Attach the Calibration Tool - Wheel Center MountingVAS6350/1 onto the wheel so that any installed "anti-theft" wheel mounting bolts are not connected to the Calibration Tool - Wheel Center MountingsVAS6350/1.
-- Position the equipped Calibration ToolVAS6350 with the Peripheral Camera Calibration DeviceVAS6350/6 -4- near the vehicle.
-- Adjust the paddle -2- with a clamping screw so that it moves freely and easily just over the Calibration ToolVAS6350 -4- calibration platform.
Installing the Calibration Tool - Linear LaserVAS6350/3:

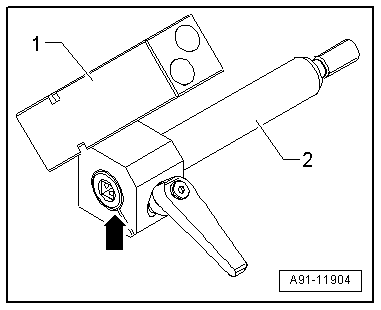

-- Install the Guide PinsVAS6350/6-5 -2- until stop with the 3/8" fine toothed ratchet on the left rear wheel and install the Peripheral Camera Calibration DeviceVAS6350/6-6 together with the Calibration Tool - Linear LaserVAS6350/3 -1-.
-- Slide the Line Laser MountVAS6350/6-6 so that the outer edge of the Guide PinsVAS6350/6-5 is flush with the outer edge of the laser housing -arrow-. Tighten the clamping lever.

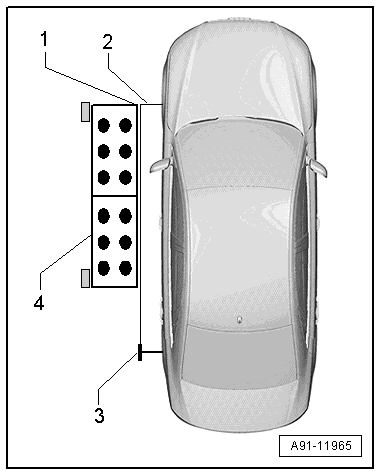

Calibration ToolVAS6350 with Peripheral Camera Calibration DeviceVAS6350/6 orientation
-- Switch on the Calibration Tool - Linear LaserVAS6350/3 -3- and adjust the laser beam forward toward the Calibration Tool - Wheel Center MountingsVAS6350/1 -2- such that a line appears on the Calibration ToolVAS6350 -4- calibration field.
-- Adjust the Calibration ToolVAS6350 -4- calibration field such that the outer edge of the black line on the Calibration ToolVAS6350 -4- calibration field is exactly on the laser beam.
-- Adjust the Calibration ToolVAS6350 -4- calibration field relative to the outer edge of the black line -1- so that it lines up exactly with the free-hanging paddle on the Calibration Tool - Wheel Center MountingsVAS6350/1 -2-.
-- Bring the Calibration ToolVAS6350 with Peripheral Camera Calibration DeviceVAS6350/6 into a horizontal position.
-- To do this, twist plastic feet under the calibration field of the Calibration ToolVAS6350 so that air bubble in level is located exactly in the center of the indicator -arrow-
Make sure light does not reflect off the Peripheral Camera Calibration DeviceVAS6350/6.
Reflections affect the camera and may make it impossible to perform the calibration.
Dimension measurement -h- :
-- Measure the height of the Calibration ToolVAS6350 -2- calibration field, dimension -h-, from the surface of the Calibration ToolVAS6350 -2- calibration field (not the aluminum frame) down to the floor. Measure the hole in the Calibration ToolVAS6350 -2- calibration field.
Make sure the Calibration Tool - Spacing LaserVAS6350/2 -1- is adjusted correctly (attach with front edge).
The display shows how to stop the Calibration Tool - Spacing LaserVAS6350/2. Press the corresponding button.
- Attach with front edge
- Attach with rear edge
Dimension -h- and the distance dimension must now be entered into the Vehicle Diagnostic Tester in "millimeters".
Performing Calibration
Vehicle Diagnostic Tester is attached.
-- Choose operation mode Diagnosis and start the diagnosis.
-- Select the tab Test Plan .
-- Select Select Individual Tests and choose the following sequence.
- Body
- Electrical Equipment
- 01 - On Board Diagnostic (OBD) capable systems
- 6C - peripheral camera control module | J928
- 6C - peripheral camera control module, functions
- 6C - Calibration, (Repair Group 91)
The Vehicle Diagnostic Tester continues with the calibrating procedure from here on.
Make sure light does not reflect off the Peripheral Camera Calibration DeviceVAS6350/6.
Reflections affect the camera and may make it impossible to perform the calibration.
