Rear Peripheral Camera -R246- CALIBRATING
Special tools and workshop equipment required
- Calibration ToolVAS6350
- Peripheral Camera Calibration DeviceVAS6350/6
- Vehicle Diagnostic Tester
The Rear Peripheral Camera -R246- is installed in the rear lid handle button.
-- Set-up requirements, refer to Calibration Requirements .
-- Install and align the Calibration ToolVAS6350 with Peripheral Camera Calibration DeviceVAS6350/6, refer to Calibration Tool VAS6350 WITH Peripheral Camera Calibration Device VAS6350/6, INSTALLING AND ALIGNING .
-- Connect Vehicle Diagnostic Tester.
Setting Up the Calibration Device
Attaching the Calibration Tool - Wheel Center MountingsVAS6350/1:
-- Check the dimension of the holes.
-- Equip the Calibration Tool - Wheel Center MountingsVAS6350/1 appropriately. Use spacer pieces.
-- To do this, secure three wheel bolt adapters in the hole circle to each Calibration Tool - Wheel Center MountingsVAS6350/1.
-- Place the paddle on both Calibration Tool - Wheel Center MountingsVAS6350/1 and secure them using a clamping screw.
-- Place the Calibration Tool - Wheel Center MountingsVAS6350/1 onto the wheel bolts on the rear wheels.
The Calibration Tool - Wheel Center MountingsVAS6350/1 are positioned by the "O rings" in the adapters and held in place.
Attach the Calibration Tool - Wheel Center MountingsVAS6350/1 onto the wheels so that any installed "anti-theft" wheel mounting bolts are not connected to the Calibration Tool - Wheel Center MountingsVAS6350/1.
-- Adjust the paddle with aid of lock bolts so that they move freely just above the floor. Make sure that the paddle is easily accessible.

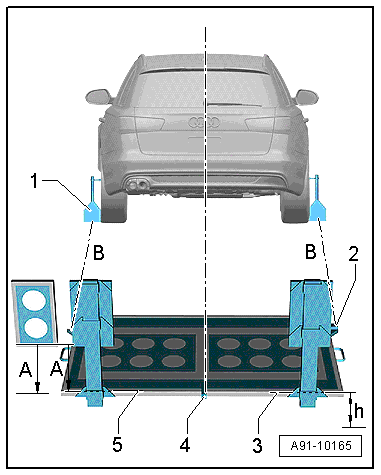

Calibration ToolVAS6350 with Peripheral Camera Calibration DeviceVAS6350/6 orientation

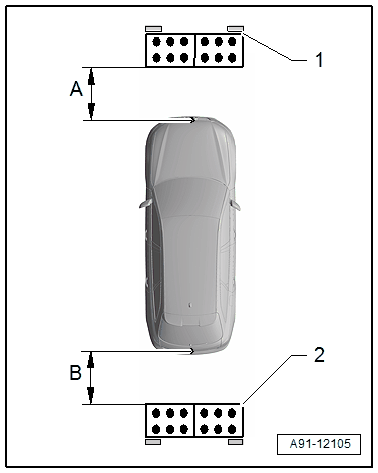

-- Position the Calibration ToolVAS6350 with the Peripheral Camera Calibration DeviceVAS6350/6 -2- at a distance of between 400 mm and 600 mm (15.74 and 23.62 inches) -dimension B- in the rear of the vehicle in the center (in behind of the rear bumper trim).
-- Move the calibration field on the Calibration ToolVAS6350 into a horizontal position.

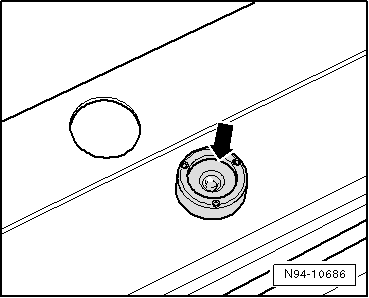

-- To do this, twist plastic feet under the calibration field of the Calibration ToolVAS6350 so that air bubble in level is located exactly in the center of the indicator -arrow-
Make sure light does not reflect off the Peripheral Camera Calibration DeviceVAS6350/6.
Reflections affect the camera and may make it impossible to perform the calibration.
-- Attach the Calibration Tool - Linear LaserVAS6350/3 -4- to the Calibration ToolVAS6350 to the center of the location provided.
-- Switch on the Calibration Tool - Linear LaserVAS6350/3 -4- on the calibration field of the Calibration ToolVAS6350 and align the entire Calibration ToolVAS6350 with Peripheral Camera Calibration DeviceVAS6350/6 so that the laser beam of the Calibration Tool - Linear LaserVAS6350/3 hits the center of vehicle rear above the Audi rings.
-- Make sure the Audi rings are centered on the rear. Correct the laser beam accordingly.
Distance measurement:
-- Switch on the Calibration Tool - Spacing LaserVAS6350/2.

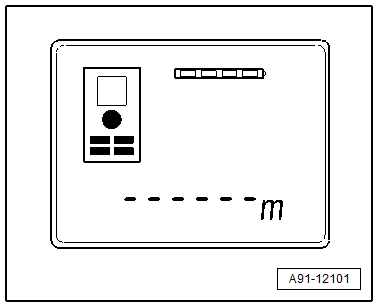

The display shows how to stop the Calibration Tool - Spacing LaserVAS6350/2. Press the corresponding button.

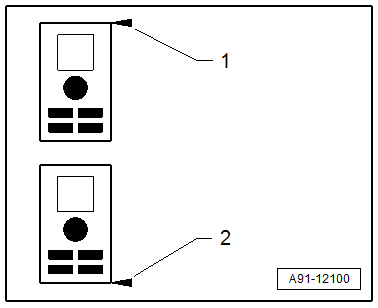

- Attach with front edge
- Attach with rear edge

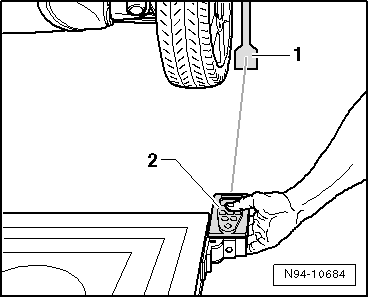

-- Hold the Calibration Tool - Spacing LaserVAS6350/2 -2- flush in the bracket on one side of the Calibration ToolVAS6350 (attach with rear edge). The Calibration Tool - Spacing LaserVAS6350/2 -2- must sit securely on the bracket.
-- Press the measuring button briefly.
The laser turns on.
-- Make sure that laser beam from Calibration Tool - Spacing LaserVAS6350/2 -2- hits lower, enlarged part of paddle -1-.
If this is not the case, paddles must be corrected accordingly via clamping screws on the Calibration Tool - Wheel Center MountingsVAS6350/1.
-- Use one hand to secure the Calibration Tool - Spacing LaserVAS6350/2 in the bracket on the Calibration ToolVAS6350 while the laser beam is visible on the paddle.
-- Then press the measuring button for distance measurement briefly.
-- Repeat this measurement on the other side of the Calibration ToolVAS6350 in the same way for the rear wheel.
The distance value must be the same on both sides.
If values are not identical:
-- Align the Calibration ToolVAS6350 long enough so that both sides are identical.
Pay attention when aligning the calibration field of the Calibration ToolVAS6350, that the Calibration Tool - Linear LaserVAS6350/3 from the Calibration ToolVAS6350 strikes the center of the Audi rings and the indicator of the level remains centered. Adjust if necessary.
-- Make note of the distance dimension measured.

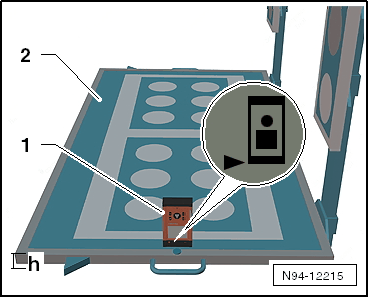

Dimension measurement -h- :
-- Measure the height of the Calibration ToolVAS6350 -2- calibration field, dimension -h-, from the surface of the Calibration ToolVAS6350 -2- calibration field (not the aluminum frame) down to the floor. Measure the hole in the Calibration ToolVAS6350 -2- calibration field.
Make sure the Calibration Tool - Spacing LaserVAS6350/2 -1- is adjusted correctly (attach with front edge).
The display shows how to stop the Calibration Tool - Spacing LaserVAS6350/2. Press the corresponding button.
- Attach with front edge
- Attach with rear edge
Dimension -h- and the distance dimension must now be entered into the Vehicle Diagnostic Tester in "millimeters".
Performing Calibration
Vehicle Diagnostic Tester is attached.
-- Choose operation mode Diagnosis and start the diagnosis.
-- Select the tab Test Plan .
-- Select Select Individual Tests and choose the following sequence.
- Body
- Electrical Equipment
- 01 - On Board Diagnostic (OBD) capable systems
- 6C - peripheral camera control module | J928
- 6C - peripheral camera control module, functions
- 6C - Calibration, (Repair Group 91)
The Vehicle Diagnostic Tester continues with the calibrating procedure from here on.
Make sure light does not reflect off the Peripheral Camera Calibration DeviceVAS6350/6.
Reflections affect the camera and may make it impossible to perform the calibration.
