Rear Peripheral Camera -R246-, REMOVING AND INSTALLING: Removing

The Rear Peripheral Camera -R246- has a trailing cable pig tail. The vehicle wiring harness couplings are located in the rear lid.

-- Remove the rear lid trim panel, refer to Luggage Compartment Trim Panels .

-- Release and disconnect the connectors -4- on the Rear Peripheral Camera -R246- -1-.

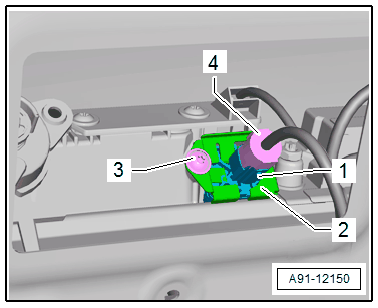

Fig 1: Locating Connectors, Bolt, Retaining Plate And Rear Peripheral Camera -R246- -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -3-.

-- Remove the retaining plate -2-.

-- Remove the Rear Peripheral Camera -R246- -1- from the handle.
