Radio -R- CONNECTOR ASSIGNMENT

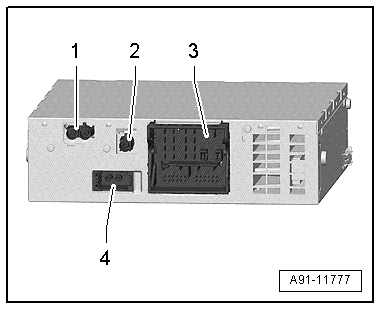

1. (AM/FM1/FM2) antenna jack
2. Roof Antenna -R216- (Satellite Antenna -R170-) SAT connection
3. Connection Block with Four Connectors
4. MOST bus

1. AM/FM1 connector 2 from the Antenna Amplifier -R24- (Radio Antenna 2 -R93-)
2. Antenna Amplifier 2 -R111- (Antenna - R11-) FM2 connector 1

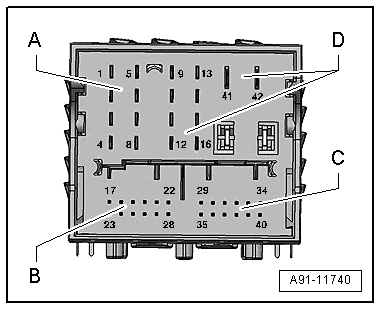

3 - Connection Block with Four Connectors

1. Right rear speaker (+)
2. Right front speaker (+)
3. Left front speaker (+)
4. Left rear speaker (+)
5. Right rear speaker (-)
6. Right front speaker (-)
7. Left front speaker (-)
8. Left rear speaker (-)

17 - Left LF-In

18 - LF-In ground

19 - LF-In diag

21 - LF diag

22 - LF (-)

23 - Right LF-In

24 - LF-In ground shielding

27 - LF ground shielding

28 - LF (+)

All pins are connected to the Multimedia Control Head 2 -E499- (rear center armrest).

29 - Headphones output 1 diag

31 - Headphones output 1/2 diag

34 - Headphones output 2 diag

35 - Headphones output 1 left

36 - Headphones output 1 ground

37 - Headphones output 1 right

38 - Headphones output 2 left

39 - Headphones output 2 ground

40 - Headphones output 2 right

9 - Subwoofer -R211-

10 - Center Speaker -R208-

11 - Ring-break Diagnostic Cable

13 - Subwoofer -R211-

14 - Center Speaker -R208-

41 - Terminal 31

42 - Terminal 30

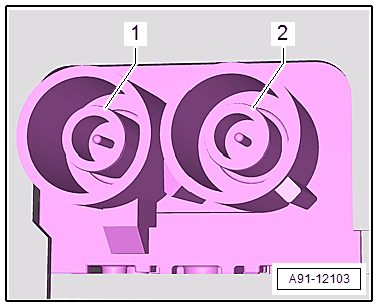

1. IN
2. OUT
