Rearview Camera System Control Module - J772- CONNECTORS, THROUGH MY 2013

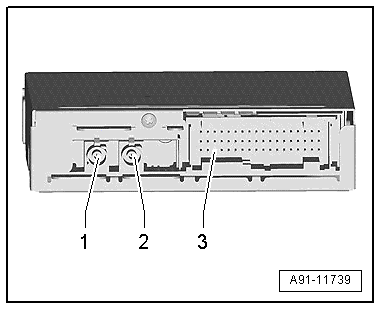

Fig 1: Identifying Rear View Camera System Control Module -J772-

Courtesy of AUDI OF AMERICA, LLC

1. CVBS input from the Rearview Camera -R189-
2. CVBS output to the Information Electronics Control Module 1 -J794-
3. 54-Pin Connector -T54a-

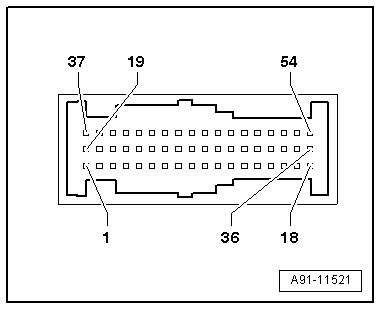

Fig 2: 3 - 54 Pin Connector (T54a)

Courtesy of AUDI OF AMERICA, LLC

39 - CAN bus low, instrument cluster

40 - CAN bus high, instrument cluster

43 - Terminal 30

44 - Terminal 31

47 - Terminal 31 to the Rearview Camera -R189-

48 - Rearview Camera -R189- power supply
