Rearview Camera System Control Module -J772- CONNECTORS, FROM MY 2014

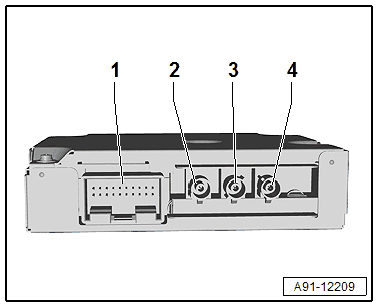

Fig 1: Identifying Rearview Camera System Control Module -J772-

Courtesy of AUDI OF AMERICA, LLC

1. 20-Pin Connector -T20k-
2. CVBS output to the Information Electronics Control Module 1 -J794-
3. CVBS input from the Rearview Camera -R189-
4. Not Assigned

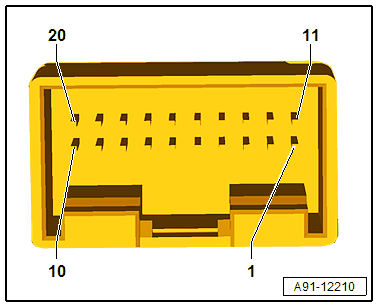

Fig 2: 20-Pin Connector -T20b-

Courtesy of AUDI OF AMERICA, LLC

9 - Rearview Camera -R189- power supply

10 - Terminal 30

11 - CAN bus low, instrument cluster

12 - CAN bus high, instrument cluster

19 - Terminal 31 to the Rearview Camera -R189-

20 - Terminal 31
