Rearview Camera, Calibrating

-- Set-up requirements, refer to Calibration Requirements .

-- Connect Vehicle Diagnostic Tester.

Attaching the Calibration Tool - Wheel Center MountingsVAS6350/1:

-- Check the dimension of the holes.

-- Equip the Calibration Tool - Wheel Center MountingsVAS6350/1 appropriately. Use spacer pieces.

-- To do this, secure three wheel bolt adapters in the hole circle to each Calibration Tool - Wheel Center MountingsVAS6350/1.

-- Place the paddle on both Calibration Tool - Wheel Center MountingsVAS6350/1 and secure them using a clamping screw.

-- Place the Calibration Tool - Wheel Center MountingsVAS6350/1 onto the wheel bolts on the rear wheels.

The Calibration Tool - Wheel Center MountingsVAS6350/1 are positioned by the "O rings" in the adapters and held in place.

-- Adjust the paddle with aid of lock bolts so that they move freely just above the floor. Make sure that the paddle is easily accessible.

-- Install and align the Calibration ToolVAS6350, refer to Calibration Tool VAS6350, INSTALLING AND ALIGNING .

Distance measurement:

-- Switch on the Calibration Tool - Spacing LaserVAS6350/2.

The display shows how to stop the Calibration Tool - Spacing LaserVAS6350/2. Press the corresponding button.

1. Attach with front edge
2. Attach with rear edge

-- Hold the Calibration Tool - Spacing LaserVAS6350/2 -2- flush in the bracket on one side of the calibration board (attach with rear edge). The Calibration Tool - Spacing LaserVAS6350/2 -2- must sit securely on the bracket.

-- Press the measuring button briefly.

The laser turns on.

-- Make sure that laser beam from Calibration Tool - Spacing LaserVAS6350/2 -2- hits lower, enlarged part of paddle -1-.

If this is not the case, paddles must be corrected accordingly via clamping screws on the Calibration Tool - Wheel Center MountingsVAS6350/1.

-- Use one hand to secure the Calibration Tool - Spacing LaserVAS6350/2 in the bracket on the Calibration ToolVAS6350 while the laser beam is visible on the paddle.

-- Then press the measuring button for distance measurement briefly.

-- Write down the value.

-- Repeat this measurement on the other side of the Calibration ToolVAS6350 in the same way for the rear wheel.

The distance value must be the same on both sides.

If values are not identical:

-- Align the Calibration ToolVAS6350 long enough so that both sides are identical.

Pay attention when aligning the Calibration ToolVAS6350, that the Calibration Tool - Linear LaserVAS6350/3 from the Calibration ToolVAS6350 strikes the center of the Audi rings and the indicator of the level remains centered. Adjust if necessary.

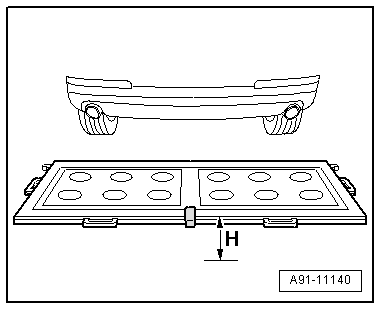

Dimension measurement -H- :

-- Measure the height of the Calibration ToolVAS6350, dimension -H- (top edge platform - floor).

Make sure the Calibration Tool - Spacing LaserVAS6350/2 is adjusted correctly (attach with front edge).

The display shows how to stop the Calibration Tool - Spacing LaserVAS6350/2. Press the corresponding button.

1. Attach with front edge
2. Attach with rear edge

Enter the height and distance dimensions into the Vehicle Diagnostic Tester in "millimeters".

Performing Calibration

Vehicle Diagnostic Tester is attached.

-- Choose operation mode Diagnosis  and start the diagnosis.

-- Select the tab Test Plan  .

-- Select Select Individual Tests  and choose the following sequence.

• Body
• Electrical Equipment
• 01 - On Board Diagnostic (OBD) capable systems
• 6C - rearview camera system/J772
• 6C - rearview camera system control module, functions
• 6C - Calibration, (Repair Group 91)

The Vehicle Diagnostic Tester continues with the calibrating procedure from here on.
