ANC Microphone -R142- / -R143- / -R144- / -R145-, Removing And Installing: Removing

It is necessary to lower the headliner on each side in order to remove the ANC microphones.

-- Lower the headliner, refer to Roof Frame Trim Panel, Removing and Installing .

-- Disconnect the connector -2- from each microphone.

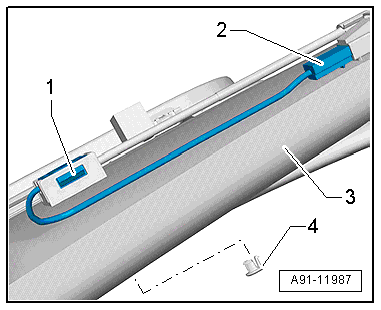

Fig 1: Disconnecting Connector -2- From Each Microphone

Courtesy of AUDI OF AMERICA, LLC

-- Pry the microphone -1- out of the retainer and then remove it from the headliner -3-.

The cover -4- remains inside the headliner.
