Telephone BASEPLATE, -R126- / -R151- Connector Assignment

The Telephone Baseplate -R126- /Rear Telephone Charging Station -R151- have an "Adapter Cable" from the Telephone Baseplate -R126- /Rear Telephone Charging Station -R151- (10-Pin Connector -T10t- /10-Pin Connector -T10u-) to the coupling (5-Pin Connector -T5i- /5-Pin Connector -T5k-) under the front/rear center console. The "adapter cable" is available individually . The following connector assignment, refer to the couplings.

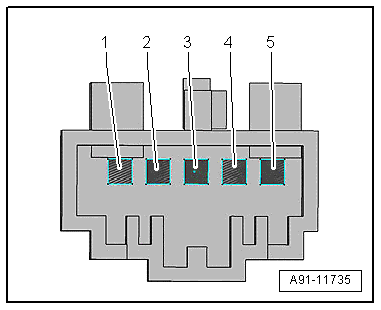

Fig 1: Rear Telephone Charging Station -R151- T5k

Courtesy of AUDI OF AMERICA, LLC

1. Terminal 30
2. Switch-on signal to the Information Electronics Control Module 1 -J794-
3. Not Assigned
4. Terminal 31
5. Terminal 58s

Fig 2: Rear Telephone Charging Station -R151- T5k

Courtesy of AUDI OF AMERICA, LLC

1. Terminal 30
2. Switch-on signal to the Information Electronics Control Module 1 -J794-
3. Not Assigned
4. Terminal 31
5. Terminal 58s
