Clock, Removing And Installing: Removing

-- Open the flap -2- for the navigation system.

-- Engage the Hook Tool T40207 into the side of the Analog Clock -Y- -1- -arrow A-, as shown.

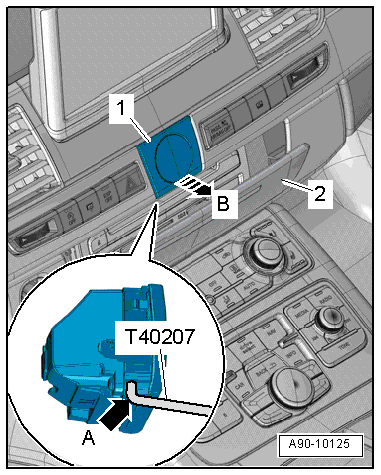

Fig 1: Identifying Analog Clock

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Analog Clock -Y- carefully -arrow B-.

-- Disconnect the connector.
