Overview - Windshield Projection (Head Up Display)

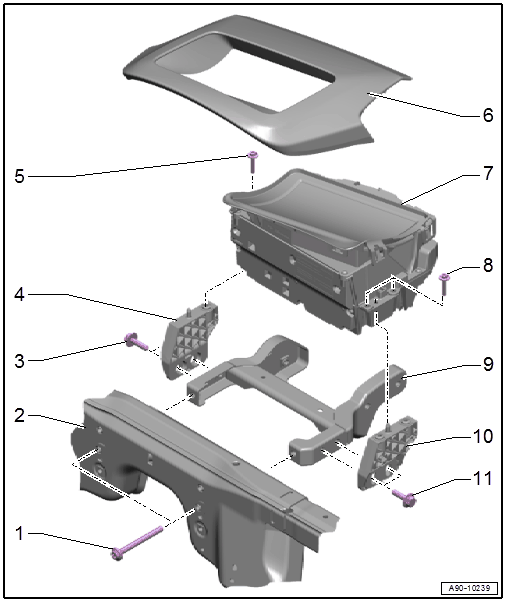

Fig 1: Identifying Windshield Projection (Head Up Display) Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Quantity: 2
   • Tightening specification, refer to Overview - Front Door Trim Panel .
2. Central Tube
3. Bolt
   • Quantity: 2
   • Tightening specification, refer to Overview - Front Door Trim Panel .
4. Left Bracket
   • For windshield projection control module
   • Removing and Installing, refer to Overview - Front Door Trim Panel
5. Bolt
   • 5.5 Nm
6. Upper Cover
   • Removing and Installing, refer to Overview - Front Door Trim Panel
7. Windshield Projection Head Up Display Control Module -J898-
   • Removing and installing, refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
   • Calibrating, refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, CALIBRATING .
8. Bolt
   • 5.5 Nm
   • Quantity: 2
9. Right Bracket
   • For windshield projection control module
   • Removing and Installing, refer to Overview - Front Door Trim Panel
10. Mounting Bracket
    • Removing and Installing, refer to BRACKET, REMOVING AND INSTALLING .
11. Bolt
    • Quantity: 2
    • Tightening specification, refer to Overview - Front Door Trim Panel .
