Fuel Level Sensor -G-, Removing And Installing: Installing
Install in reverse order of removal. Note the following:
Replace the seal.
Make sure the fuel hoses are secure.
When installing, be sure not to bend floater arm on the fuel level sensor.

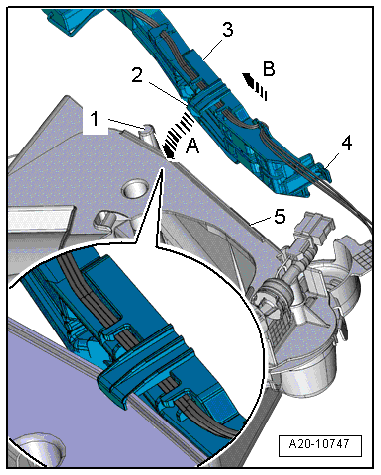

-- Guide the Fuel Level Sensor -G- -1- carefully into the fuel tank.
-- Position the Fuel Level Sensor -G- guide -2- on the edge -5- of the baffle housing -arrow A-.
-- Push the Fuel Level Sensor -G- -3- all the way into the mount -1- on the baffle housing -arrow B-.
-- Push the Fuel Level Sensor -G- retainer -4- onto the baffle housing until it clicks into place.
-- Connect the connectors -3 and 5- and make sure they are securely locked.
-- Insert the fuel line -2- until it audibly latches to the sealing flange.
-- Install a new dry sealing flange seal -4-.
-- Insert the sealing flange -1- into the fuel tank.
-- Set the sealing flange into the installation position.
Risk of leaking.
- When inserting sealing flange, sealing ring must not be damaged or crushed.
- The tab -2- on the right sealing flange must lie between latches -1 and 3- on the fuel tank.
- The >>arrow<< on the sealing flange must point in direction of travel.
-- Attach the fuel lines so that they audibly latch.
-- Connect the connectors and make sure they are secure.
-- Install the sealing flange cover, refer to Figure.
-- Install the rear bench seat or single seat, refer to Rear Seats .
-- Follow all steps after connecting the battery, refer to BATTERY .
