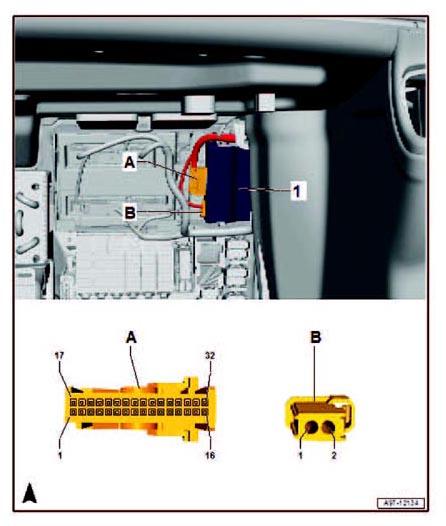

Data Bus On Board Diagnostic Interface Connector End View (J533, T32f, T2gb)
| 1 | Data Bus On Board Diagnostic Interface -J533- |
| A | 32-Pin Connector -T32f-, black |
| B | Double Connector -T2gb-, MOST-Bus, black |
| -T32f-(A) | Designation |
|---|---|
| 1 | |
| 2 | Extended System CAN-Bus Low |
| 3 | 16-Pin Connector -T16-, Data Link Connector |
| 4 | Comfort System CAN-Bus Low |
| 5 | CAN-Bus powertrain, Low |
| 6 | CAN-Bus Instrument Cluster, Low |
| 7 | FlexRay-Bus, ABS control module -J104- |
| 8 | FlexRay-Bus, Level control system control module -J197- All-Wheel Drive Control Module -J492- |
| 9 | FlexRay-Bus, Sensor Electronics Control Module -J849- |
| 10 | FlexRay-Bus, Distance Regulation Control Module 2 -J850- |
| 11 | |
| 12 | |
| 13 | Terminal 31, to 675 Ground connection 2 in luggage compartment on the right side |
| 14 | Terminal 15 from Fuse Panel F -SF- |
| 15 | |
| 16 | Terminal 30, from Fuse Panel F -SF- |
| 17 | LIN-Bus B481 Connection 17 (in main wiring harness) |
| 18 | Extended System CAN-Bus High |
| 19 | 16-Pin Connector -T16-, Data Link Connector |
| 20 | Comfort System CAN-Bus High |
| 21 | CAN-Bus powertrain, High |
| 22 | CAN-Bus Instrument Cluster, High |
| 23 | FlexRay-Bus, ABS control module -J 104- |
| 24 | FlexRay-Bus, Level control system control module -J197- All-Wheel Drive Control Module -J492- |
| 25 | FlexRay-Bus, Sensor Electronics Control Module -J849- |
| 26 | FlexRay-Bus, Distance Regulation Control Module 2 -J850- |
| 27 | |
| 28 | |
| 29 | Terminal 31, to 675 Ground connection 2 in luggage compartment on the right side |
| 30 | |
| 31 | |
| 32 | Ringbreak Diagnosis Wire B444 OBD connection 1 (in main wiring harness) |
