Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left side of engine compartment. See Figure. |
| Accelerator Module | Top of accelerator pedal assembly. |
| Active Steering Control Module | Under driver's seat. |

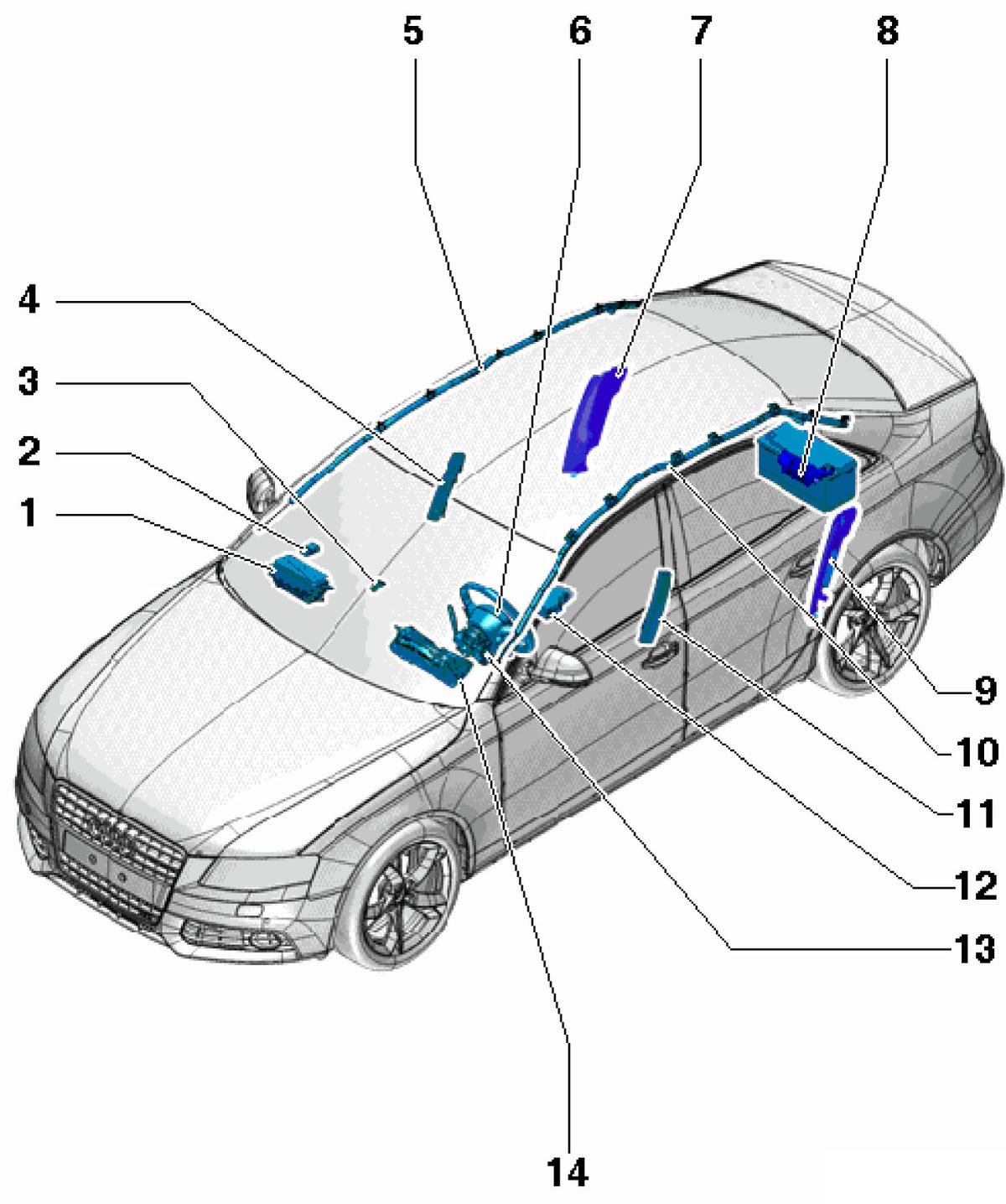

| Air Bag Control Module (12) | Below center console. See Figure. |
| All-Wheel Drive Control Module | In spare tire well. |
| Battery Monitoring Control Module | Middle of luggage compartment, on battery. |

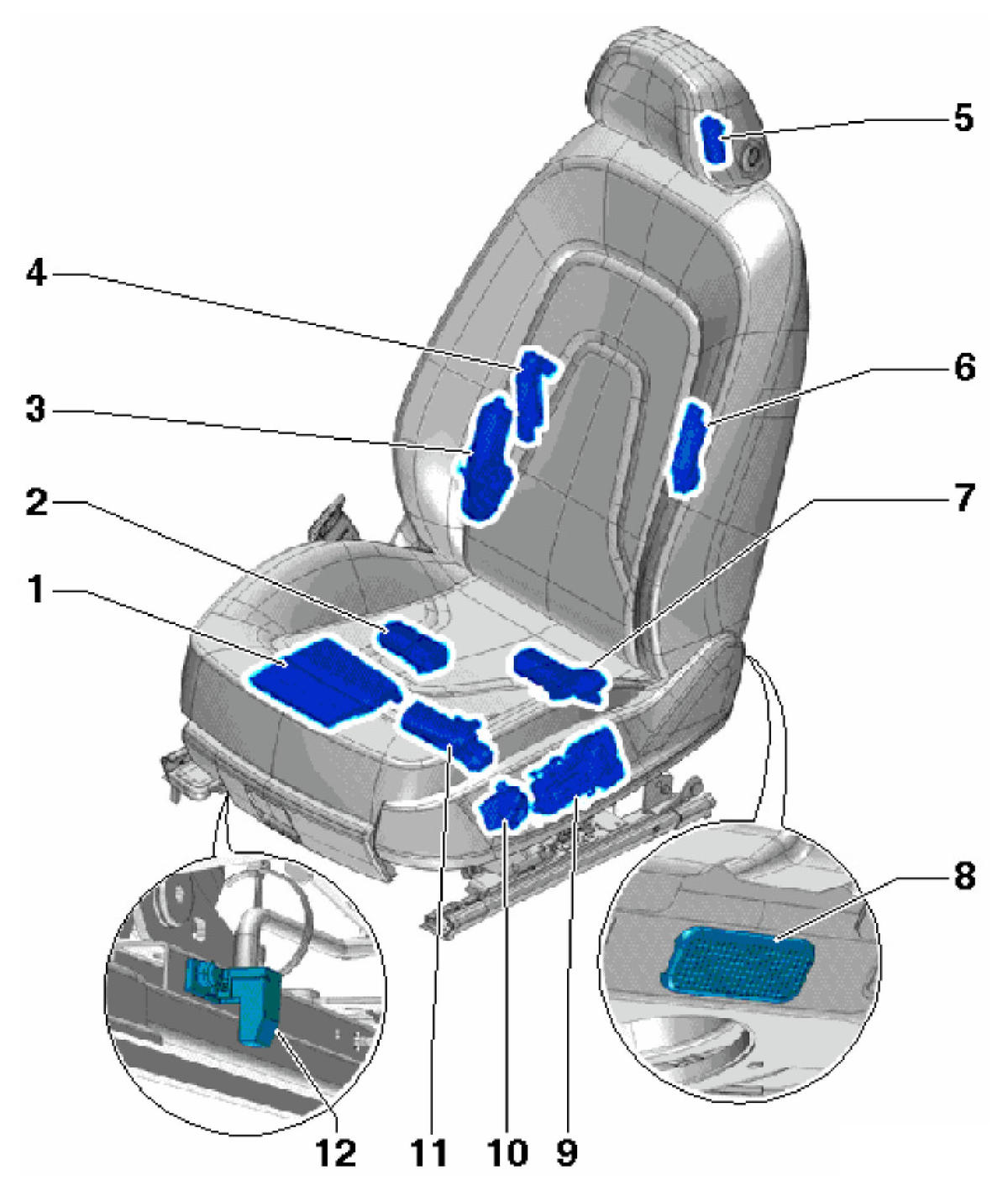

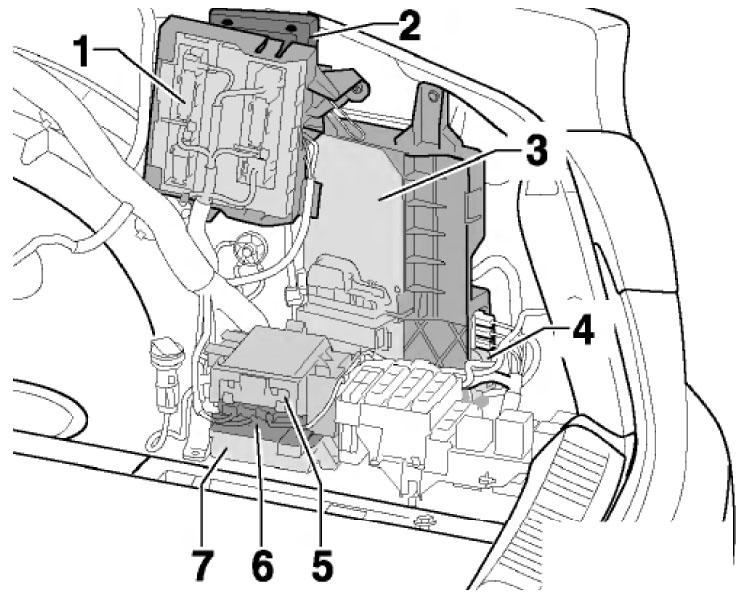

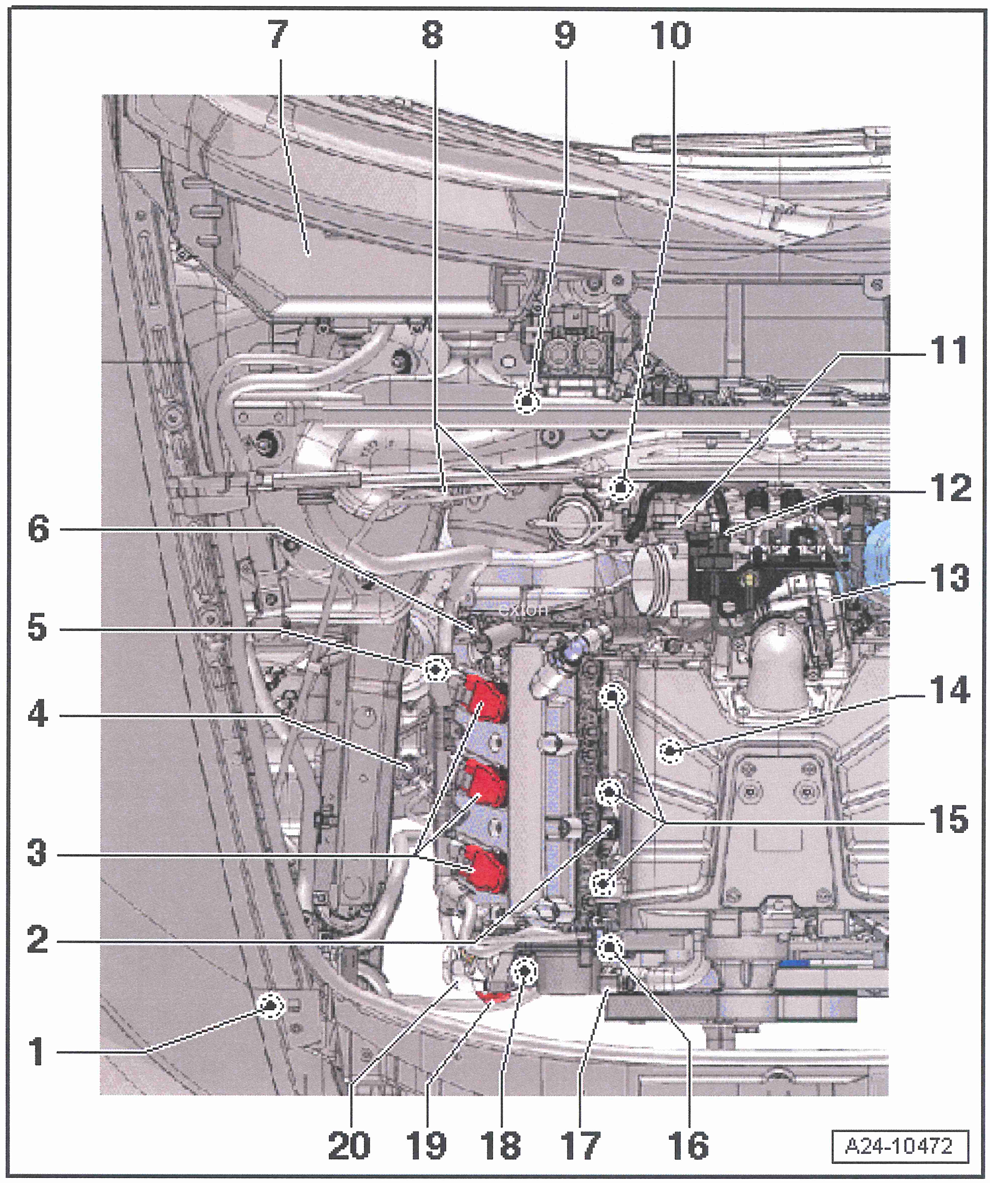

| Comfort Seat Control Module (Driver/Passenger) (1) | Under respective front seat. See Figure. |
| Comfort System Control Module (1) | Right side of trunk. See Figure. |
| Control Valve Control Module (13) | Rear of engine. See Figure. |
| Coolant Fan (FC) Control Modules (2) | On coolant fan motors. |

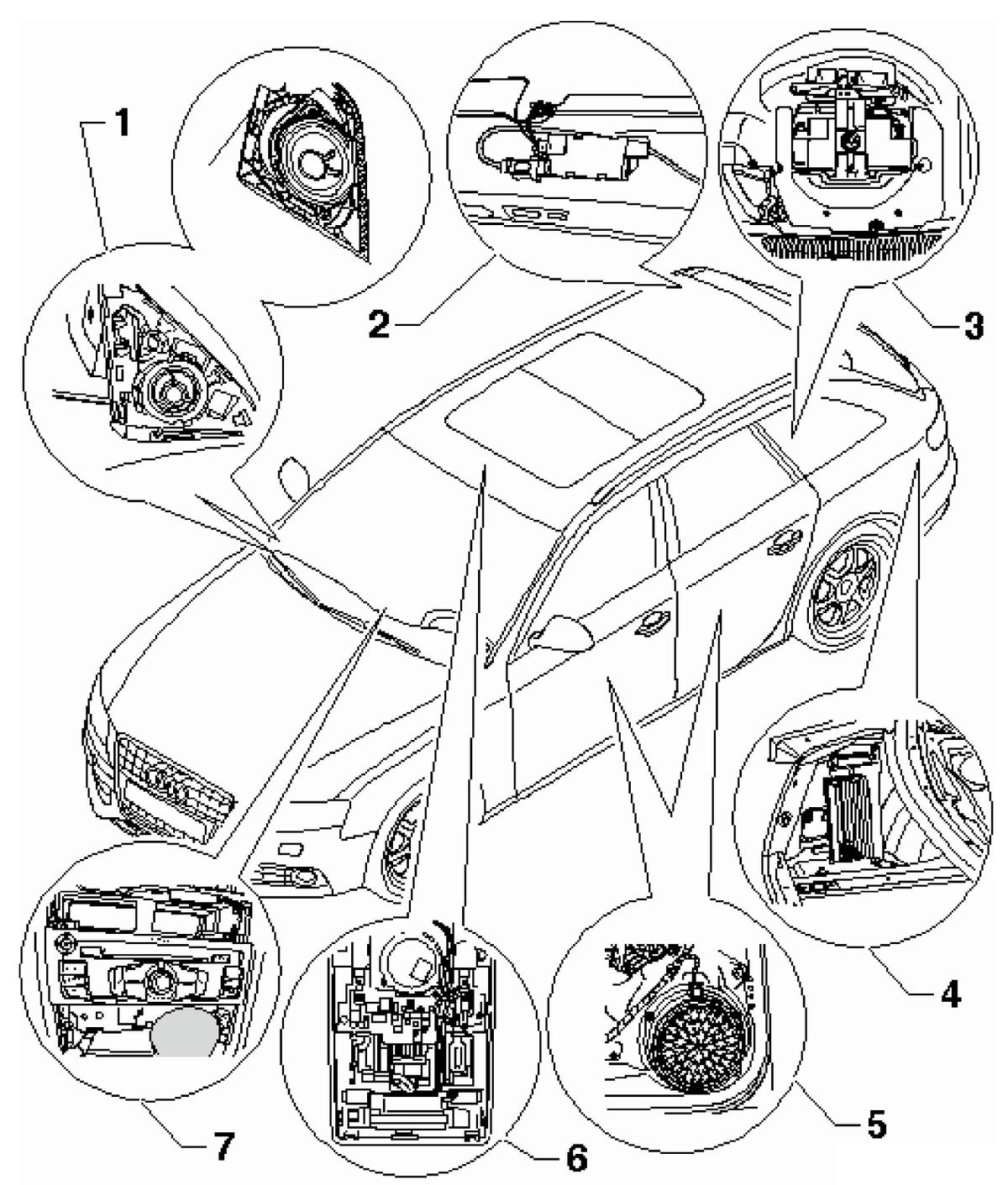

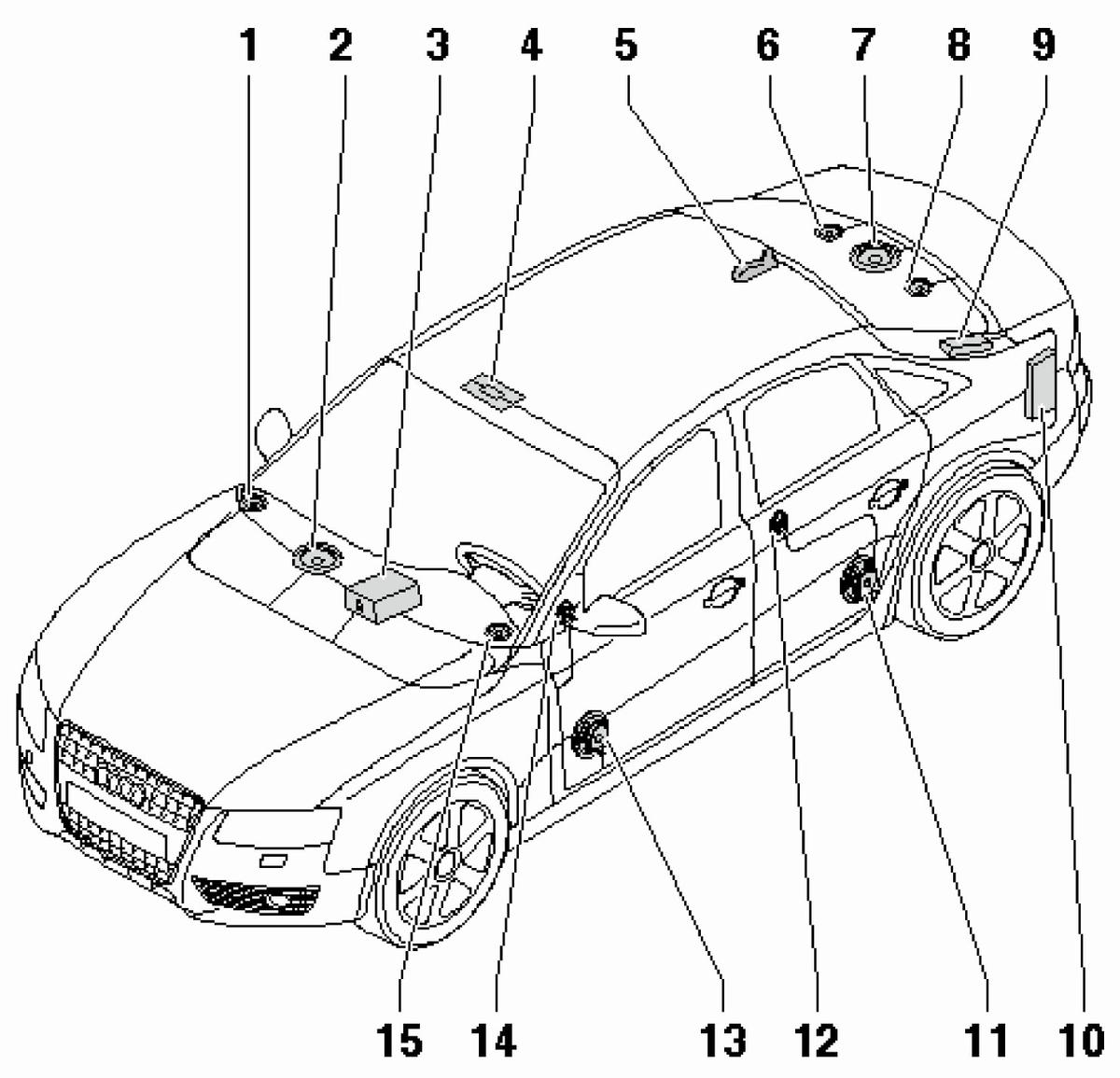

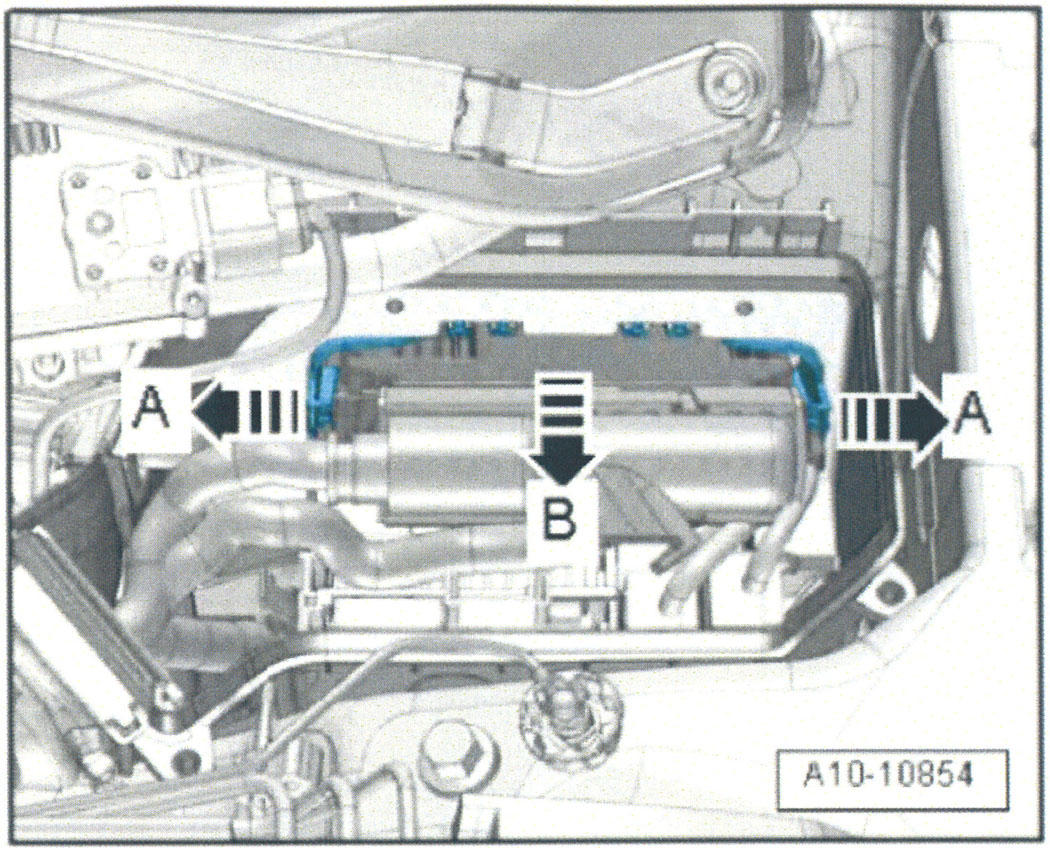

| Digital Sound System Control Module (Avant) (4) | Left rear of cargo area. See Figure. |
| Digital Sound System Control Module (Sedan) (10) | Left rear of trunk. See Figure. |
| Distance Regulation Control Module | Right side of front bumper. |
| Door Control Module (Driver/Front Passenger) | In respective front door. |
| Door Control Module (Left/Right Rear) | In respective rear door. |
| Electro-Mechanical Parking Brake Control Module (7) | Right side of trunk. See Figure. |
| Electronic Dampening Control Module (3) | Right side of trunk. See Figure. |
| Electronic Steering Column Lock Control Module | Near steering column. |
| Engine Control Module (ECM) (Except 3.0L) | Left side of engine compartment plenum chamber. See Figure. |

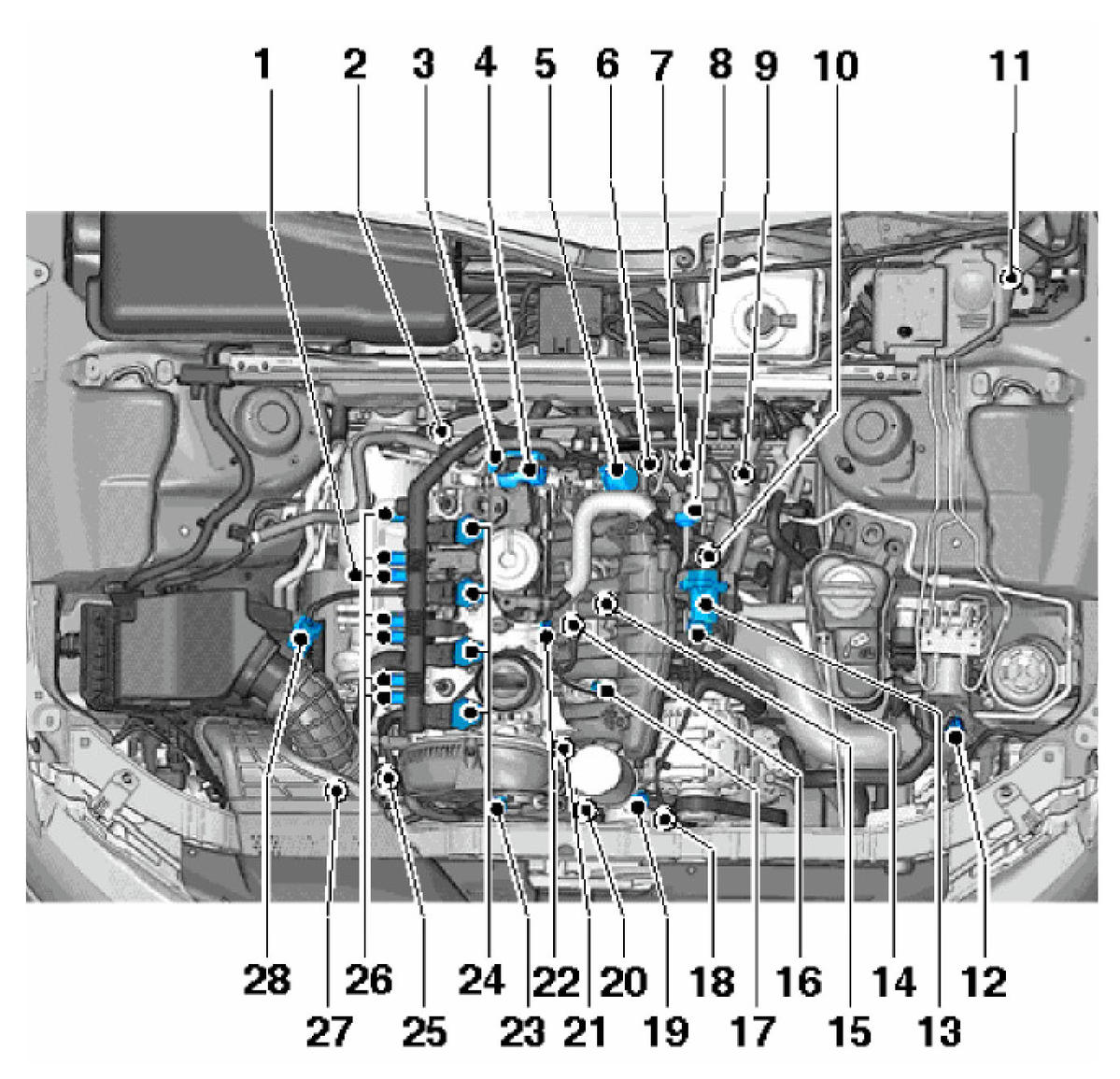

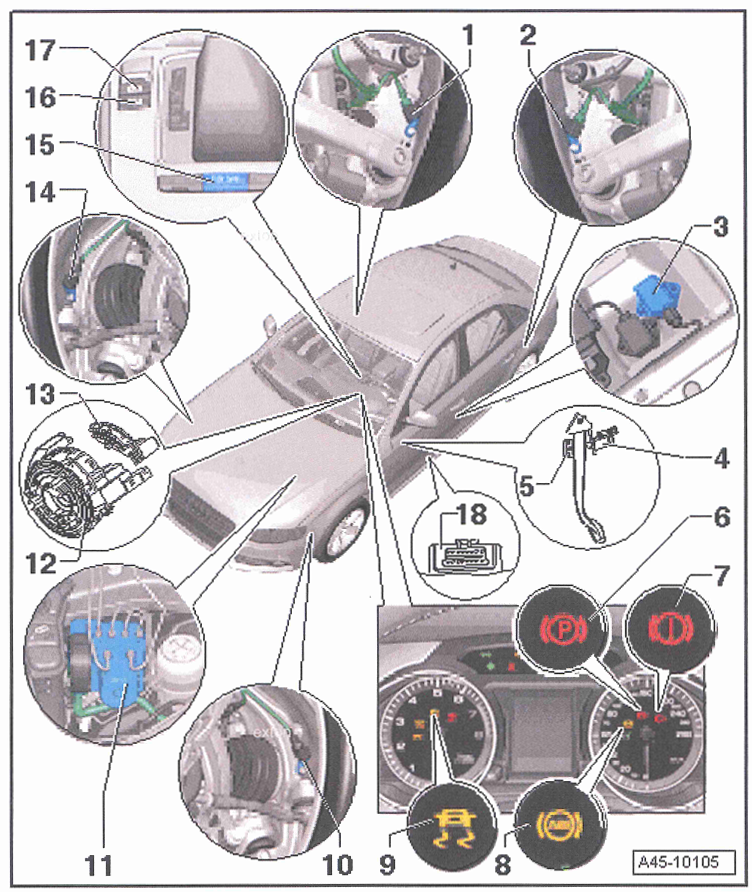

| Engine Control Module (ECM) (3.0L) (7) | Right rear of engine compartment. See Figure. |
| ESP Sensor Unit (3) | Under driver's seat. See Figure. |

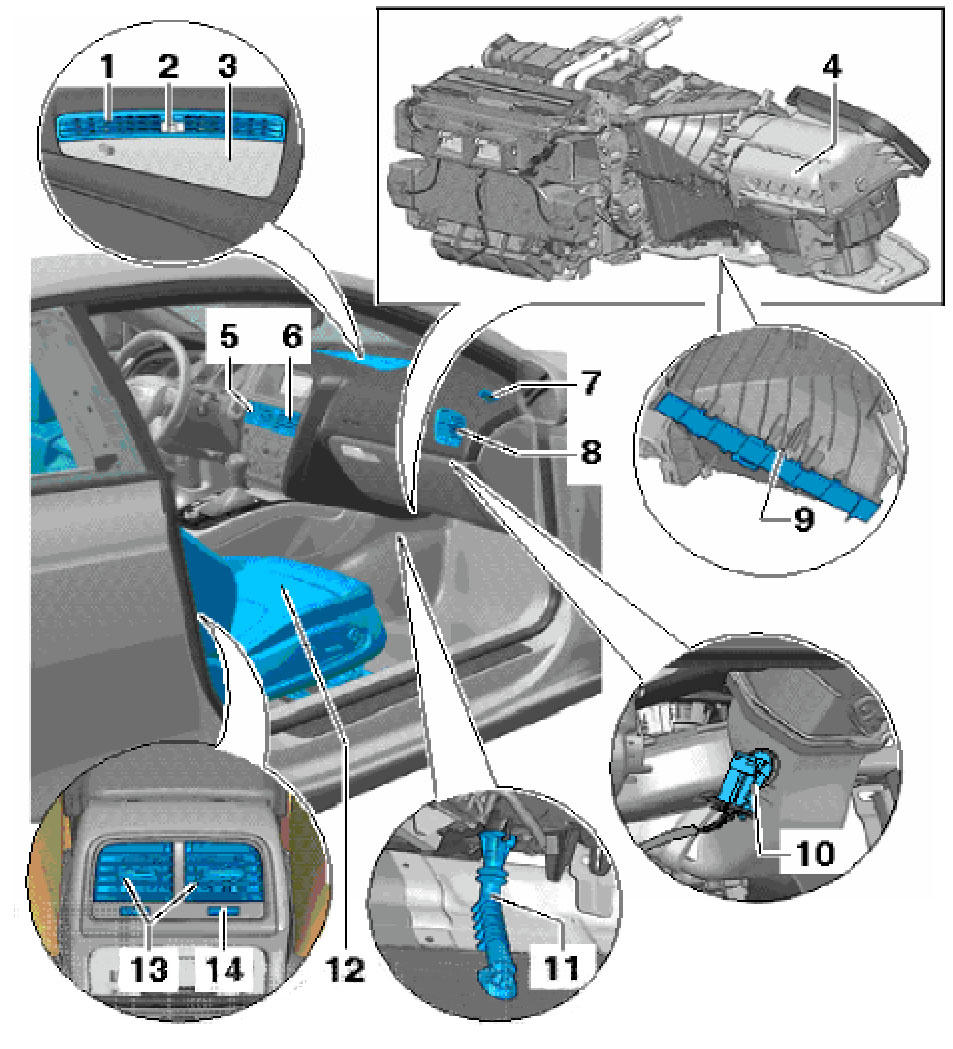

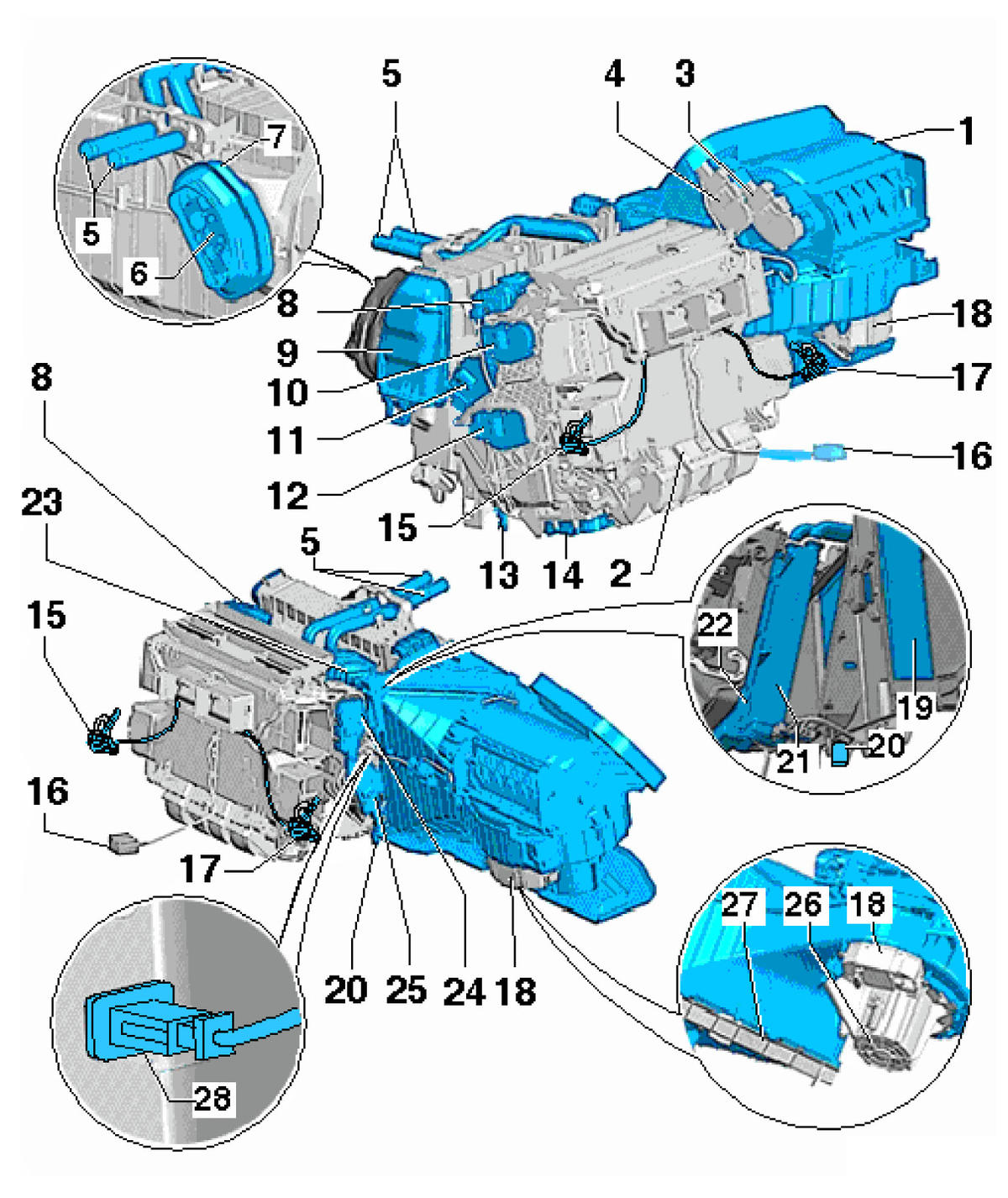

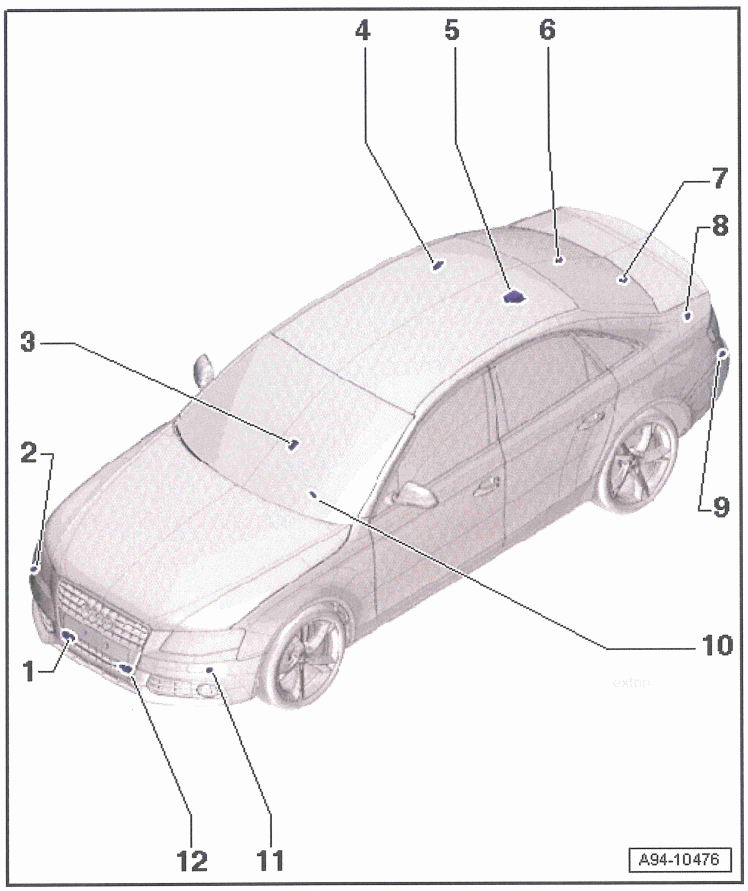

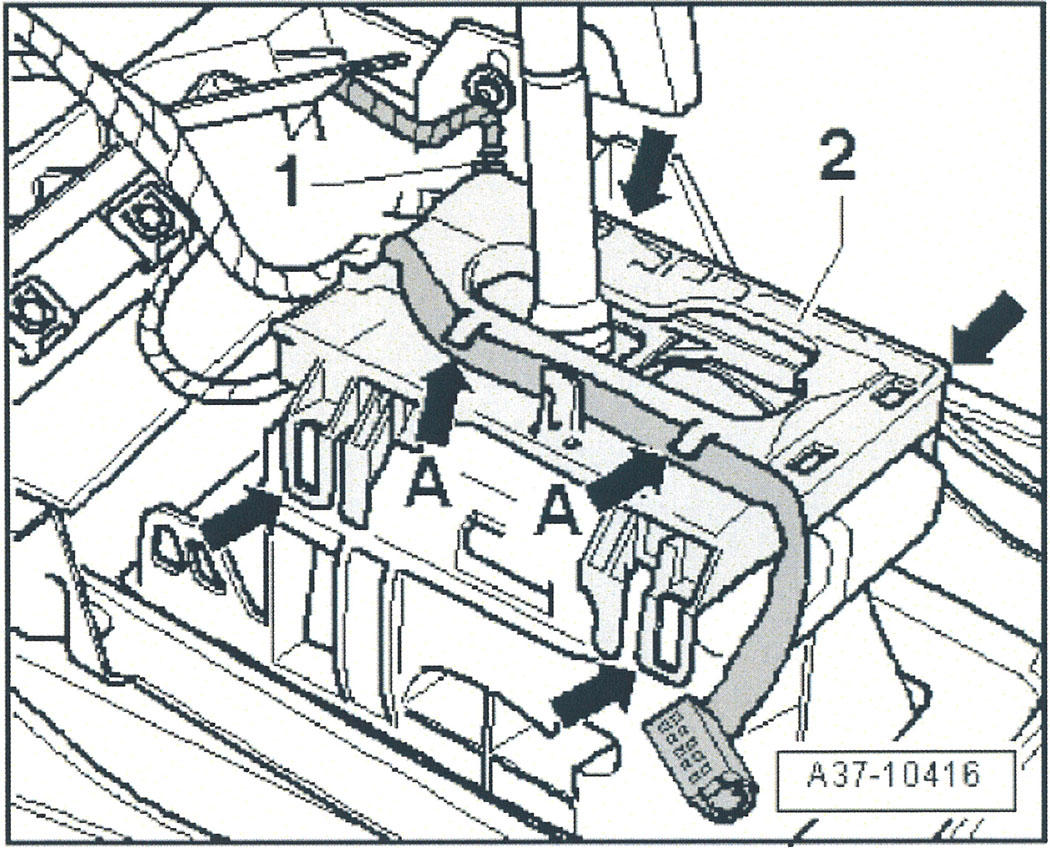

| Fresh Air Blower Control Module (18) | Lower right side of air intake housing. See Figure. |
| Front Information Display Control Head Control Module | Behind glove box. |
| Fuel Pump Control Module | Top of fuel tank. |
| Garage Door Opener Control Module | Behind center of front grille. |
| Headlight Range Control Module | Behind glove box. |
| Headlight Range/Cornering Lamp Control Module | Behind glove box. |
| Heated Seat Control Module (Driver/Passenger) (1) | Under respective front seat. See Figure. |
| High-Intensity Gas Discharge Lamp Control Module (Left/Right) | In respective headlight assembly. |
| Instrument Cluster Control Module (9) | Behind instrument cluster. See Figure. |
| Lane Change Assistance Control Module | On left taillight assembly. |
| Lane Change Assistance Control Module 2 | On right taillight assembly. |
| Mechatronic Unit | Under transmission oil pan. |
| Memory Seat/Steering Column Control Module (1) | Under driver's seat. See Figure. |
| Multi-Function Steering Wheel Control Module | Near steering column. |
| Navigation System Control Module W/CD | Left side of trunk. |
| Parallel Parking Assistance Control Module (6) | Right side of trunk. See Figure. |
| Parking Aid Control Module (5) | Under trunk right side cowl. See Figure. |
| Passenger Memory Seat Control Module | Under front passenger's seat. |
| Power Sun Roof Control Module | Center front of roof. |
| Rear View Camera System Control Module (5) | Right side of trunk. See Figure. |
| Seat Ventilation Control Unit (Driver) (1) | Under driver's seat cushion. See Figure. |
| Seat Ventilation Control Unit (Front Passenger) (12) | Under front passenger's seat cushion. See Figure. |
| Selector Lever Sensor System Control Module (2) | On shifter unit. See Figure. |
| Steering Column Electronic Systems Control Module (13) | On steering column, behind steering wheel. See Figure. |

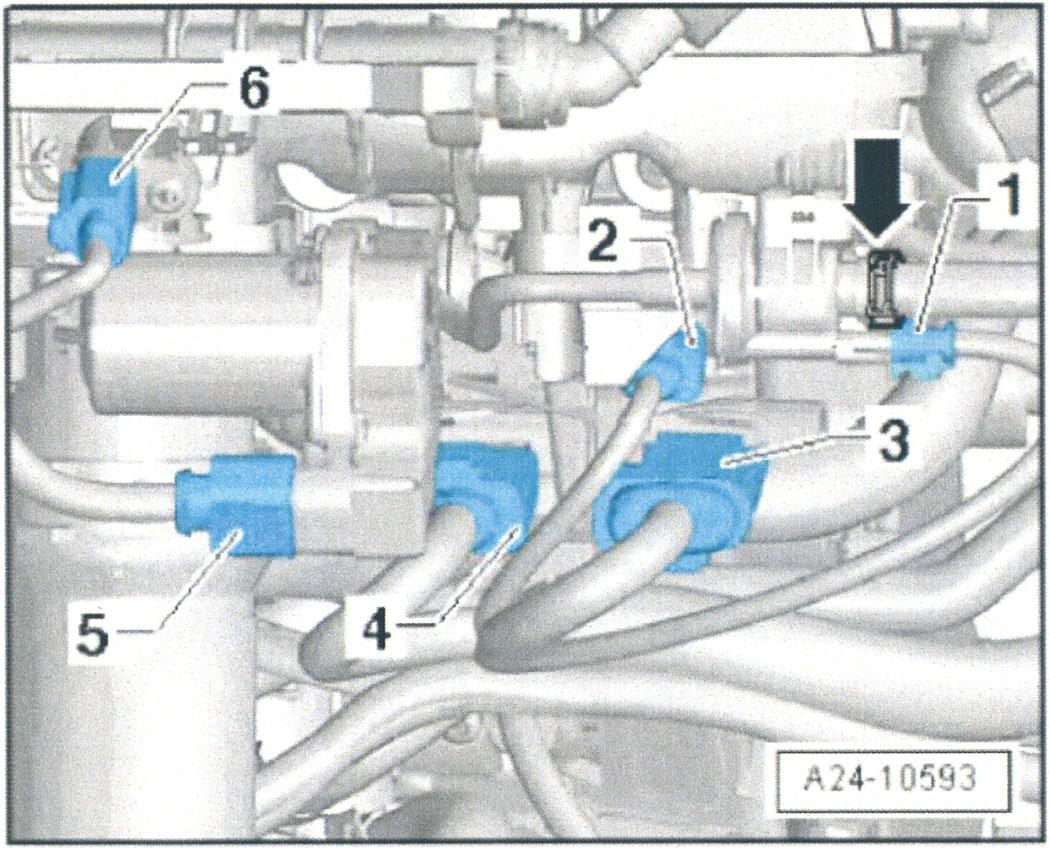

| Throttle Valve Control Module (2.0L) (5) | Left side of intake manifold. See Figure. |
| Throttle Valve Control Module (3.0L) (11) | On throttle valve housing. See Figure. |
| Tire Pressure Monitoring Control Module | Behind right side of dash. |
| Towing Recognition Control Module (5) | Right side of trunk. See Figure. |
| Transmission Control Module (TCM) | In mechatronic unit. |
| Vacuum Timing Control | Rear of engine. See Figure. |

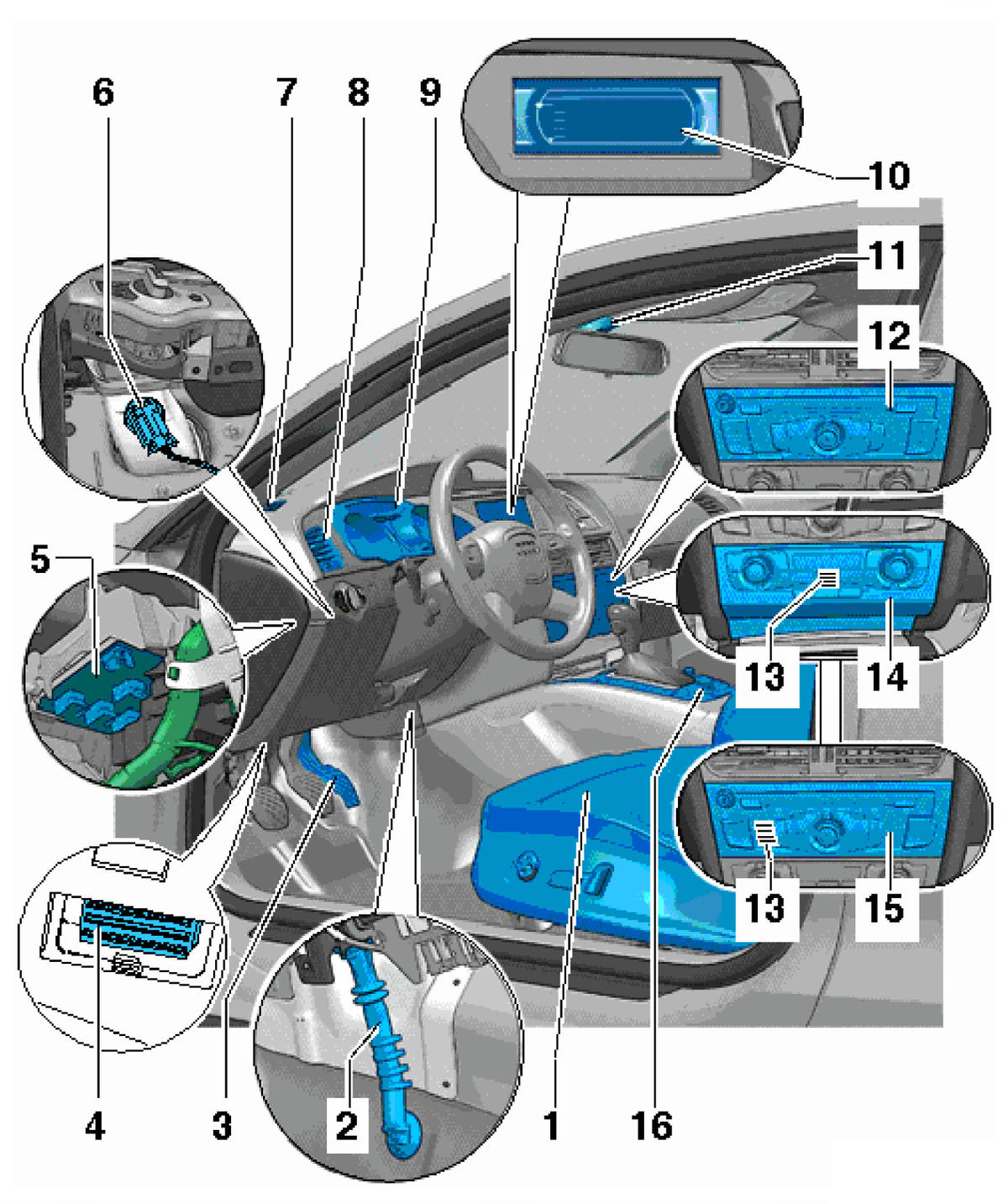

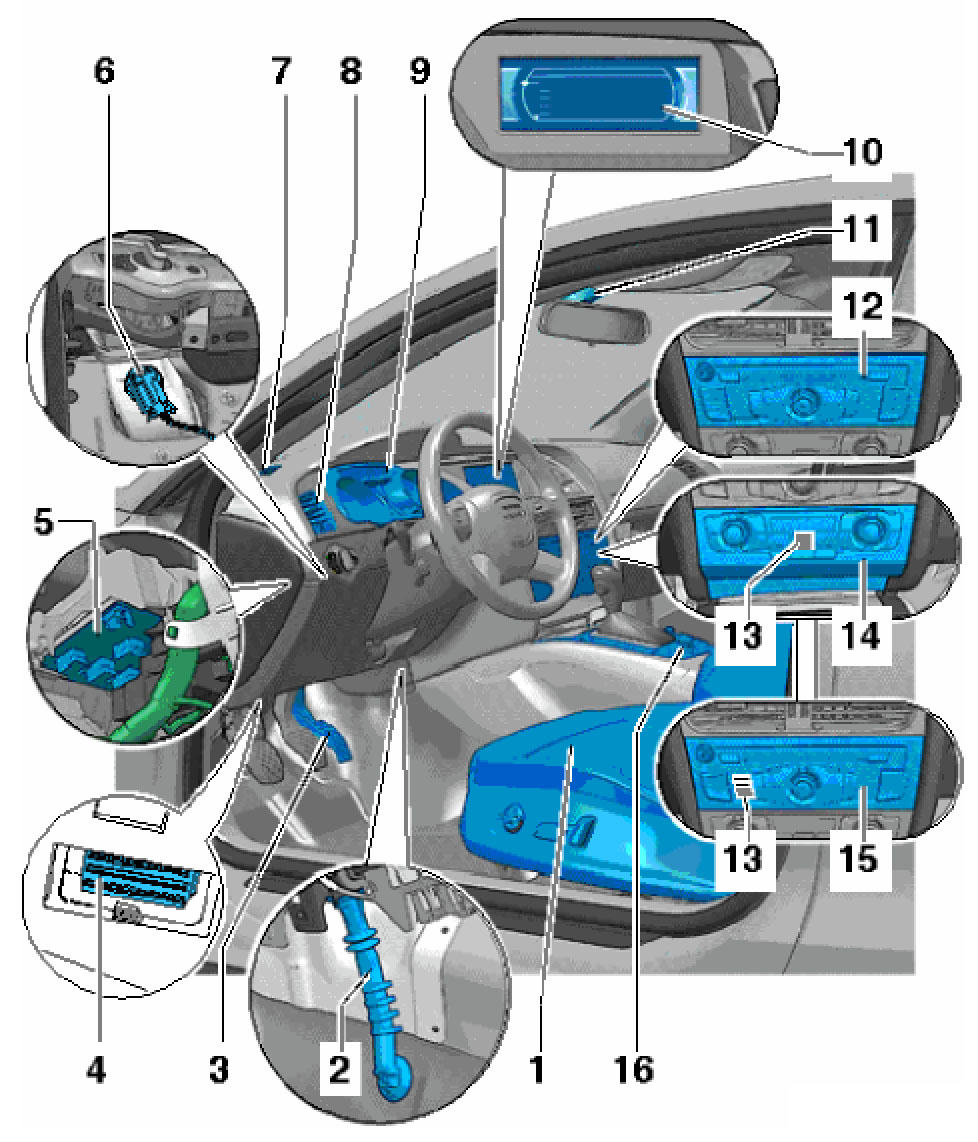

| Vehicle Electrical System Control Module (5) | Under left side of dash. See Figure. |
| Voltage Stabilizer | In spare tire well. |
| Wiper Control Module | Left rear of engine compartment, in plenum chamber. |
