Control Units

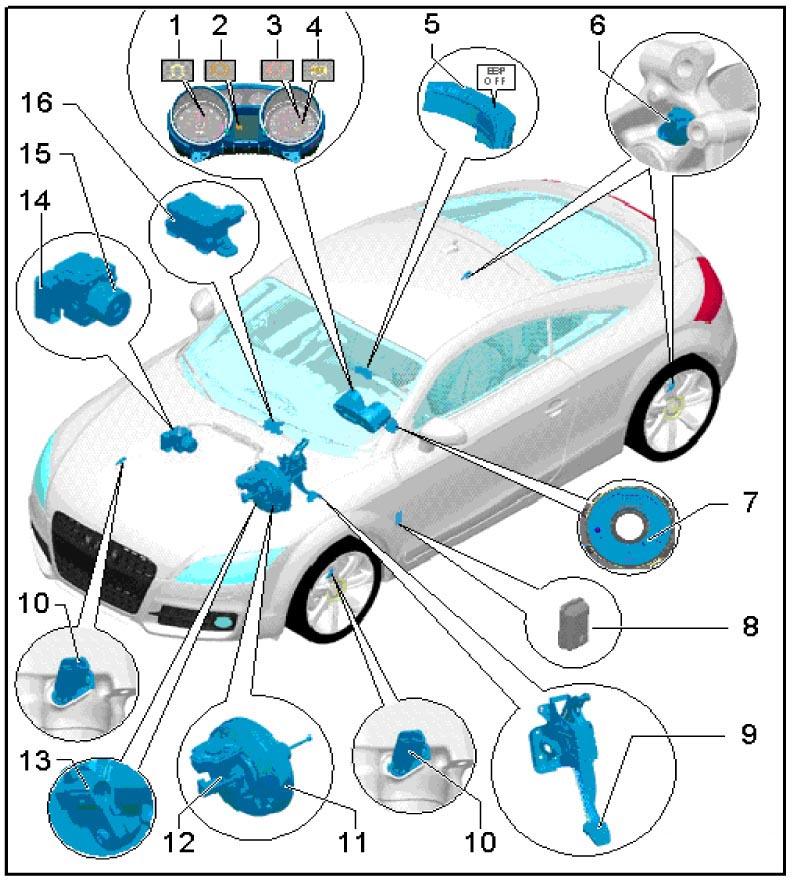

CONTROL UNITS LOCATION

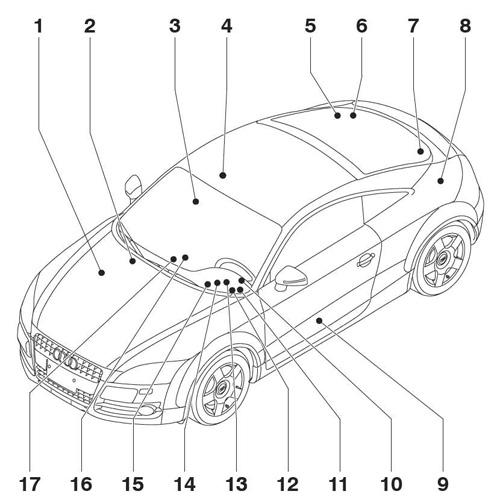

| Component | Location |
|---|---|
| ABS Control Module (1) | Right side of engine compartment. See Figure. |
| ABS Hydraulic Unit (15) | Right side of engine compartment. See Figure. |

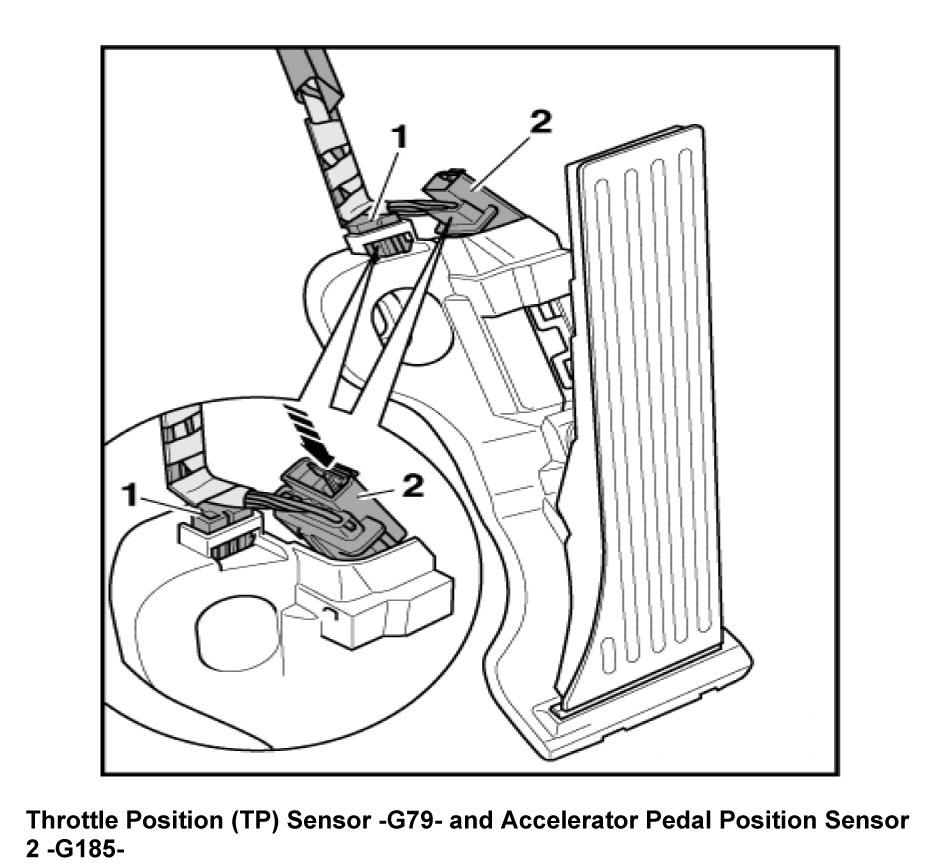

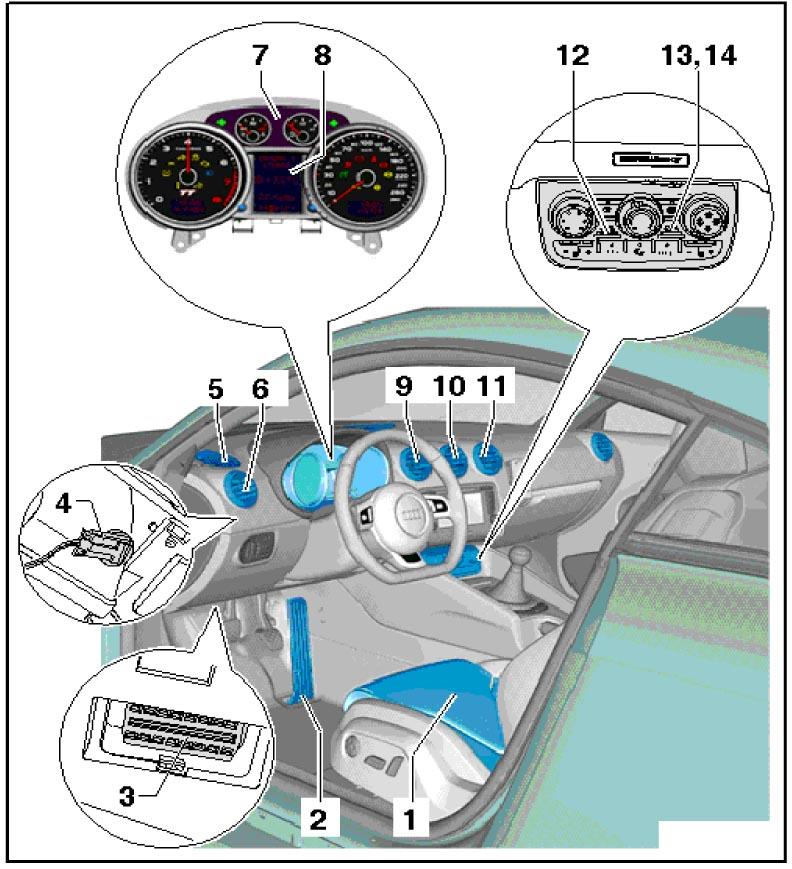

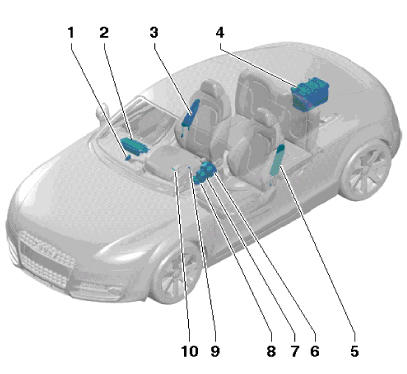

| Accelerator Pedal Module (2) | On accelerator pedal assembly. See Figure. |
| Air Bag Control Module (8) | Under center console. See Figure. |
| Climatronic Control Module (12) | In A/C control head. See Figure. |
| Comfort System Central Control Module (4) | Right side of luggage compartment. See Figure. |
| Convertible Top Control Module (7) | Left rear of luggage compartment. See Figure. |

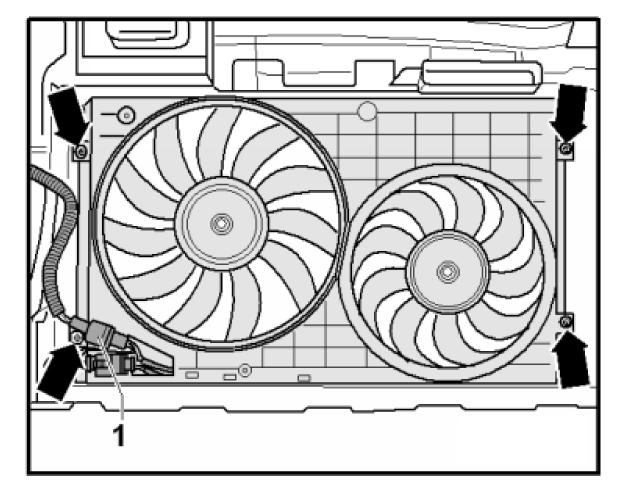

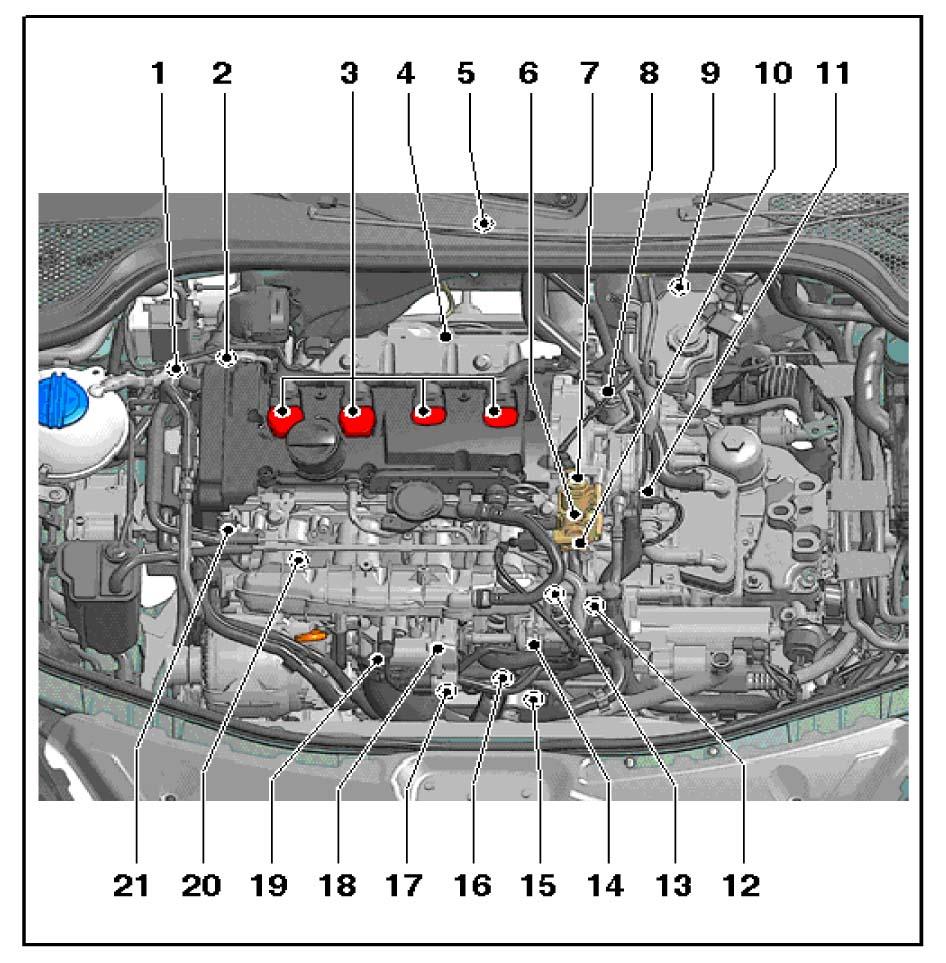

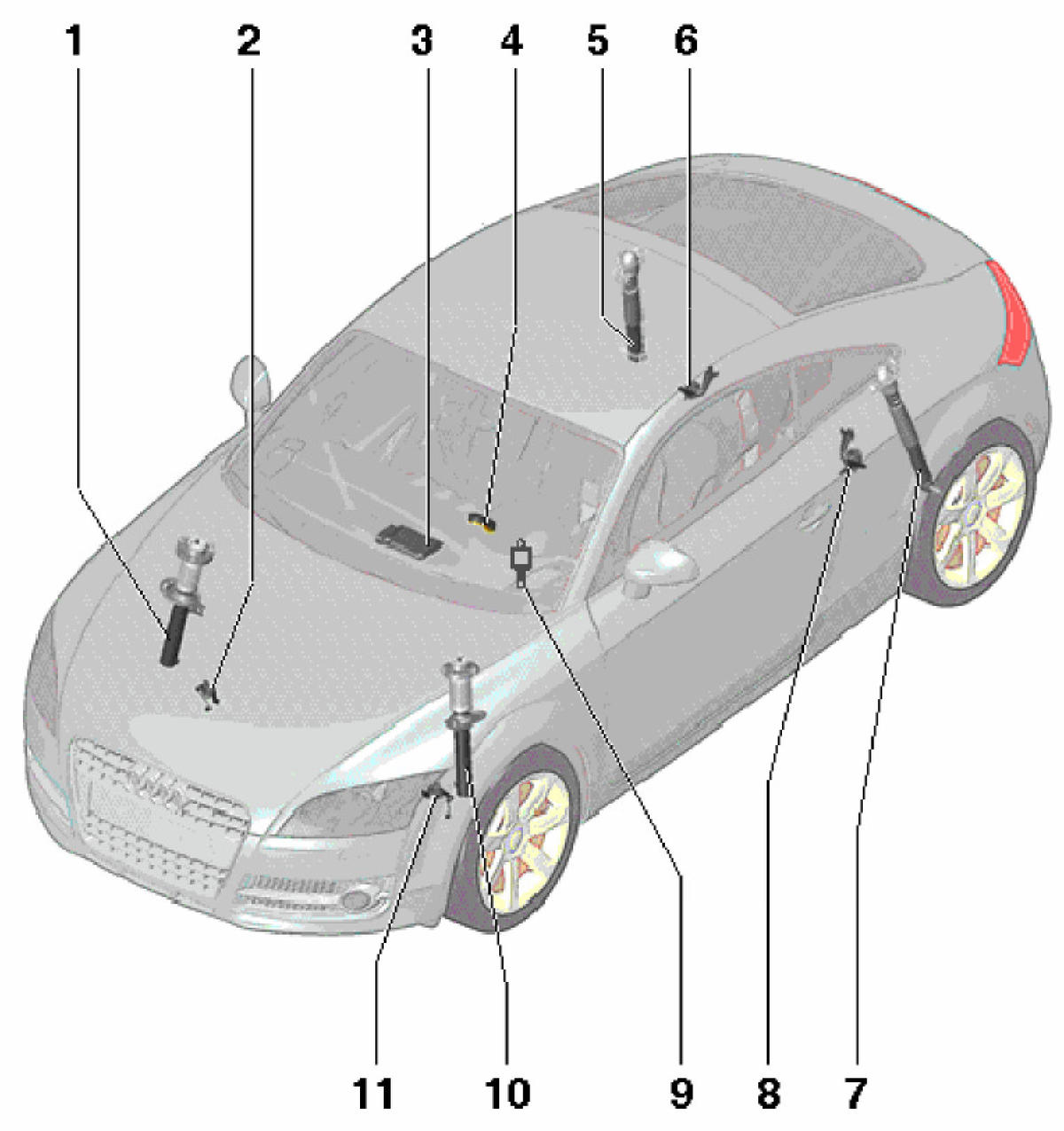

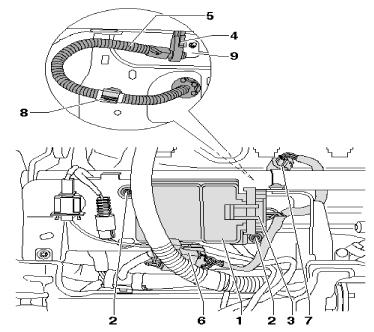

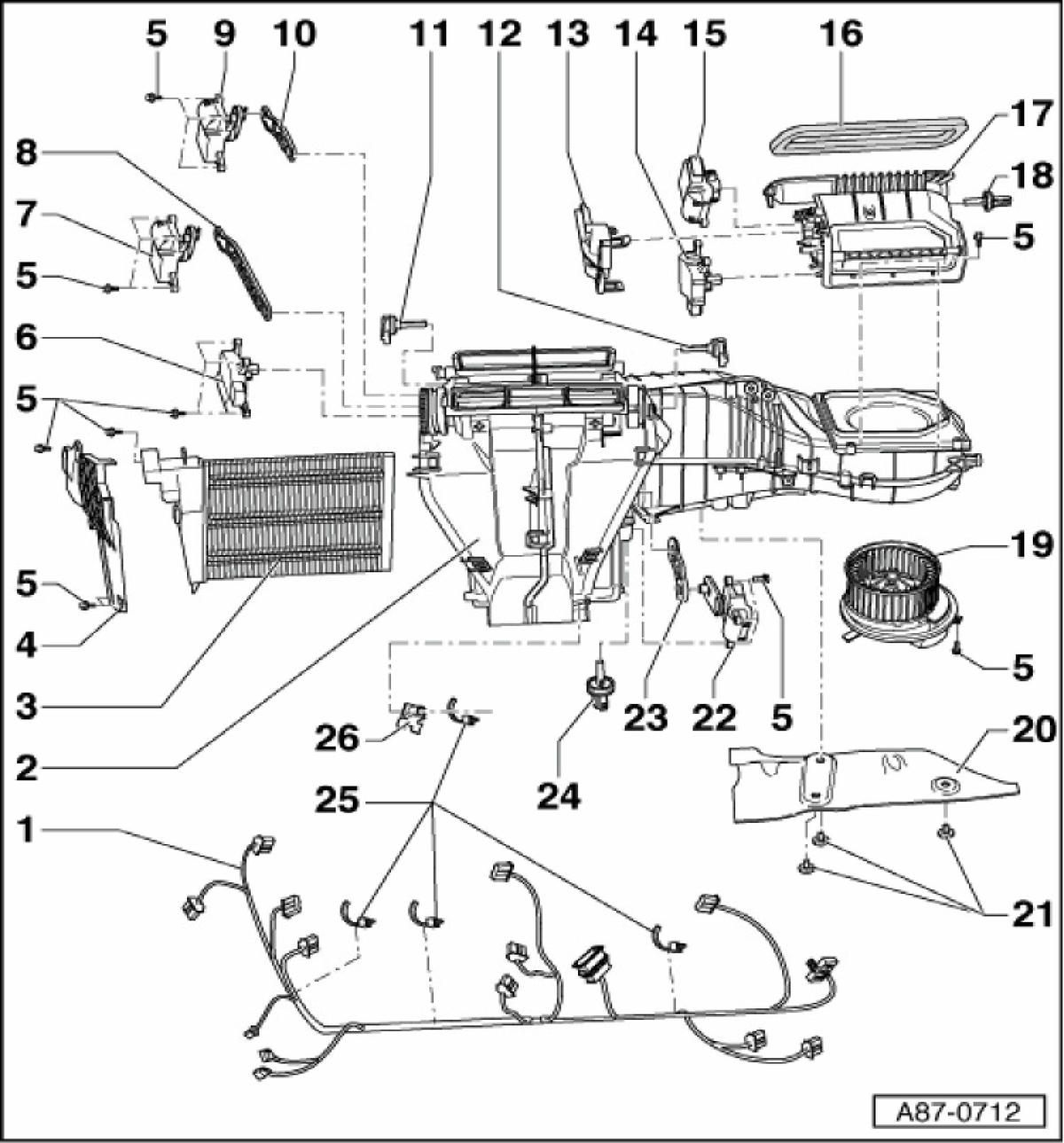

| Coolant Fan Control (FC) Module (1) | On left front of engine compartment. See Figure. |
| Digital Sound System Control Module (8) | Left rear of luggage compartment. See Figure. |
| Driver Door Control Module (9) | In driver's door. See Figure. |
| Electronic Dampening Control Module (3) | Under front passenger's seat. See Figure. |
| Engine Control Module (2.0L) (2) | Right rear of engine compartment. See Figure. |
| ESP Sensor Unit (16) | On center console, in front of selector lever. See Figure. |
| Fresh Air Blower Control Module (19) | On fresh air blower motor. See Figure. |
| Front Passenger Door Control Module (3) | In passenger's door. See Figure. |

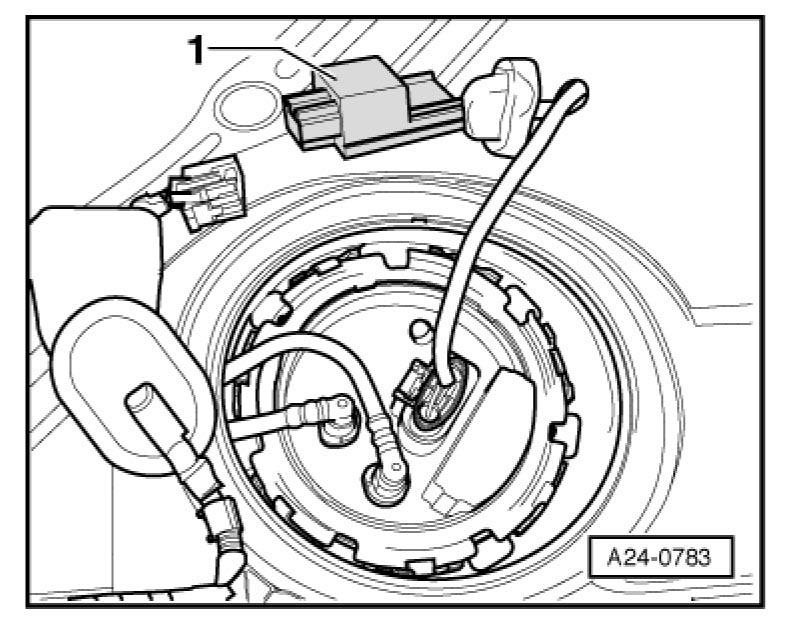

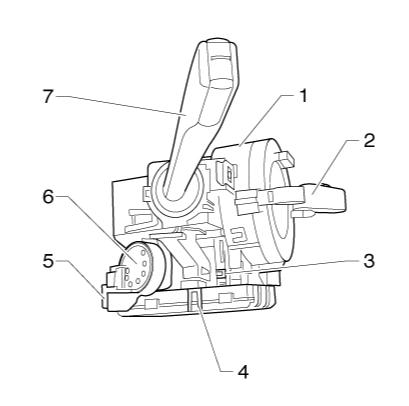

| Fuel Pump Control Module (1) | In fuel tank assembly. See Figure. |
| Headlamp Range Control Module (14) | Left side of dash. See Figure. |
| Instrument Cluster Control Module (7) | In instrument cluster. See Figure. |
| Parking Aid Control Module (3) | Right side of luggage compartment. See Figure. |
| Seat Occupied Recognition Control Module (1) | Under passenger's seat. See Figure. |
| Steering Column Electronic Systems Control Module (4) | At steering column. See Figure. |
| Throttle Valve Control Module (2.0L) (18) | On throttle body. See Figure. |
| Tire Pressure Monitoring Control Module (12) | Behind left side of dash. See Figure. |
| Vehicle Electrical System Control Module (11) | Left side of dash. See Figure. |
| Wiper Switch/On Board Computer (2) | At steering column. See Figure. |
