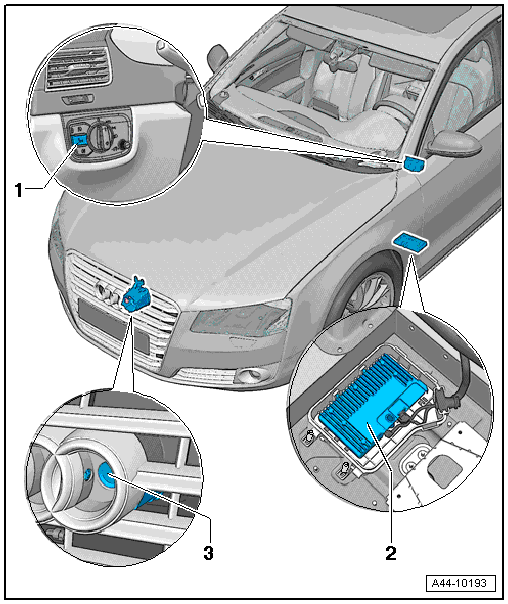

Component Location Overview - Infrared System
- Light Switch -E1- with Night Vision System Button -E680-
- Removing and installing, refer to[For engine(s) CDRA,CTUB,CEUA,CGTA,CPNA,CEJA] ControlsConnector Assignment on Trailer Hitch Socket
- Night Vision System Control Module -J853-
- Component location in front left footwell
- Removing and installing, refer to NIGHT VISION SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
- Night Vision System Camera -R212-
- Removing and installing, refer to NIGHT VISION SYSTEM CAMERA, REMOVING AND INSTALLING .
- Calibration, refer to Infrared System .
