Component Location Overview - Navigation System

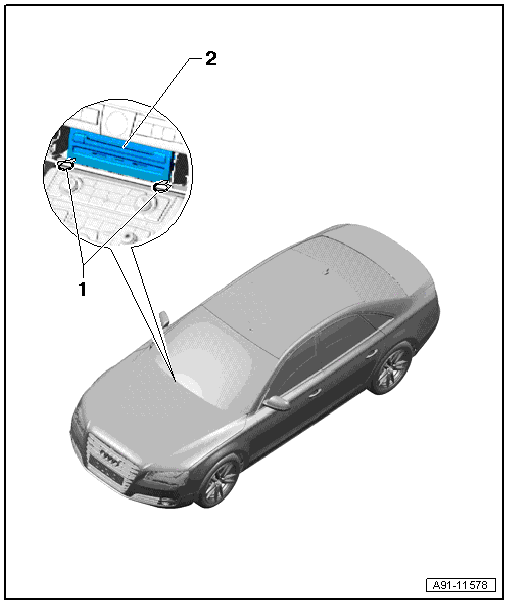

Fig 1: Component Location Overview Of Navigation System

Courtesy of AUDI OF AMERICA, LLC

1. Radio Removal ToolT10057
2. Information Electronics Control Module 1 -J794-
   • Connector assignment, refer to Information Electronics Control Module 1 -J794- CONNECTOR ASSIGNMENT .
   • Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING
