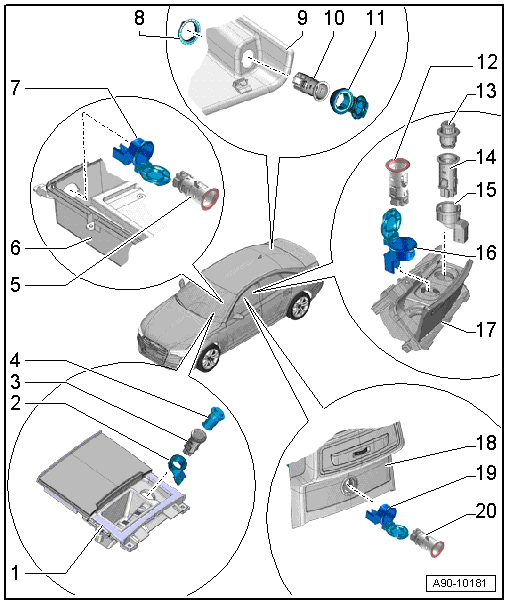

Cigarette Lighter, 12 Volt Outlets Overview: Notes
- Front Ashtray
- For the cigarette lighter -U1-
- Cigarette Lighter Illumination -L28-
- For the cigarette lighter -U1-
- Can only be replaced together with the cigarette lighter
- Cigarette Lighter -U1-
- Removal and installation, refer to Cigarette Lighter -U1-
- Cigarette Lighter
- 12 V Socket -U5-
- Removal and installation, refer to Socket Illumination Bulb -L42-, 12 V Socket -U5-
- Storage Compartment
- In center console
- Socket Illumination -L42-
- For the 12 V socket -U5-
- Removal and installation, refer to Socket Illumination Bulb -L42-, 12 V Socket -U5-
- Nut
- 2 Nm
- Luggage Compartment Side Trim Panel Cover
- 12 V Socket 3 -U19-
- Removal and installation, refer to 12 V Socket 3 -U19-
- Removal and installation, refer to 12 V Socket 3 -U19-, DISASSEMBLY
- Mount With Cover
- For the 12 V socket 3 -U19-
- 12 V Socket 4 -U20-
- Removal and installation, refer to Socket Illumination Bulb -L42-, 12 V Socket 4 -U20-
- Cigarette Lighter
- Rear Cigarette Lighter -U9-
- Removal and installation, refer to Rear Cigarette Lighter Illumination Bulb -L32-, Rear Cigarette Lighter -U9-
- Rear Cigarette Lighter Illumination Bulb -L32-
- For the rear cigarette lighter -U9-
- Removal and installation, refer to Rear Cigarette Lighter Illumination Bulb -L32-, Rear Cigarette Lighter -U9-
- Socket Illumination -L42-
- For the 12 V socket 4 -U20-
- Removal and installation, refer to Socket Illumination Bulb -L42-, 12 V Socket 4 -U20-
- Mount
- For the cigarette lighter and socket
- Equipment level
- Divider
- For the center console
- Equipment level
- Socket Illumination -L42-
- For the 12 V socket 2 -U18-
- Removal and installation, refer to Socket Illumination Bulb -L42-, 12 V Socket 2 -U18-
- 12V Socket 2 -U18-
- Removal and installation, refer to Socket Illumination Bulb -L42-, 12 V Socket 2 -U18-
