Windshield Projection Control Module Overview

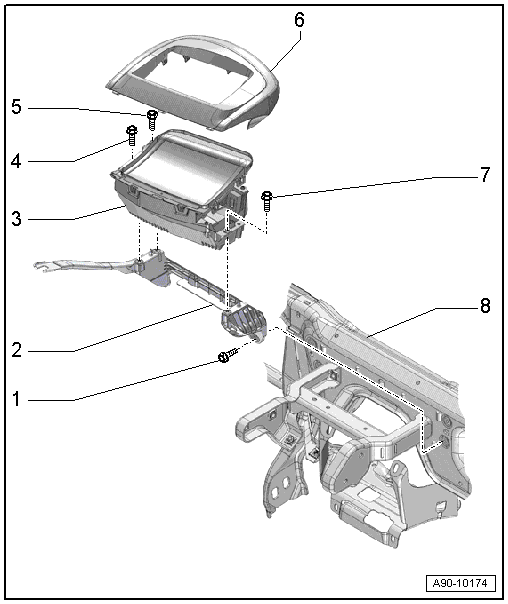

Fig 1: Identifying Windshield Projection Control Module Overview

Courtesy of AUDI OF AMERICA, LLC

Screw
- Quantity: 4
- Tightening specification, refer to SPECIFICATIONS
Bracket
- For windshield projection control module
- Removal and installation, refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE -J898-
Windshield Projection Head Up Display Control Module -J898-
- Removal and installation, refer to Windshield Projection Head Up Display Control Module -J898-
- Calibrating, refer to Windshield Projection Head Up Display Control Module -J898-, CALIBRATING
Screw
- 5.5 Nm
Screw
- 5.5 Nm
Upper Cover
- Removal and installation, refer to INTERIOR TRIM, SEDAN
Screw
- 5.5 Nm
Central Tube
