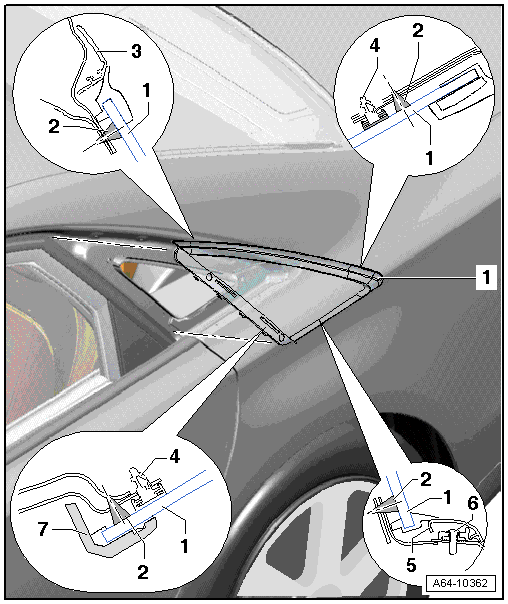

Overview - Side Window
- Side Window
- Roof trim molding and side trim molding are removed.
- When installing a new window, first install securing pins on the C-pillar and D-pillar and then press the window into the cut-out.
- If a side window is going to be re-installed, then secure it to the C-pillar and D-pillar with adhesive tape.
- Adhesive
- Observe minimum curing time. Refer to MINIMUM CURING TIME FOR BONDED WINDOWS .
- Roof Trim Molding
- The roof trim molding is clipped onto the body.
- Securing Pin
- Quantity: 3
- Is cut through when removing window.
- Trim Strip
- Removing. Refer to SIDE WINDOW TRIM MOLDING, REMOVING AND INSTALLING .
- Molding
- No replacement part.
- Must not be damaged in field of vision.
