Infotainment System Display, Removing And Installing [XXXX]: Installing

Courtesy of AUDI OF AMERICA, LLC

-- Install in reverse order of removal. Note the following:

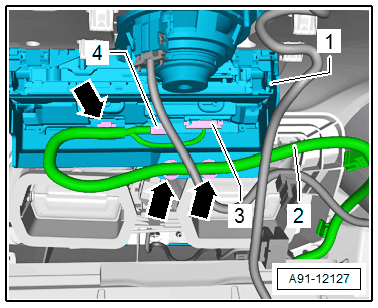

-- Pay special attention to the correct wiring routing of the display-wires. Pay attention to the wiring harness mounting point of the display -arrows- on the display support.

• 1 - Display with kinematics
• 2 - Display wiring harness
• 3 - Display connector 8-pin
• 4 - Display connector 4-pin
