Transmission Identification

Code Letters, Location on Transmission

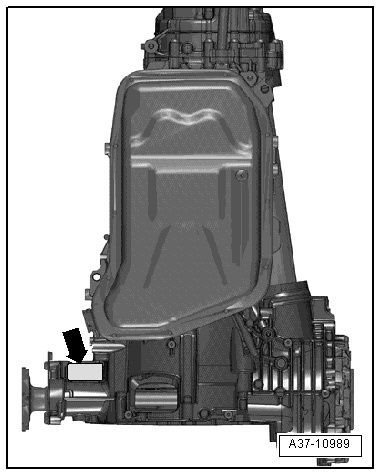

Fig 1: Code Letters, Location On Transmission

Courtesy of AUDI OF AMERICA, LLC

• Transmission code letters are located on the data plate under the transmission. Type plate installed location -arrow-.

Transmission Code and Transmission Serial Number

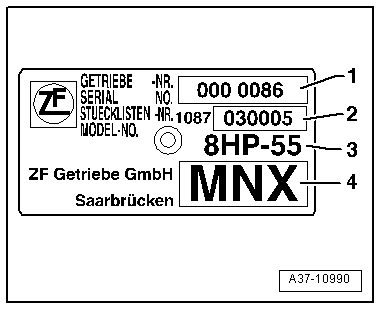

Fig 2: Transmission Code and Serial Number

Courtesy of AUDI OF AMERICA, LLC

Example:

1. Transmission serial number
2. Parts list number
3. Manufacturer transmission identification: 8HP-55
4. Example of a transmission code: MNX
