Overview - Mounts, Vehicles With 6-Cylinder Engine

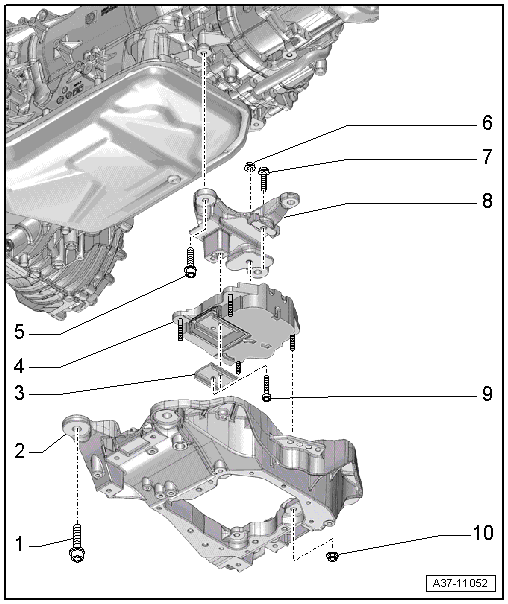

Fig 1: Automatic Transmission Mount Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • M10 x 55 8.8: 40 Nm
   • M10 x 40 10.9: 70 Nm
2. Tunnel Crossmember
   • Removing and installing. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING, VEHICLES WITH 6-CYLINDER ENGINE
3. Stop
   • For the transmission mount
4. Transmission Mount
   • Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
5. Bolt
   • 40 Nm
6. Nut
   • 20 Nm
   • Only remove if the transmission mount must be separated from the transmission support
7. Bolt
   • 40 Nm
8. Transmission Support
   • Removing and Installing
9. Bolt
   • 20 Nm + an additional 90° turn
   • Always replace
   • Only remove if the transmission mount must be separated from the transmission support
10. Nut
    • 20 Nm
