Overview - Parking Lock Emergency Release

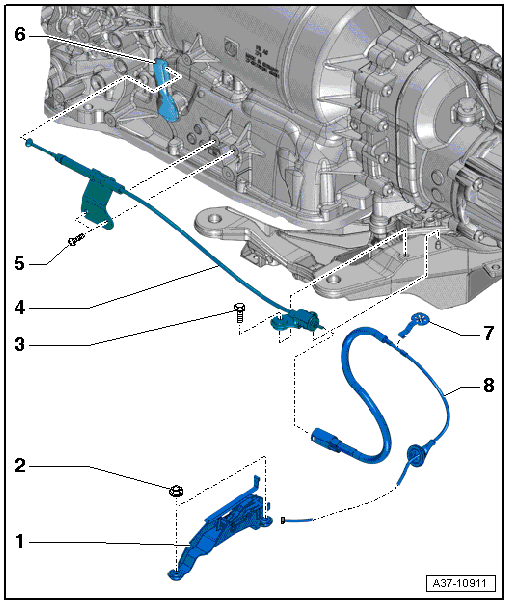

Fig 1: Identifying Parking Lock Emergency Release Overview

Courtesy of AUDI OF AMERICA, LLC

Emergency Release Lever
- For the parking lock
Nut
- 2.5 Nm
- Quantity: 2
Bolt
- 9 Nm
Front Emergency Release Cable
- For the parking lock
- Do not bend
- Removing and installing. Refer to FRONT EMERGENCY RELEASE CABLE, PARKING LOCK, REMOVING AND INSTALLING .
Bolt
- 9 Nm
- Quantity: 2
Selector Lever
- For the parking lock emergency release.
Clip
- Always replace
- For selector lever cable
Rear Emergency Release Cable
- For the parking lock
- Do not bend
- Removing and installing. Refer to REAR EMERGENCY RELEASE CABLE, PARKING LOCK, REMOVING AND INSTALLING .
